برد Stm32f051 board

برد Stm32f051 board

السیدی و OLED و پروگرامر های متناسب با این برد را در قسمت لوازم میتوانید مشاهده کنید.

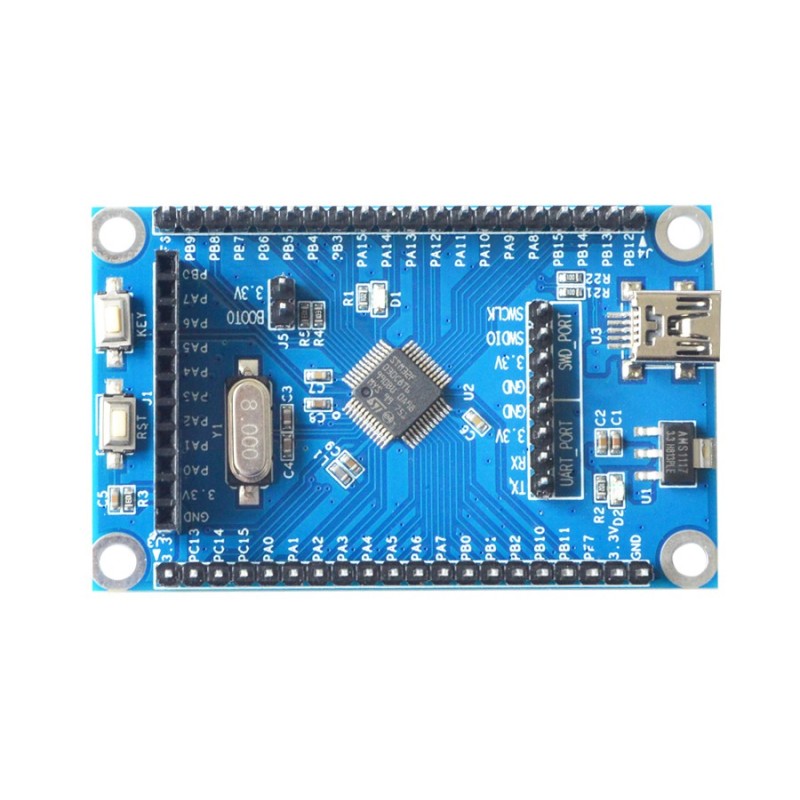

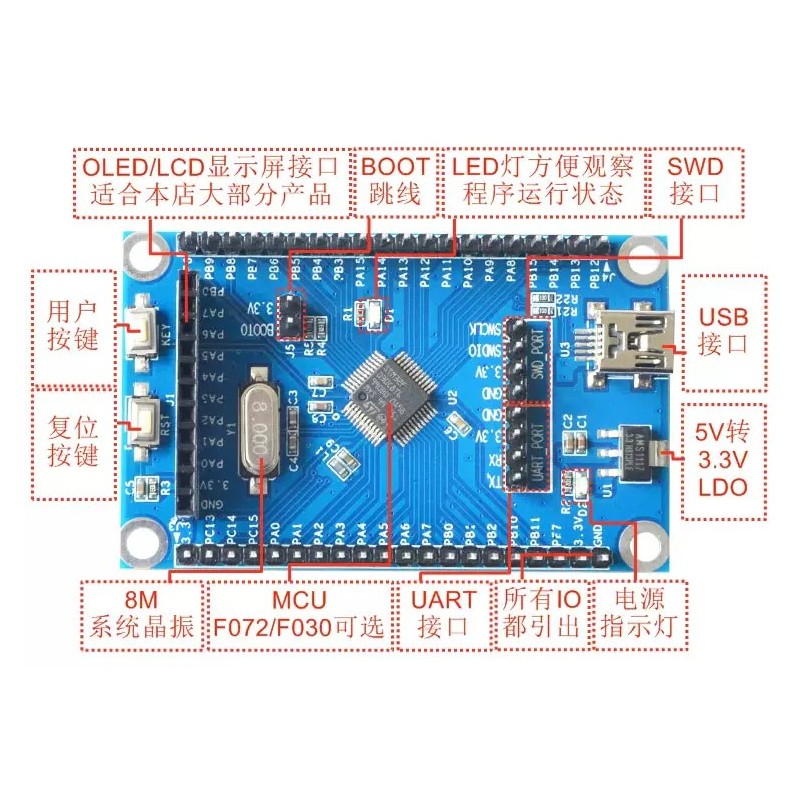

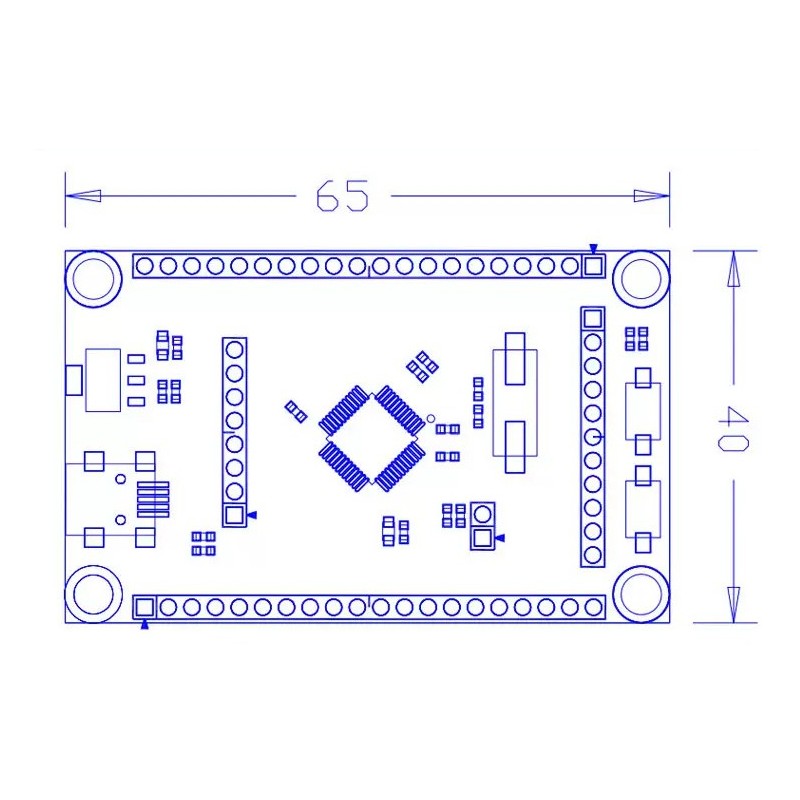

1) Onboard STM32F030C8T6/STM32F051/STM32F072 (C8T6 chip The above three chips are selected according to customers' own needs)
2) can be powered by USB
3) All 10 ports are drawn
4) 1 color LEDs are all pulled up to observe the running status of the program.
5) 2 high quality independent buttons.

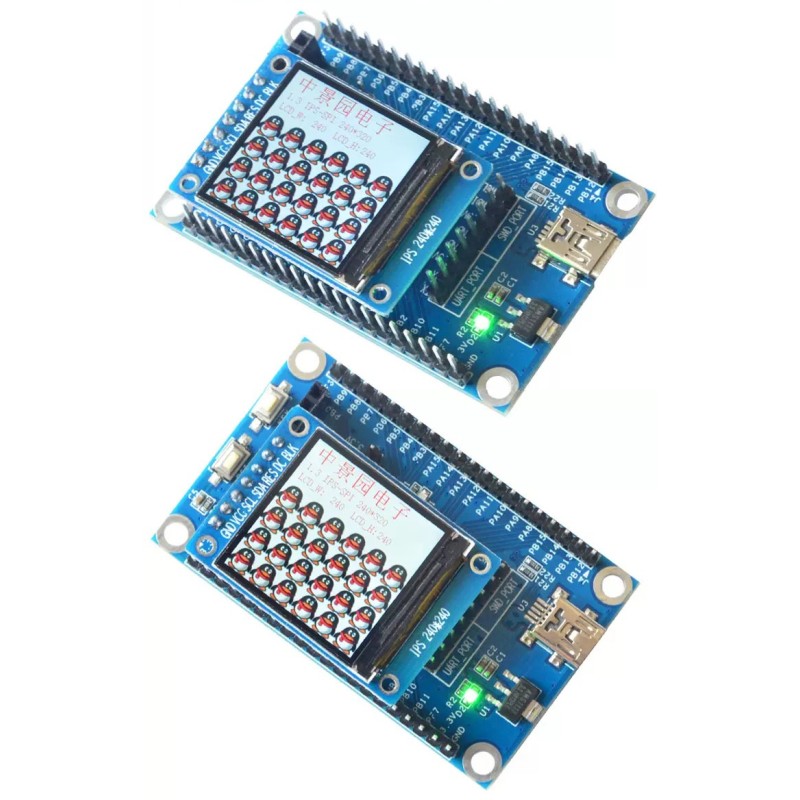

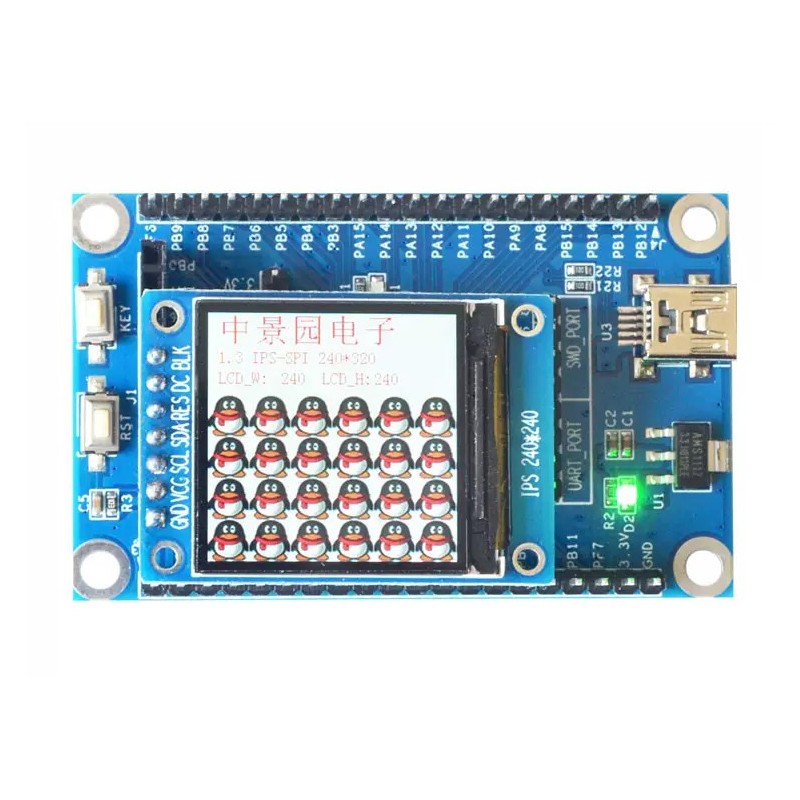

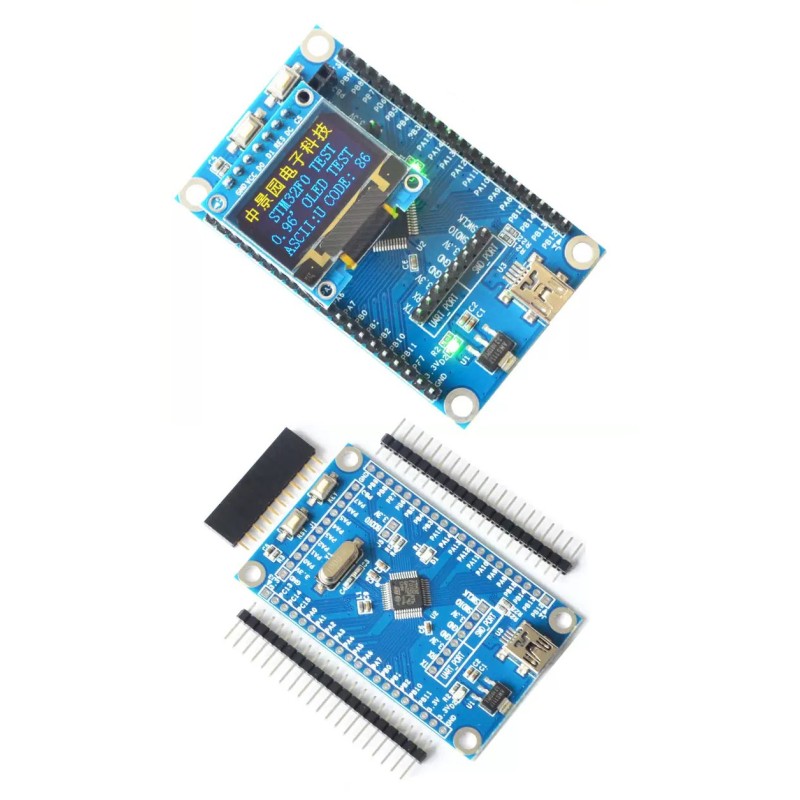

6) On-board OLED/LCD display interface, suitable for most of our display
7) 3.3v and 5V power pins are provided outward.
8) Operating voltage: 3.3V
9) Falsh program storage space 64K Byte

مشخصات میکروی این برد را در قسمت زیر میتوانید مشاهده کنید:

The STM32F051xx microcontrollers incorporate the high-performance ARM®Cortex®-M0 32-bit RISC core operating at up to 48 MHz frequency, high-speed embedded memories (up to 64 Kbytes of Flash memory and 8 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. All devices offer standard communication interfaces (up to two I2Cs, up to two SPIs, one I2S, one HDMI CEC and up to two USARTs), one 12-bit ADC, one 12-bit DAC, six 16-bit timers, one 32-bit timer and an advanced-control PWM timer.

The STM32F051xx microcontrollers operate in the -40 to +85 °C and -40 to +105 °C temperature ranges, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving modes allows the design of low-power applications.
The STM32F051xx microcontrollers include devices in seven different packages ranging from 32 pins to 64 pins with a die form also available upon request. Depending on the device chosen, different sets of peripherals are included.
These features make the STM32F051xx microcontrollers suitable for a wide range of applications such as application control and user interfaces, hand-held equipment, A/V receivers and digital TV, PC peripherals, gaming and GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms and HVACs.

Key Features
o  Core: ARM®32-bit Cortex®-M0 CPU, frequency up to 48 MHz
o  Memories
        16 to 64 Kbytes of Flash memory
        8 Kbytes of SRAM with HW parity checking
o  CRC calculation unit
o  Reset and power management
        Digital and I/O supply: VDD= 2.0 V to 3.6 V
        Analog supply: VDDA= from VDDto 3.6 V
        Power-on/Power down reset (POR/PDR)
        Programmable voltage detector (PVD)
        Low power modes: Sleep, Stop, Standby
        VBATsupply for RTC and backup registers
o  Clock management
        4 to 32 MHz crystal oscillator
        32 kHz oscillator for RTC with calibration
        Internal 8 MHz RC with x6 PLL option
        Internal 40 kHz RC oscillator
o  Up to 55 fast I/Os
        All mappable on external interrupt vectors
        Up to 36 I/Os with 5 V tolerant capability
o  5-channel DMA controller
o  One 12-bit, 1.0 μs ADC (up to 16 channels)
        Conversion range: 0 to 3.6 V
        Separate analog supply from 2.4 up to 3.6
o  One 12-bit DAC channel
o  Two fast low-power analog comparators with programmable input and output
o  Up to 18 capacitive sensing channels supporting touchkey, linear and rotary touch sensors
o  Up to 11 timers
        One 16-bit 7-channel advanced-control timer for 6 channels PWM output, with deadtime generation and emergency stop
        One 32-bit and one 16-bit timer, with up to 4 IC/OC, usable for IR control decoding
        One 16-bit timer, with 2 IC/OC, 1 OCN, deadtime generation and emergency stop
        Two 16-bit timers, each with IC/OC and OCN, deadtime generation, emergency stop and modulator gate for IR control
        One 16-bit timer with 1 IC/OC
        Independent and system watchdog timers
        SysTick timer: 24-bit downcounter
        One 16-bit basic timer to drive the DAC
o  Calendar RTC with alarm and periodic wakeup from Stop/Standby
o  Communication interfaces
        Up to two I2C interfaces, one supporting Fast Mode Plus (1 Mbit/s) with 20 mA current sink, SMBus/PMBus and wakeup from Stop mode
        Up to two USARTs supporting master synchronous SPI and modem control, one with ISO7816 interface, LIN, IrDA capability, auto baud rate detection and wakeup feature
        Up to two SPIs (18 Mbit/s) with 4 to 16 programmable bit frame, one with I2S interface multiplexed
o  HDMI CEC interface, wakeup on header reception
o  Serial wire debug (SWD)
o  96-bit unique ID
o  All packages ECOPACK®2

لیست موارد موجود در دی وی دی ارسالی همراه برد:

لیست مثال ها:

Development board program:

LCD display:

OLED display:
