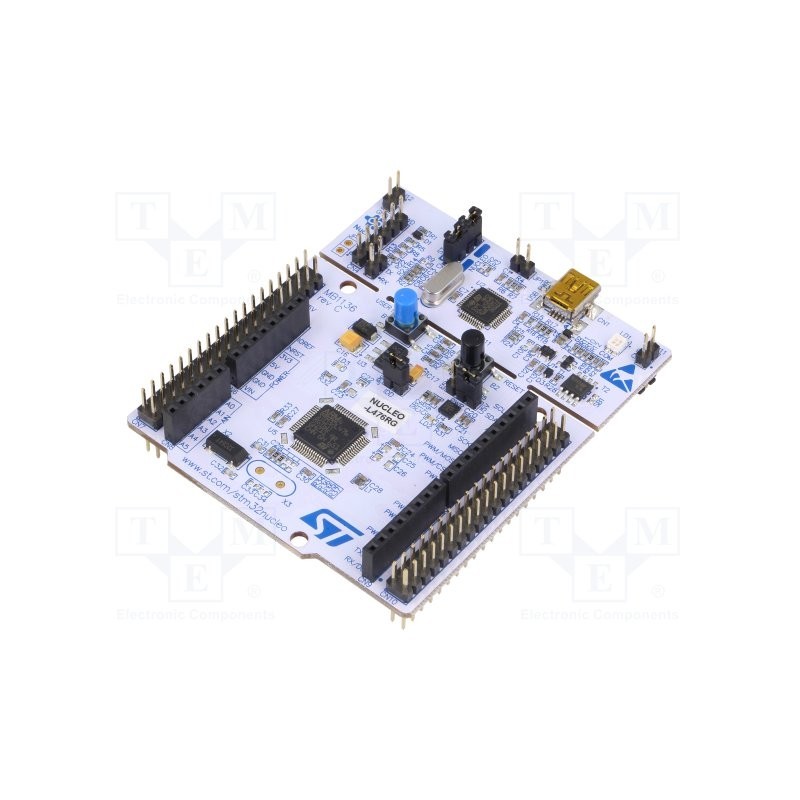

برد NUCLEO-L476RG

  NUCLEO-L476RG- Development Boards & Kits - ARM STM32 Nucleo-64 development board with STM32L476RG MCU, supports Arduino and ST morpho connectivity


Manufacturer:
     STMicroelectronics
Product Category:
   Development Boards & Kits - ARM
Series:
     NUCLEO-L476RG
Product:
     Development Boards
Core:
     ARM Cortex M4
Tool Is For Evaluation Of:
     STM32L476RGT6
Description/Function:
     STM32 nucleo board
Brand:
     STMicroelectronics
Interface Type:
     USB
Data Bus Width:
     32 bit
For Use With:
     STM32L
Operating Supply Voltage:
     3.3 V, 5 V, 7 V to 12 V
Product Type:
     Development Boards & Kits - ARM
Subcategory:
     Development Tools
Tradename:
   NUCLEO

Affordable and flexible platform to ease prototyping using a STM32L476RGT6 microcontroller.
Overview:
The STM32 Nucleo board provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features.
The Arduino™ connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.
The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer.

Microcontroller features:
    STM32L476RGT6 in LQFP64 package
    ARM®32-bit Cortex®-M4 CPU
    Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from Flash memory
    80 MHz max CPU frequency
    VDD from 1.71 V to 3.6 V
    1 MB Flash
    128 KB SRAM
    random generator (TRNG for HW entropy)
    Quad SPI (1)
    Timers General Purpose (7)
    Timers Advanced-Control (2)
    Timers Basic (2)
    Timers LowPower (2)
    Systick
    Watchdog (2)
    SPI (3)
    I2C (3)
    USART (3)
    UART (2)
    LPUART (1)
    USB OTG Full Speed
    CAN (1)
    SAI (2)
    SDMMC
    SWPMI
    LCD 8x28 or 4x32
    GPIO (51) with external interrupt capability
    Capacitive sensing with 12 channels
    12-bit ADC (3) with 16 channels
    12-bit DAC with 2 channels
    Analog comparator (2)
    Opamp (2)

Nucleo features:
    Two types of extension resources
        Arduino Uno Revision 3 connectivity
        STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
    On-board ST-LINK/V2-1 debugger/programmer with SWD connector
        Selection-mode switch to use the kit as a standalone ST-LINK/V2-1
    Flexible board power supply
        USB VBUS or external source (3.3 V, 5 V, 7 - 12 V)
        Power management access point
    User LED (LD2)
    Two push buttons: USER and RESET
    USB re-enumeration capability: three different interfaces supported on USB
        Virtual Com port
        Mass storage (USB Disk drive) for drag'n'drop programming
        Debug port

توضیحات بیشتر رو میتوانید از این سایت دریافت کنید.

Nucleo pinout:

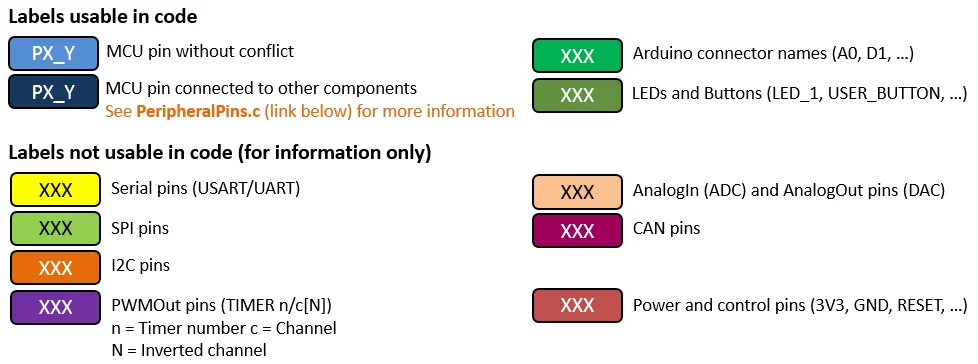

Pins Legend

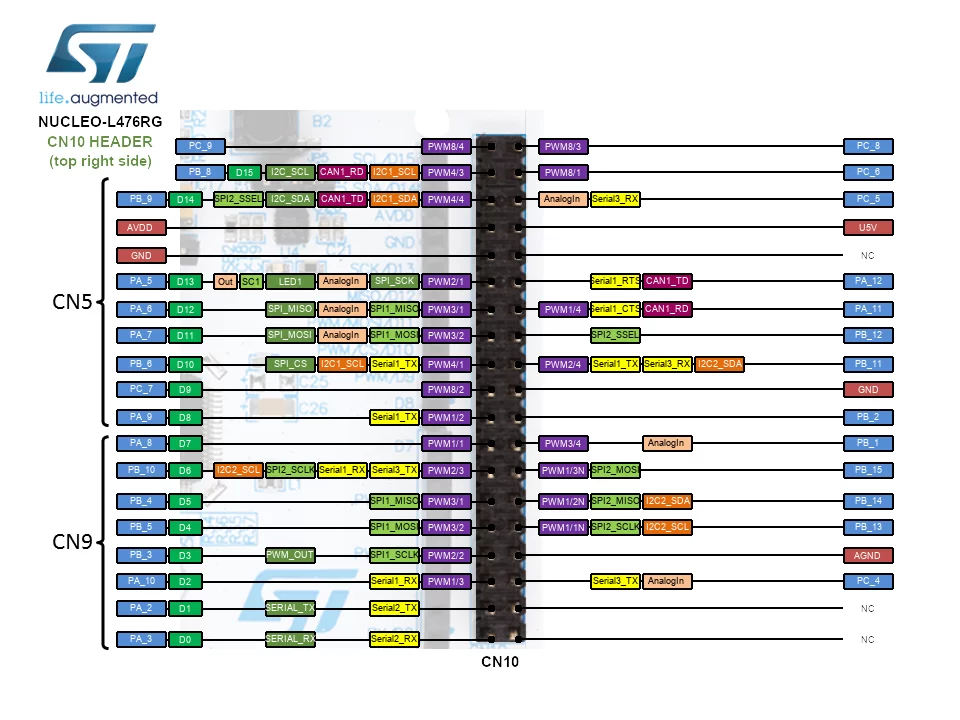

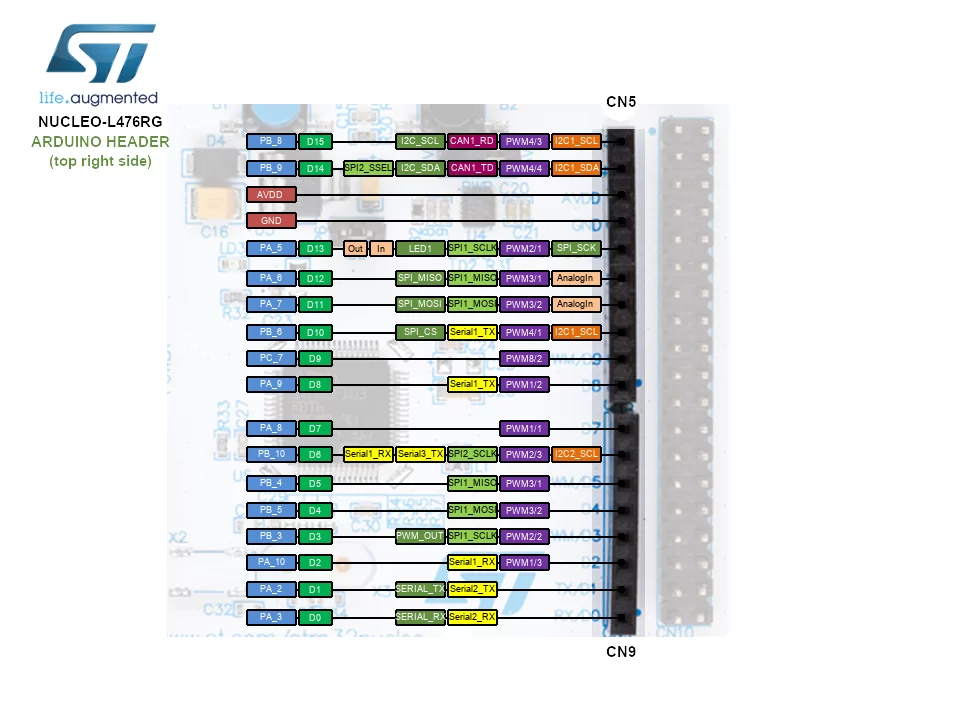

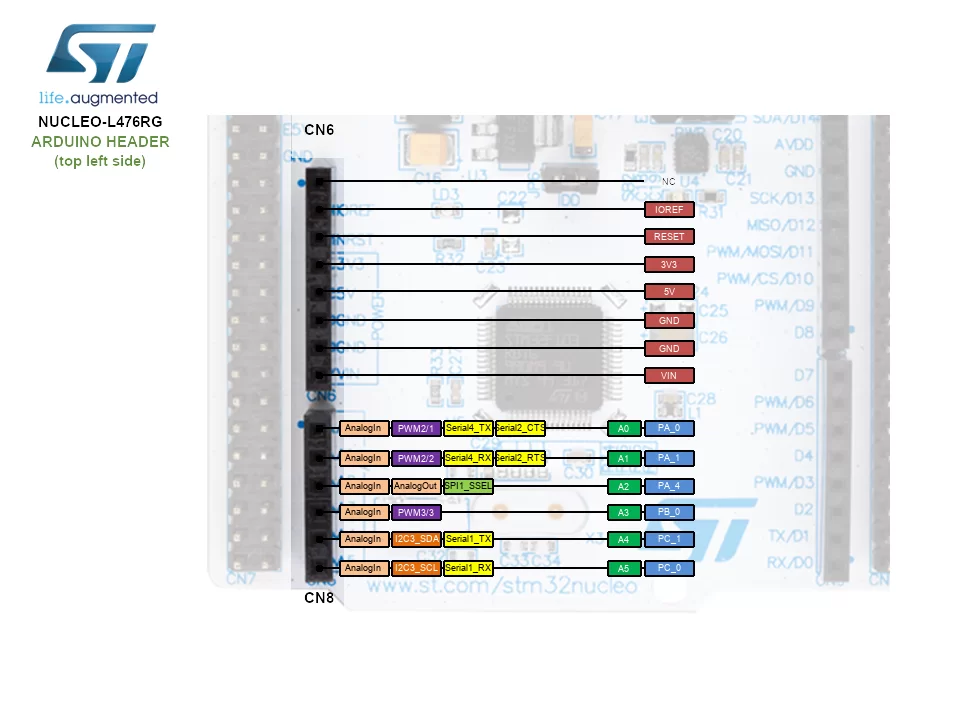

Arduino-compatible headers:

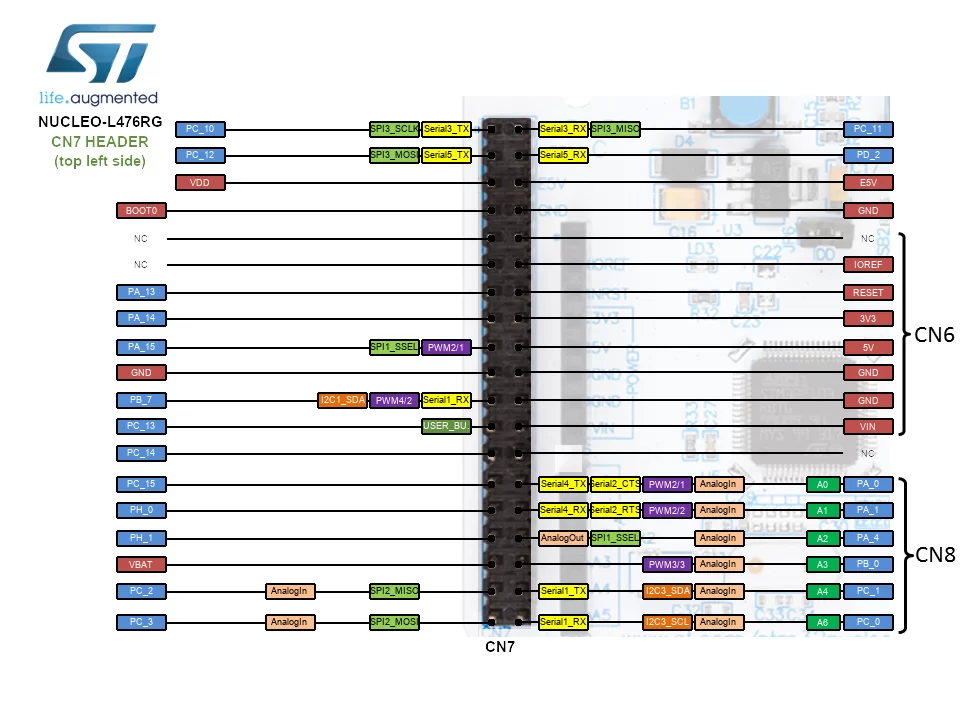

Morpho headers:
These headers give access to all STM32 pins
