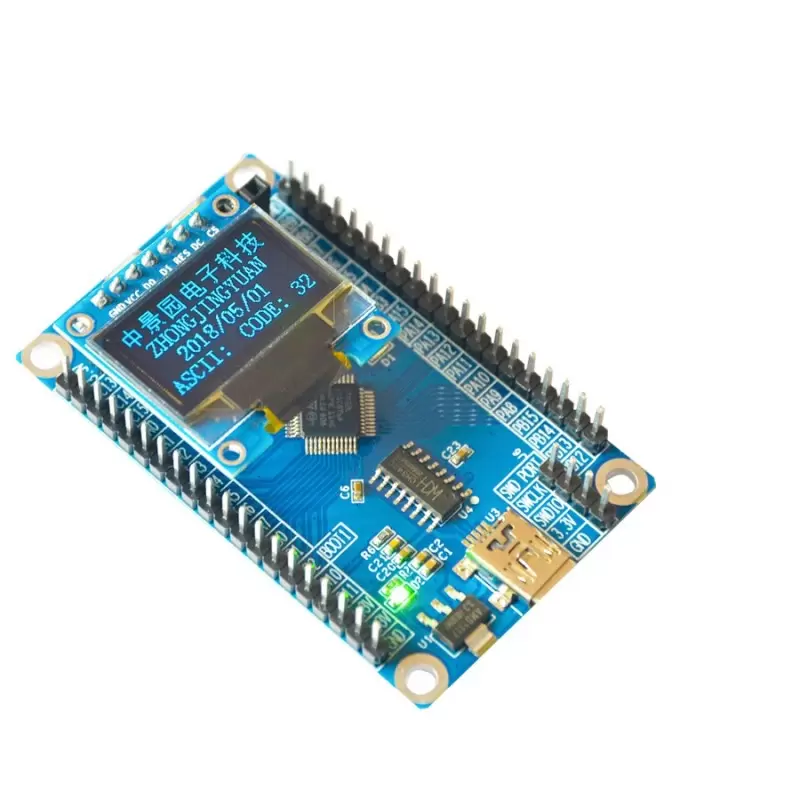

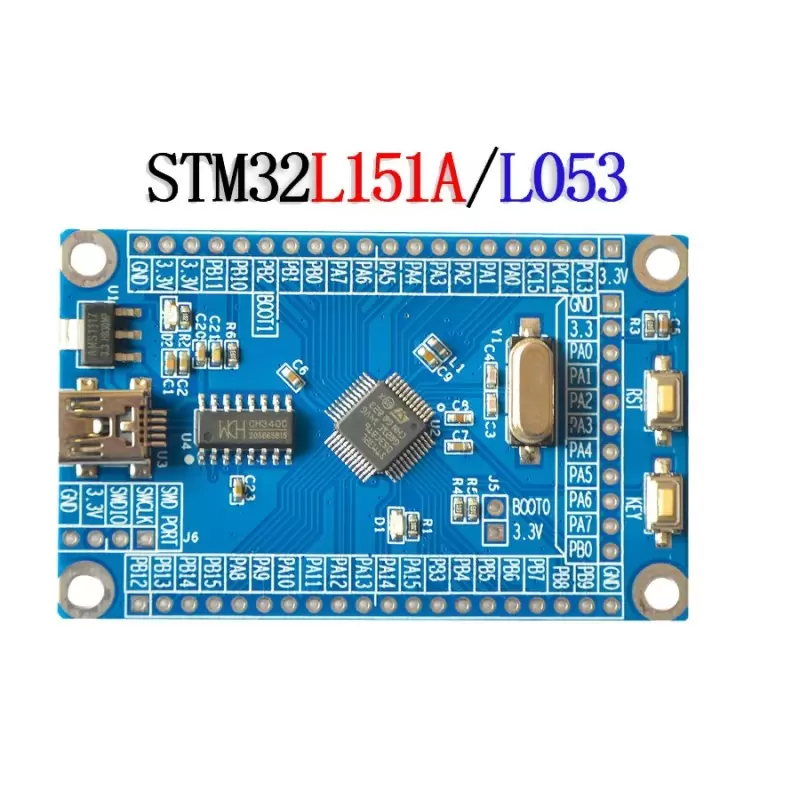

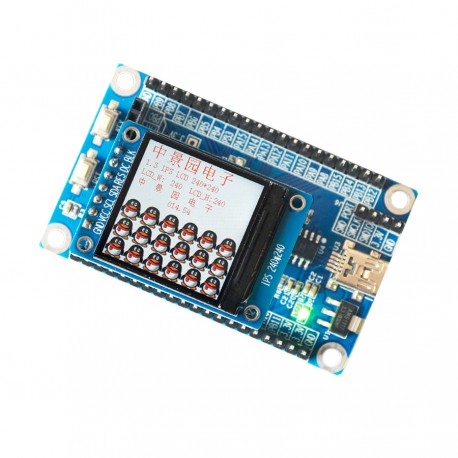

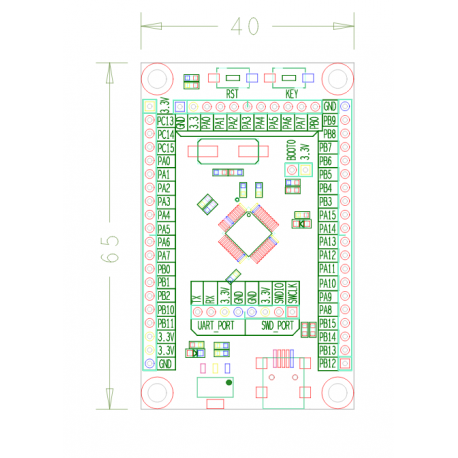

برد STM32L151C8T6 development board
STM32L151C8T6 Development Board stm32l053 Development Board stm32 system version low power consumption HAL library file
مشخصات میکروی آن را در زیر می توانید ببینید:
The ultra-low-power STM32L151x6/8/B and STM32L152x6/8/B devices incorporate the connectivity power of the universal serial bus (USB) with the high-performance ARM®Cortex®-M3 32-bit RISC core operating at 32 MHz frequency (33.3 DMIPS), a memory protection unit (MPU), high-speed embedded memories (Flash memory up to 128 Kbytes and RAM up to 16 Kbytes) and an extensive range of enhanced I/Os and peripherals connected to two APB buses.
All the devices offer a 12-bit ADC, 2 DACs and 2 ultra-low-power comparators, six general-purpose 16-bit timers and two basic timers, which can be used as time bases.
Moreover, the STM32L151x6/8/B and STM32L152x6/8/B devices contain standard and advanced communication interfaces: up to two I2Cs and SPIs, three USARTs and a USB. The STM32L151x6/8/B and STM32L152x6/8/B devices offer up to 20 capacitive sensing channels to simply add touch sensing functionality to any application.
They also include a real-time clock and a set of backup registers that remain powered in Standby mode.
Finally, the integrated LCD controller (except STM32L151x6/8/B devices) has a built-in LCD voltage generator that allows to drive up to 8 multiplexed LCDs with contrast independent of the supply voltage.
The ultra-low-power STM32L151x6/8/B and STM32L152x6/8/B devices operate from a 1.8 to 3.6 V power supply (down to 1.65 V at power down) with BOR and from a 1.65 to 3.6 V power supply without BOR option. It is available in the -40 to +85 °C temperature range, extended to 105°C in low power dissipation state. A comprehensive set of power-saving modes allows the design of low-power applications.
Key Features
Ultra-low-power platform
1.65 V to 3.6 V power supply
-40°C to 85°C/105°C temperature range
0.3 μA Standby mode (3 wakeup pins)
0.9 μA Standby mode + RTC
0.57 μA Stop mode (16 wakeup lines)
1.2 μA Stop mode + RTC
9 μA Low-power run mode
214 μA/MHz Run mode
10 nA ultra-low I/O leakage
< 8 μs wakeup time
Core: ARM®Cortex®-M3 32-bit CPU
From 32 kHz up to 32 MHz max
1.25 DMIPS/MHz (Dhrystone 2.1)
Memory protection unit
Reset and supply management
Ultra-safe, low-power BOR (brownout reset) with 5 selectable thresholds
Ultra-low-power POR/PDR
Programmable voltage detector (PVD)
Clock sources
1 to 24 MHz crystal oscillator
32 kHz oscillator for RTC with calibration
High Speed Internal 16 MHz factory-trimmed RC (+/- 1%)
Internal low-power 37 kHz RC
Internal multispeed low-power 65 kHz to 4.2 MHz
PLL for CPU clock and USB (48 MHz)
Pre-programmed bootloader
USART supported
Development support
Serial wire debug supported
JTAG and trace supported
Up to 83 fast I/Os (73 I/Os 5V tolerant), all mappable on 16 external interrupt vectors
Memories
Up to 128 Kbytes Flash memory with ECC
Up to 16 Kbytes RAM
Up to 4 Kbytes of true EEPROM with ECC
80-byte backup register
LCD Driver (except STM32L151x/6/8/B devices) for up to 8x40 segments
Support contrast adjustment
Support blinking mode
Step-up converter on board
Rich analog peripherals (down to 1.8 V)
12-bit ADC 1 Msps up to 24 channels
12-bit DAC 2 channels with output buffers
2x ultra-low-power-comparators(window mode and wake up capability)
DMA controller 7x channels
8x peripheral communication interfaces
1x USB 2.0 (internal 48 MHz PLL)
3x USARTs (ISO 7816, IrDA)
2x SPIs 16 Mbit/s
2x I2Cs (SMBus/PMBus)
10x timers: 6x 16-bit with up to 4 IC/OC/PWM channels, 2x 16-bit basic timers, 2x watchdog timers (independent and window)
Up to 20 capacitive sensing channels supporting touchkey, linear and rotary touch sensors
CRC calculation unit, 96-bit unique ID

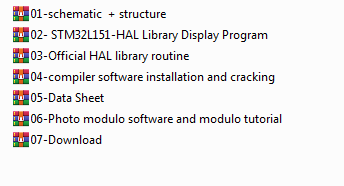

لیست موارد موجود در دانلود ویژه

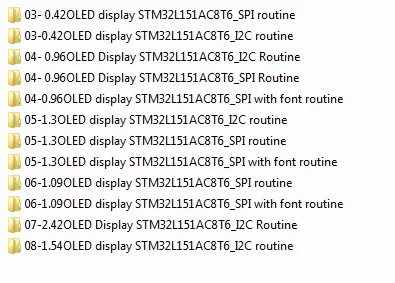

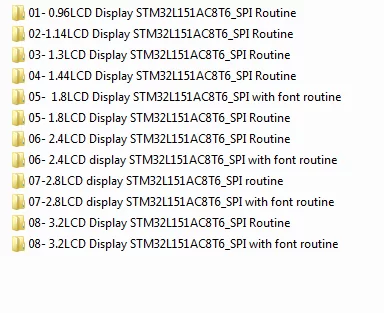

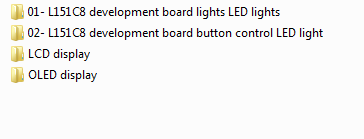

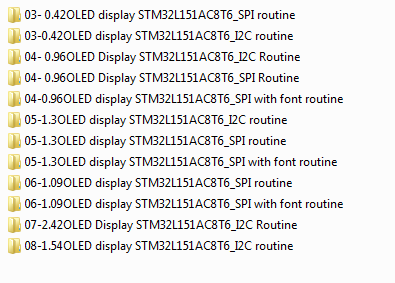

لیست مثال ها
LCD display
OLED display
ادامه مطلبنمایش کمتر
