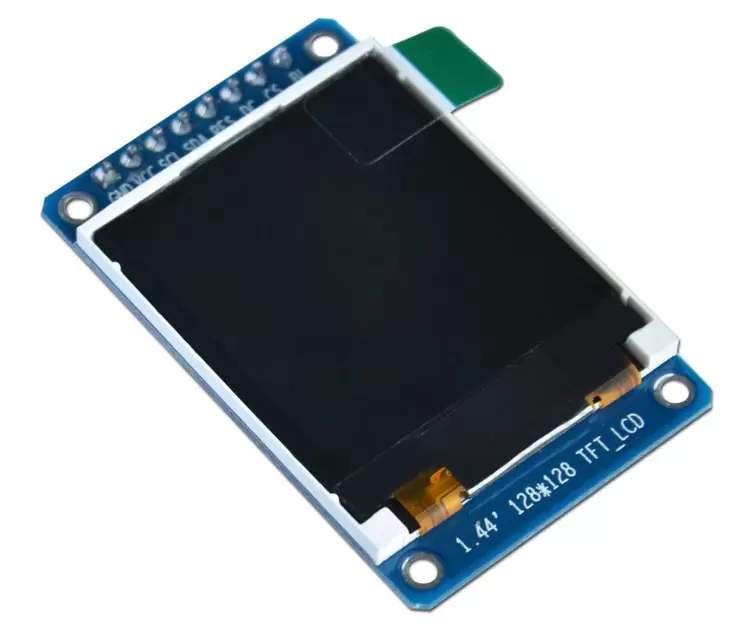

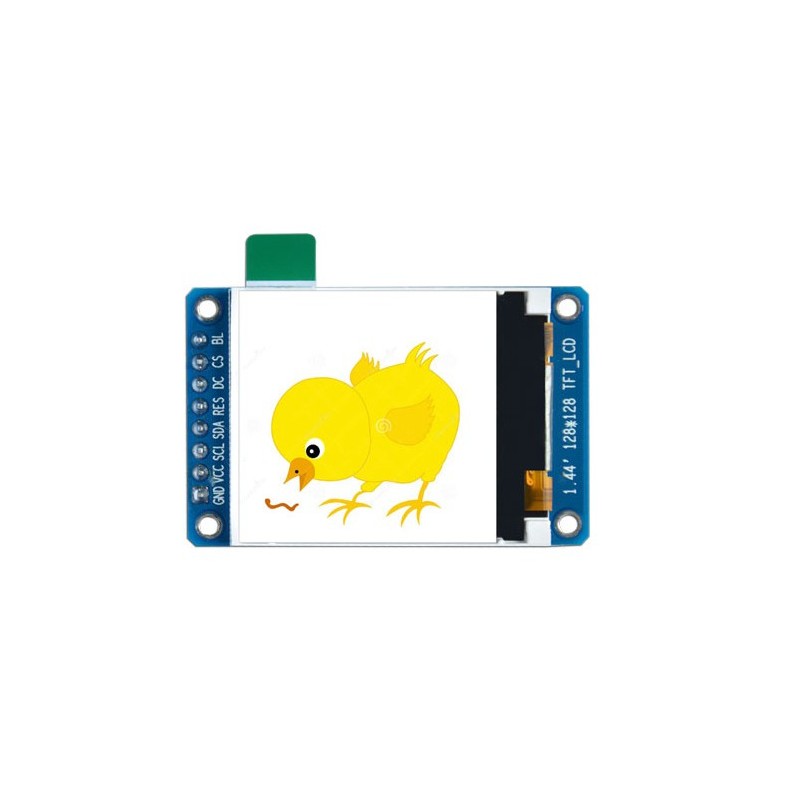

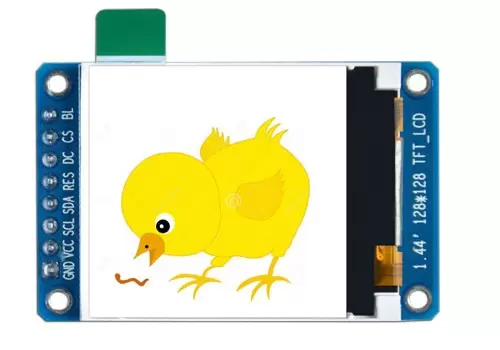

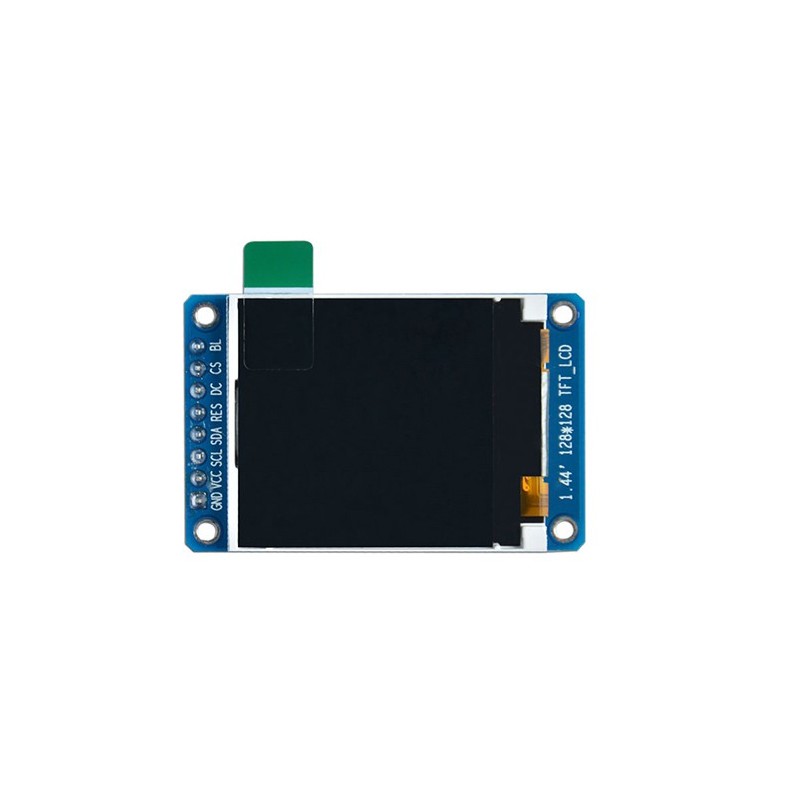

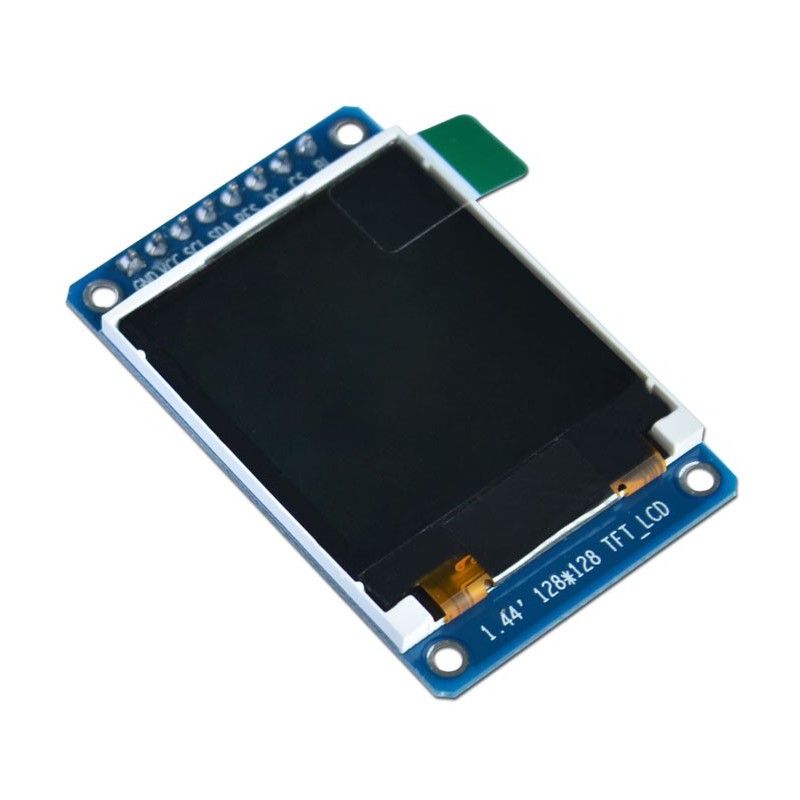

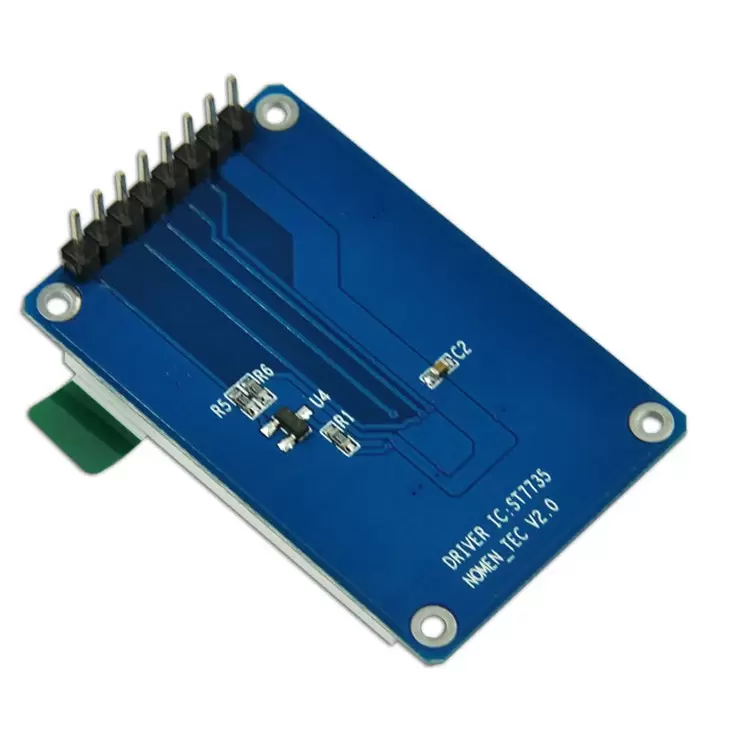

ماژول 1.44 اینچ 1.44inch LCD display Module, 128x128 SPI - ST7735S

ماژول 1.44 اینچ  1.44inch LCD display Module ، با رزولیشن 128x128 و ST7735S و SPI Interface

Size: 1.44 inch
Control chip: ST7735S
Resolution: 128*128

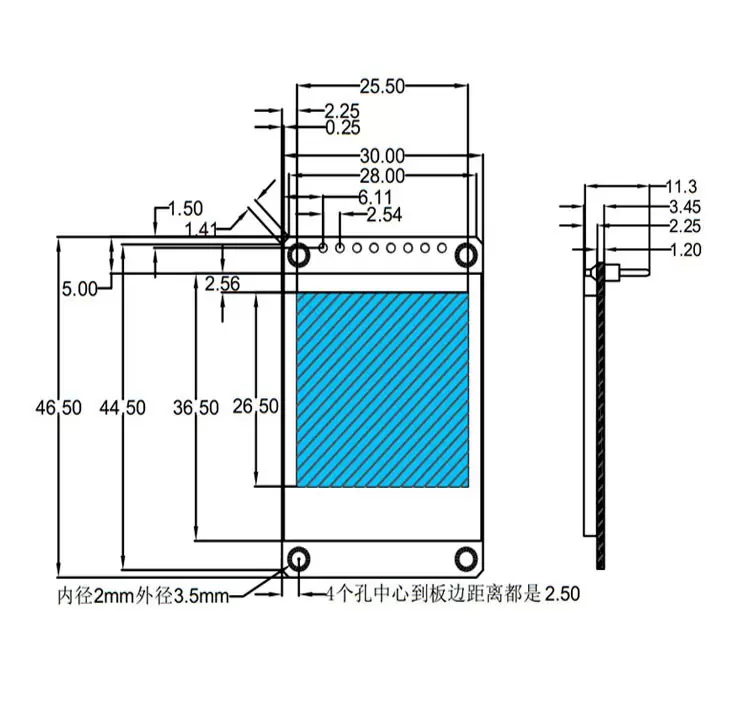

Display area: 25.5x26.5 (mm)

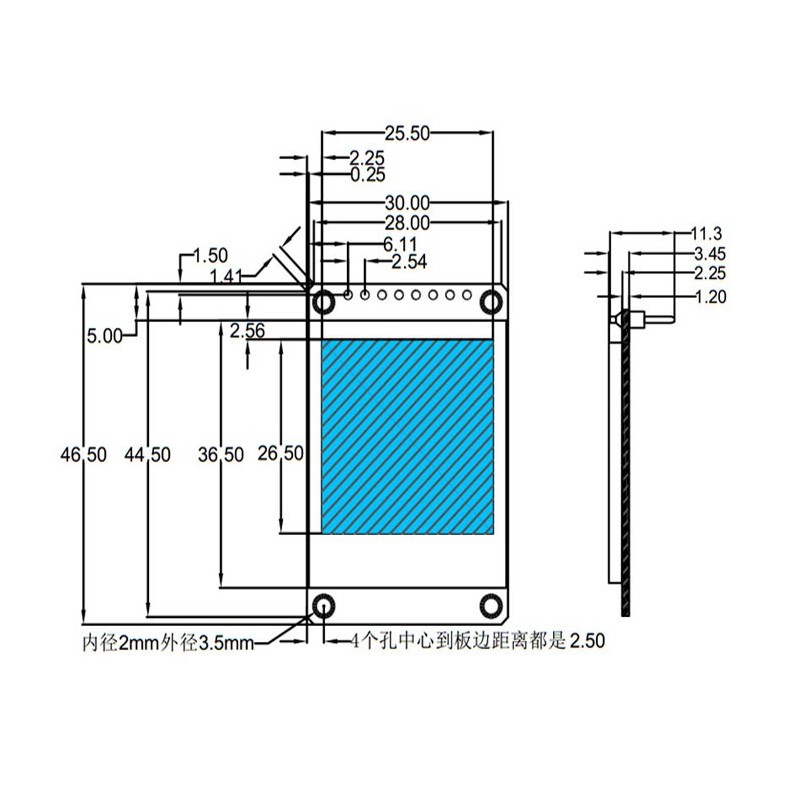

Physical size: 30 (W) * 46.5 (H)
Interface Type: SPI Interface
Number of pins: 8 Pin
Display color: full color
Pixel size: 0.2 x 0.2 (mm)
temperature: -20~70  °c
voltage: 3.3V

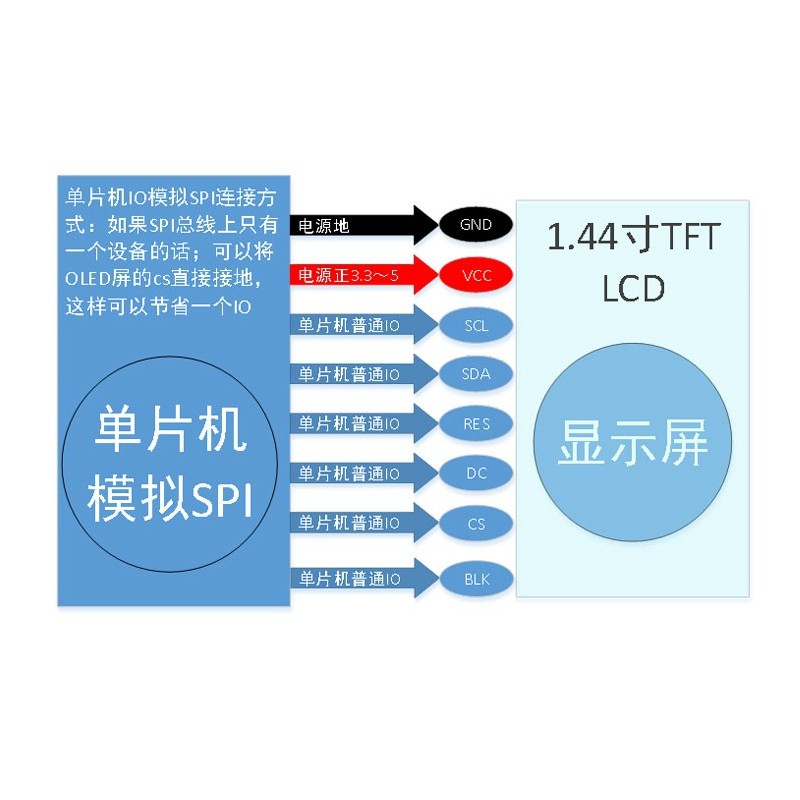

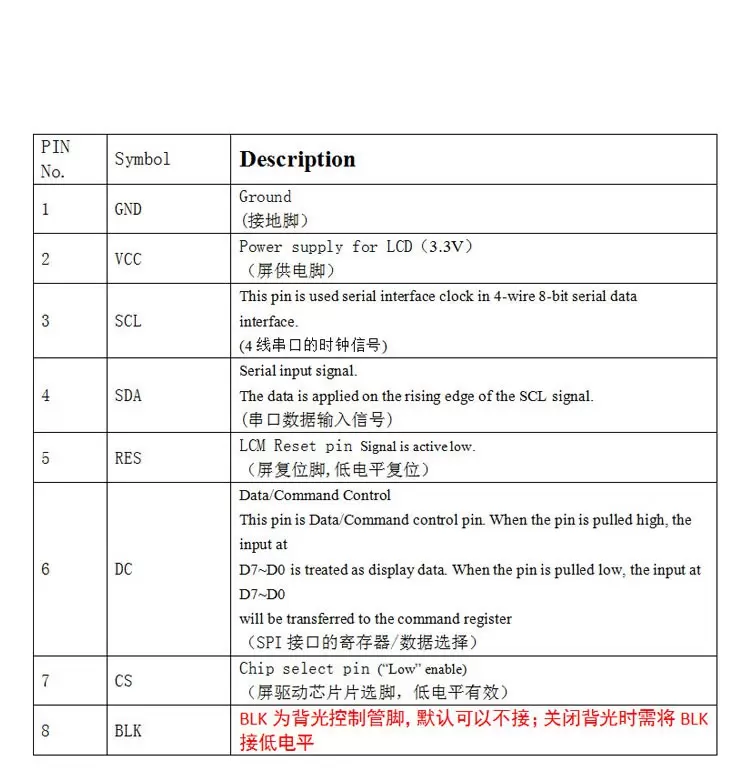

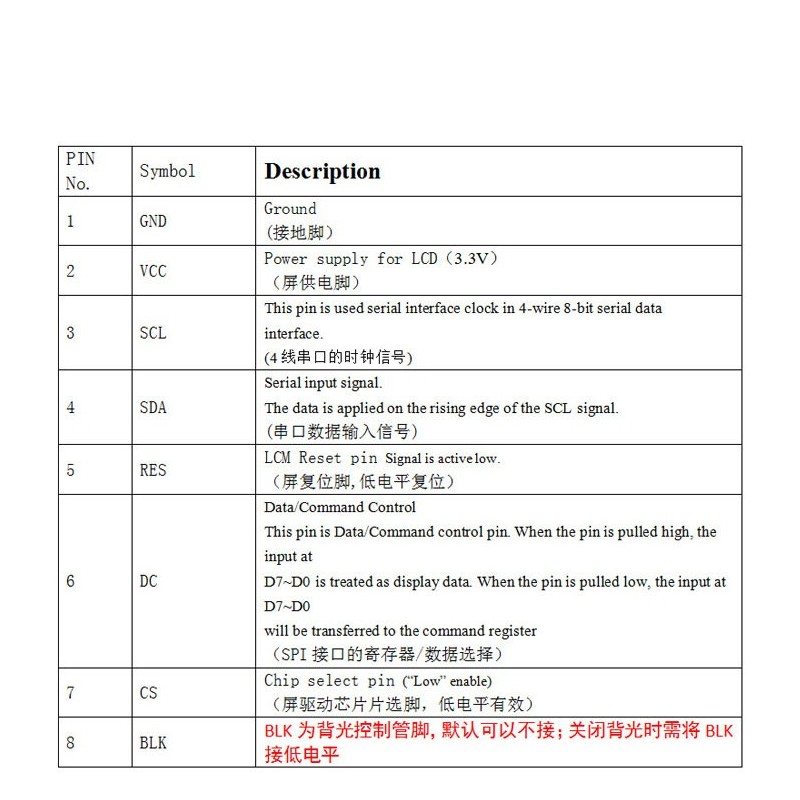

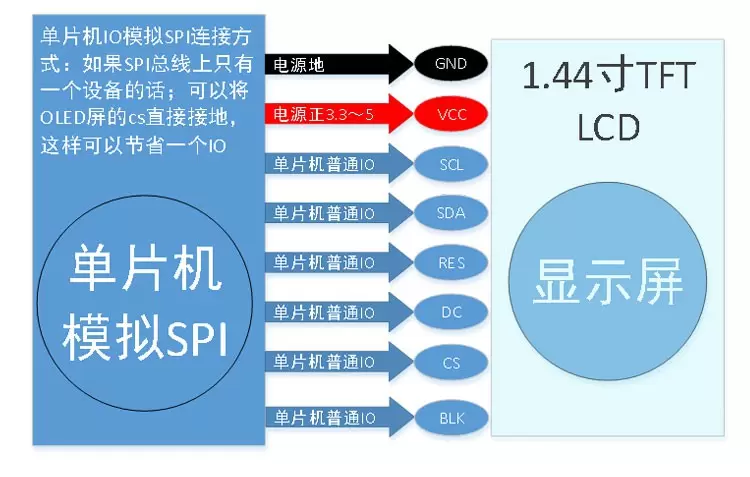

PIN No Symbol Description
1- GND Ground
2- VCC Power 3.3V
3- SCL Serial clock pin.
4- SDA Serial data input
5- RES LCM Reset pin
This pin is reset signal input. When the pin is low, initialization of the chip is
executed. Keep this pin pull high during normal operation.
6- DC Data/Command Control
7- CS Chip Select
8- BLK Backlight control pin
