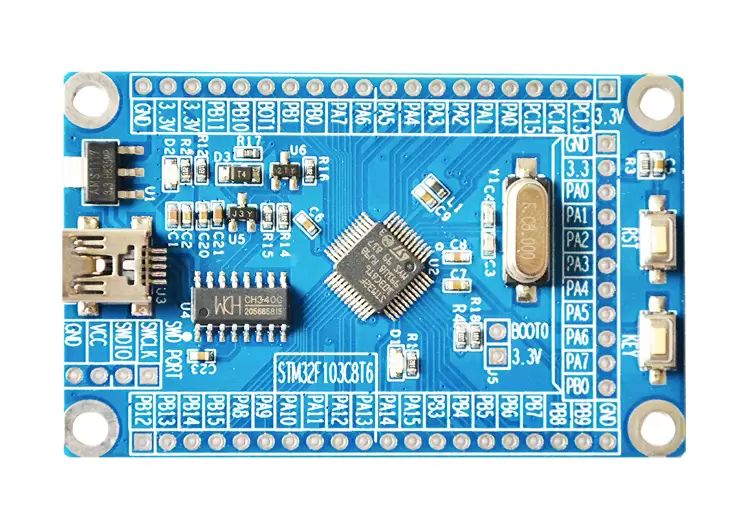

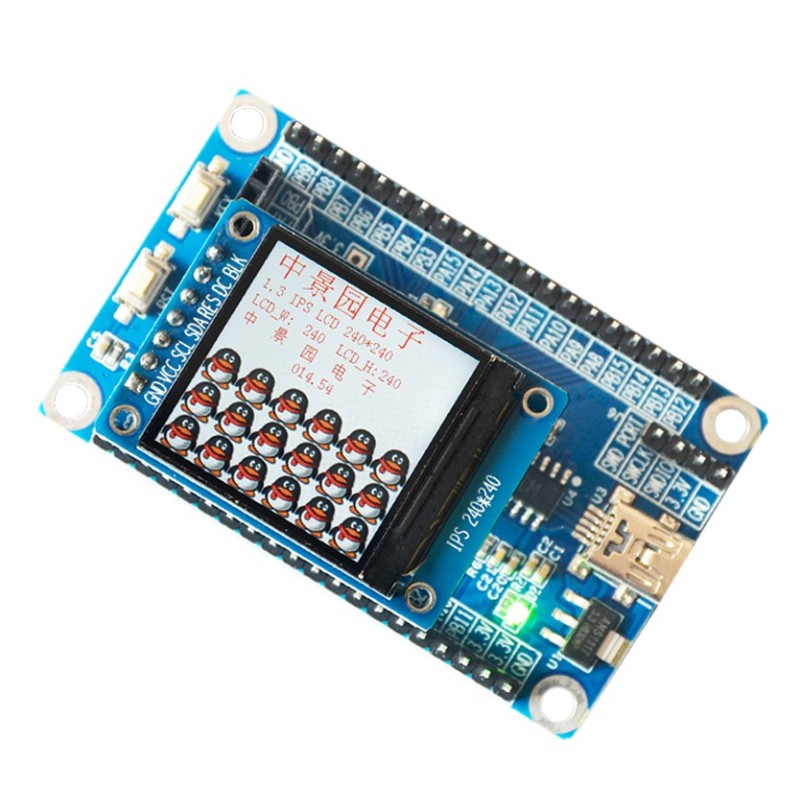

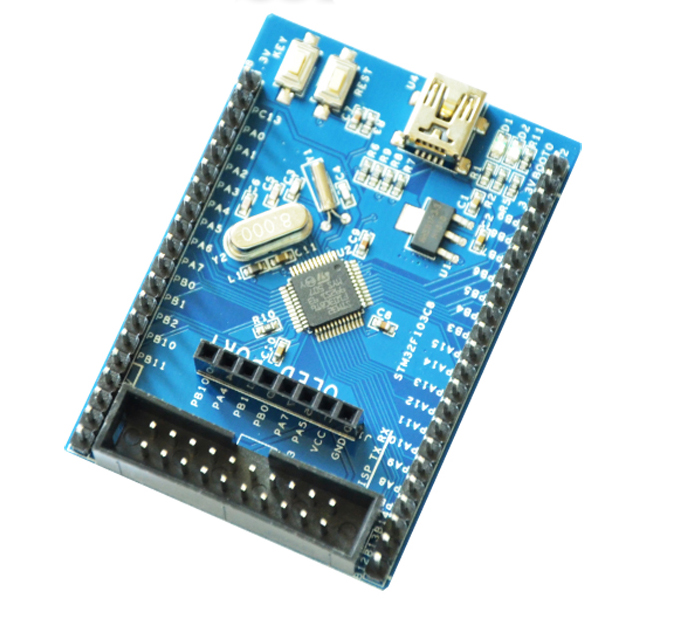

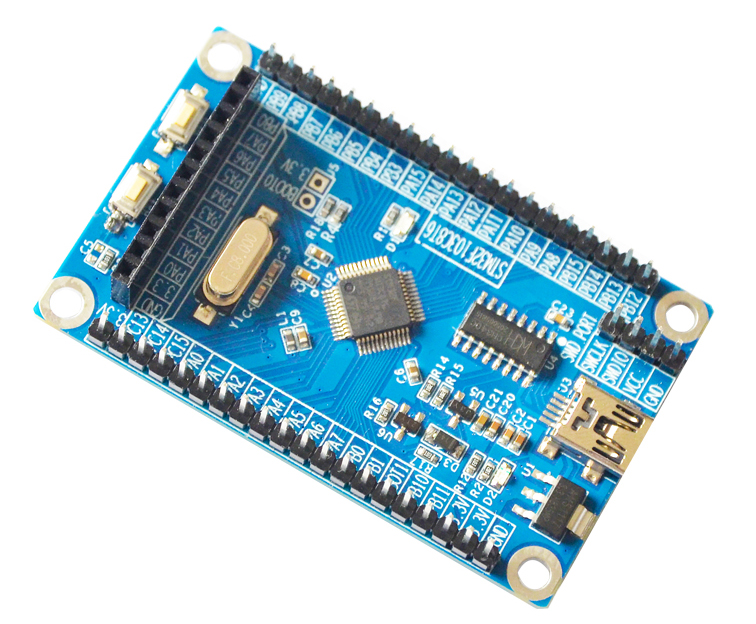

برد STM32F103C8T6 board

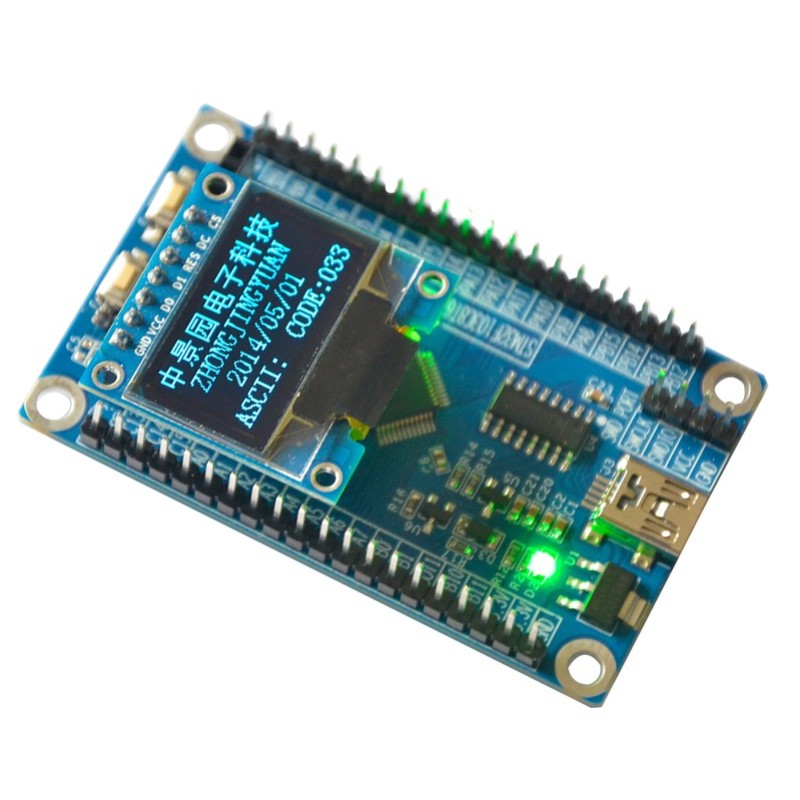

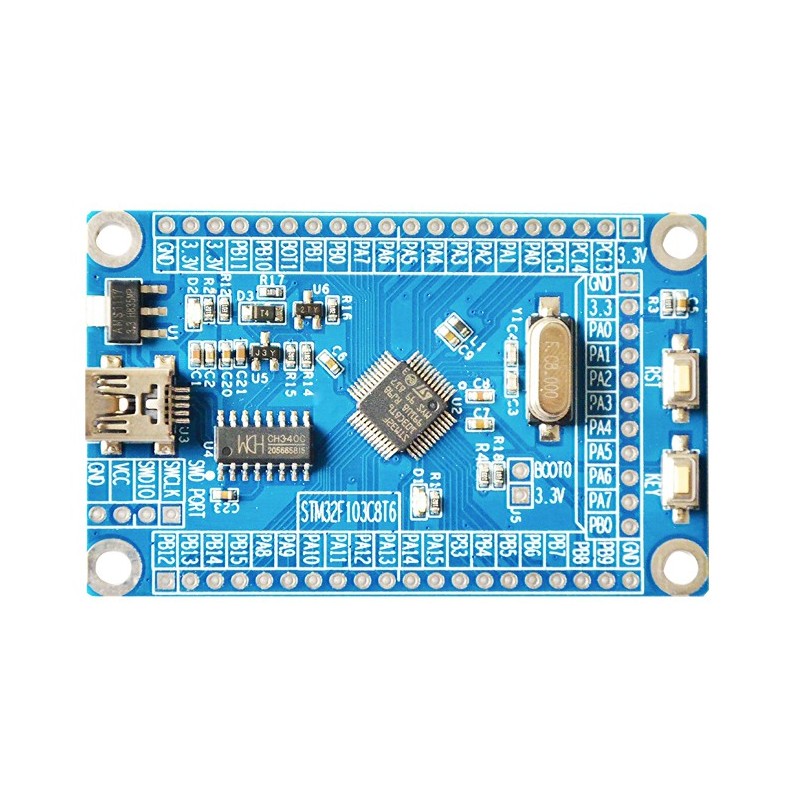

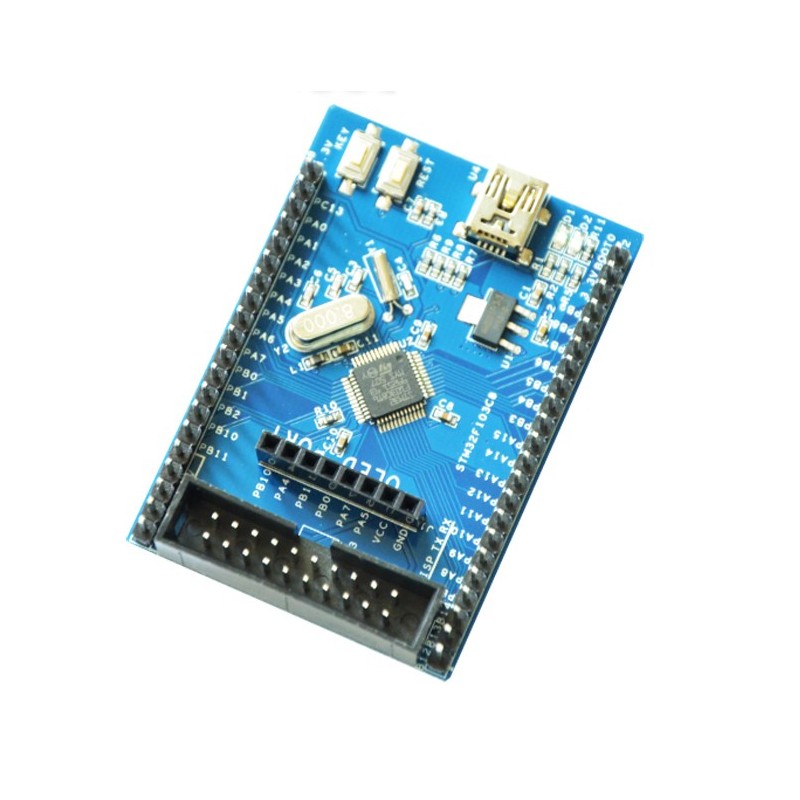

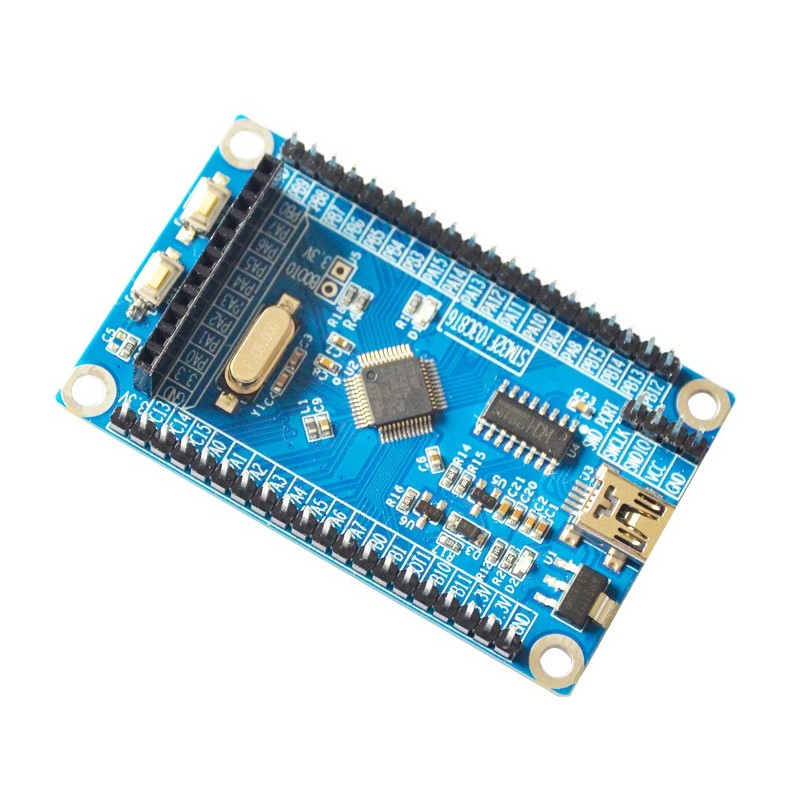

برد STM32F103C8T6 board

السیدی و OLED و پروگرامر های متناسب با این برد را در قسمت لوازم میتوانید مشاهده کنید.

مشخصات میکروی این برد را در قسمت زیر میتوانید مشاهده کنید:

The STM32F103xx medium-density performance line family incorporates the high-performance ARM®Cortex®-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer two 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces: up to two I2Cs and SPIs, three USARTs, an USB and a CAN.

The devices operate from a 2.0 to 3.6 V power supply. They are available in both the –40 to +85 °C temperature range and the –40 to +105 °C extended temperature range. A comprehensive set of power-saving mode allows the design of low-power applications.
The STM32F103xx medium-density performance line family includes devices in six different package types: from 36 pins to 100 pins. Depending on the device chosen, different sets of peripherals are included, the description below gives an overview of the complete range of peripherals proposed in this family.
These features make the STM32F103xx medium-density performance line microcontroller family suitable for a wide range of applications such as motor drives, application control, medical and handheld equipment, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.

Key Features
o  ARM®32-bit Cortex®-M3 CPU Core
        72 MHz maximum frequency,1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
        Single-cycle multiplication and hardware division
o  Memories
        64 or 128 Kbytes of Flash memory
        20 Kbytes of SRAM
o  Clock, reset and supply management
        2.0 to 3.6 V application supply and I/Os
        POR, PDR, and programmable voltage detector (PVD)
        4-to-16 MHz crystal oscillator
        Internal 8 MHz factory-trimmed RC
        Internal 40 kHz RC
        PLL for CPU clock
        32 kHz oscillator for RTC with calibration
o  Low-power
        Sleep, Stop and Standby modes
        VBAT supply for RTC and backup registers
o  2 x 12-bit, 1 μs A/D converters (up to 16 channels)
        Conversion range: 0 to 3.6 V
        Dual-sample and hold capability
        Temperature sensor
o  DMA
        7-channel DMA controller
        Peripherals supported: timers, ADC, SPIs, I2Cs and USARTs
o  Up to 80 fast I/O ports
        26/37/51/80 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant
o  Debug mode
        Serial wire debug (SWD) & JTAG interfaces
o  7 timers
        Three 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
        16-bit, motor control PWM timer with dead-time generation and emergency stop
        2 watchdog timers (Independent and Window)
        SysTick timer 24-bit downcounter
o  Up to 9 communication interfaces
        Up to 2 x I2C interfaces (SMBus/PMBus)
        Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
        Up to 2 SPIs (18 Mbit/s)
        CAN interface (2.0B Active)
        USB 2.0 full-speed interface
o  CRC calculation unit, 96-bit unique ID
o  Packages are ECOPACK®

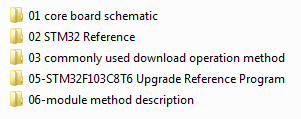

لیست موارد موجود در دانلود ویژه:

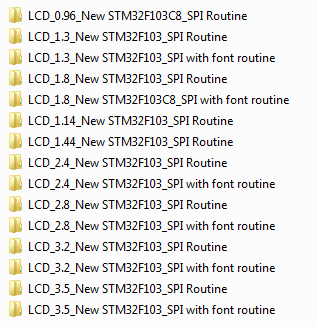

لیست مثال ها:

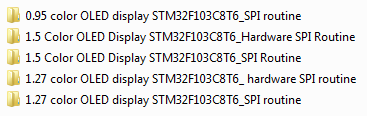

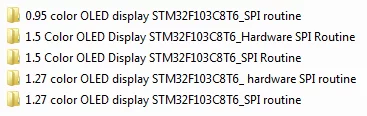

Color OLED:

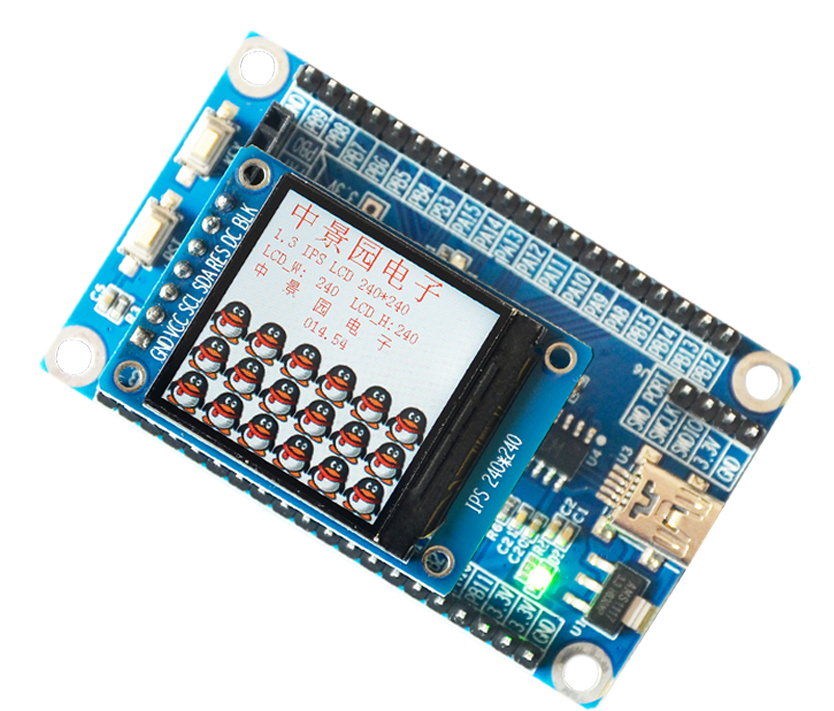

LCD display:

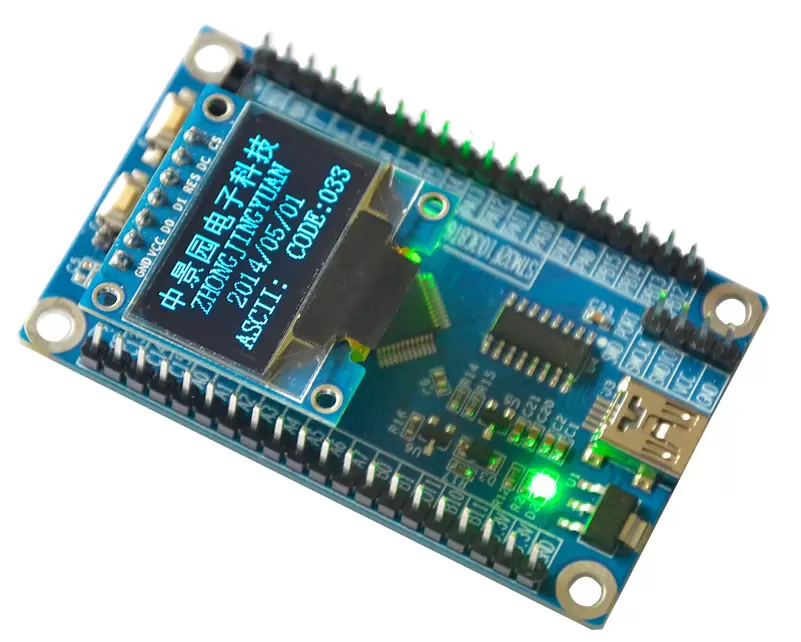

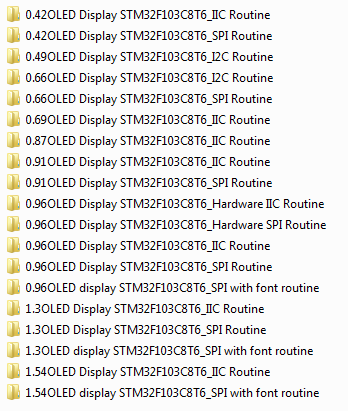

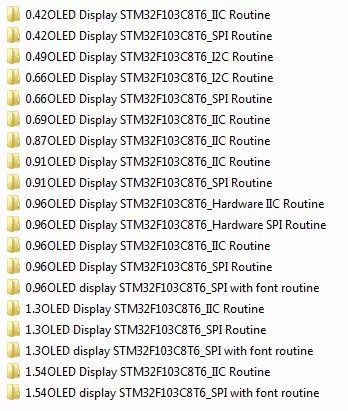

OLED display:
