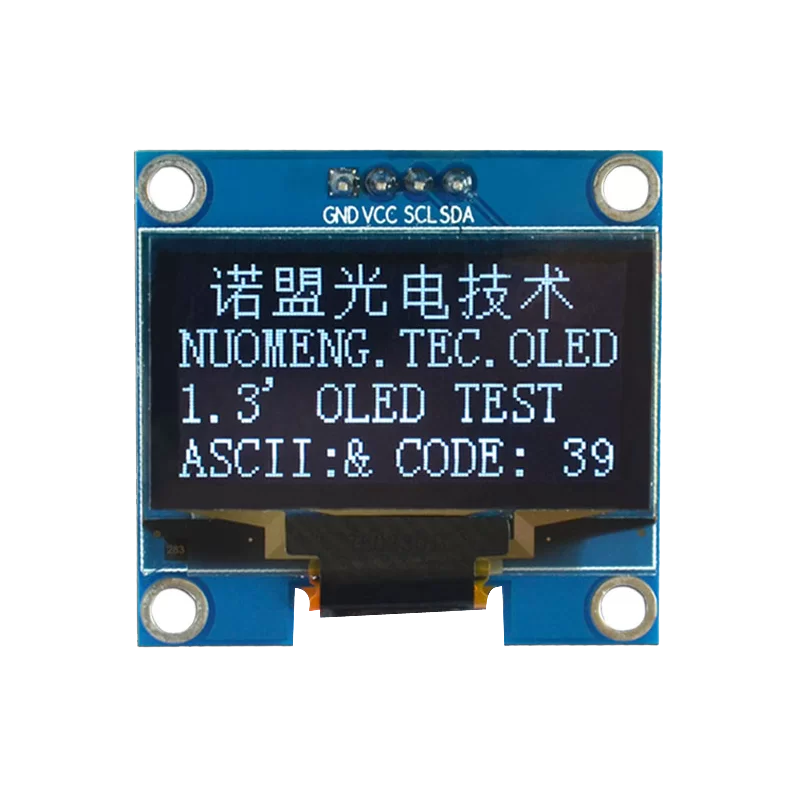

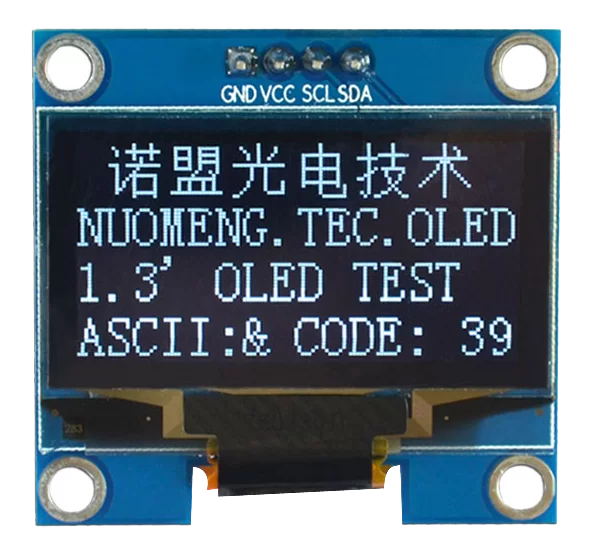

OLED 1.3 inch OLED Module White 128x64 IIC / SH1106

ماژول OLED 1.3 inch White با رزولیشن 128x64 و با درایورSH1106 و IIC Interface

توجه: در سری جدید این محصول فقط رنگ PCB مشکی شده است و هیچ تفاوت دیگری ندارد.

Size: 1.3 inch
Resolution: 128*64
Control chip: SH1106

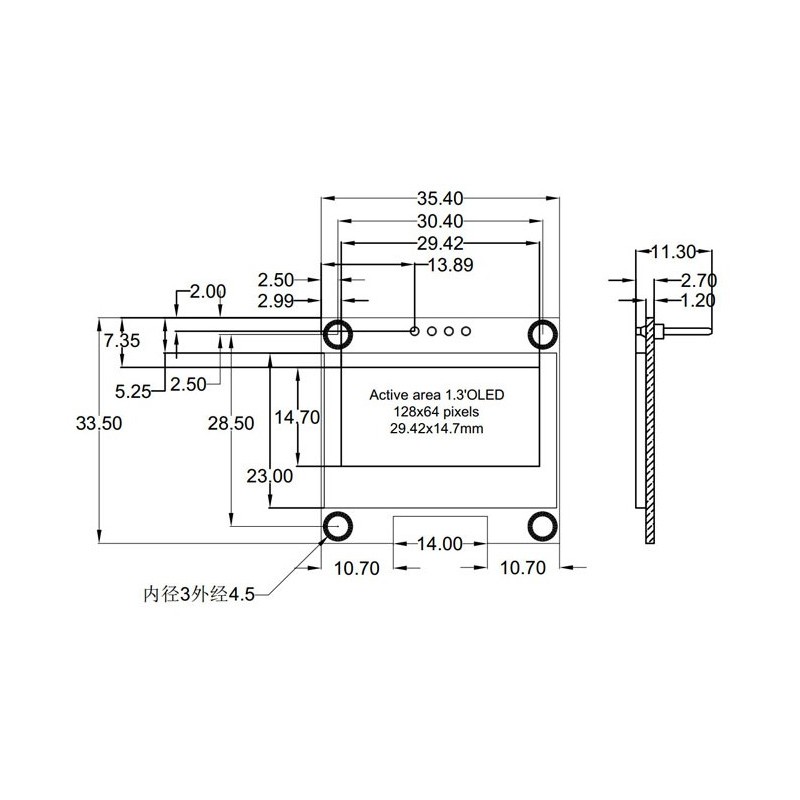

Display area: 29.42x14.7 (mm)
Physical size: 35.4x33.7 (mm)
Interface type: IIC interface
Number of pins: 4PIN
Display color: White
Working temperature: -40~70 degrees
Working voltage: 3.3~5V
Module weight: 8g

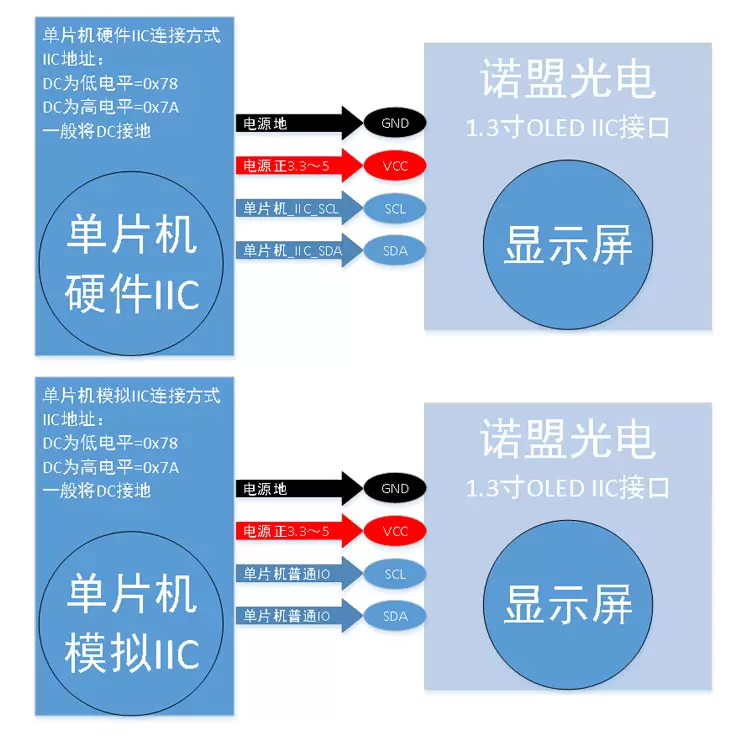

1> GND (power ground)
2> VCC (power supply is 3.3~5V)
3> SCL (IC clock line)
4> SDA{IC data line)

Important Note: The OLED display is different from the LCD; the OLED is self-illuminating; therefore, there is no backlight, and the screen will not react if only the power is applied; there must be a correct operation of the program to display it.

محتوای فایل مربوط به مثال و Document:

03- 1.3-inch OLED display test program:
