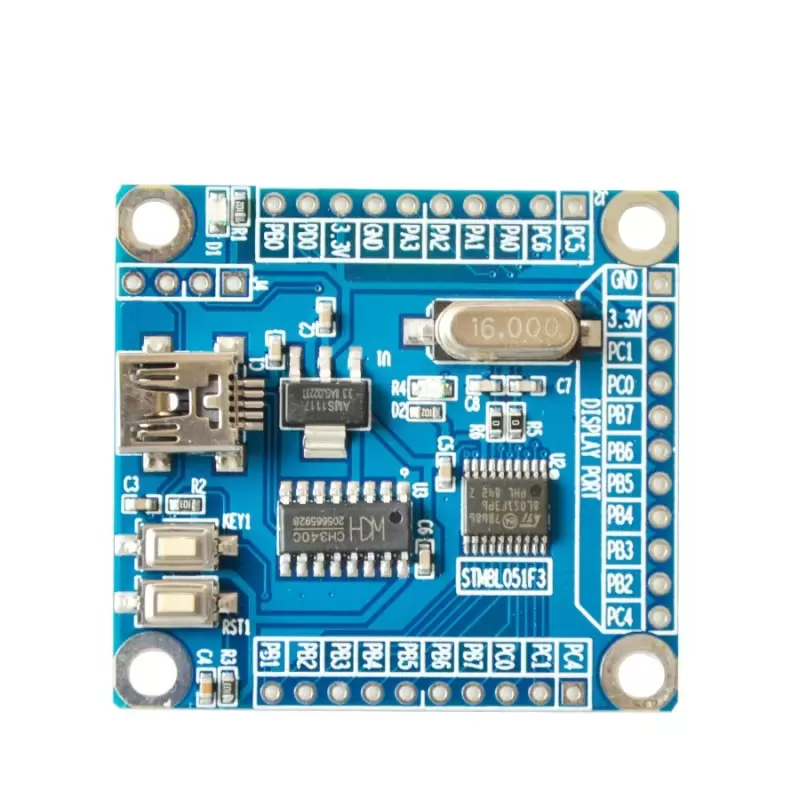

برد STM8L051F3 development board

برد STM8L051F3 development board

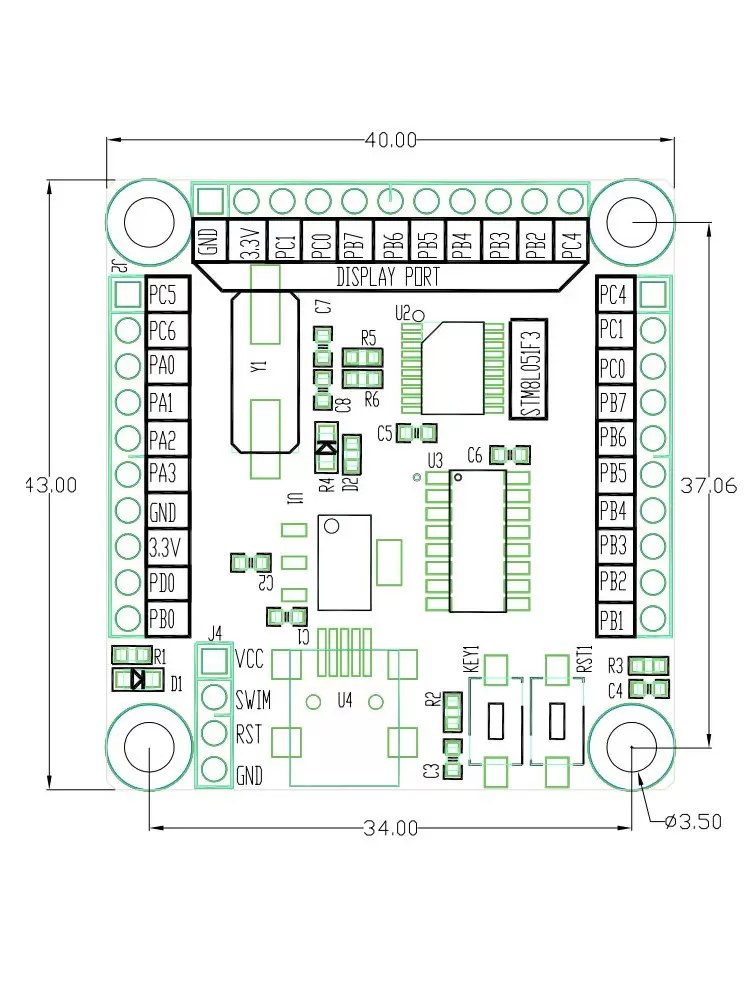

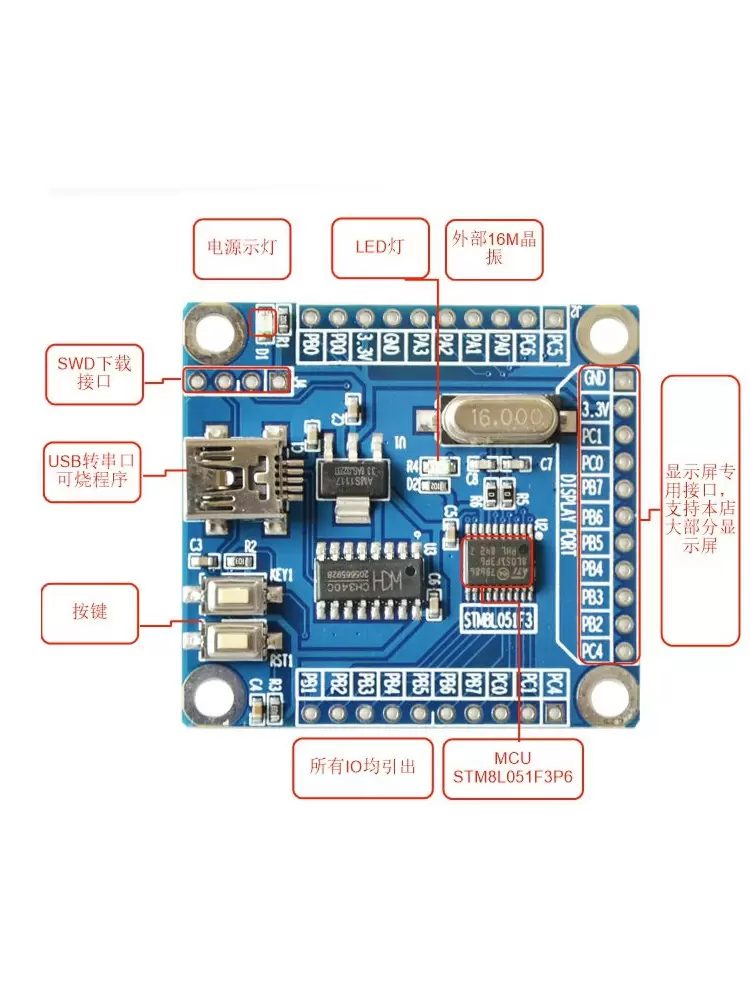

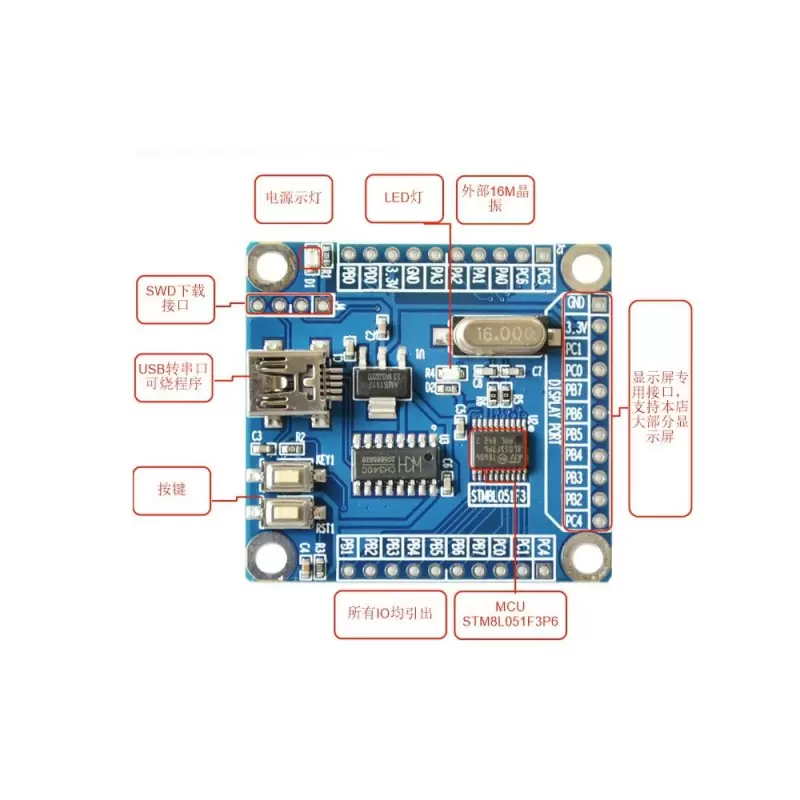

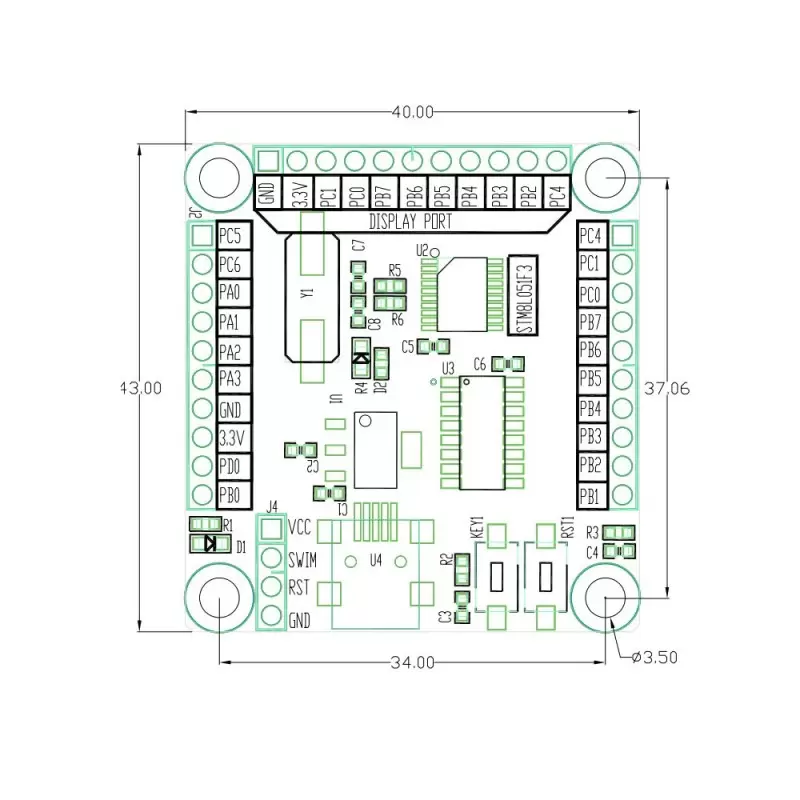

 1  . Onboard STM8L051F3P6 chip
 2  .Using USB power supply, can download program and serial communication high quality capacitor filter through USB pin

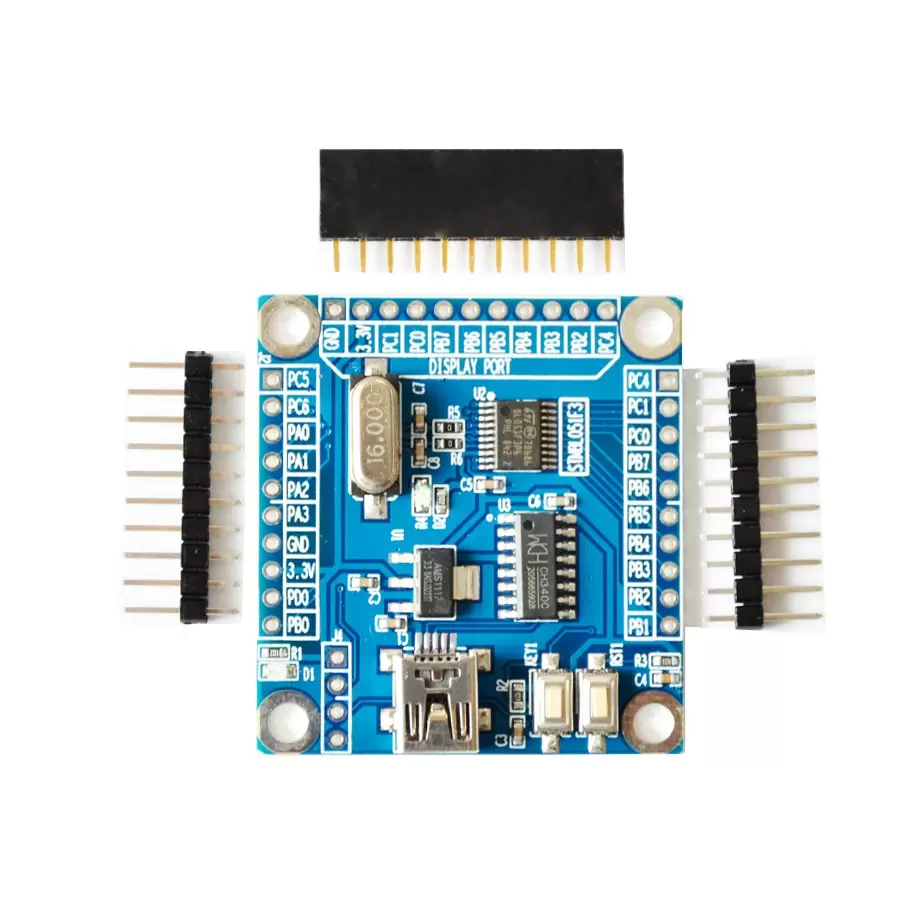

 3  . All IO ports are led out
 4  . 1 color LEDs are all pulled up, so you can observe the running status of the program.
 5  . 2 high quality independent buttons.
 6 . Onboard OLED/LCD display interface, suitable for most of our display
 7  . Provide a 3.3v power supply pin to the outside .
 8 . Working voltage: 3.3V
 9 . 8 Kbytes of Flash program memory and 256 bytes of data EEPROM with ECC

مشخصات میکروی آن را در زیر می توانید ببینید:

STM8L051F3 is member of the STM8L ultra-low-power 8-bit family.

STM8L051F3 features an enhanced STM8 CPU core providing increased processing power (up to 16 MIPS at 16 MHz) while maintaining the advantages of a CISC architecture with improved code density, a 24-bit linear addressing space and an optimized architecture for low-power operations.
The STM8L051F3 MCU includes an integrated debug module with a hardware interface (SWIM) which allows non-intrusive In-Application debugging and ultra-fast Flash programming. It features an embedded data EEPROM and low-power, low-voltage, single-supply program Flash memory.
The device incorporates an extensive range of enhanced I/Os and peripherals, a 12-bit ADC, a real-time clock, two 16-bit timers, one 8-bit timer, as well as standard communication interfaces such as an SPI, an I2C interface, and one USART.
The modular design of the peripheral set allows this device to have the same peripherals that can be found in different ST microcontroller families including 32-bit families. This makes any transition to a different family very easy, supported also by the use of a common set of development tools.
STM8L051F3 as all the value line STM8L ultra-low-power products are based on the same architecture with the same memory mapping and a coherent pinout.

Key Features

    Operating conditions
        Operating power supply: 1.8 V to 3.6 V Temperature range: −40 °C to 85 °C
    Low-power features
        5 low-power modes: Wait, Low-power run (5.1 μA), Low-power wait (3 μA), Active-halt with RTC (1.3 μA), Halt (350 nA)
        Ultra-low leakage per I/O: 50 nA
        Fast wakeup from Halt: 5 μs
    Advanced STM8 core
        Harvard architecture and 3-stage pipeline
        Max freq: 16 MHz, 16 CISC MIPS peak
        Up to 40 external interrupt sources
    Reset and supply management
        Low power, ultra-safe BOR reset with 5 selectable thresholds
        Ultra-low power POR/PDR
        Programmable voltage detector (PVD)
    Clock management
        32 kHz and 1 to 16 MHz crystal oscillators
        Internal 16 MHz factory-trimmed RC
        Internal 38 kHz low consumption RC
        Clock security system
    Low-power RTC
        BCD calendar with alarm interrupt
        Digital calibration with +/- 0.5 ppm accuracy
        LSE security system
        Auto-wakeup from Halt w/ periodic interrupt
    Memories
        8 Kbytes of Flash program memory and 256 bytes of data EEPROM with ECC
        Flexible write and read protection modes
        1 Kbyte of RAM

    DMA
        4 channels supporting ADC, SPI, I2C, USART, timers
        1 channel for memory-to-memory
    12-bit ADC up to 1 Msps/10 channels
        Internal reference voltage
    Timers
        Two 16-bit timers with 2 channels (used as IC, OC, PWM), quadrature encoder
        One 8-bit timer with 7-bit prescaler
        2 watchdogs: 1 Window, 1 Independent
        Beeper timer with 1, 2 or 4 kHz frequencies
    Communication interfaces
        Synchronous serial interface (SPI)
        Fast I2C 400 kHz SMBus and PMBus
        USART
    Up to 18 I/Os, all mappable on interrupt vectors
    Development support
        Fast on-chip programming and non-intrusive debugging with SWIM
        Bootloader using USART

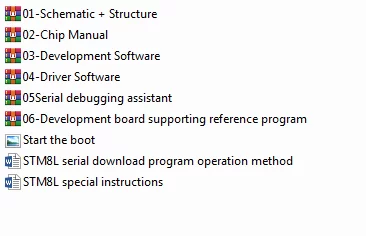

لیست موارد موجود در دانلود ویژه:

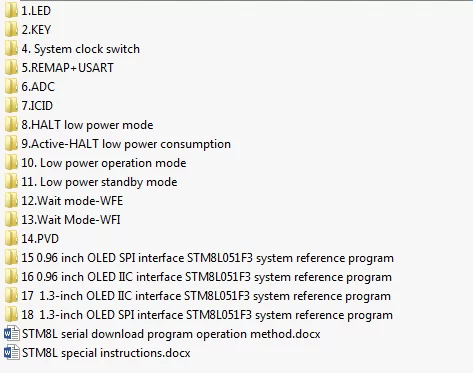

لیست مثال ها:
