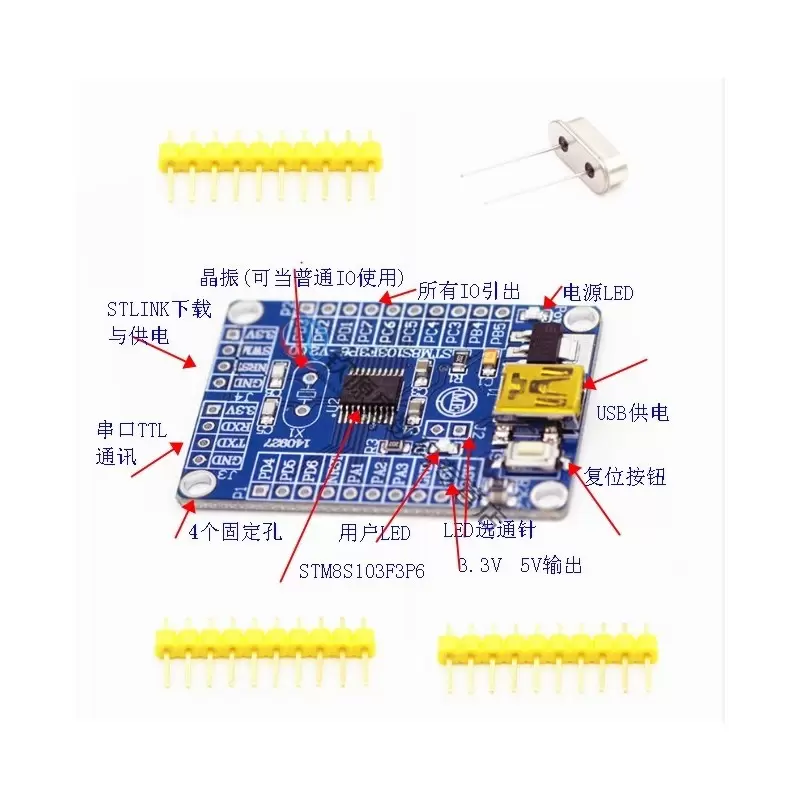

مینی برد STM8S_MiniKit STM8S003F3P6

Core board are factory pre-programmed for each one of the test program, even after power LED will blink, and in order to detect the core board is working correctly.
Technical Information:
Core board schematics (PDF format) x 1
Pre-programmed test program source code (IAR STM8 format) x 1

STM8S_MiniKit_20 core board main features:
1: Use STM8S003F3P6 as master IC
2: leads all pins, the pin next to mark out the function of this pin, pin should make their own welding, optional up or down (pin to bring your own)
3: Support SWIM debug mode
4: USB MINI line to take power, or 2.54 to take power
5: Optional external crystal (bring your own)
7: PD3 pin, pick up an LED light for easy debugging
Packing List:
Core board x 1
