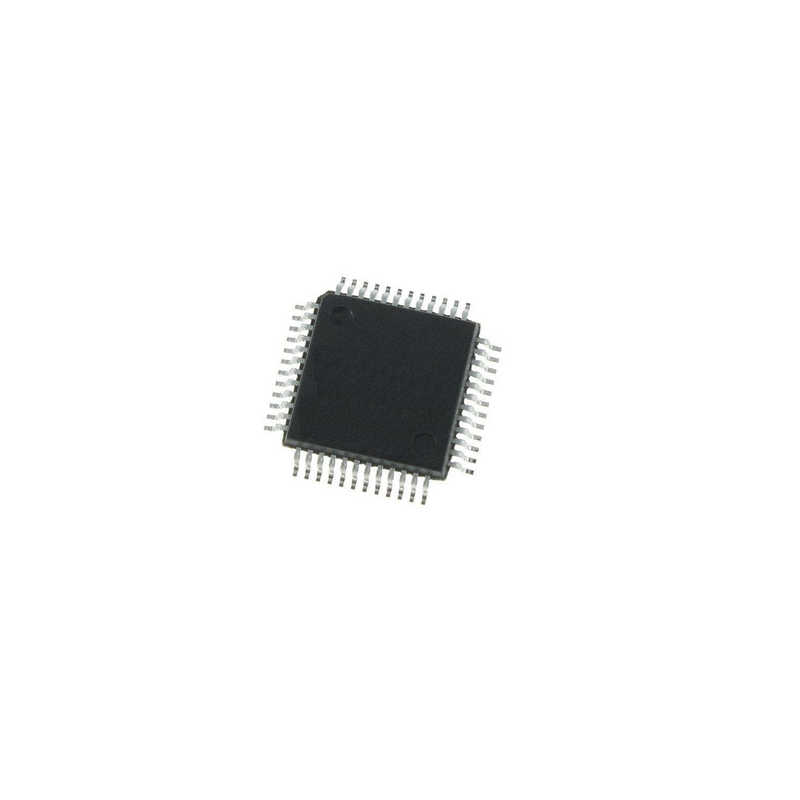

میکروکنترلر STM8S105C6T6 اورجینال

Part Number: STM8S105C6T6
Manufacturer: STMicroelectronics
Adc Resolution:    10
Usb: 0
Maximum Clock Rate Mhz:    16
Description: MCU 8-bit STM8S STM8 CISC 32KB Flash 3.3V/5V 48-Pin LQFP Tray
Number Of Adcs:    Single
Core Architecture: STM8
I 2 S: 0
Standard Package Name:QFP
Ram Size: 2KB
Programmability: Yes
Can: 0
Interface Type:    I2C/SPI/UART
Minimum Operating Temperature C    :-40
Family Name: STM8S
Program Memory Size: 32KB
Adc Channels: 10
Device Core: STM8
Primary Buying Option Type: None
Number Of I Os:    38
Maximum Operating Supply Voltage V: 5.5
No Of Timers: 4
Usart: 0
Packaging: Tray
Spi: 1
Supplier Package: LQFP
Program Memory Type: Flash
Ethernet: 0
Pin Count: 48
Instruction Set Architecture: CISC
Is Rohs Compliant: true
Military Qualified: No
Uart: 1
Rohs Compliance    RoHS Compliant
I 2 C:1
Maximum Operating Temperature C: 85
Automotive: Unknown
Category: Microcontroller
