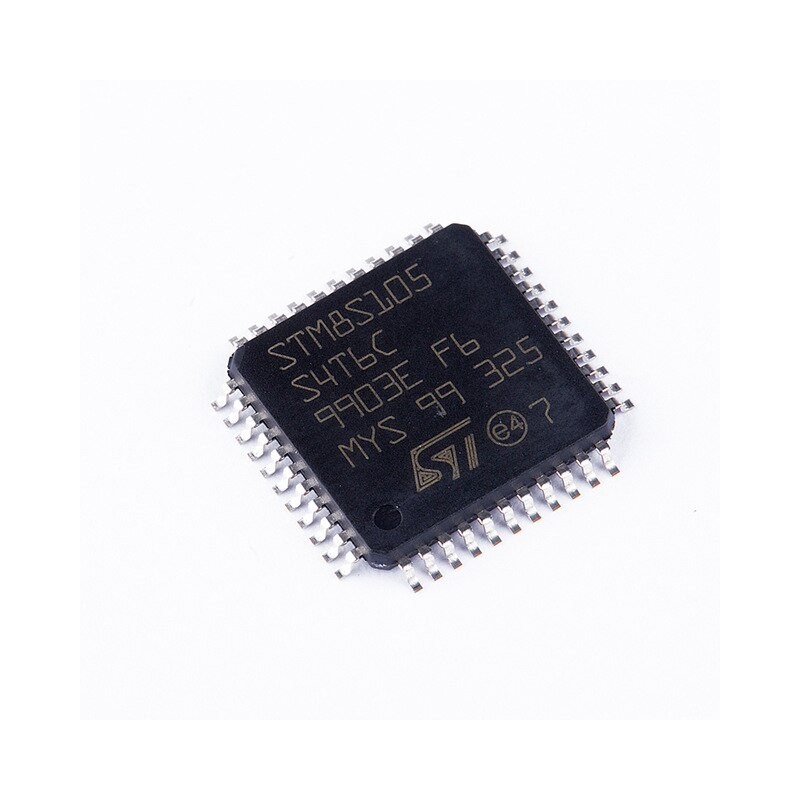

میکروکنترلر STM8S105S4T6C / اورجینال/New and original+گارانتی

میکروکنترلرSTM8S105S4T6C/ اورجینال

Product Details

STM8S Series Mainstream 8-Bit Microcontrollers, STMicroelectronics

The STM8S series of general-purpose 8-bit Flash microcontrollers is an advanced core version of the STM8 featuring a 3-stage pipeline. The STM8S delivers up to 20MIPS at a clock rate of 24MHz.

STM8 8-Bit Microcontrollers, STMicroelectronics

The STM8 platform is implemented around a high-performance 8-bit core and a state-of-the-art set of peripherals. The 8-bit microcontroller operates at 16/24MHz, featuring flash memory up to 128kB, internal RAM and EEPROM, 8/16-bit timers, A/D Converters, D/A Converters, Comparators, Serial Interfaces and an optional Display controller.

Specifications
Attribute :
    Value
Family Name :
    STM8S
Package Type :
    LQFP
Mounting Type:
     Surface Mount
Pin Count :
    44
Device Core :
    STM8
Data Bus Width :
    8bit
Program Memory Size :
    1.024 kB, 16 kB
Maximum Frequency :
    16MHz
RAM Size :
    2 kB
Number of PWM Units:
     2
ADC Channels :
    9
Number of SPI Channels:
     1
Typical Operating Supply Voltage :
    2.95 → 5.5 V
Number of ADC Units:
     1
ADCs :
    9 x 10 bit
Width :
    10.2mm
Program Memory Type :
    Flash
PWM Resolution :
    16bit
Instruction Set Architecture :
    CISC
PWM Channels :
    5
Number of I2C Channels :
    1
Height :
    1.45mm
Maximum Operating Temperature :
    +85 °C
Number of UART Channels :
    1
Pulse Width Modulation :
    2(5 x 16 bit)
Length :
    10.2mm
Minimum Operating Temperature :
    -40 °C
Number of Timers :
    5
ADC Resolution:
     10bit
Timer Resolution :
    16bit
Timers :
    5 x 16 bit
Dimensions :
    10.2 x 10.2 x 1.45mm
