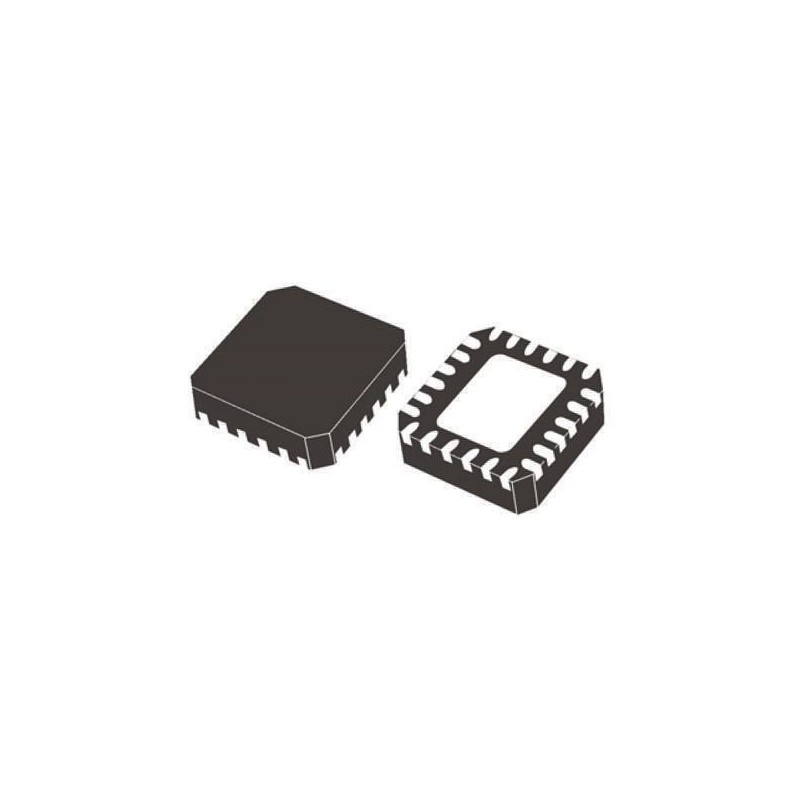

میکروکنترلر STM8L151G6U6 /اورجینال/New and original+گارانتی

میکروکنترلر STM8L151G6U6 /اورجینال

Product Details
STM8L Series Ultra-Low Power 8-Bit Microcontrollers, STMicroelectronics

The STM8L is based on the 8-bit STM8 core
Ultra-low power consumption with the lowest power mode of 0.35μA
STM8L101: Lowest power mode 0.35μA, Dynamic run mode 150μA/MHz
STM8L151/152: Lowest power mode 0.4μA, Dynamic run mode 192μA/MHz
STM8 8-Bit Microcontrollers, STMicroelectronics

The STM8 platform is implemented around a high-performance 8-bit core and a state-of-the-art set of peripherals. The 8-bit microcontroller operates at 16/24MHz, featuring flash memory up to 128kB, internal RAM and EEPROM, 8/16-bit timers, A/D Converters, D/A Converters, Comparators, Serial Interfaces and an optional Display controller.

Specifications
Attribute :
    Value
Family Name :
    STM8L
Package Type :
    UFQFPN
Mounting Type :
    Surface Mount
Pin Count :
    28
Device Core :
    STM8
Data Bus Width:
     8bit
Program Memory Size :
    1 kB, 32 kB
Maximum Frequency:
     16MHz
RAM Size :
    2 kB
Number of PWM Units :
    1
ADC Channels :
    18
Number of SPI Channels :
    1
Typical Operating Supply Voltage :
    1.8 → 3.6 V
Maximum Operating Temperature :
    +85 °C
Height:
     0.55mm
Number of I2C Channels:
     1
PWM Channels:
     3
Pulse Width Modulation :
    3 x 16 bit
Number of Timers :
    3
ADC Resolution:
     12bit
Timer Resolution :
    8 bit, 16 bit
Timers:
     1 x 8 bit, 2 x 16 bit
Dimensions:
     4.1 x 4.1 x 0.55mm
Length:
     4.1mm
Minimum Operating Temperature :
    -40 °C
Instruction Set Architecture :
    CISC
PWM Resolution :
    16bit
Program Memory Type :
    Flash
Width :
    4.1mm
ADCs :
    18 x 12 bit
Number of USART Channels :
    1
Number of ADC Units :
    1
