محصول جدید
1,295,000 ریال

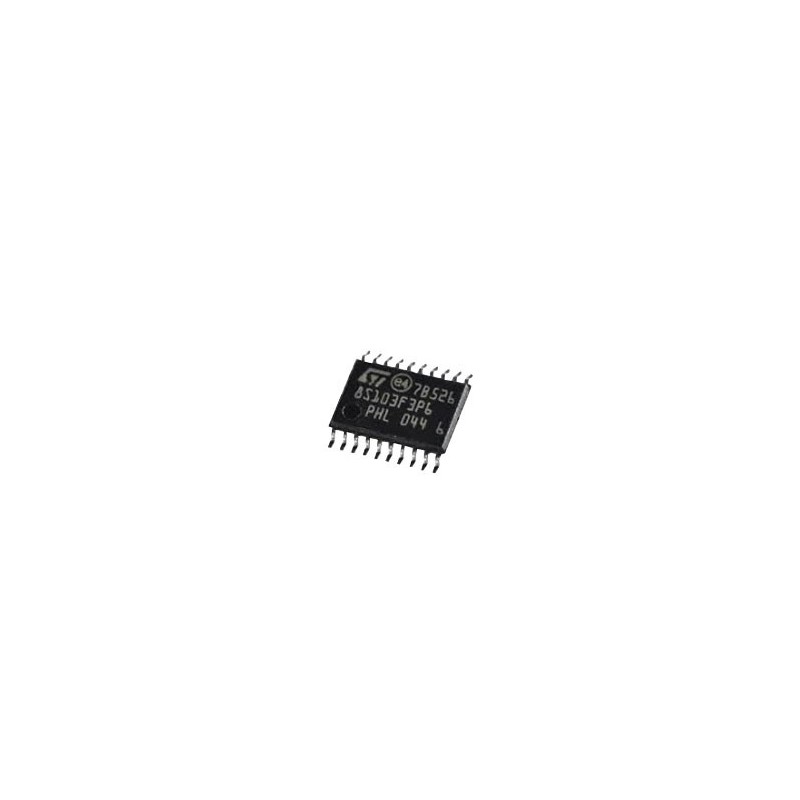

STM8S103F3P6 اورجینال
میکروکنترلر STM8S103F3P6 - اورجینال
Features
Core
•16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline
•Extended instruction set Memories
•Program memory: 8 Kbyte Flash; data retention 20 years at 55 °C after 10 kcycle
•Data memory: 640 byte true data EEPROM; endurance 300 kcycle
•RAM: 1 KbyteClock, reset and supply management
•2.95 to 5.5 V operating voltage
•Flexible clock control,
4 master clock sources
– Low power crystal resonator oscillator
– External clock input
– Internal, user-trimmable 16 MHz RC
– Internal low-power 128 kHz RC
•Clock security system with clock monitor
•Power management:
– Low-power modes (wait, active-halt, halt)
– Switch-off peripheral clocks individually
•Permanently active, low-consumption power-on and power-down resetInterrupt management
•Nested interrupt controller with 32 interrupts
•Up to 27 external interrupts on 6 vectors Timers
•Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-tim insertion and flexible synchronization
•16-bit general purpose timer, with 3 CAPCOM channels (IC, OC or PWM)
•8-bit basic timer with 8-bit prescaler
•Auto wake-up timer
•Window watchdog and independent watchdog timers Communication interfaces
•UART with clock output for synchronous operation, SmartCard, IrDA, LIN master mode
•SPI interface up to 8 Mbit/s
•I2C interface up to 400 kbit/s Analog to digital converter (ADC)
•10-bit, ±1 LSB ADC with up to 5 multiplexed channels, scan mode and analog watchdog I/Os
•Up to 28 I/Os on a 32-pin package including 21 high sink outputs
•Highly robust I/O design, immune against current injection Unique ID
•96-bit unique key for each device
سری میکرو | 8Bit-Micro |
سرعت میکرو | 16MHz |
حافظه میکرو | 8KB (8K x 8) |
رم میکرو | 1K x 8 |
پکیج میکرو | 20TSSOP (0.173", 4.40mm Width) |
تعداد ورودی خروجی | 16 |
