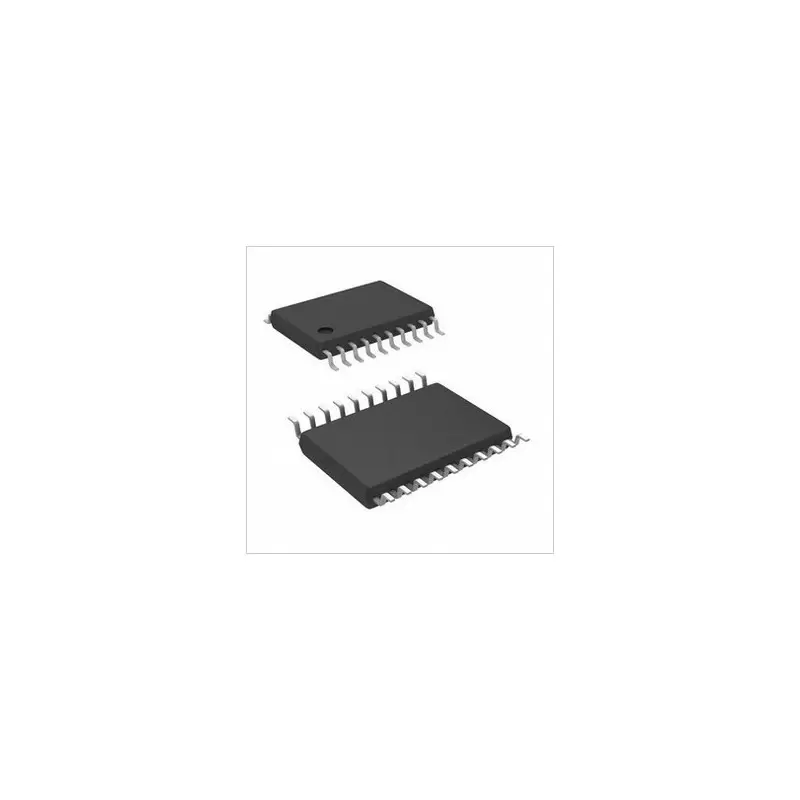

میکروکنترلر STM8L101F3P6 /ارزان/8بیتی/New and original+گارانتی/stm

میکروکنترلر 8 بیتی ارزان قیمت که این میکرو اولین بار توسط شرکت کویرالکترونیک وارد ایران می گردد.

این میکرو   STM8L101F3P6 از سری L می باشد و مصرف بسیار پایینی دارد.

این میکرو 100 درصد اورجینال می باشد


The STM8L101xx low power family features the enhanced STM8 CPU core providing increased processing power (up to 16 MIPS at 16 MHz) while maintaining the advantages of a CISC architecture with improved code density, a 24-bit linear addressing space and an optimized architecture for low power operations.

The family includes an integrated debug module with a hardware interface (SWIM) which allows non-intrusive in-application debugging and ultrafast Flash programming.

All STM8L101xx microcontrollers feature low power low-voltage single-supply program Flash memory. The 8-Kbyte devices embed data EEPROM.

The STM8L101xx low power family is based on a generic set of state-of-the-art peripherals. The modular design of the peripheral set allows the same peripherals to be found in different ST microcontroller families including 32-bit families. This makes any transition to a different family very easy, and simplified even more by the use of a common set of development tools.

All STM8L low power products are based on the same architecture with the same memory mapping and a coherent pinout.
pdf Please read
Errata Sheet
pdf Download
Datasheet
Key Features

    Main microcontroller features
    Supply voltage range 1.65 V to 3.6 V
    Low power consumption (Halt: 0.3 μA, Active-halt: 0.8 μA, Dynamic Run: 150 μA/MHz)
    STM8 Core with up to 16 CISC MIPS throughput
    Temp. range: -40 to 85 °C and 125 °C
    Memories
    Up to 8 Kbytes of Flash program including up to 2 Kbytes of data EEPROM
    Error correction code (ECC)
    Flexible write and read protection modes
    In-application and in-circuit programming
    Data EEPROM capability
    1.5 Kbytes of static RAM
    Clock management
    Internal 16 MHz RC with fast wakeup time (typ. 4 μs)
    Internal low consumption 38 kHz RC driving both the IWDG and the AWU
    Reset and supply management
    Ultralow power POR/PDR
    Three low power modes: Wait, Active-halt, Halt
    Interrupt management
    Nested interrupt controller with software priority control
    Up to 29 external interrupt sources
    Peripherals
    Two 16-bit general purpose timers (TIM2 and TIM3) with up and down counter and 2 channels (used as IC, OC, PWM)
    One 8-bit timer (TIM4) with 7-bit prescaler
    Infrared remote control (IR)
    Independent watchdog
    Auto-wakeup unit
    Beeper timer with 1, 2 or 4 kHz frequencies
    SPI synchronous serial interface
    Fast I2C Multimaster/slave 400 kHz
    USART with fractional baud rate generator
    2 comparators with 4 inputs each
    Development support
    Hardware single wire interface module (SWIM) for fast on-chip programming and non intrusive debugging
    In-circuit emulation (ICE)
    96-bit unique ID

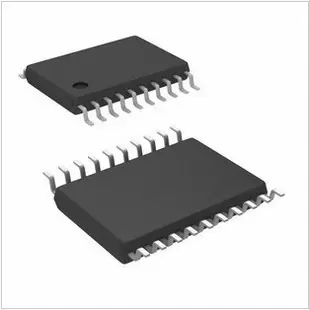

STM8L101F3P6 Part Details & Parametric
EU RoHS
Compliant
Data Bus Width (bit)     8
CECC Qualified     No
Core Architecture     STM8
Instruction Set Architecture     CISC
Device Core     STM8
Maximum Clock Rate (MHz)     16
Program Memory Type     ROM
Program Memory Size     8KB
RAM Size     1.5KB
Family Name     STM8L
Number of I/Os   18
No. of Timers     3
Pin Count     20
Programmability     Yes
SPI     1
I2C     1
USART     1
Max. Speed (MHz)     16
Minimum Operating Supply Voltage (V)     1.65
Typical Operating Supply Voltage (V)     1.8|2.5|3.3
Packaging     Tray
Maximum Operating Supply Voltage (V)     3.6
Minimum Operating Temperature (°C)     -40
Maximum Operating Temperature (°C)     85
Standard Package Name     TSSOP
Supplier Package     TSSOP
Military Qualified     No
Lead Shape     Gull-wing
Mounting     Surface Mount
Package Height (mm)     1
Package Length (mm)     6.5
Package Width (mm)     4.4
PCB     20
Standard Package Name     TSSOP
Supplier Package     TSSOP
Pin Count     20
Lead Shape     Gull-wing
