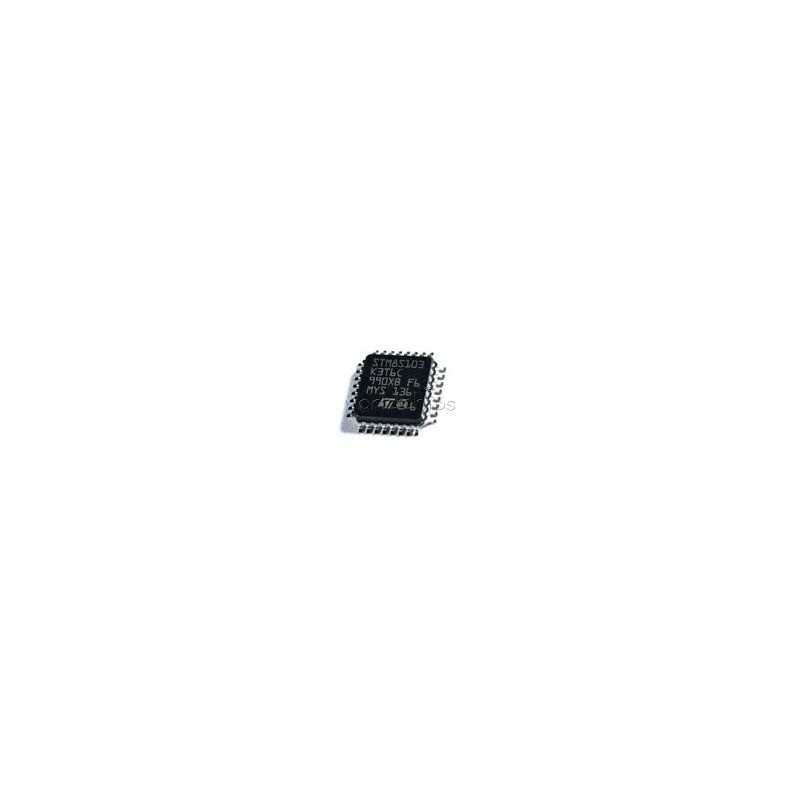

The STM8S103K3T3C is a mainstream access line 8-bit Microcontroller, implemented around a high-performance 8-bit core and a state-of-the-art set of peripherals. This platform is manufactured using an ST-proprietary 130nm embedded non-volatile memory technology. The STM8 allows fast and safe development through enhanced stack pointer operations, advanced addressing modes and new instructions. The device offer 8kB of flash program memory and integrated true data EEPROM. Device performance and robustness are ensured by advanced core and peripherals made in a state-of-the art technology, a 16MHz clock frequency, robust I/Os, independent watchdogs with separate clock source and a clock security system.
16MHz Advanced STM8 core with Harvard architecture and 3-stage pipeline
Extended instruction set
Low power crystal resonator oscillator
External clock input
Internal, user-trimmable 16MHz RC
Internal low-power 128kHz RC
Clock security system with clock monitor
Low-power modes (wait, active-halt, halt)
Switch-OFF peripheral clocks individually
Permanently active, low consumption poweron and power-down reset
Nested interrupt controller with 32 interrupts
Auto wake-up timer
Window watchdog and independent watchdog timers
UART with clock output for synchronous operation, SmartCard, IrDA, LIN master mode
SPI interface up to 8Mbps
I²C interface up to 400kbps
10-bit, ±1LSB ADC
Highly robust I/O design, immune against current injection
96-bit Unique key for each device
