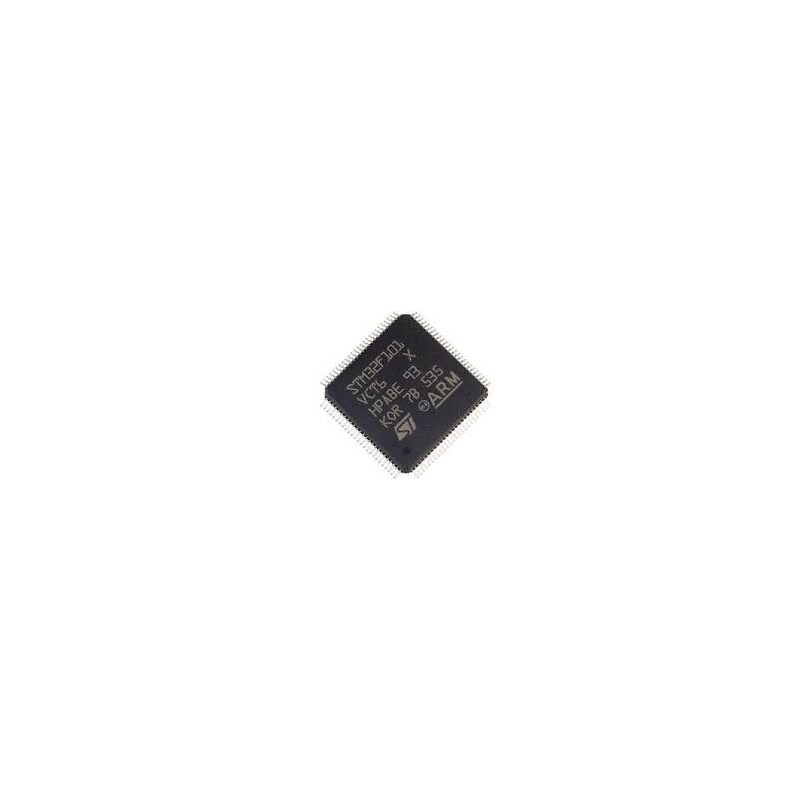

میکروکنترلر STM32F101VcT6 /اورجینال -New and original+گارانتی

میکروکنترلرSTM32F101VcT6 /اورجینال

The STM32F101VCT6 is a high density access line STM32 F1 series 32-bit Microcontroller incorporates the high-performance ARM Cortex-M3 RISC core operating at a 36MHz frequency, high speed embedded memories (Flash memory up to 256kB and SRAM up to 32KB) and an extensive range of enhanced peripherals and I/Os connected to two APB buses. This device offer one 12-bit ADCs, four general purpose 16-bit timers, as well as standard communication interfaces - up to two I²Cs, three SPIs and five USARTs.

-  36MHz Maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance
-   Single cycle multiplication and hardware division
-   Flexible static memory controller with 4 chip select
-   LCD parallel interface, 8080/6800 modes
-   Clock, reset and supply management

-  POR, PDR and programmable voltage detector (PVD)
-   4 to 16MHz Crystal oscillator
-   Internal 8MHz factory trimmed RC
-   Internal 40kHz RC
-   PLL for CPU clock
-   32kHz Oscillator for RTC with calibration
-   Sleep, stop and standby modes
-   VBAT supply for RTC and backup registers
-   Serial wire debug (SWD) and JTAG interfaces
-   12-channel DMA Controller
-   Two watchdog timers (Independent and window)
-   SysTick Timer
-   96-bit Unique ID

Manufacturer:
         STMicroelectronics
Product Category:
         ARM Microcontrollers - MCU
Mounting Style:
         SMD/SMT
Package / Case:
         LQFP-100
Series:
         STM32F1
Core:
         ARM Cortex M3
Data Bus Width:
         32 bit
Maximum Clock Frequency:
         36 MHz
Program Memory Size:
         256 kB
Data RAM Size:
         32 kB
ADC Resolution:
         12 bit
Number of I/Os:
         80 I/O
Operating Supply Voltage:
         2 V to 3.6 V
Minimum Operating Temperature:
         - 40 C
Maximum Operating Temperature:
         + 85 C
Interface Type:
         I2C, SPI, USART
Height:
         1.4 mm
Length:
         14 mm
Program Memory Type:
         Flash
Width:
         14 mm
Brand:
         STMicroelectronics
Data RAM Type:
         SRAM
Moisture Sensitive:
         Yes
Number of ADC Channels:
         16
Number of Timers/Counters:
         6 Timer
Processor Series:
         ARM Cortex M
Factory Pack Quantity:
         540
Supply Voltage - Max:
         3.6 V
Supply Voltage - Min:
         2 V
Tradename:
         STM32
Unit Weight:
        1.319 g
