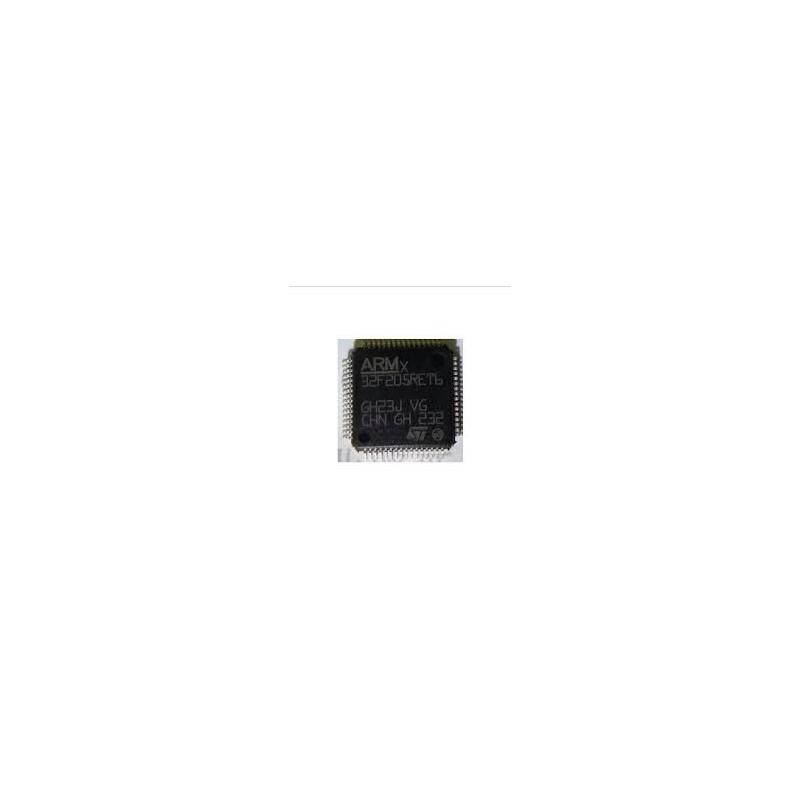

STM32F205RET6
ARM Microcontroller, STM32 Family STM32F2 Series Microcontrollers, ARM Cortex-M3, 32bit, 120 MHz
میکروکنترلرSTM32F205RET6 /اورجینال
The STM32F205RET6 is a 32-bit ARM-based Microcontroller Unit features an adaptive real-time memory accelerator which allows to achieve a performance equivalent to 0 wait state program execution from flash memory at a CPU frequency up to 120MHz. It is based on the high-performance ARM® Cortex®-M3 32-bit RISC core operating at a frequency of 120MHz. This incorporates high-speed embedded memories up to 4kB of backup SRAM and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses and a 32-bit multi-AHB bus matrix.
Clock, reset and supply management - POR, PDR, PVD and BOR
Low-power modes - Sleep, stop and standby modes
VBAT supply for RTC, 20 x 32-bit backup registers and optional 4kB backup SRAM
General-purpose DMA - 16-stream controller with centralized FIFOs and burst support
Debug mode - Serial wire debug (SWD), JTAG and Cortex-M3 embedded trace Macrocell™
8 to 14-bit parallel camera interface
CRC calculation unit
96-bit Unique ID
Manufacturer:
STMicroelectronics
Product Category:
ARM Microcontrollers - MCU
Mounting Style:
SMD/SMT
Package / Case:
LQFP-64
Series:
STM32F2
Core:
ARM Cortex M3
Data Bus Width:
32 bit
Maximum Clock Frequency:
120 MHz
Program Memory Size:
512 kB
Data RAM Size:
128 kB
ADC Resolution:
12 bit
Number of I/Os:
16 I/O
Operating Supply Voltage:
1.8 V to 3.6 V
Minimum Operating Temperature:
- 40 C
Maximum Operating Temperature:
+ 85 C
Interface Type:
2xCAN, 2xUART, 3xI2C, 3xSPI, 4xUSART, SDIO
Program Memory Type:
Flash
Brand:
STMicroelectronics
Data RAM Type:
SRAM
Data ROM Size:
512 B
Moisture Sensitive:
Yes
Number of Timers/Counters:
10 Timer
Processor Series:
ARM Cortex M
Factory Pack Quantity:
960
Tradename:
STM32
Unit Weight:
342.700 mg
سری میکرو | Cortex-M3 |
سرعت میکرو | 120MHz |
حافظه میکرو | 512KB (512K x 8) |
رم میکرو | 132K x 8 |
پکیج میکرو | 64LQFP |
تعداد ورودی خروجی | 51 |
