میکروکنترلر STM32L151CBU6 /اورجینال -New and original+گارانتی

با خرید این محصول 4 امتیاز وفاداری. سبد شما در مجموع 4 امتیاز وفاداری که می تواند به کوپن تخفیف تبدیل شود به ارزش 20,000 ریال.


نظر و رتبه بندی مشتریان

4132000

محصول جدید

4,823,000 ریال

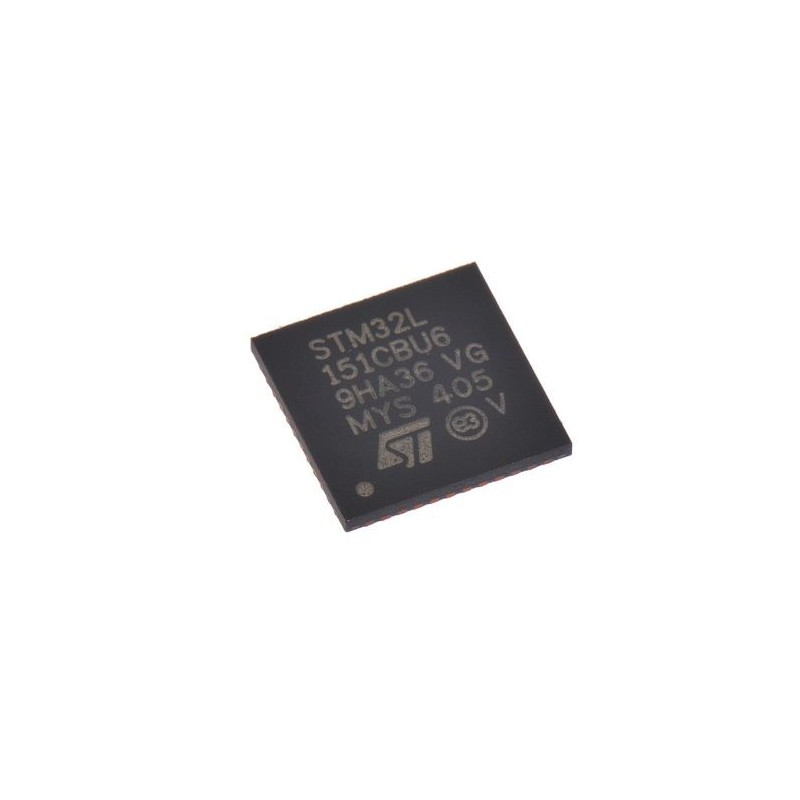

میکروکنترلر STM32L151CBU6  /اورجینال

ARM® Cortex®-M3 STM32L1 Microcontroller IC 32-Bit 32MHz 128KB (128K x 8) FLASH 48-UFQFPN (7x7)

میکروکنترلر STM32L151CBU6  /اورجینال

Product Details:
STM32L151 Series Microcontrollers, STMicroelectronics

STMicroelectronics STM32L151 series microcontrollers feature an ARM Cortex-M3 32-bit core. Suitable for a wide range of portable/battery-powered applications such as gaming, alarm systems, metering and medical equipment and remote sensors for the Internet of Things (IoT).

32MHz ARM Cortex-M3 core ultra-low power microcontroller
Up to 128KB Flash memory with ECC
Up to 16KB RAM
4KB true EEPROM with ECC
Cyclic Redundancy Check (CRC) calculation unit for memory verification
Serial interfaces: USART, SPI, I²C, USB
Up to 24-channel 12-bit ADC
2 x 12-bit DACs
Real-Time Clock (RTC) with backup registers
Up to 20 x capacitive sensing channels
Power supply: +1.8V to +3.6Vdc
7 x low-power modes: Sleep, Low-Power Run, Low-Power Sleep, Stop with RTC, Stop without RTC, Standby with RTC, Standby without RTC
Operating temperature range: -40 to +85°C
STM32L1 Series 32-Bit ARM® Cortex®-M3 Microcontrollers, STMicroelectronics

ARM® Cortex™-M3-based STM32 L1 series uses ST’s proprietary ultra-low-leakage process technology with an innovative autonomous dynamic voltage scaling and five (5) low-power modes offering unprecedented platform flexibility to fit any application. The STM32 L1 series extends the ultra-low power concept with no compromise on performance.

Ultra-Low-Power mode: 300nA with backup registers (3 wakeup pins)
Ultra-Low-Power mode + Real Time Clock (RTC): 900nA with backup registers (3 wakeup pins)
Low-Power Run mode: down to 9μA
Dynamic Run mode: down to 230μA/MHz

Specifications
Attribute :
    Value
Family Name :
STM32L
Package Type:
     UFQFPN
Mounting Type:
     Surface Mount
Pin Count :
    48
Device Core :
    ARM Cortex M3
Data Bus Width :
    32bit
Program Memory Size :
    128 kB
Maximum Frequency :
    32MHz
RAM Size :
    16 kB
USB Channels :
    1
Number of PWM Units :
    1
ADC Channels :
    14
Number of SPI Channels:
     2
Typical Operating Supply Voltage :
    3.6 V
Maximum Operating Temperature:
     +85 °C
Height:
     0.6mm
Number of I2C Channels:
     2
PWM Channels:
     4
ADC Resolution:
     12bit
Program Memory Type :
    Flash
Pulse Width Modulation :
    1(4 x 16 bit)
Length :
    7.1mm
Dimensions:
     7.1 x 7.1 x 0.6mm
PWM Resolution :
    16bit
Instruction Set Architecture :
    MCU
Minimum Operating Temperature :
    -40 °C
Timers :
    10(4 x 16 bit)
Timer Resolution :
    16bit
Number of Timers:
     10
Number of ADC Units :
    1
ADCs :
    1(14 x 12 bit)
Number of USART Channels:
     3
Width:
     7.1mm



سری میکروCortex-M3
سرعت میکرو32MHz
حافظه میکرو128KB (128K x 8)
رم میکرو16K x 8
پکیج میکرو48UFQFN Exposed Pad
تعداد ورودی خروجی37
