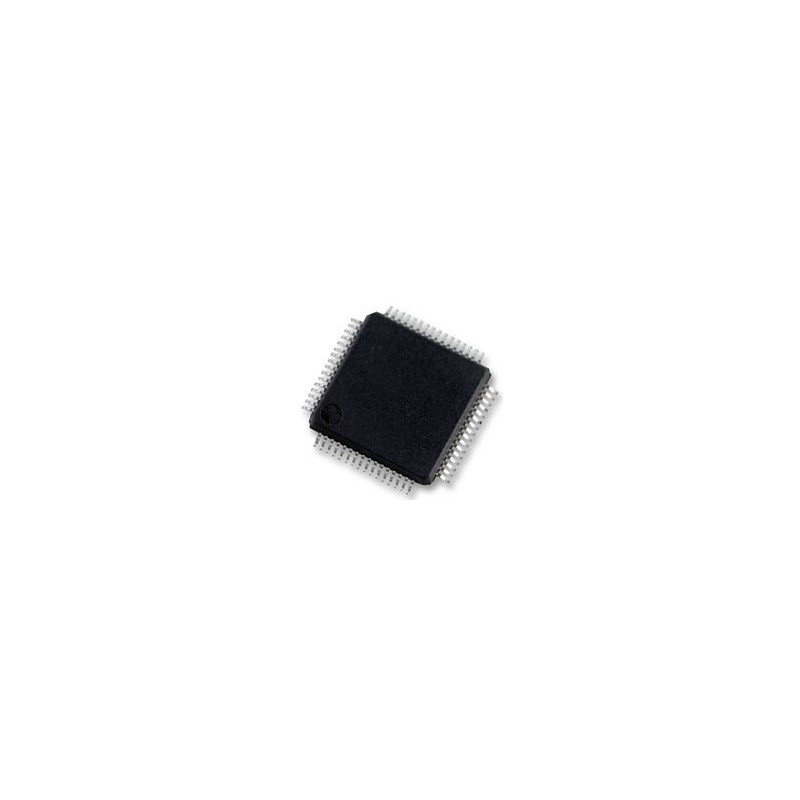

میکروکنترلر stm32f103rct6 اورجینال- New and original+گارانتی

هیچ امتیاز پاداش برای این محصول وجود ندارد.


نظر و رتبه بندی مشتریان

4121000

محصول جدید

781,900 ریال

میکروکنترلر 100 درصد اورجینال stm32f103rct6



    Family Name: STM32F
    Core Processor: ARM Cortex M3
    Program Memory Type: Flash
    Flash Size (Bytes): 256 kB
    RAM Size: 48 kB
    Speed: 72 MHz
    No of I/O Lines: 51
    InterfaceType / Connectivity: CAN / I2C / SPI / USART / USB
    Peripherals: On-Chip-DAC / CAN / I2C / SPI / USART / USB / Watchdog / PWM / On-Chip-ADC
    Number Of Timers: 8
    Supply Voltage: 2 to 3.6 V
    Operating Temperature: -40 to +85 °C
    On-Chip ADC: 3(16-chx12-bit)
    On-Chip DAC: 2(2-chx12-bit)
    Watchdog: 2

The STM32F103RCT6 microcontroller has 256KB of Flash, 48KB RAM, 3x16-channel 12-bit A/D converter, 6x16-bit (IC/OC/PWM) timer, 3xSPI, 2x12C, 5USART, USB, CAN, 51 I/Os in a 64-pin 10mm x 10mm x 1.4mm LQFP package.

The STM32F103xx medium-density performance line family incorporates the high-performance ARM Cortex™-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer two 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces: up to two I2Cs and SPIs, three USARTs, an USB and a CAN.

The devices operate from a 2.0 to 3.6 V power supply. They are available in both the –40 to +85 °C temperature range and the –40 to +105 °C extended temperature range. A comprehensive set of power-saving mode allows the design of low-power applications.

The STM32F103xx medium-density performance line family includes devices in six different package types: from 36 pins to 100 pins. Depending on the device chosen, different sets of peripherals are included, the description below gives an overview of the complete range of peripherals proposed in this family.

Features:

    ARM 32-bit Cortex™-M3 CPU Core
        72 MHz maximum frequency,1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
        Single-cycle multiplication and hardware division
    Memories
        64 or 128 Kbytes of Flash memory
        20 Kbytes of SRAM
    Clock, reset and supply management
        2.0 to 3.6 V application supply and I/Os
        POR, PDR, and programmable voltage detector (PVD)
        4-to-16 MHz crystal oscillator
        Internal 8 MHz factory-trimmed RC
        Internal 40 kHz RC
        PLL for CPU clock
        32 kHz oscillator for RTC with calibration
    Low power
        Sleep, Stop and Standby modes
        VBAT supply for RTC and backup registers
    2 x 12-bit, 1 μs A/D converters (up to 16 channels)
        Conversion range: 0 to 3.6 V
        Dual-sample and hold capability
        Temperature sensor
    DMA
        7-channel DMA controller
        Peripherals supported: timers, ADC, SPIs, I2Cs and USARTs
    Up to 51 fast I/O ports
        26/37/51 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant
    Debug mode
        Serial wire debug (SWD) & JTAG interfaces
    7 timers
        Two 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
        16-bit, motor control PWM timer with dead-time generation and emergency stop
        2 watchdog timers (Independent and Window)
        SysTick timer 24-bit downcounter
    Up to 9 communication interfaces

                Up to 2 x I2C interfaces (SMBus/PMBus)
                Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
                Up to 2 SPIs (18 Mbit/s)
                CAN interface (2.0B Active)
                USB 2.0 full-speed interface

                    CRC calculation unit, 96-bit unique ID

    Packages are ECOPACK

Applications:

    Motor drive
    Application control
    Medical and handheld equipment
    PC and gaming peripherals
    GPS platforms
    Industrial applications
    PLCs
    Inverters
    Printers
    Scanners
    Alarm systems
    Video intercoms
    HVACs


سری میکروCortex-M3
سرعت میکرو72MHz
حافظه میکرو256KB (256K x 8)
رم میکرو48K x 8
پکیج میکرو64LQFP
تعداد ورودی خروجی51

نظرات

ثبت نام مورد نیاز نمی باشد!

1 سوال(ها) پاسخ داده خواهد شد

اگر سوال و یا نظری دارید مطرح نمائید

(اختیاری)
*(برای دریافت پاسخ مورد نیاز می باشد)
  • ارسال شده توسط محمد هادی
    در 04/06/1400
    سلام.دلیل تفاوت قیمت بالای محصولات شما نسبت به فروشگاه های دیگه در چیه؟با توجه به اینکه مثلا میکروهای سایت های دیگر هم ذکر شده کاملا ارجینال؟ باتشکر؟ پاسخ:
    سلام قیمت های ما بروز و میکرو اورجینال هست . درمورد میکروهای stm نوسان بسیاری دارند و مدام در حال تغییر هستند. در این بازه زمانی بهتر هست میکروهایی که ارزانتر هستند خرید کند نت قیمتها ثابت شوند
