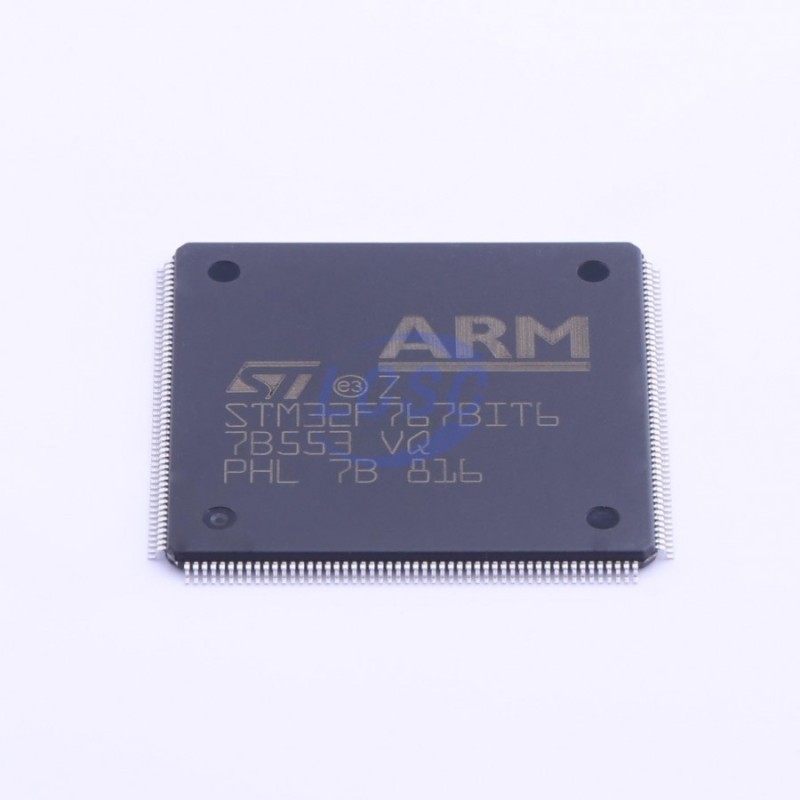

میکروکنترلر stm32f767bit6 - اورجینال-New and original+گارانتی

میکروکنترلرstm32f767bit6 - اورجینال-New and original+گارانتی

manufacturer:
   STMicroelectronics
Product Category:
   ARM Microcontrollers - MCU
RoHS:
   Details
Mounting Style:
  SMD/SMT
Package / Case:
   LQFP-208
Series:
   STM32F767BI
Core:
  ARM Cortex M7
Data Bus Width:
   32 bit
Maximum Clock Frequency:
   216 MHz
Program Memory Size:
   2 MB
Data RAM Size:
   512 kB
ADC Resolution:
   12 bit
Number of I/Os:
   168 I/O
Operating Supply Voltage:
   3.3 V
Minimum Operating Temperature:
   - 40 C
Maximum Operating Temperature:
   + 85 C
Interface Type:
   I2C, UART
Product:
   MCU+FPU
 Program Memory Type:
   Flash
  STMicroelectronics
 Data RAM Type:
   Flash
 Analog Supply Voltage:
   3.3 V
 CNHTS:
   8542319000
DAC Resolution:
   12 bit
 HTS Code:
   8542310001
 I/O Voltage:
   3.3 V
MXHTS:
   85423102
Number of ADC Channels:
   3
Number of Timers/Counters:
   18
 Factory Pack Quantity:
   360
Supply Voltage - Max:
   3.6 V
Supply Voltage - Min:
   1.7 V
TARIC:
   8542319000
Tradename:
   STM32
Watchdog Timers:
   Watchdog Timer
