میکروکنترلر STM32F101VBT6 /اورجینال - New and original+گارانتی

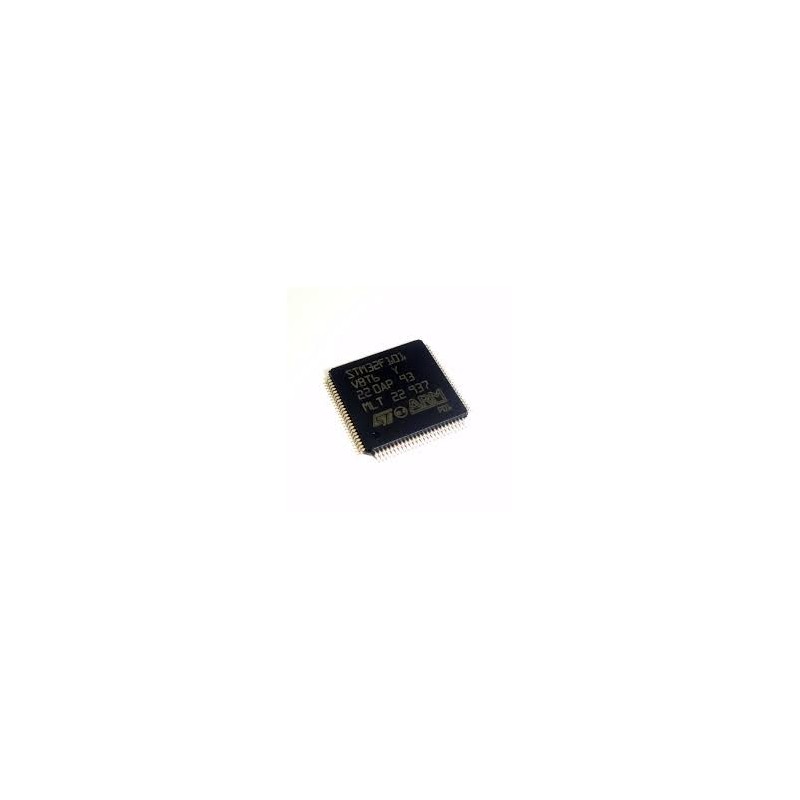

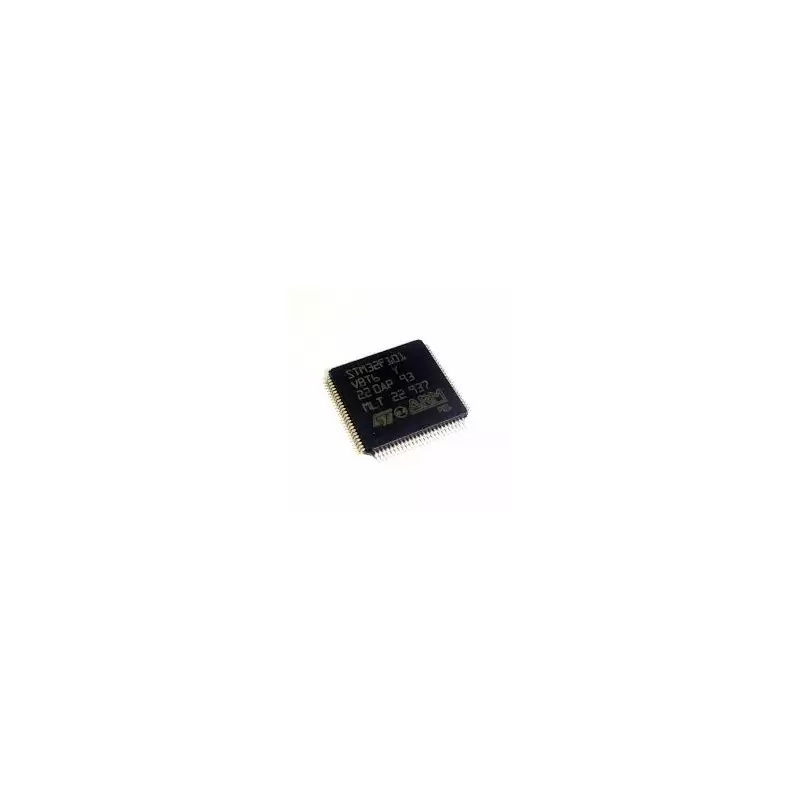

میکروکنترلرSTM32F101VBT6 /اورجینال

The STM32F101VBT6 is a medium density access line STM32 F1 series 32-bit Microcontroller incorporates the high-performance ARM Cortex-M3 RISC core operating at a 36MHz frequency, high speed embedded memories (Flash memory up to 128kB and SRAM up to 16KB) and an extensive range of enhanced peripherals and I/Os connected to two APB buses. This device offer one 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard communication interfaces - up to two I²Cs, two SPIs and three USARTs.

 - 36MHz Maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance
 - Single cycle multiplication and hardware division
 - Clock, reset and supply management
 - POR, PDR and programmable voltage detector (PVD)
 - 4 to 16MHz Crystal oscillator
 - Internal 8MHz factory trimmed RC
 - Internal 40kHz RC
 - PLL for CPU clock
 - 32kHz Oscillator for RTC with calibration
 - Sleep, stop and standby modes
 - VBAT supply for RTC and backup registers
 - Serial wire debug (SWD) and JTAG interfaces
 - 7-channel DMA Controller
 - 2 x Watchdog timers (Independent and window)
 - SysTick Timer
 - 96-bit Unique ID

Manufacturer:
         STMicroelectronics
Product Category:
         ARM Microcontrollers - MCU
Mounting Style:
         SMD/SMT
Package / Case:
         LQFP-100
Series:
         STM32F1
Core:
         ARM Cortex M3
Data Bus Width:
         32 bit
Maximum Clock Frequency:
         36 MHz
Program Memory Size:
         128 kB
Data RAM Size:
         16 kB
ADC Resolution:
         12 bit
Number of I/Os:
         100 I/O
Operating Supply Voltage:
         2 V to 3.6 V
Minimum Operating Temperature:
         - 40 C
Maximum Operating Temperature:
         + 85 C
Interface Type:
         I2C, SPI, USART
Height:
         1.4 mm
Length:
         14 mm
Product:
         MCU
Program Memory Type:
         Flash
Width:
         14 mm
Brand:
         STMicroelectronics
Data RAM Type:
         SRAM
Moisture Sensitive:
         Yes
Number of ADC Channels:
         16
Number of Timers/Counters:
         3 Timer
Processor Series:
         ARM Cortex M
Factory Pack Quantity:
         540
Supply Voltage - Max:
         3.6 V
Supply Voltage - Min:
         2 V
Tradename:
         STM32
Unit Weight:
         1.319 g
