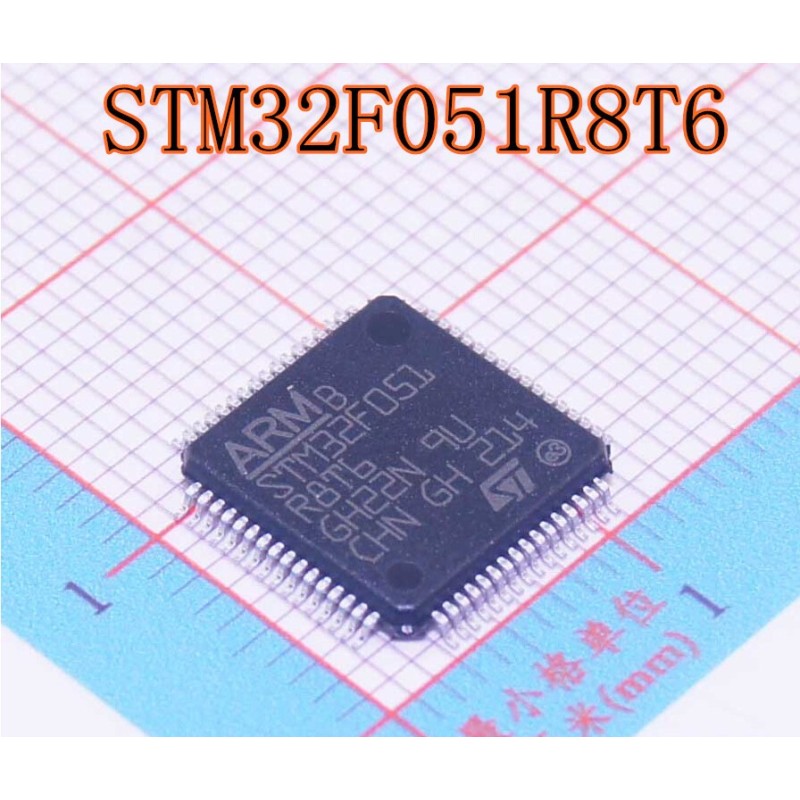

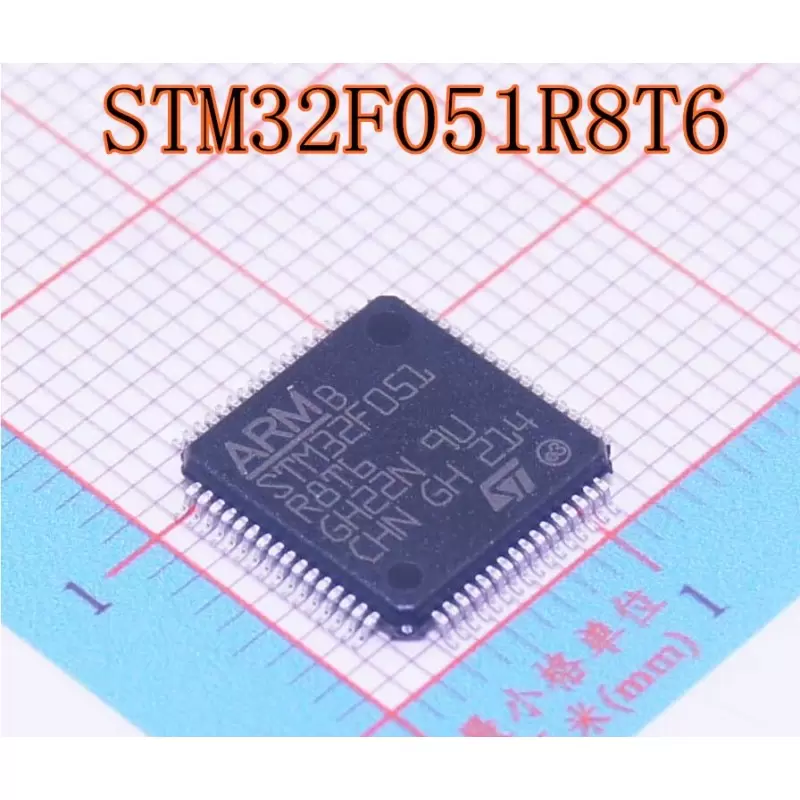

میکروکنترلر STM32F051R8T6 اورجینال-New and original+گارانتی

Product Details
STM32F05 Series Microcontrollers, STMicroelectronics

The STM32F05 microcontroller family ARM Cortex™ M0, 32-bit RISC core performs at 48MHz maximum frequency with high speed Flash memory and a range of enhanced peripherals they also include I²C, SPI, I²S and USART communication interfaces, timers, ADC and DACs.

The ARM® Cortex M0 STM32 F05 with real time performance and low power operation will function on the STMicroelectronics STM32 platform. The microcontrollers can be used in areas such as HVAC, application control, consumer appliances, PC peripherals, handheld equipment and many other applications.

Cortex™ M0: 48MHz Frequency
12-bit ADC; 16-bit timers; 32-bit timer and an advanced control PWM timer
Temperature ranges: -40 to +85°C or -40 to +105°C temperature
Power Supply: 2V to 3.6V
STM32F05: Flash memory up to 32kB, SRAM up to 4kB
STM32F051x4; STM32F051x6 and STM32F051x8: Flash memory up to 64kB Flash, SRAM up to 8kB
STM32F0 Series - Cortex®-M0

The STM32 F0 Series of the 32-bit Flash Microcontrollers (MCUs) is based on the ARM Cortex™-M0 core; a core specifically developed for embedded applications. STMicroelectronics’s STM32 ARM Cortex™ M processor benefits from the Cortex-M0 architectural enhancements including digital signal processing, real-time performance, low voltage and low power. ST’s ARM® STM32 F0 mainstream series delivers a 32-bit performance and is ideal for small projects or platform decisions with its easy to use functionality.

    ADC Channels    19
    ADC Resolution    12bit
    ADCs    19 x 12 bit
    Data Bus Width    32bit
    Device Core    ARM Cortex M0
    Dimensions    10.2 x 10.2 x 1.45mm
    Family Name    STM32F051
    Height    1.45mm
    Instruction Set Architecture    RISC
    Length    10.2mm
    Maximum Frequency    48MHz
    Maximum Operating Temperature    +85 °C
    Minimum Operating Temperature    -40 °C
    Mounting Type    Surface Mount
    Number of ADC Units    1
    Number of CAN Channels    0
    Number of Ethernet Channels    0
    Number of I2C Channels    2
    Number of LIN Channels    0
    Number of PCI Channels    0
    Number of PWM Units    1
    Number of SPI Channels    2
    Number of Timers    8
    Number of UART Channels    0
    Number of USART Channels    2
    Package Type    LQFP
    Pin Count    64
    Program Memory Size    64 kB
    Program Memory Type    Flash
    Pulse Width Modulation    1 x 16 bit
    PWM Channels    1
    PWM Resolution    16bit
    RAM Size    8 kB
    Timer Resolution    16 bit, 32 bit
    Timers    1 x 16 bit, 1 x 32 bit, 5 x 16 bit
    Typical Operating Supply Voltage    2 → 3.6 V
    USB Channels    0
    Width    10.2mm
