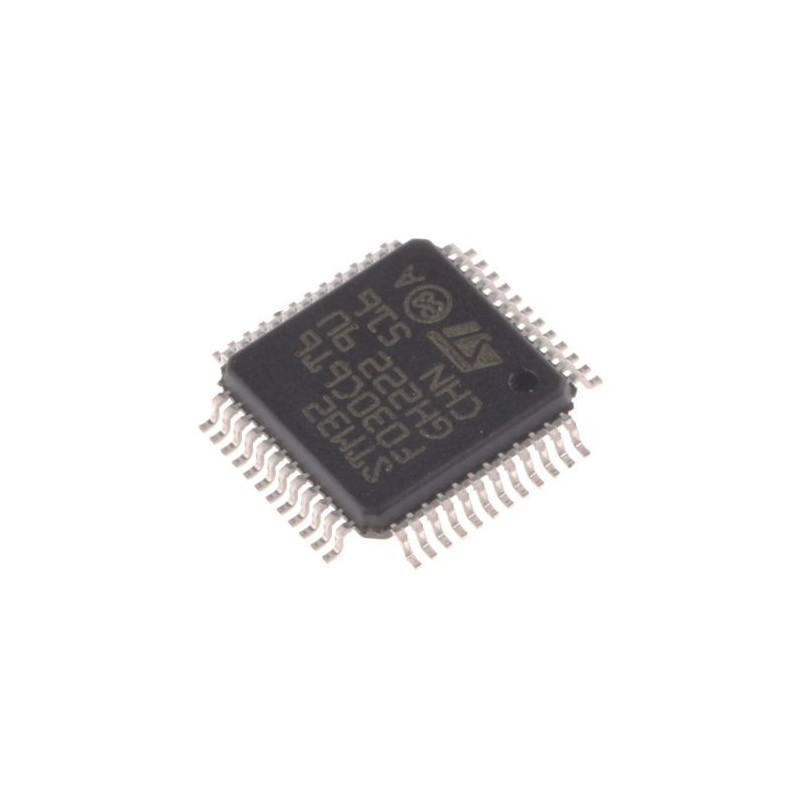

میکروکنترلر STM32F030C6T6 / اورجینال

میکروکنترلر STM32F030C6T6 / اورجینال

STM32F03 Series Microcontrollers, STMicroelectronics

STMicroelectronics ARM Cortex-M0-based STM32F0 series microcontroller incudes the entry level ARM Cortex™ M0 32-bit RISC core. The STM32F030 Value line provides high-speed embedded memory with a range of enhanced peripherals and I/Os. There are communication interfaces such as I2C, SPIs, and USARTs, plus 12-bit ADC, 16-bit timers and an advanced-control PWM timer.

ST’s STM32F0 MCUs advanced architecture combined with the STM32 platform allows the design of low power applications which are offered in different package types. The ARM Cortex™-M0 core processor with embedded Flash and SRAM is compatible with all ARM tools and software.

The STM32F030 ARM processor microcontroller (MCU) is suitable for a broad range of applications which include application control and user interface, handheld equipment, A/V receivers, PC peripherals, gaming platforms, consumer appliances, printers, alarm systems and HVACs.

Frequency: 48 MHz CPU
Flash memory: up to 64 Kbytes
SRAM: up to 8 Kbytes
Power supply: 2.4 to 3.6 V
Temperature range: -40 to +85 °C
STM32F0 Series 32-Bit ARM® Cortex®-M0 Microcontrollers, STMicroelectronics

The STM32 F0 Series of the 32-bit Flash Microcontrollers (MCUs) is based on the ARM Cortex™-M0 core; a core specifically developed for embedded applications. STMicroelectronics’s STM32 ARM Cortex™ M processor benefits from the Cortex-M0 architectural enhancements including digital signal processing, real-time performance, low voltage and low power. ST’s ARM® STM32 F0 mainstream series delivers a 32-bit performance and is ideal for small projects or platform decisions with its easy to use functionality.

Specifications
Attribute :
    Value
Family Name :
STM32F
Package Type:
     LQFP
Mounting Type ;
    Surface Mount
Pin Count :
    48
Device Core :
    ARM Cortex M0
Data Bus Width:
     32bit
Program Memory Size :
    32 kB
Maximum Frequency :
    48MHz
RAM Size :
    4 kB
Number of PWM Units :
    1
ADC Channels :
    12
Number of SPI Channels :
    1
Typical Operating Supply Voltage :
    3.6 V
Timers :
    5 x 16 bit
Minimum Operating Temperature :
    -40 °C
Instruction Set Architecture :
    RISC
PWM Resolution:
     16bit
Dimensions :
    7.2 x 7.2 x 1.45mm
Length :
    7.2mm
ADC Resolution:
     12bit
Program Memory Type :
    Flash
Width :
    7.2mm
ADCs:
     1(12 x 12 bit)
Number of USART Channels :
    1
Number of ADC Units :
    1
Number of Timers :
    5
Pulse Width Modulation :
    1(6 x 16 bit)
Number of I2C Channels:
     1
PWM Channels :
    6
Maximum Operating Temperature :
    +85 °C
Height :
    1.45mm
Timer Resolution:
     16bita

سری میکرو	Cortex-M0
سرعت میکرو	48MHz
حافظه میکرو	32KB (32K x 8)
رم میکرو	4K x 8
پکیج میکرو	48LQFP
تعداد ورودی خروجی	39
