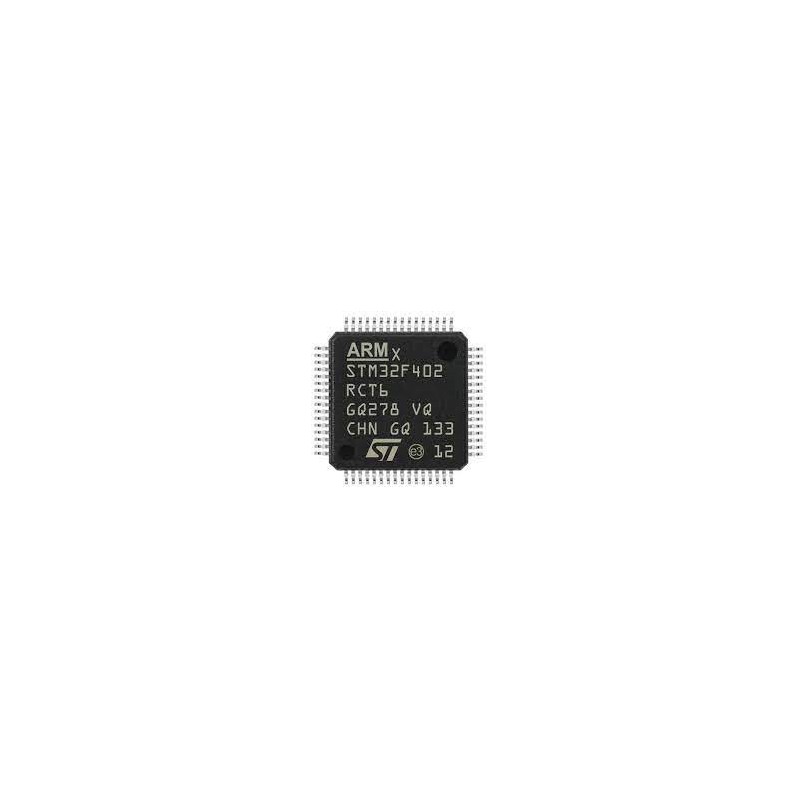

میکروکنترلر STM32F402RCT6 - اورجینال-New and original+گارانتی

میکروکنترلر STM32F402RCT6 - اورجینال-New and original+گارانتی

Manufacturer:
    STMicroelectronics
Product Category:
    ARM Microcontrollers - MCU
Series:
    STM32F402RC
Mounting Style:
    SMD/SMT
Package / Case:

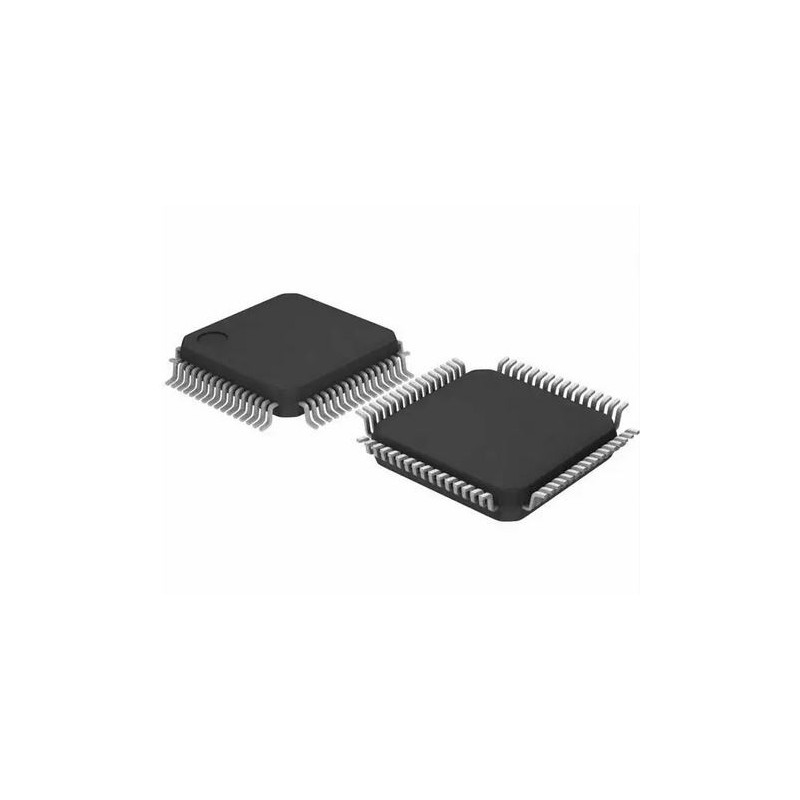

    LQFP-64
Core:
    ARM Cortex M4
Program Memory Size:
    256 kB
Data Bus Width:
    32 bit
ADC Resolution:
    12 bit
Maximum Clock Frequency:
    84 MHz
Number of I/Os:
    50 I/O
Data RAM Size:
    64 kB
Supply Voltage - Min:
    1.7 V
Supply Voltage - Max:
    3.6 V
Minimum Operating Temperature:
    - 40 C
Maximum Operating Temperature:
    + 85 C
Packaging:
    Tray
Brand:
    STMicroelectronics
Data RAM Type:
    SRAM
Interface Type:
    I2C, I2S, SDIO, SPI, USART, USB
Moisture Sensitive:
    Yes
Number of ADC Channels:
    16 Channel
Number of Timers/Counters:
    8 Timer
Processor Series:
    STM32F402
Product:
    MCU+FPU
Product Type:
    ARM Microcontrollers - MCU
Program Memory Type:
    Flash
Subcategory:
    Microcontrollers - MCU
Tradename:
    STM32
Watchdog Timers:
    Watchdog Timer, Windowed

Arm® Cortex®-M4 32-bit MCU+FPU, 105 DMIPS, 256KB Flash /
64KB RAM, 11 TIMs, 1 ADC, 11 communication interfaces
data summary
characteristic
• The Dynamic Efficiency™ series uses BAM (Batch Acquisition Model
Mode)
– 1.7 V to 3.6 V power supply
– -40 °C to 85 °C temperature range
• Core: Arm® 32-bit Cortex®-M4 CPU with FPU,
Achieve zero-wait-state operation performance in Flash memory
Adaptive Real-Time Accelerator (ART Accelerator™), clocked at up to
84 MHz, memory protection unit capable of achieving up to 105
DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1) performance
Can, with DSP instruction set.
• memory
– Maximum 256KB Flash
– 512 bytes of OTP memory
– Up to 64KB SRAM
• Clock, reset and power management
– 1.7 V to 3.6 V supply and I/O
– POR, PDR, PVD and BOR
– 4 to 26 MHz crystal oscillator
– Built-in factory-tuned 16 MHz RC oscillator
– 32 kHz RTC oscillator with calibration
– Built-in 32 kHz RC oscillator with calibration function
• power consumption
– Operating: 128 µA/MHz (peripherals off)
– Stop (Flash is in stop mode, when it wakes up quickly
between): 42 µA typical @ 25 °C;
65 µA max @ 25 °C
– Stop (Flash is in deep power-down mode, slow wake-up
between): as low as 10 µA typical @ 25 °C; maximum
28µA @ 25°C
– Standby: 2.4 µA @25 °C / 1.7 V without RTC;
12µA @85°C @1.7V
– VBAT powers RTC: 1 µA @25 °C
• One 12-bit, 2.4 MSPS A/D converter (up to 16 channels)
• General purpose DMA: 16-way DMA with FIFO and burst support
controller
• Up to 11 timers: up to six 16-bit, two 32-bit
timers, up to 84 MHz, each with up to 4 IC/OC/
PWM or pulse counter and quadrature (incremental) encoder input
inputs, two watchdog timers (independent and windowed) and a
SysTick timer
• Debug mode
– Serial Wire Debug (SWD) and JTAG interfaces
– Cortex®-M4 Tracking Macrocell™
• Up to 81 I/O ports with interrupt capability
– All IO ports are 5 V tolerant
– Up to 78 fast I/Os up to 42 MHz
• Up to 11 communication interfaces
– up to 3 I
2C interface (1Mbit/s, SMBus/PMBus)
– Up to 3 USARTs (2 x 10.5 Mbit/s, 1 x
5.25 Mbit/s), ISO 7816 interface, LIN,
IrDA, modem control)
– Up to 4 SPIs (up to
42 Mbits/s), SPI2 and SPI3 have multiplexed full
Duplex I
2S, through internal audio PLL or external clock up to
to audio-grade precision
– SDIO interface
• Advanced connectivity features
– USB 2.0 full-speed device/host with on-chip PHY
/OTG controller
• CRC calculation unit
• 96-bit unique ID
• RTC: sub-second accuracy, hardware calendar
• All packages are ECOPACK2
