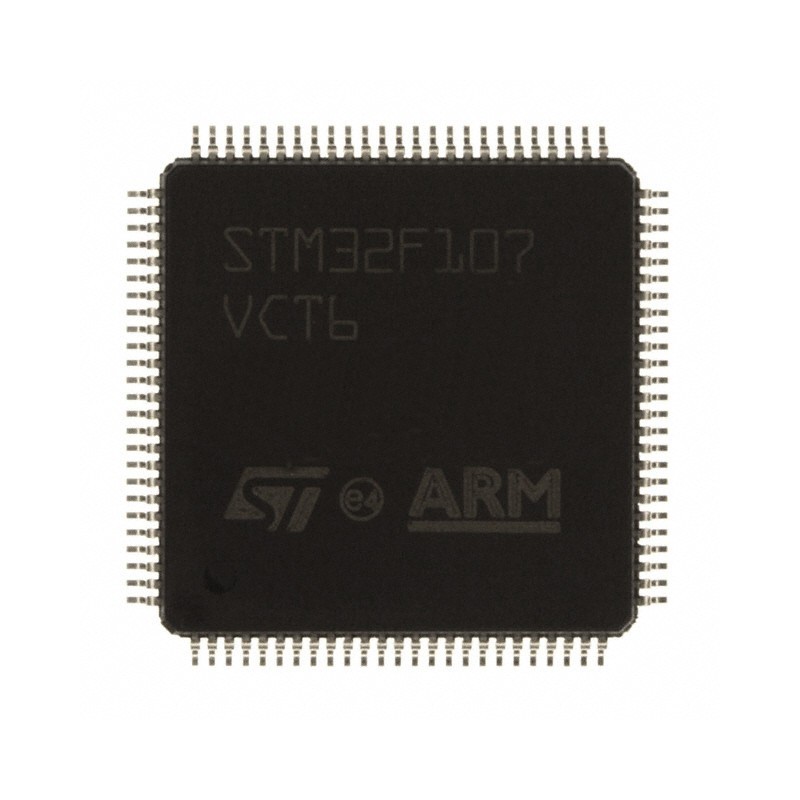

میکروکنترلر stm32f107vct6 LQFP100 اورجینال -New and original+گارانتی

هیچ امتیاز پاداش برای این محصول وجود ندارد.


نظر و رتبه بندی مشتریان

8014000

محصول جدید

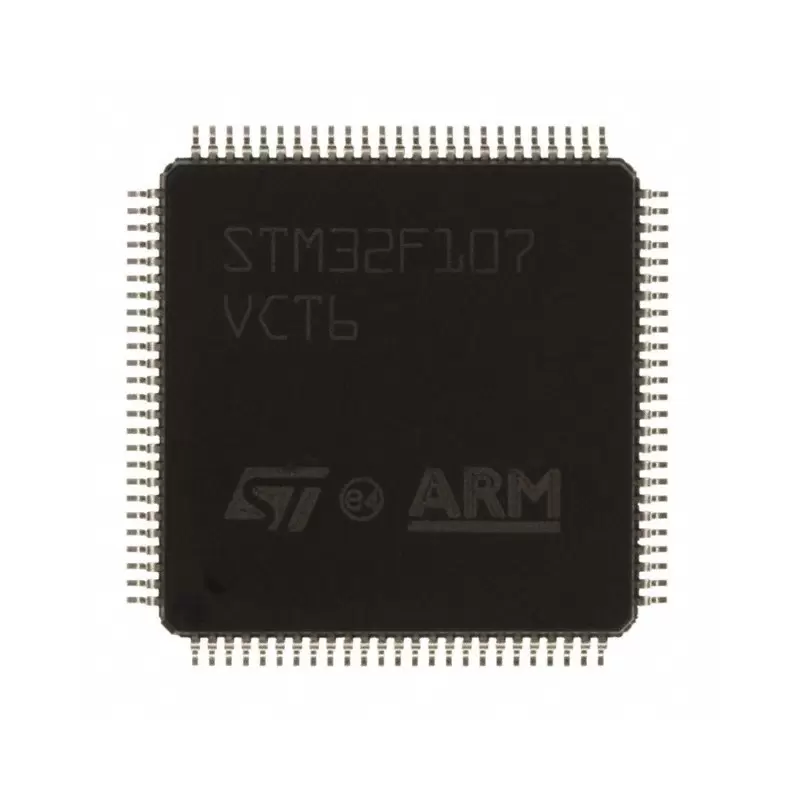

میکروکنترلر stm32f107vc6 اورجینال

محصولی از کویر الکترونیک

این محصول در انبار موجود نیست

میکرو کنترلر stm32f107vct6 از خانواده stm است .این آیسی 100 درصد اورجینال می باشد


STM32F107VC
Mainstream Connectivity line, ARM Cortex-M3 MCU with 256 Kbytes Flash, 72 MHz CPU, Ethernet MAC, CAN and USB 2.0 OTG
Key Features

    Core: ARM 32-bit Cortex™-M3 CPU
    72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
    Single-cycle multiplication and hardware division
    Memories
    64 to 256 Kbytes of Flash memory
    64 Kbytes of general-purpose SRAM
    Clock, reset and supply management
    2.0 to 3.6 V application supply and I/Os
    POR, PDR, and programmable voltage detector (PVD)
    3-to-25 MHz crystal oscillator
    Internal 8 MHz factory-trimmed RC
    Internal 40 kHz RC with calibration
    32 kHz oscillator for RTC with calibration
    Low power
    Sleep, Stop and Standby modes
    VBAT supply for RTC and backup registers
    2 × 12-bit, 1 μs A/D converters (16 channels)
    Conversion range: 0 to 3.6 V
    Sample and hold capability
    Temperature sensor
    up to 2 MSPS in interleaved mode
    2 × 12-bit D/A converters
    DMA: 12-channel DMA controller
    Supported peripherals: timers, ADCs, DAC, I2Ss, SPIs, I2Cs and USARTs
    Debug mode
    Serial wire debug (SWD) & JTAG interfaces
    Cortex-M3 Embedded Trace Macrocell™
    Up to 80 fast I/O ports
    51/80 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant
    CRC calculation unit, 96-bit unique ID
    Up to 10 timers with pinout remap capability
    Up to four 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
    1 × 16-bit motor control PWM timer with dead-time generation and emergency stop
    2 × watchdog timers (Independent and Window)
    SysTick timer: a 24-bit downcounter
    2 × 16-bit basic timers to drive the DAC
    Up to 14 communication interfaces with pinout remap capability
    Up to 2 × I2C interfaces (SMBus/PMBus)
    Up to 5 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
    Up to 3 SPIs (18 Mbit/s), 2 with a multiplexed I2S interface that offers audio class accuracy via advanced PLL schemes
    2 × CAN interfaces (2.0B Active) with 512 bytes of dedicated SRAM
    USB 2.0 full-speed device/host/OTG controller with on-chip PHY that supports HNP/SRP/ID with 1.25 Kbytes of dedicated SRAM
    10/100 Ethernet MAC with dedicated DMA and SRAM (4 Kbytes): IEEE1588 hardware support, MII/RMII available on all packages
