میکروکنترلر STM32F407ZET6 اورجینال -New and original+گارانتی

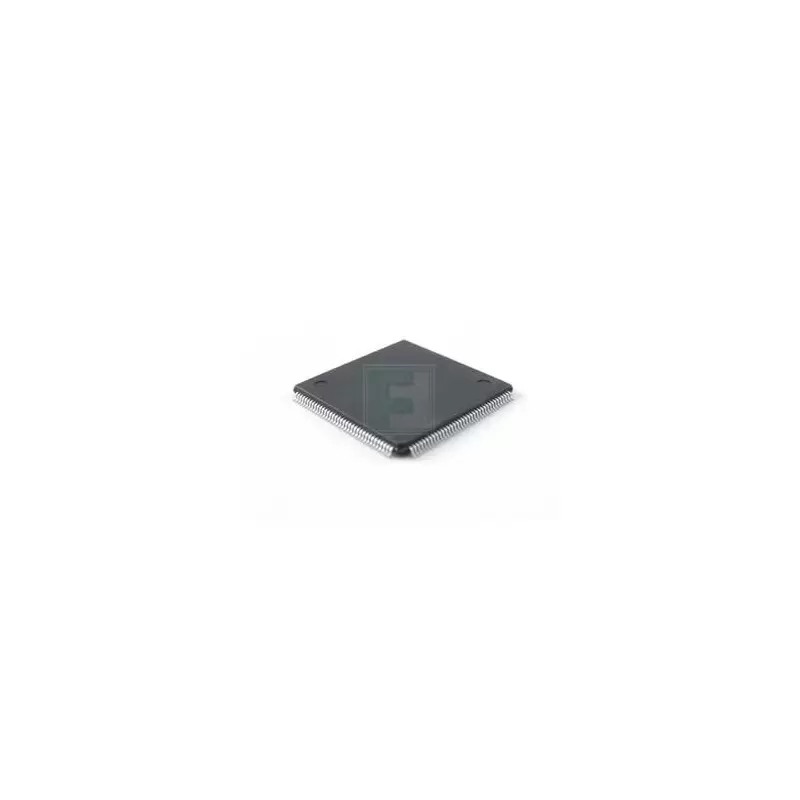

The STM32F407ZET6 is a part of STM32F4 series 32 Bit Microcontroller. It has an storage temperature ranging from - 65 °C to + 150 °C and it is available in LQFP-144 Packaging.

The STM32F407 family is based on the high-performance ARM®Cortex™-M4F 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex-M4F core features a Floating point unit (FPU) single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

ARM Microcontrollers - MCU ARM M4 512 FLASH 168 Mhz 192kB SRAM

Manufacturer:     STMicroelectronics
Product Category:     ARM Microcontrollers - MCU
Series:     STM32F407ZE
Mounting Style:     SMD/SMT
Package / Case:     LQFP-144
Core:     ARM Cortex M4
Program Memory Size:     512 kB
Data Bus Width:     32 bit
ADC Resolution:     12 bit
Maximum Clock Frequency:     168 MHz
Number of I/Os:     114 I/O
Data RAM Size:     192 kB
Supply Voltage - Min:     1.8 V
Supply Voltage - Max:     3.6 V
Minimum Operating Temperature:     - 40 C
Maximum Operating Temperature:     + 85 C
Brand:     STMicroelectronics
DAC Resolution:     12 bit
Data RAM Type:     SRAM
Interface Type:     CAN, I2C, SDIO, I2S / SPI, UART / USART, USB
Moisture Sensitive:     Yes
Number of ADC Channels:     24 Channel
Processor Series:     STM32F40
Product:     MCU+FPU
Product Type:     ARM Microcontrollers - MCU
Program Memory Type:     Flash
Subcategory:     Microcontrollers - MCU
Tradename:     STM32
Watchdog Timers:     Watchdog Timer, Windowed
