میکروکنترلر STM32F303CbT6 -اورجینال -New and original+گارانتی

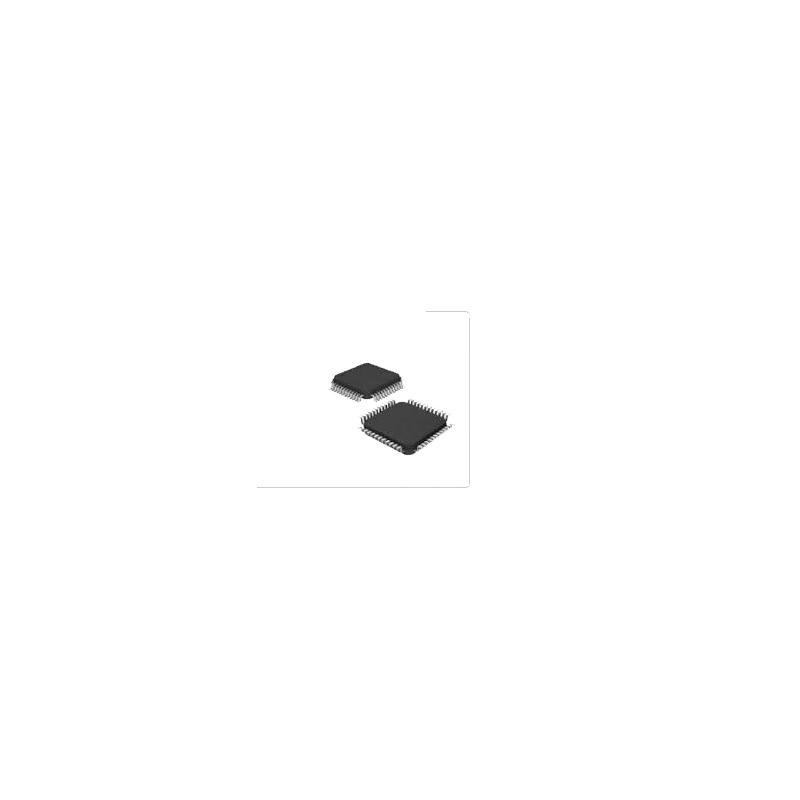

The STM32F303CbT6 is a STM32 F3 series 32-bit Microcontroller incorporates the high-performance ARM Cortex-M4 RISC core operating at a frequency of up to 72MHz and embedding a floating point unit (FPU), high-speed embedded memories (Flash memory up to 64kB and 16kB of SRAM) and an extensive range of enhanced I/Os and peripherals connected to two APB buses. The device offer a fast 12-bit ADCs, three comparators, an operational amplifier, three DAC channels, seven general-purpose 16-bit timers, one general-purpose 32-bit timer, as well as standard and advanced communication interfaces - one I²C, one SPI, three USARTs, a CAN and an USB FS device.

    CRC calculation unit
    Low-power modes - Sleep, stop, standby
    Power-on/Power-down reset (POR/PDR)
    Programmable voltage detector (PVD)
    VBAT supply for RTC and backup registers
    4 to 32MHz Crystal oscillator
    32kHz Oscillator for RTC with calibration
    8MHz Internal RC with x 16 PLL option
    40kHz Internal oscillator
    Interconnect matrix
    7-channel DMA Controller
    2 x Watchdog timers (Independent and window)
    SysTick Timer
    Two 16-bit Basic timers to drive the DAC
    Calendar RTC with alarm, periodic wakeup from Stop/Standby
    CAN Interface (2.0B Active) and one SPI
    Serial wire debug (SWD) mode
    96-bit Unique ID

 Product Information

Product Range:
    STM32 Family STM32F3 Series Microcontrollers
Architecture:
    ARM Cortex-M4
No. of Bits:
    32bit
CPU Speed:
    72MHz
Program Memory Size:
    64KB
RAM Memory Size:
    12KB
No. of Pins:
    48Pins
MCU Case Style:
    LQFP
No. of I/O's:
    37I/O's
Embedded Interface Type:
    CAN, I2C, SPI, USART
Supply Voltage Min:
    2V
Supply Voltage Max:
    3.6V
MCU Family:
    STM32
MCU Series:
    STM32F3
RoHS Phthalates Compliant:
    To Be Advised
MSL:
    MSL 3 - 168 hours
