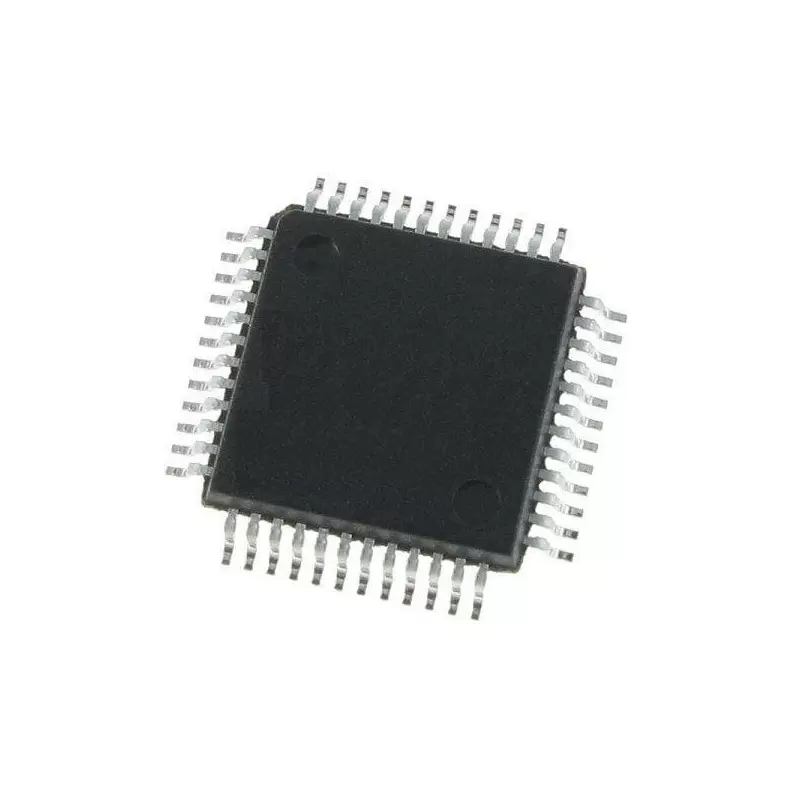

میکرو کنترلر STM32G431CBT6 - اورجینال - New and original+گارانتی

میکروکنترلرSTM32G431CBT6

The STM32G431xx is based on the powerful Arm® Cortex®-M4 32-bit RISC core.
The Cortex®-M4 core has a single-precision FPU that supports all precision data processing instructions from Arm as well as all other data types. A complete set of DSP instructions and an MPU are implemented.
Integrated high-speed memory (128-kB Flash and 32-kB SRAM), plus a whole host of I/Os + peripherals that are connected to 2 APB buses, 2 AHB buses and 1x 32-Bit multi-AHB bus matrix.
Built-in protection for embedded flash memory and SRAM.

Product Range:
    STM32 Family STM32G4 Series Microcontrollers
Architecture:
    ARM Cortex-M4F
No. of Bits:
    32bit
CPU Speed:
    170MHz
Program Memory Size:
    128KB
RAM Memory Size:
    32KB
No. of Pins:
    48Pins
MCU Case Style:
    LQFP
No. of I/O's:
    38I/O's
Embedded Interface Type:
    CAN, I2C, I2S, SAI, SPI, USART, USB
Supply Voltage Min:
    1.71V
Supply Voltage Max:
    3.6V
MCU Family:
    STM32
MSL:
    MSL 3 - 168 hours
