برد STM32F105RCT6 board

هیچ امتیاز پاداش برای این محصول وجود ندارد.


نظر و رتبه بندی مشتریان

محصول جدید

برد STM32F105RCT6 board

این محصول در انبار موجود نیست

برد STM32F105RCT6 board

السیدی و OLED و پروگرامر های متناسب با این برد را در قسمت لوازم میتوانید مشاهده کنید.

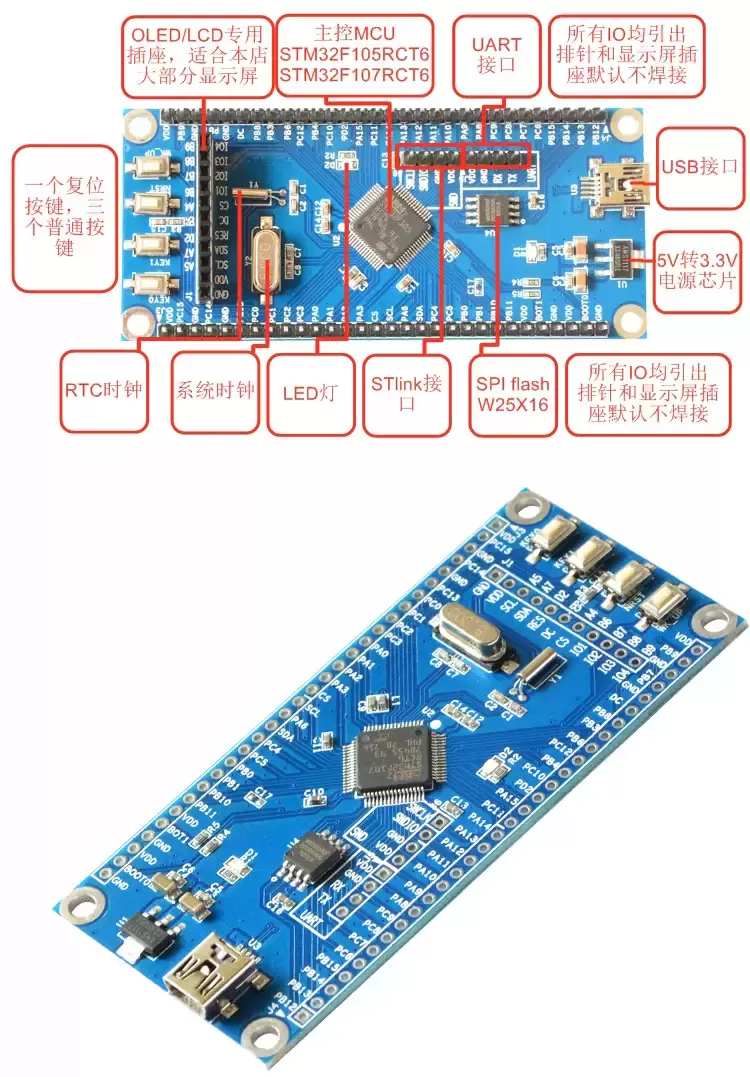

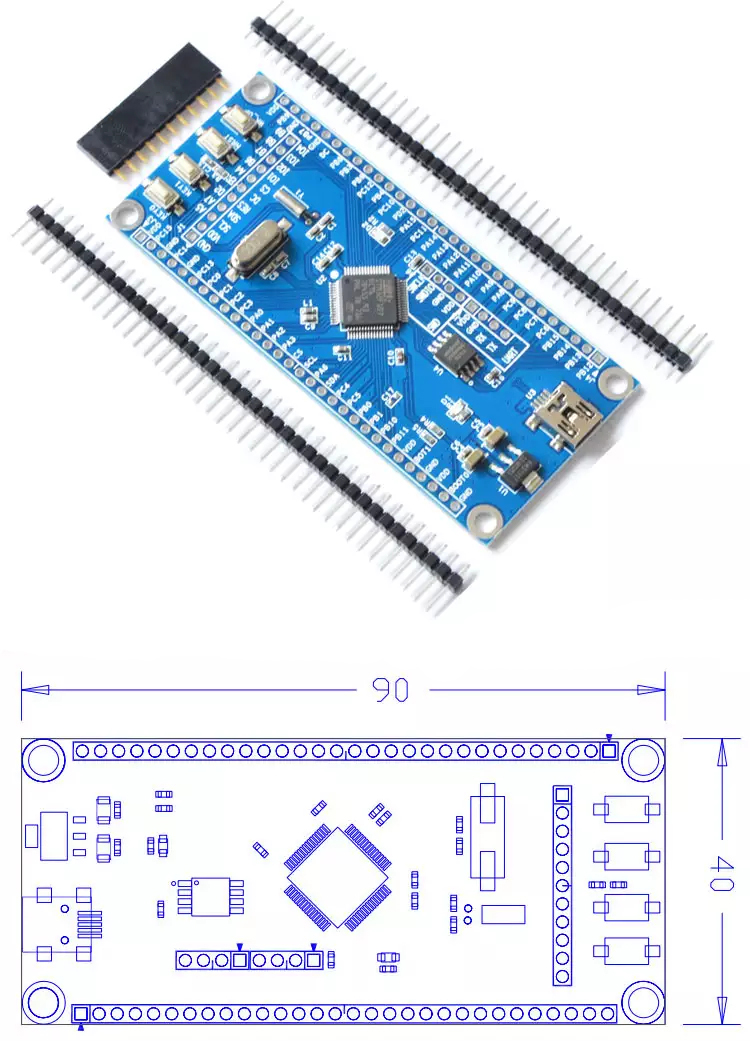

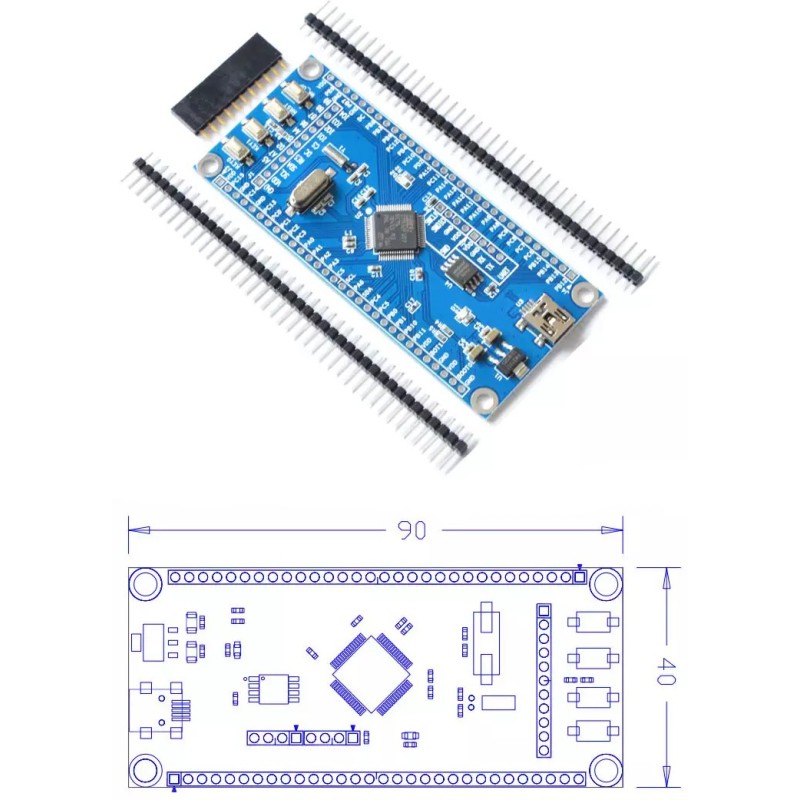

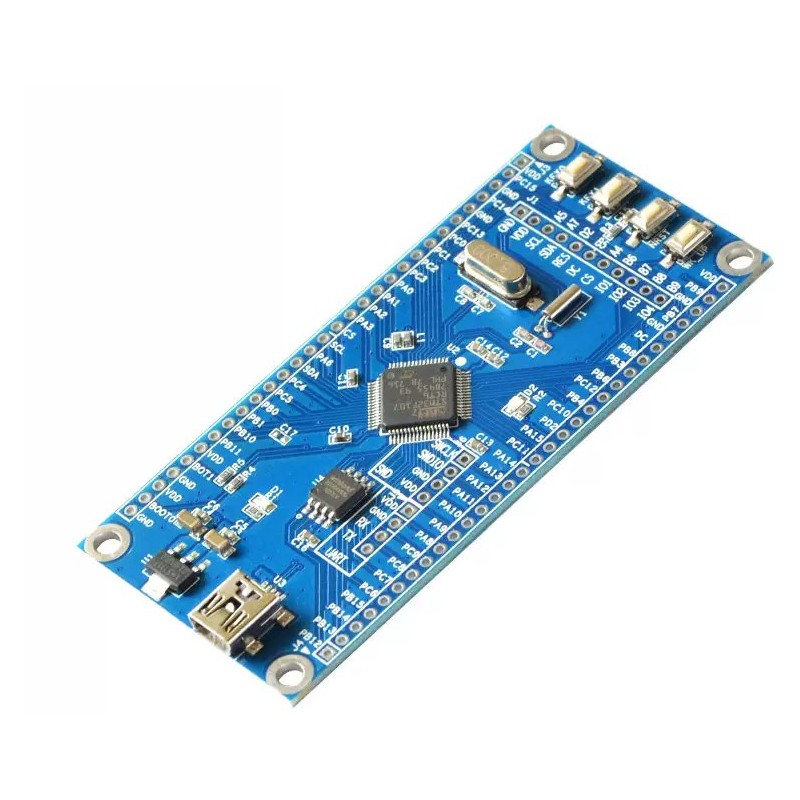

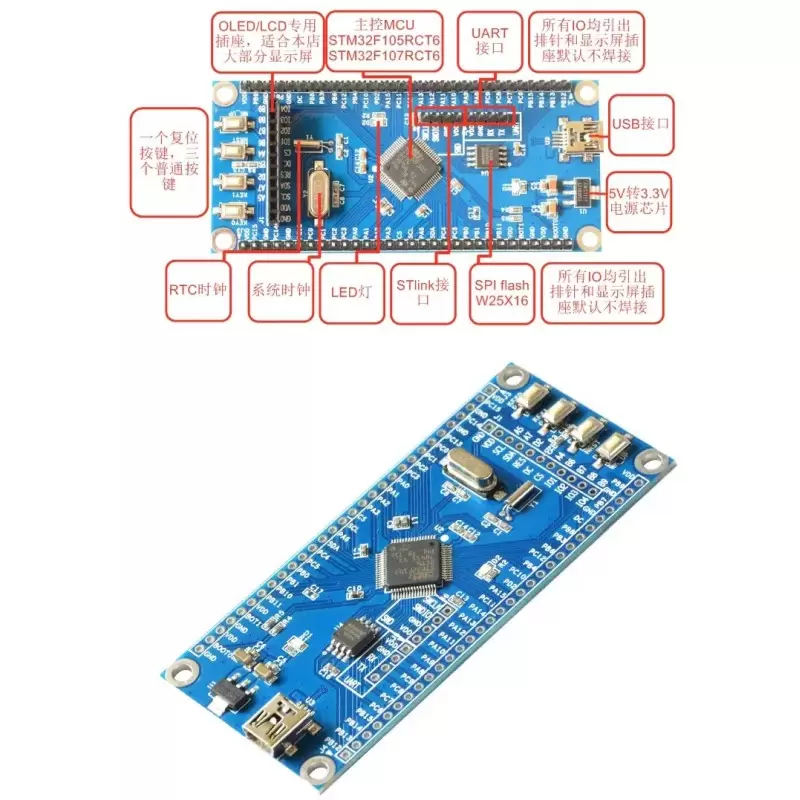

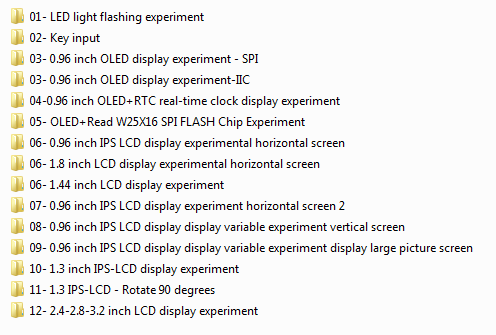

This model is FH Maker STM32F105/107RC core board
1) Onboard STM32F105RCT6 or STM32F1057CT6 chip
2) Powered by USB, all io ports are taken out, SWD debugging interface
3) Onboard SPI FLASH chip W25X16 is convenient for users to store data
4) 1 color LED can be used to observe the running status of the program
5) 4 High-quality independent buttons, one for resetting the other three can be used as a button input.

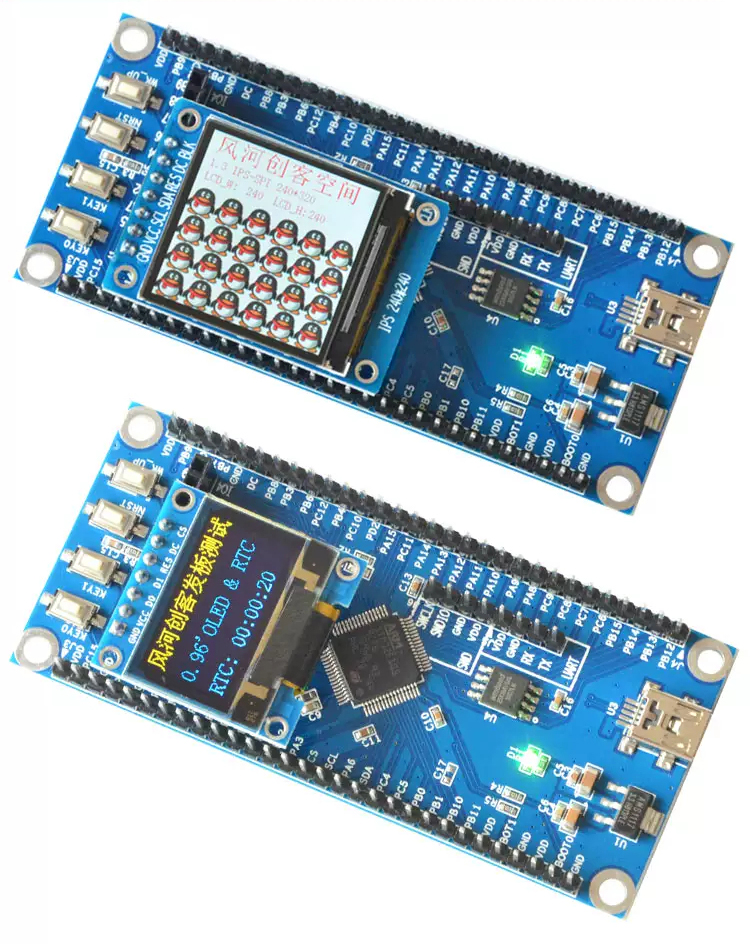

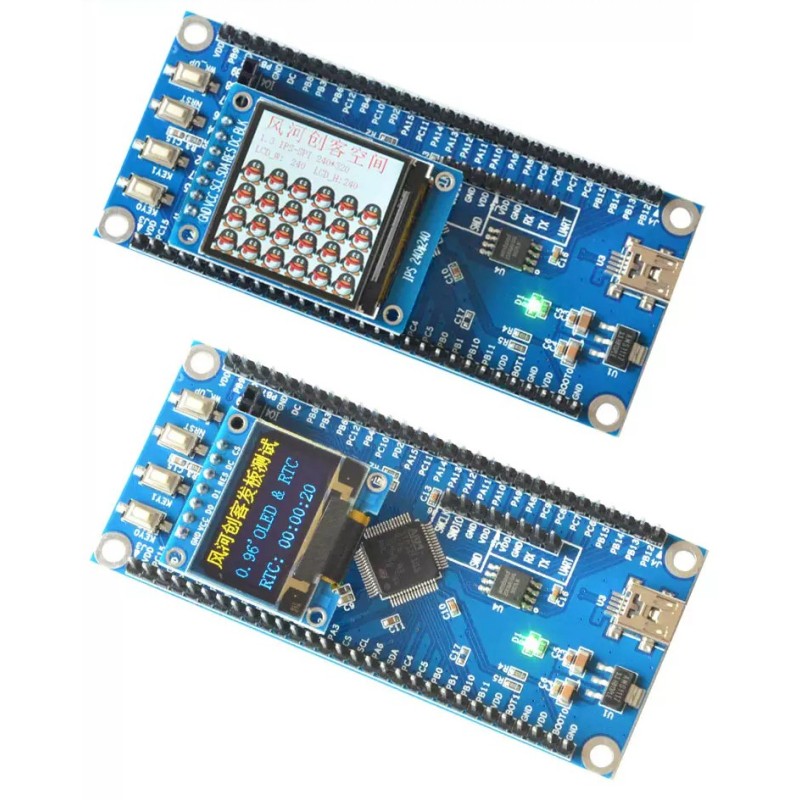

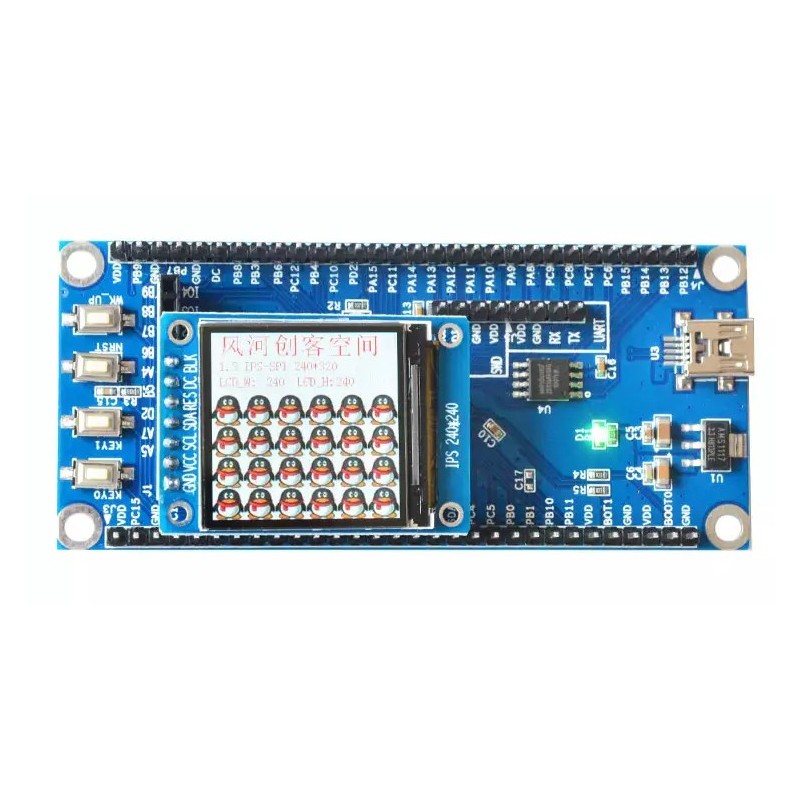

6) Onboard OLED / LCD display interface, suitable for most of the store's display
7) Provide 3.3v and 5v power pins to the outside.
8) Working voltage: 3.3V
9) Falsh program storage space 256K Byte, large capacity SRAM 64k byte:
10) 2 12-bit AD converter and 2 12-bit DA converters
11) DMA: 12-channel DMA controller, 2x 12C interfaces, 5 USARTS, 3 SPls (18 Mbit/s), 2x CAN interfaces

مشخصات میکروی این برد را در قسمت زیر میتوانید مشاهده کنید:

The STM32F105xx and STM32F107xx connectivity line family incorporates the high-performance ARM® Cortex®-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 256 Kbytes and SRAM 64 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer two 12-bit ADCs, four general-purpose 16-bit timers plus a PWM timer, as well as standard and advanced communication interfaces: up to two I2Cs, three SPIs, two I2Ss, five USARTs, an USB OTG FS and two CANs. Ethernet is available on the STM32F107xx only.
The STM32F105xx and STM32F107xx connectivity line family operates in the –40 to +105 °C temperature range, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving mode allows the design of low-power applications.
The STM32F105xx and STM32F107xx connectivity line family offers devices in three different package types: from 64 pins to 100 pins. Depending on the device chosen, different sets of peripherals are included, the description below gives an overview of the complete range of peripherals proposed in this family.
These features make the STM32F105xx and STM32F107xx connectivity line microcontroller family suitable for a wide range of applications such as motor drives and application control, medical and handheld equipment, industrial applications, PLCs, inverters, printers, and scanners, alarm systems, video intercom, HVAC and home audio equipment.

Key Features
o  Core: ARM® 32-bit Cortex®-M3 CPU
        72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
        Single-cycle multiplication and hardware division
o  Memories
        64 to 256 Kbytes of Flash memory
        64 Kbytes of general-purpose SRAM
o  Clock, reset and supply management
         2.0 to 3.6 V application supply and I/Os
         POR, PDR, and programmable voltage detector (PVD)
         3-to-25 MHz crystal oscillator
         Internal 8 MHz factory-trimmed RC
         Internal 40 kHz RC with calibration
         32 kHz oscillator for RTC with calibration
o  Low power
         Sleep, Stop and Standby modes
         VBAT supply for RTC and backup registers
o  2 × 12-bit, 1 μs A/D converters (16 channels)
         Conversion range: 0 to 3.6 V
         Sample and hold capability
         Temperature sensor
          up to 2 MSPS in interleaved mode
o  2 × 12-bit D/A converters
o  DMA: 12-channel DMA controller
         Supported peripherals: timers, ADCs, DAC, I2Ss, SPIs, I2Cs and USARTs
o  Debug mode
         Serial wire debug (SWD) & JTAG interfaces
         Cortex®-M3 Embedded Trace Macrocell™
o  Up to 80 fast I/O ports
         51/80 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant
o  CRC calculation unit, 96-bit unique ID
o  Up to 10 timers with pinout remap capability
         Up to four 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
         1 × 16-bit motor control PWM timer with dead-time generation and emergency stop
         2 × watchdog timers (Independent and Window)
         SysTick timer: a 24-bit downcounter
         2 × 16-bit basic timers to drive the DAC
o  Up to 14 communication interfaces with pinout remap capability
         Up to 2 × I2C interfaces (SMBus/PMBus)
         Up to 5 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
         Up to 3 SPIs (18 Mbit/s), 2 with a multiplexed I2S interface that offers audio class accuracy via advanced PLL schemes
         2 × CAN interfaces (2.0B Active) with 512 bytes of dedicated SRAM
         USB 2.0 full-speed device/host/OTG controller with on-chip PHY that supports HNP/SRP/ID with 1.25 Kbytes of dedicated SRAM
         10/100 Ethernet MAC with dedicated DMA and SRAM (4 Kbytes): IEEE1588 hardware support, MII/RMII available on all packages
