ماژول 0.96 اینچ 0.96inch LCD display Module, IPS screen 160x80 SPI - ST7735

ماژول 0.96 اینچ 0.96inch LCD display Module با رزولیشن 160x80 و با درایور ST7735 و SPI Interface

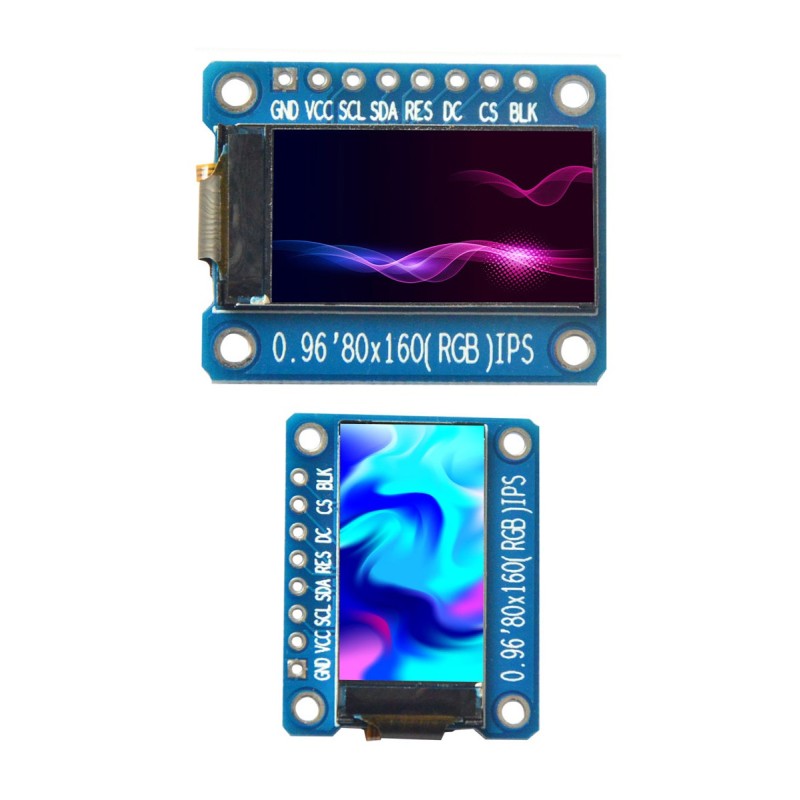

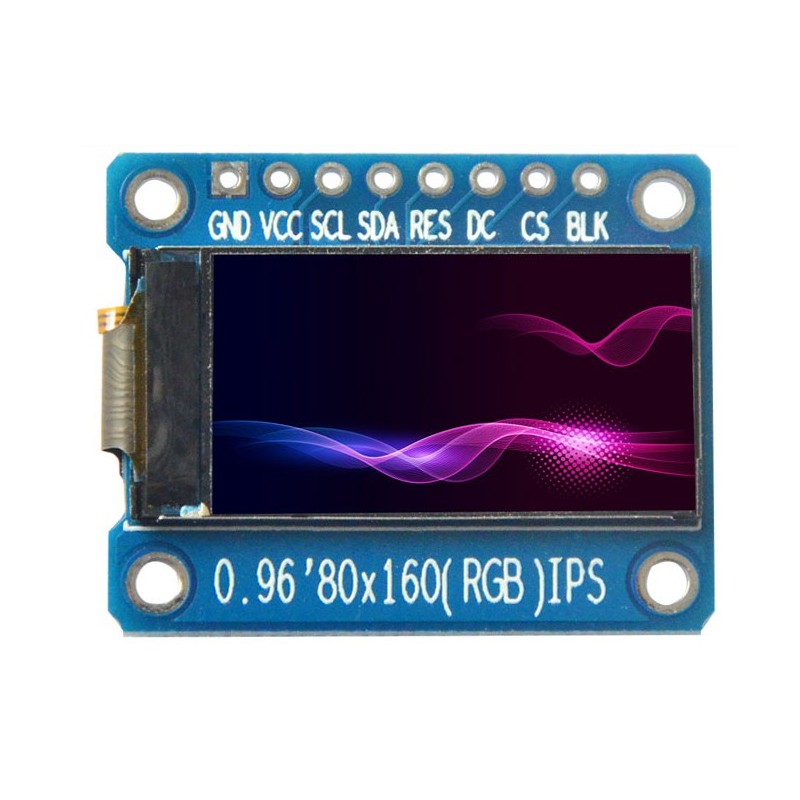

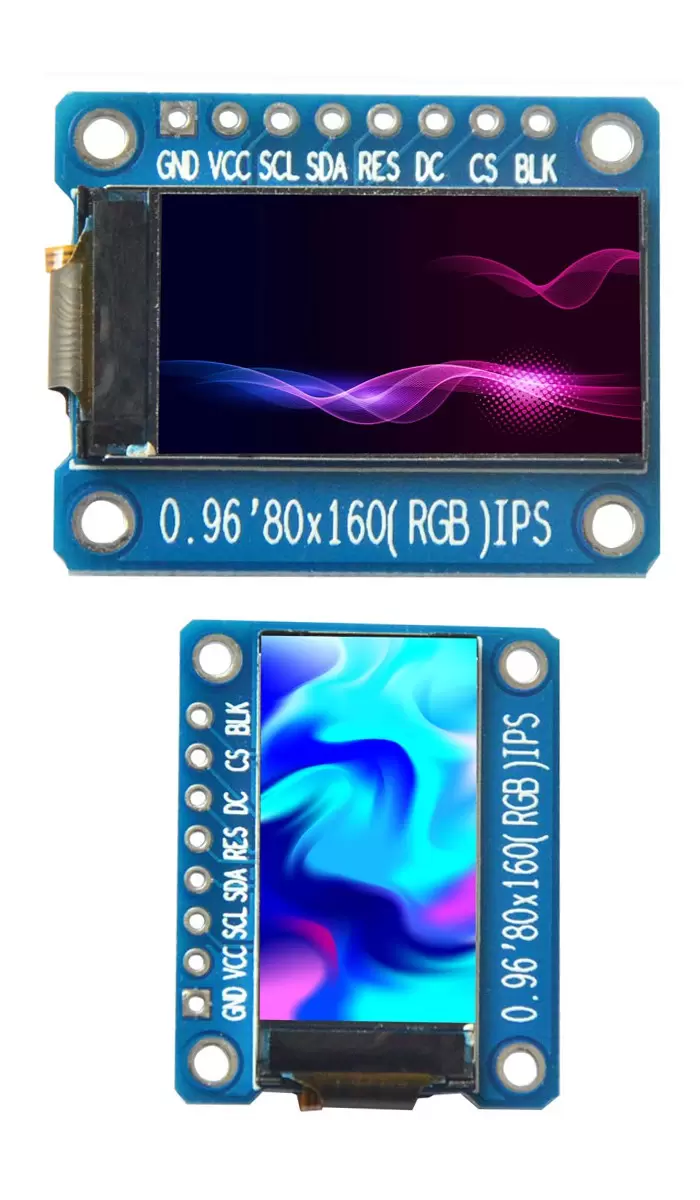

This is a general LCD display Module, IPS screen, 0.96inch diagonal, 160x80 HD resolution, with embedded controller, communicating via SPI interface.

Size: 0.96 inch
data: HD IPS color screen, color is more vivid than ordinary TFT LCD
Resolution:160*80 display direction can be adjusted
Control chip :  ST7735

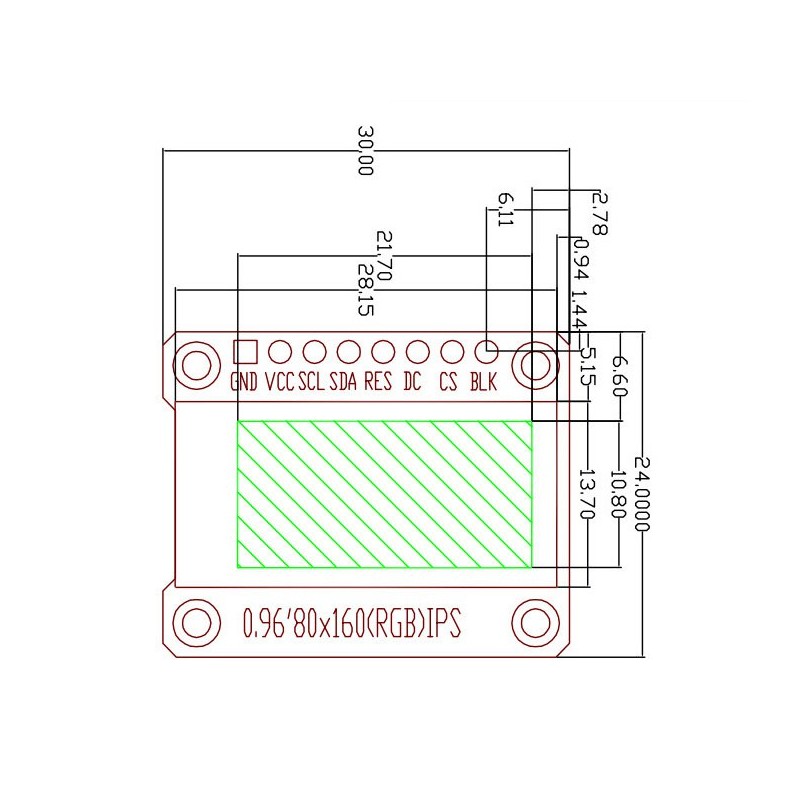

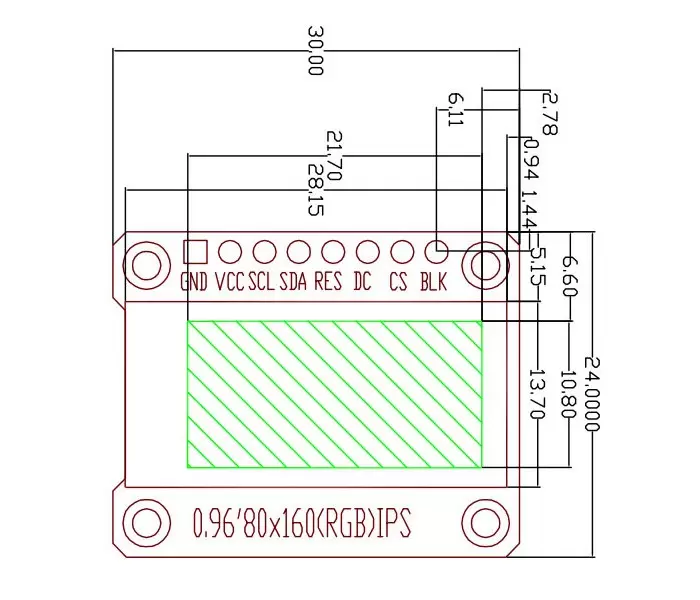

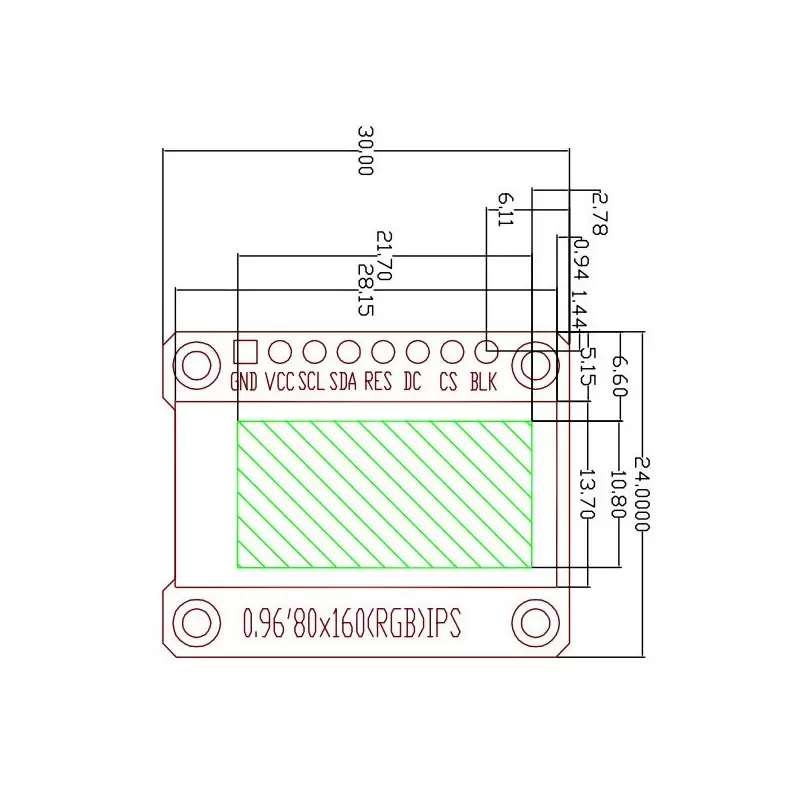

Display area:10.8x21.7 (mm)
Physical size:24x30 (mm)
Interface Type: 4-wire SPI interface

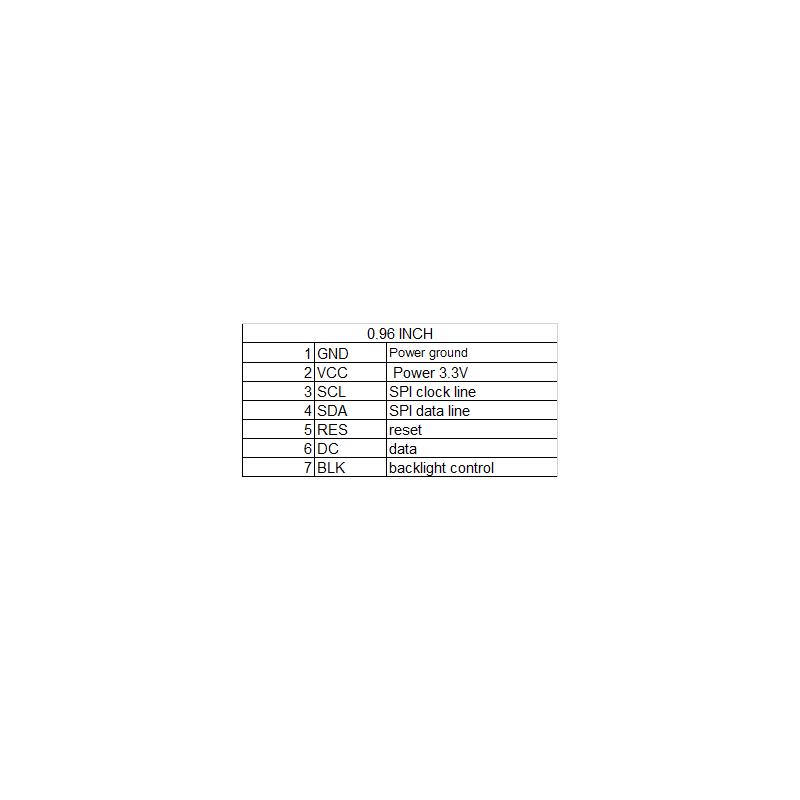

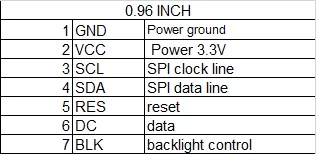

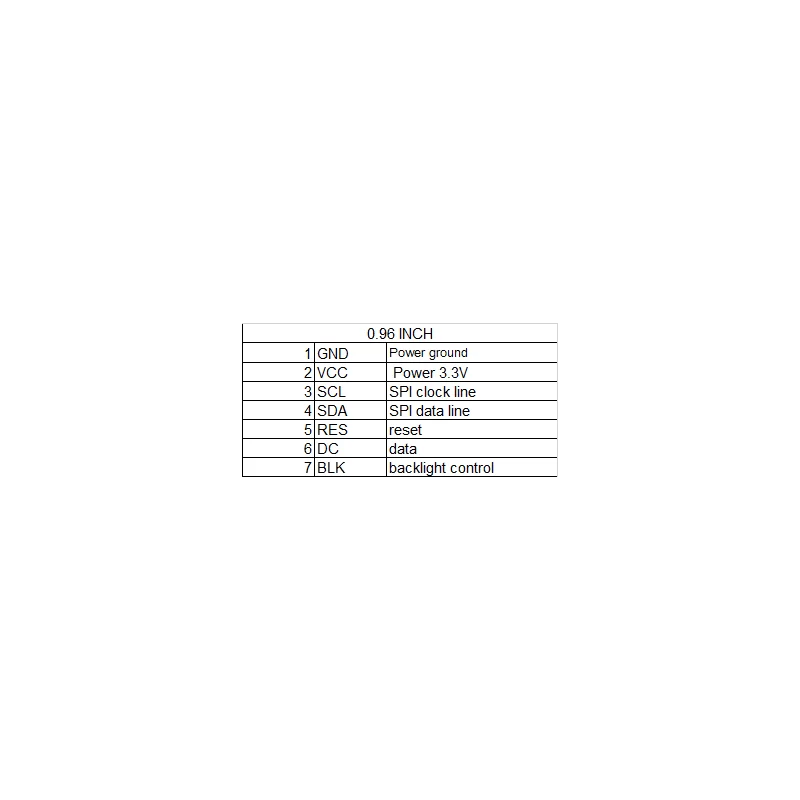

Number of pins:  7PIN
Viewing direction: Full view
Working temperature -20~70

محتوای فایل مربوط به مثال و document:
