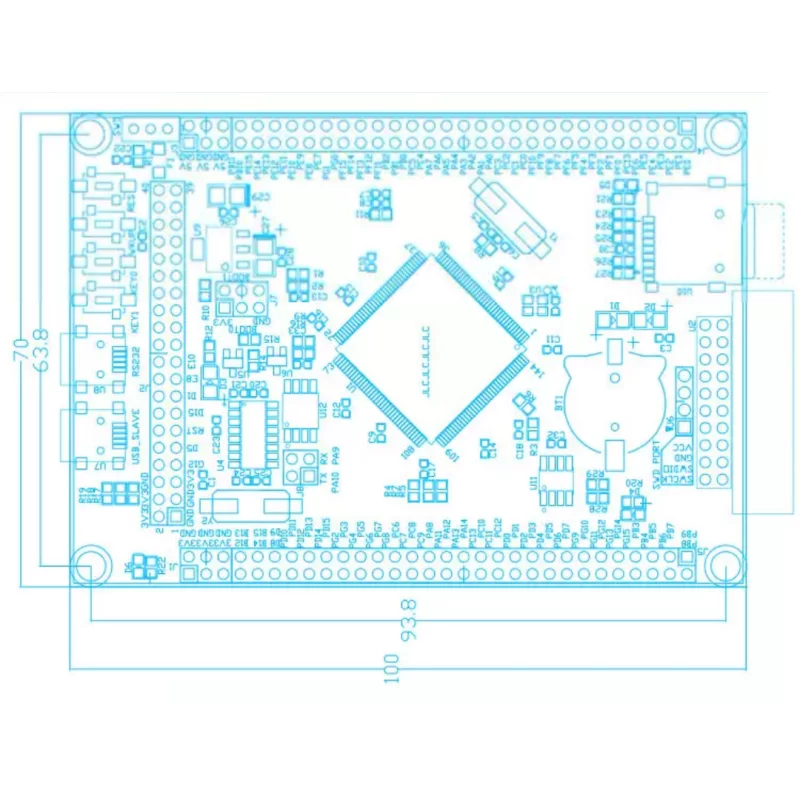

برد STM32F103ZET6 Development board

برد STM32F103ZET6 Development board

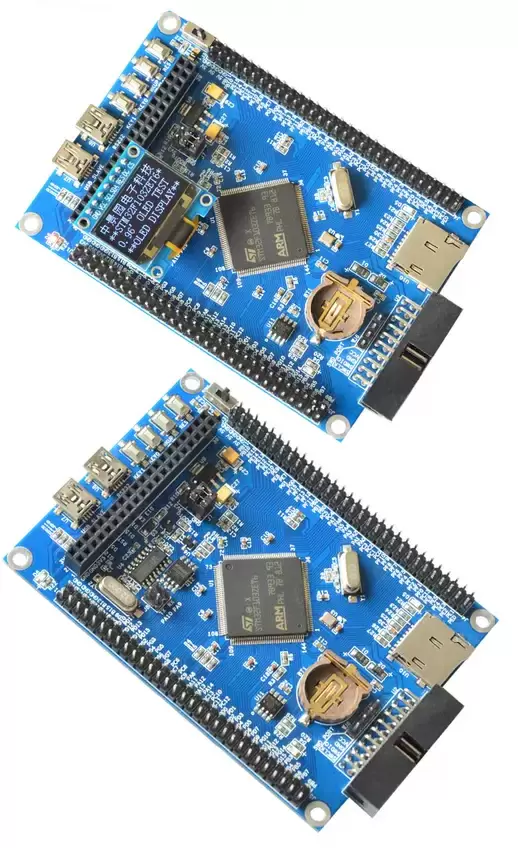

السیدی و OLED و پروگرامر های متناسب با این برد را در قسمت لوازم میتوانید مشاهده کنید.

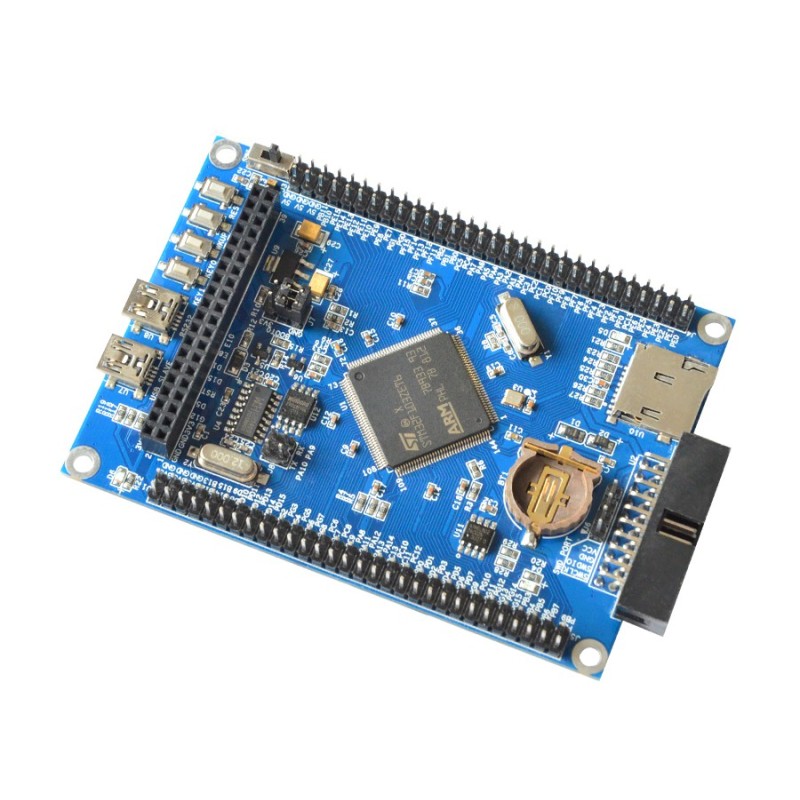

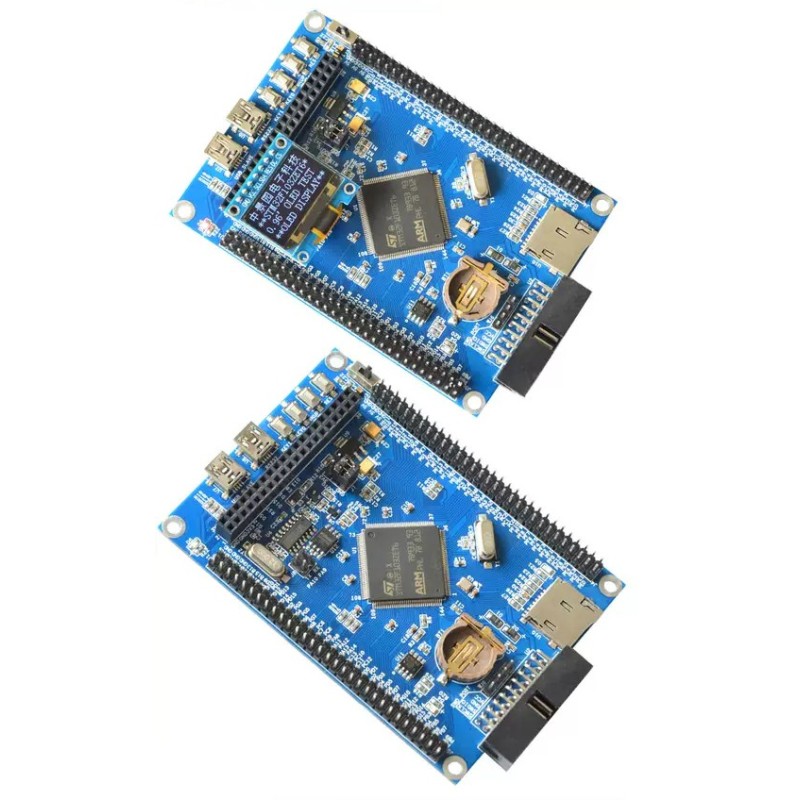

This model is STM32F103ZET6 system board

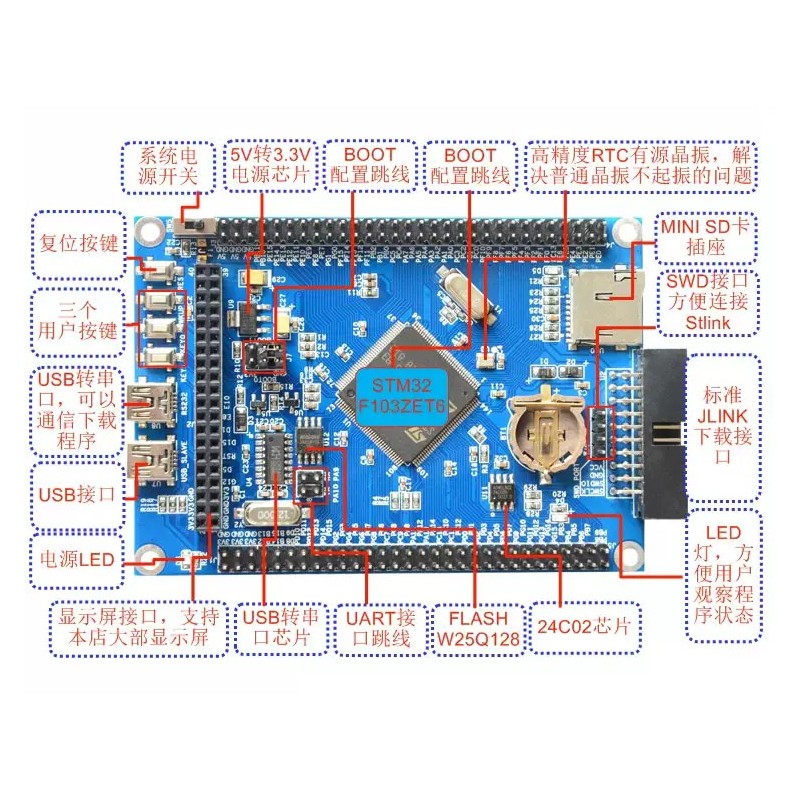

1) Onboard STM32F103ZET6 chip LQFP144, FLASH: 512 K, SRAM: 64K
2) USB powered, can be directly programmed via USB to serial port and serial communication
3) External expansion SPI FLASH: W25Q128 16M bytes
4) 1 way power indicator light 1 controllable LED light
5) 1 excellent reset button, three user buttons.
6) 1 USB SLAVE interface for USB communication
7) onboard EPROM chip AT24C02
8) 1 SD card interfaces

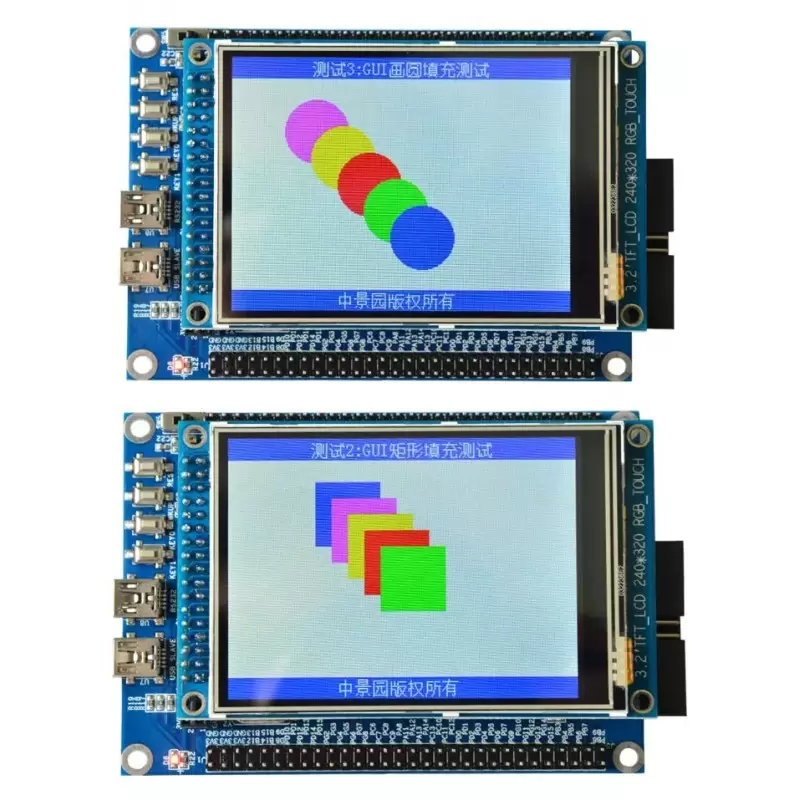

9) dedicated interface for onboard OLED/LCD display, suitable for most of our displays
10) Provide 3.3v and 5v power pins to the outside

مشخصات میکروی این برد را در قسمت زیر میتوانید مشاهده کنید:

The STM32F103xC, STM32F103xD and STM32F103xE performance line family incorporates the high-performance ARM® Cortex®-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 512 Kbytes and SRAM up to 64 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer three 12-bit ADCs, four general-purpose 16-bit timers plus two PWM timers, as well as standard and advanced communication interfaces: up to two I2Cs, three SPIs, two I2Ss, one SDIO, five USARTs, an USB and a CAN.

The STM32F103xC/D/E high-density performance line family operates in the –40 to +105 °C temperature range, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving mode allows the design of low-power applications.
These features make the STM32F103xC/D/E high-density performance line microcontroller family suitable for a wide range of applications such as motor drives, application control, medical and handheld equipment, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems video intercom, and HVAC.

Key Features
o  Core: ARM® 32-bit Cortex®-M3 CPU
        72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
        Single-cycle multiplication and hardware division
o  Memories
        256 to 512 Kbytes of Flash memory
        up to 64 Kbytes of SRAM
        Flexible static memory controller with 4 Chip Select. Supports Compact Flash, SRAM, PSRAM, NOR and NAND memories
        LCD parallel interface, 8080/6800 modes
o  Clock, reset and supply management
        2.0 to 3.6 V application supply and I/Os
        POR, PDR, and programmable voltage detector (PVD)
        4-to-16 MHz crystal oscillator
        Internal 8 MHz factory-trimmed RC
        Internal 40 kHz RC with calibration
        32 kHz oscillator for RTC with calibration
o  Low power
        Sleep, Stop and Standby modes
        VBAT supply for RTC and backup registers
o  3 × 12-bit, 1 μs A/D converters (up to 21 channels)
        Conversion range: 0 to 3.6 V
        Triple-sample and hold capability
        Temperature sensor
o  2 × 12-bit D/A converters
o  DMA: 12-channel DMA controller
        Supported peripherals: timers, ADCs, DAC, SDIO, I2Ss, SPIs, I2Cs and USARTs
o  Debug mode
        Serial wire debug (SWD) & JTAG interfaces
        Cortex®-M3 Embedded Trace Macrocell™
o  Up to 112 fast I/O ports
        51/80/112 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant
o  Up to 11 timers
        Up to four 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
        2 × 16-bit motor control PWM timers with dead-time generation and emergency stop
        2 × watchdog timers (Independent and Window)
        SysTick timer: a 24-bit downcounter
        2 × 16-bit basic timers to drive the DAC
o  Up to 13 communication interfaces
        Up to 2 × I2C interfaces (SMBus/PMBus)
        Up to 5 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
        Up to 3 SPIs (18 Mbit/s), 2 with I2S interface multiplexed
        CAN interface (2.0B Active)
        USB 2.0 full speed interface
        SDIO interface
o  CRC calculation unit, 96-bit unique ID
o  ECOPACK® packages

لیست موارد موجود در دانلود ویژه:

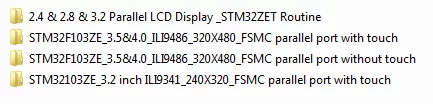

لیست مثال ها:

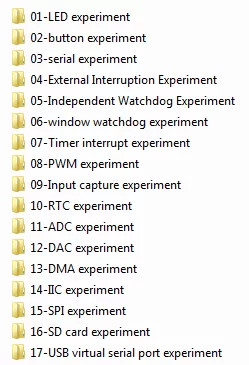

Development board experiment:

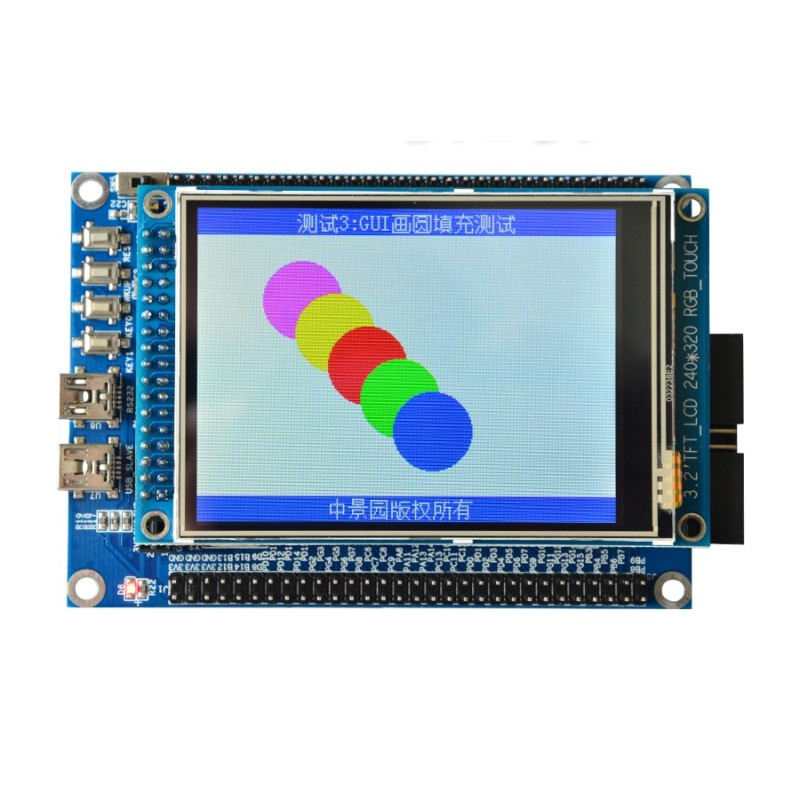

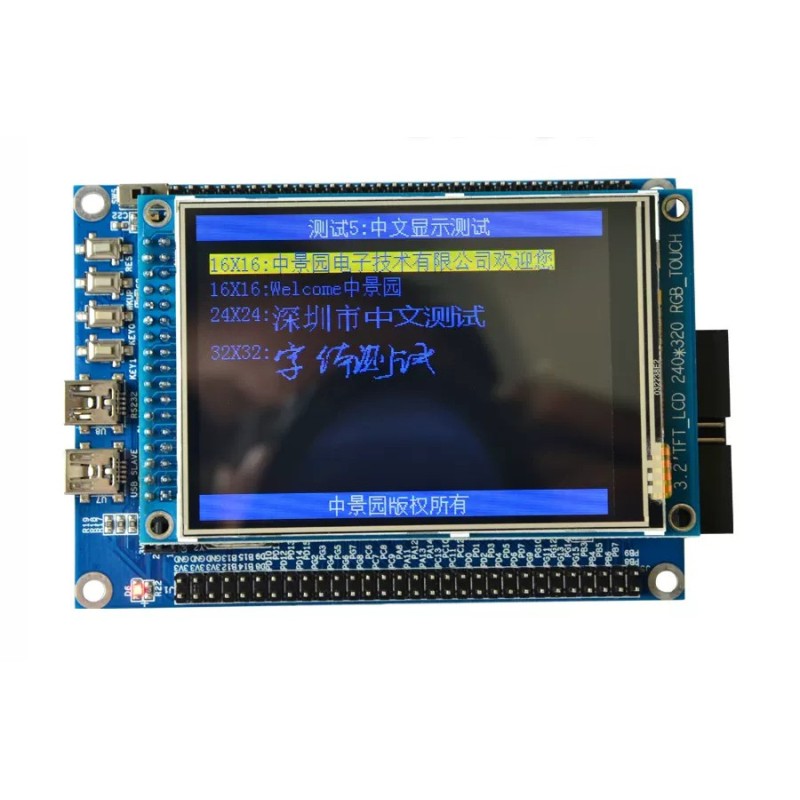

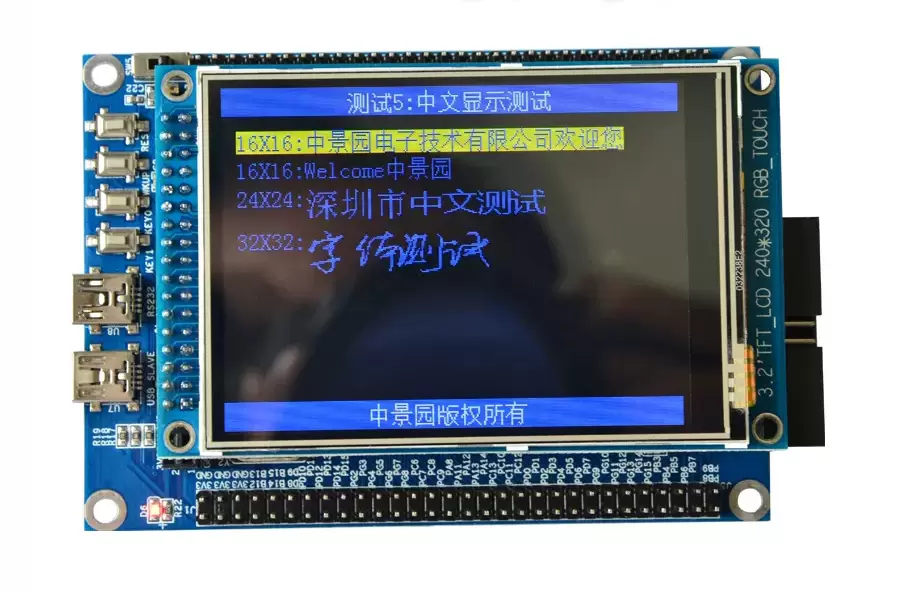

LCD parallel port display:

LCD_SPI display:

OLED display:
