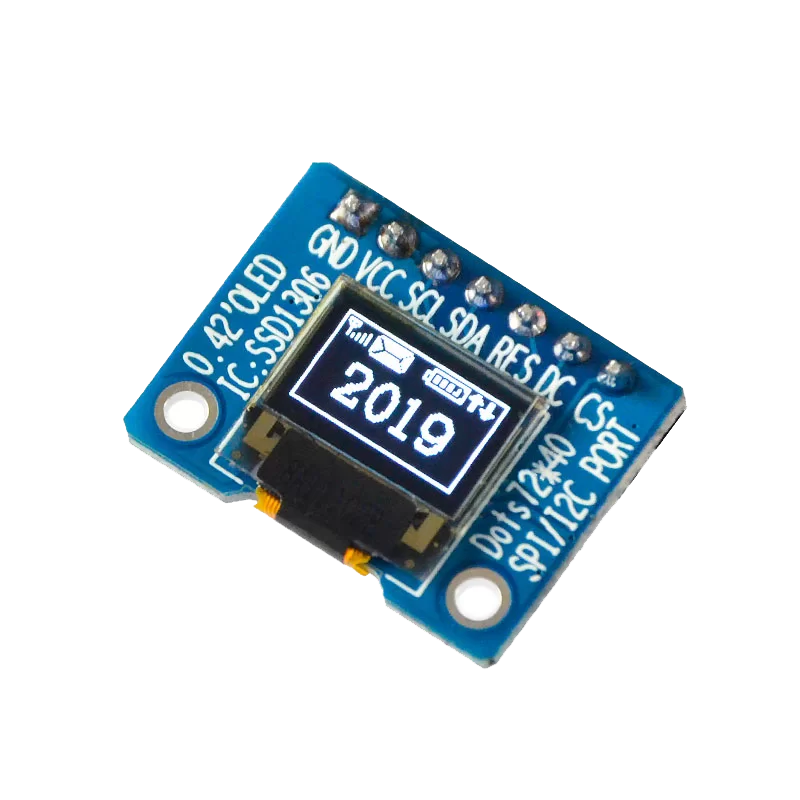

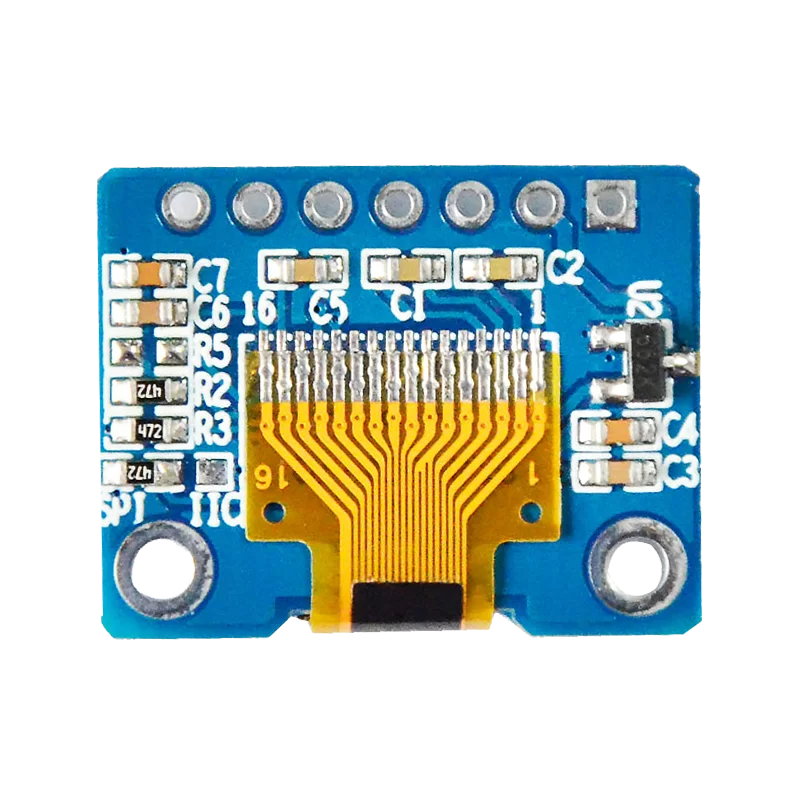

OLED 0.42 inch OLED Module White 70x40 IIC SPI / SSD1315

ماژول OLED 0.42 inch White با رزولیشن 70x40 و با درایور SSD1315 و IIC-SPI Interface

Size: 0.42 inch
Material: PM OLED
Control chip: SSD1315
Resolution: 70*40
Interface type: SPI/IIC
(7 pin is SPI / IIC interface (default SPI); 4 pin is IIC interface)

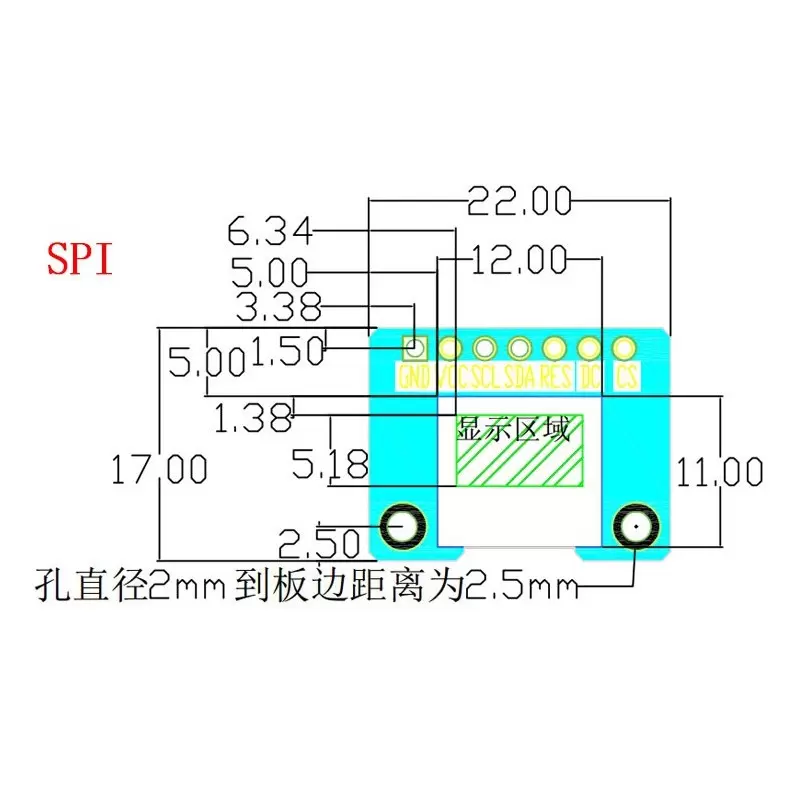

Display area: 9.196 x 5.18 (mm)
Physical size: 17 x 22 (mm)
Pixel pitch: 0.128x0.13 (mm)
Pixel size: 0.108 x 0.11 (mm)
Number of pins: 7PIN
Display color: White
Working temperature: -40~70 degrees
Working voltage: 3.3

Interface Definition:
1> GND (power ground)
2> VCC (power supply is 3.3~5V)
3> SCL (SPI clock line)
4> SDA (SPI data line)
5> RES (OLED reset pin, low level reset)
6> DC (data / command selection pin)
7> CS (OLED SPI chip select, the bottom level is valid, The CS pin cannot be left floating if not needed, if you do not want to use it must be grounded)
To use chip select, you can directly connect cs to the power ground; floating will cause the OLED to not work stably.

Important Note: OLED display is different from LCD OLED is self-illuminating; therefore, there is no backlight, there will be no reaction when only power is applied; there must be a correct operation of the program to display, so please pay attention.

محتوای فایل مربوط به مثال و Document:

IIC interface display routine

SPI interface display routine:
