برد NUCLEO-H563ZI

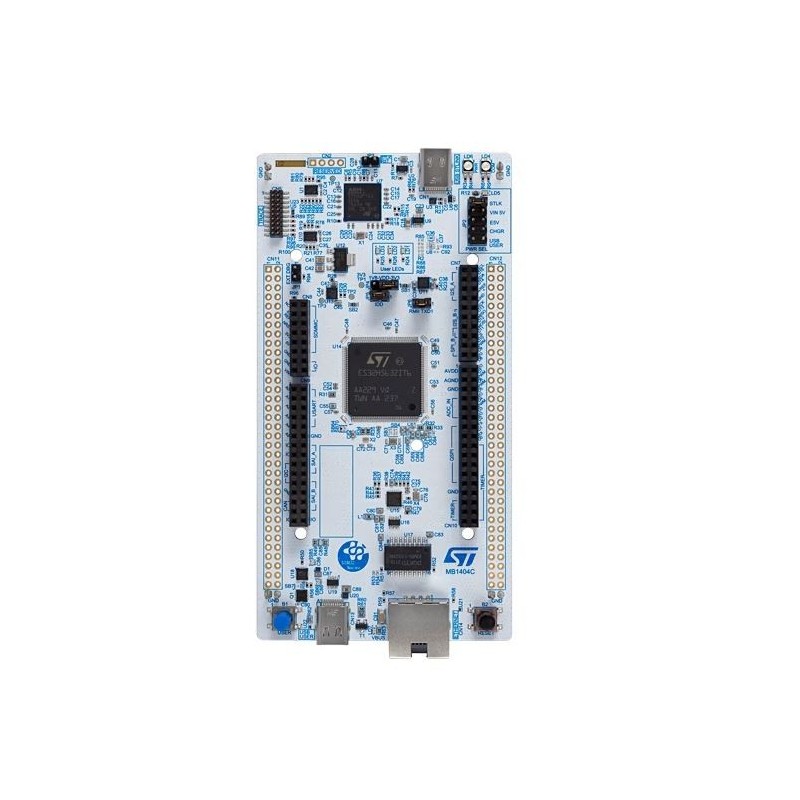

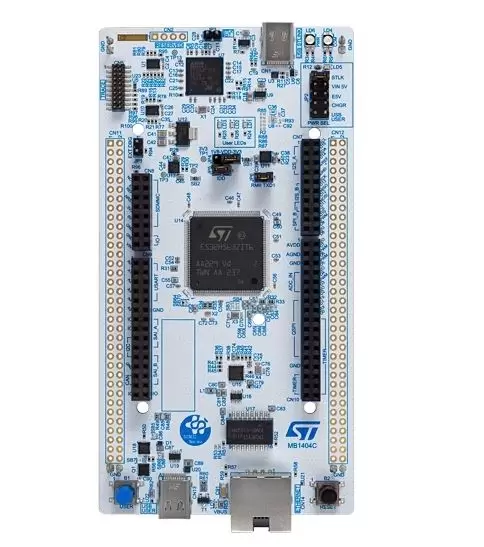

NUCLEO-H563ZI-STM32 Nucleo-144 development board with STM32H563ZIT6 MCU, supports Arduino, ST Zio and morpho connectivity

Category
   Development Boards, Kits, Programmers
   Evaluation Boards - Embedded - MCU, DSP
Mfr
   STMicroelectronics
Series
    STM32H5
Package
   Bulk
Product Status
   Active
Type
   MCU 32-Bit
Core Processor
   ARM® Cortex®-M33
Platform
   Nucleo-144
Utilized IC / Part
    STM32H563
Mounting Type
   Fixed
Contents
   Board(s)
Board Type
   Evaluation Platform
Operating System
   -
Interconnect System
   Arduino R3 Shield, ST Morpho, ST Zio
Suggested Programming Environment
   IAR EW, Keil MDK, STM32Cube
Base Product Number
   STM32H563

Description

The STM32 Nucleo-144 board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller. For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode.

The ST Zio connector, which extends the ARDUINO® Uno V3 connectivity, and the ST morpho headers provide an easy means of expanding the functionality of the Nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo-144 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.

The STM32 Nucleo-144 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.

All features
Common features
            STM32 microcontroller in an LQFP144 package
            3 user LEDs
            2 user and reset push-buttons
            32.768 kHz crystal oscillator
            Board connectors:
                SWD
                ST Zio expansion connector including ARDUINO® Uno V3
                ST morpho expansion connector
            Flexible power-supply options: ST-LINK USB VBUS, USB connector, or external sources
            On-board ST-LINK debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
            Comprehensive free software libraries and examples available with the STM32Cube MCU Package
            Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE

Board-specific features
            External or internal SMPS to generate Vcore logic supply
            Ethernet compliant with IEEE-802.3-2002
            USB OTG full speed or SNK/UFP (full-speed or high-speed mode), depending on the USB connector type
            Board connectors:
                USB with Micro-AB or USB Type-C®
                Ethernet RJ45
