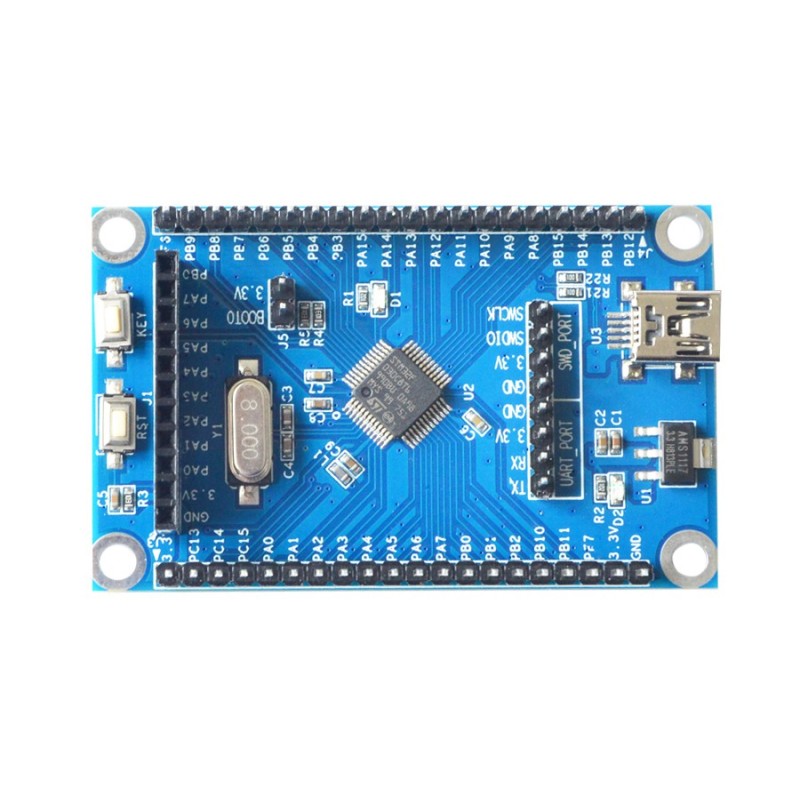

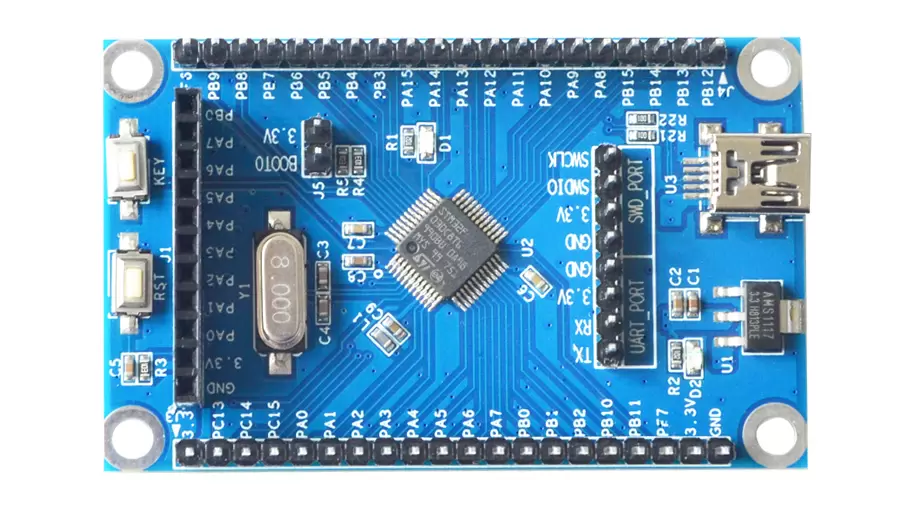

برد Stm32f030 board
برد Stm32f030 board
السیدی و OLED و پروگرامر های متناسب با این برد را در قسمت لوازم میتوانید مشاهده کنید.

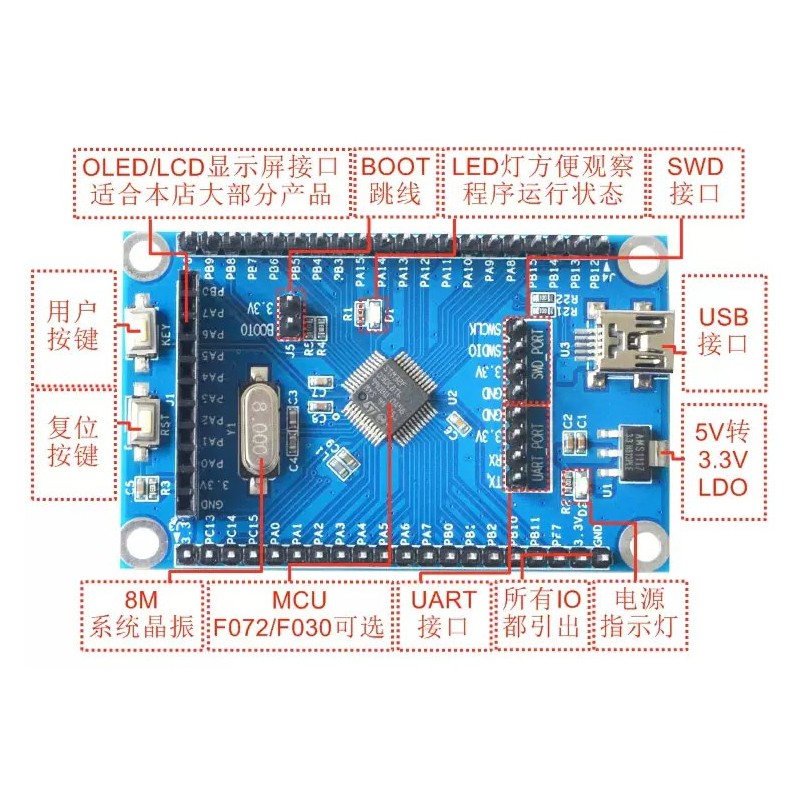

1) Onboard STM32F030C8T6/STM32F051/STM32F072 (C8T6 chip The above three chips are selected according to customers' own needs)
2) can be powered by USB
3) All 10 ports are drawn
4) 1 color LEDs are all pulled up to observe the running status of the program.
5) 2 high quality independent buttons.

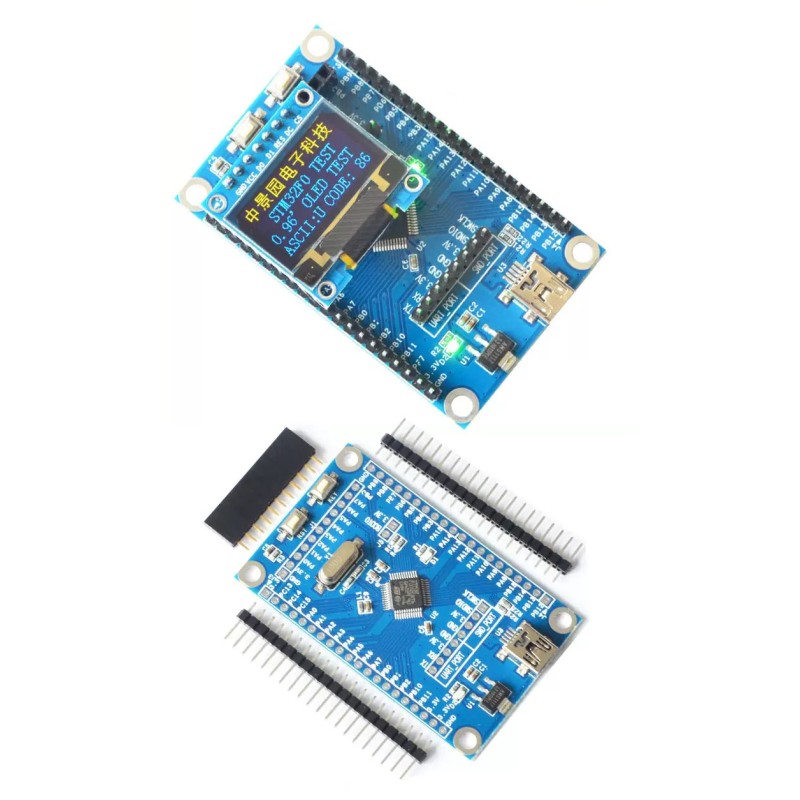

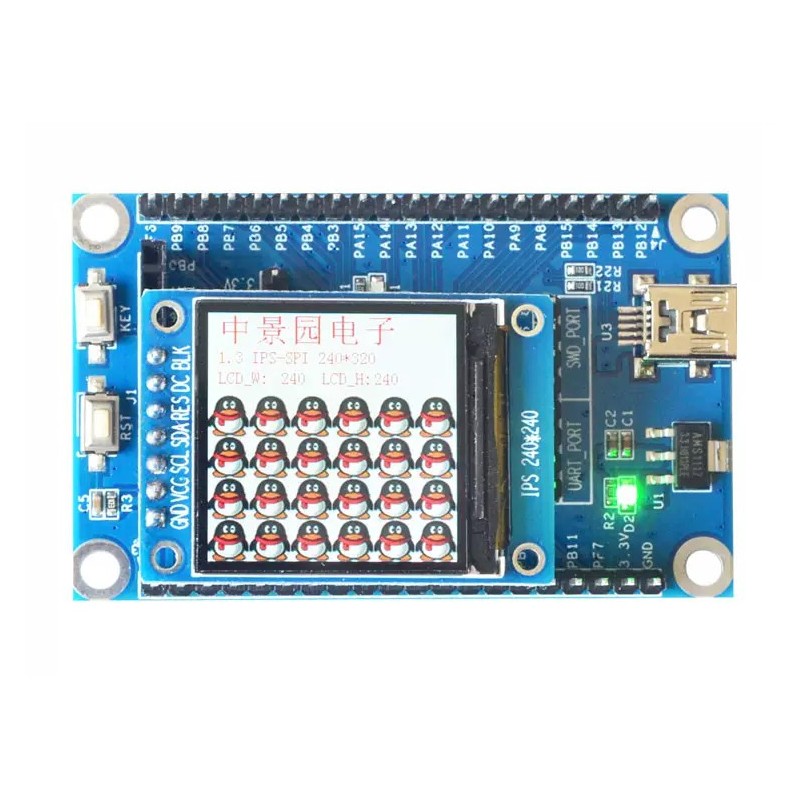

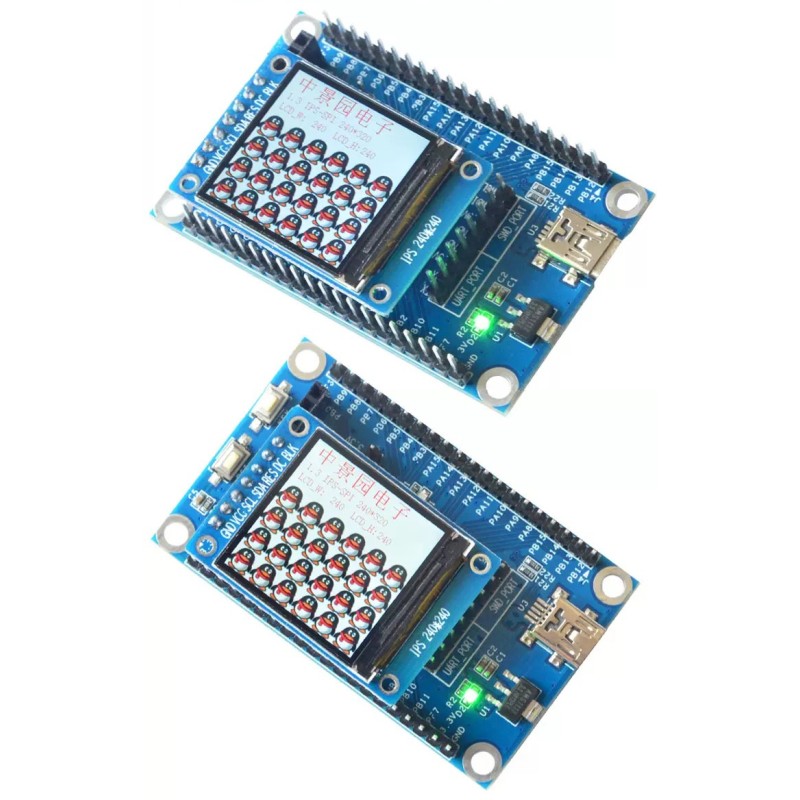

6) On-board OLED/LCD display interface, suitable for most of our display
7) 3.3v and 5V power pins are provided outward.
8) Operating voltage: 3.3V
9) Falsh program storage space 64K Byte
مشخصات میکروی این برد را در قسمت زیر میتوانید مشاهده کنید:
The STM32F030x4/x6/x8/xC microcontrollers incorporate the high-performance Arm® Cortex®-M0 32-bit RISC core operating at a 48 MHz frequency, high-speed embedded memories (up to 256 Kbytes of Flash memory and up to 32 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. All devices offer standard communication interfaces (up to two I2Cs, up to two SPIs and up to six USARTs), one 12-bit ADC, seven general-purpose 16-bit timers and an advanced-control PWM timer.
The STM32F030x4/x6/x8/xC microcontrollers operate in the -40 to +85 °C temperature range from a 2.4 to 3.6V power supply. A comprehensive set of power-saving modes allows the design of low-power applications.
The STM32F030x4/x6/x8/xC microcontrollers include devices in four different packages ranging from 20 pins to 64 pins. Depending on the device chosen, different sets of peripherals are included. The description below provides an overview of the complete range of STM32F030x4/x6/x8/xC peripherals proposed.
These features make the STM32F030x4/x6/x8/xC microcontrollers suitable for a wide range of applications such as application control and user interfaces, handheld equipment, A/V receivers and digital TV, PC peripherals, gaming and GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.
Key Features
o Core: Arm® 32-bit Cortex®-M0 CPU, frequency up to 48 MHz
o Memories
16 to 256 Kbytes of Flash memory
4 to 32 Kbytes of SRAM with HW parity
o CRC calculation unit
o Reset and power management
Digital & I/Os supply: VDD = 2.4 V to 3.6 V
Analog supply: VDDA = VDD to 3.6 V
Power-on/Power down reset (POR/PDR)
Low power modes: Sleep, Stop, Standby
o Clock management
4 to 32 MHz crystal oscillator
32 kHz oscillator for RTC with calibration
Internal 8 MHz RC with x6 PLL option
Internal 40 kHz RC oscillator
o Up to 55 fast I/Os
All mappable on external interrupt vectors
Up to 55 I/Os with 5V tolerant capability
o 5-channel DMA controller
o One 12-bit, 1.0 μs ADC (up to 16 channels)
Conversion range: 0 to 3.6 V
Separate analog supply: 2.4 V to 3.6 V
o Calendar RTC with alarm and periodic wakeup from Stop/Standby
o 11 timers
One 16-bit advanced-control timer for six-channel PWM output
Up to seven 16-bit timers, with up to four IC/OC, OCN, usable for IR control decoding
Independent and system watchdog timers
SysTick timer
o Communication interfaces
Up to two I2C interfaces
Up to six USARTs supporting master synchronous SPI and modem control; one with auto baud rate detection
Up to two SPIs (18 Mbit/s) with 4 to 16 programmable bit frames
o Serial wire debug (SWD)
o All packages ECOPACK®2
لیست موارد موجود در دانلود ویژه :
لیست مثال ها:
Development board program:
LCD display:
OLED display:
