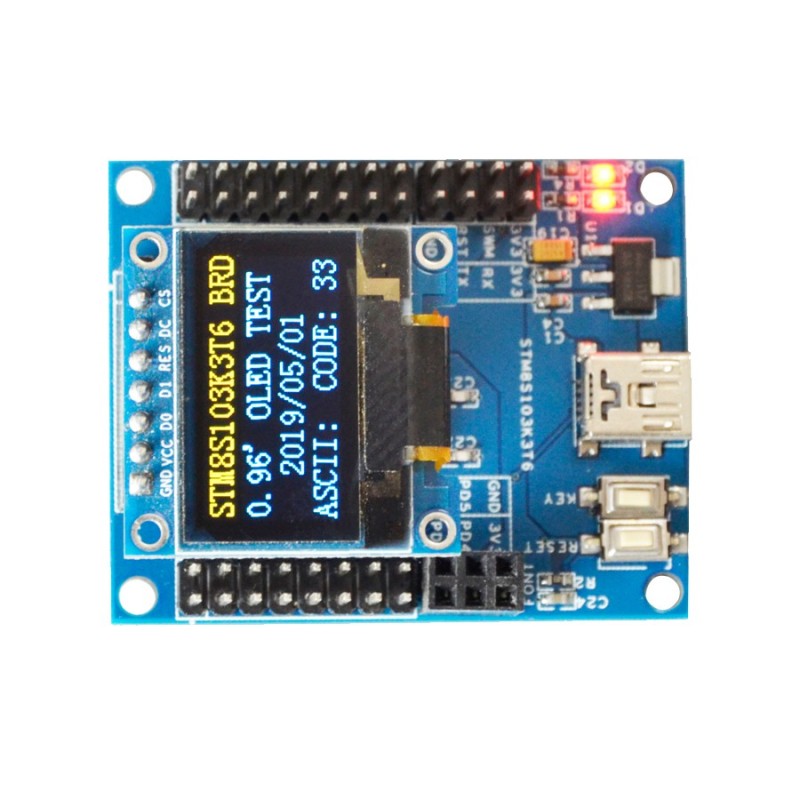

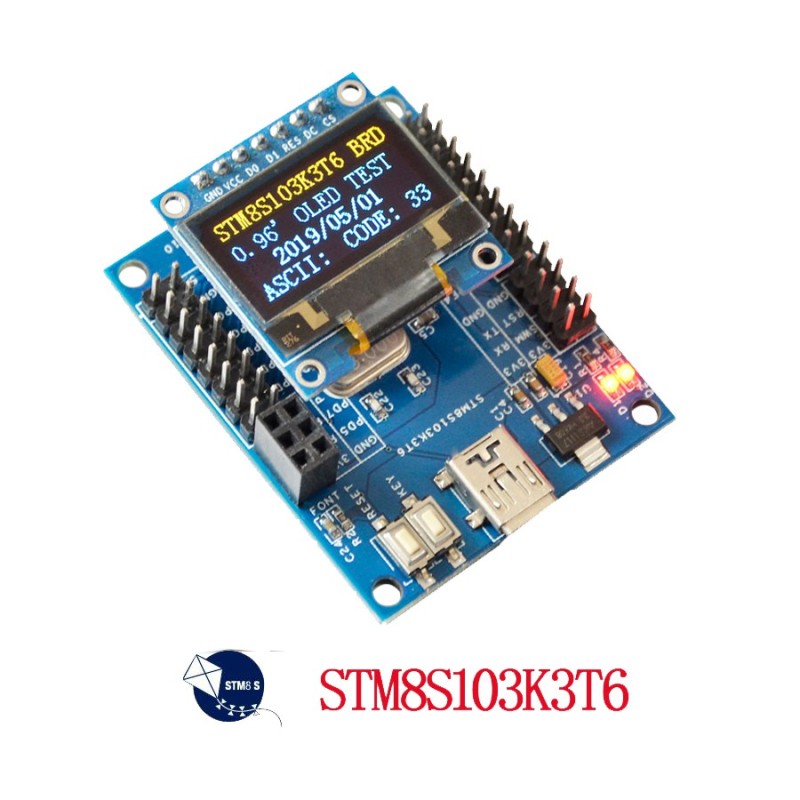

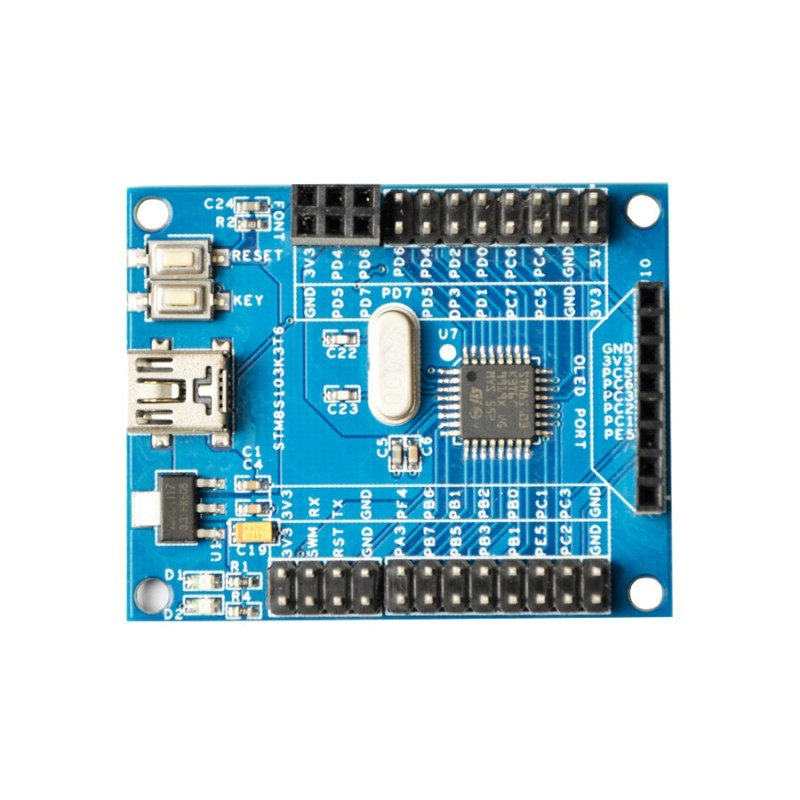

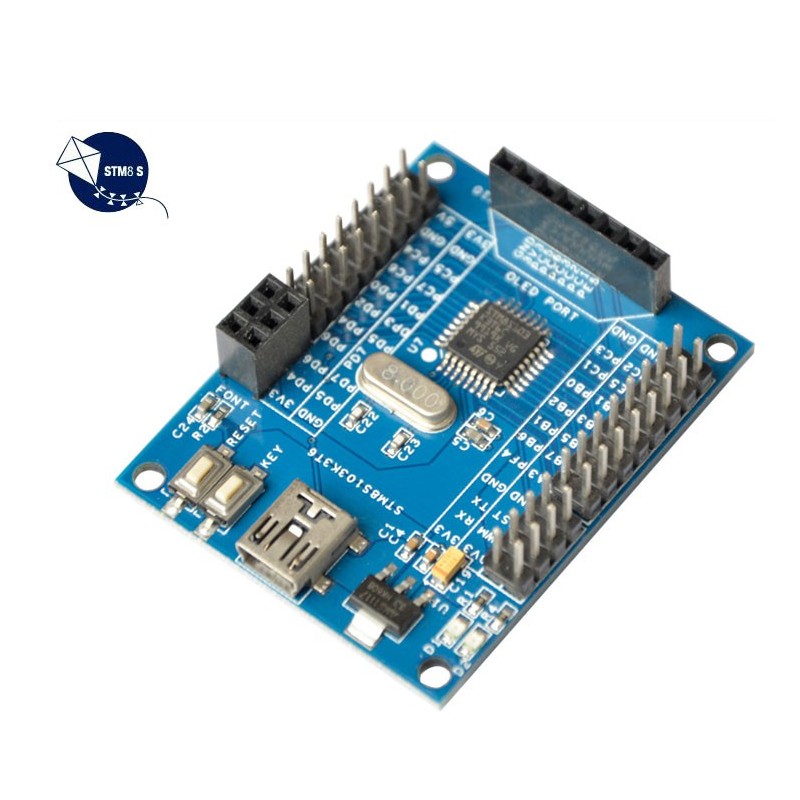

برد STM8S103K3T6C core board

1. OLED, LCD display interface

2. A reset button

3. A user button

4. Serial port pinout

5.SWIM download port leads

6. All IO ports are brought out

7.3.3V power supply leads through the pin header for easy debugging of peripherals

8. A power LED indicator, a user LED light

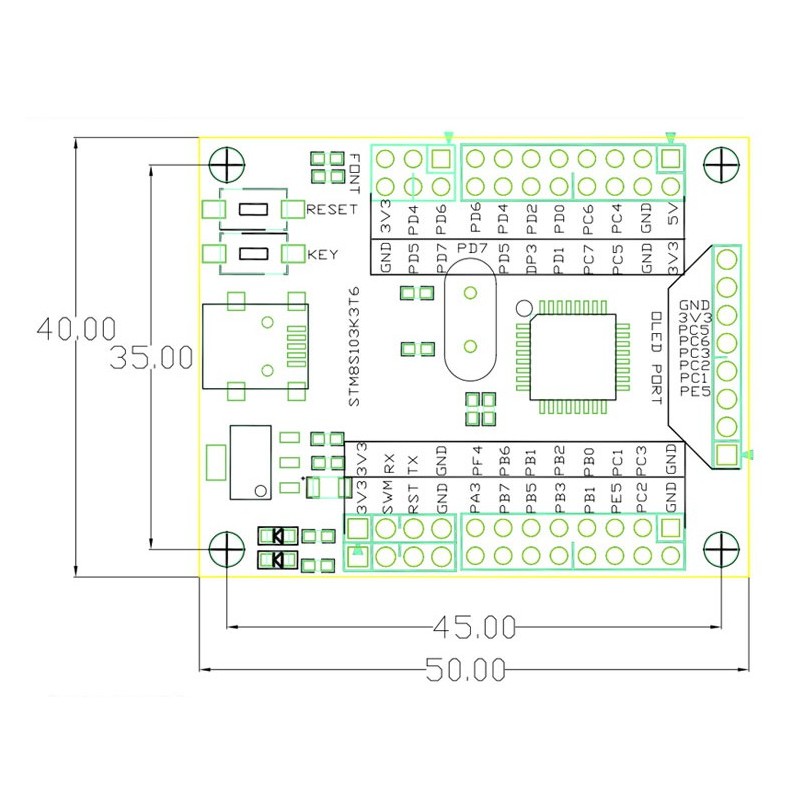

9.IO port has silkscreen marking

10. There are positioning holes around

Shipping list:

1. STM8S103K3T6 development board (not including OLED display)

2. USB data cable

3. The circuit diagram and the corresponding program demo source code , the source code is written for IAR software.

مشخصات میکروی آن در زیر می توانید ببینید:

The STM8S103F2/x3 access line 8-bit microcontrollers offer 8 Kbyte Flash program memory, plus integrated true data EEPROM. The STM8S microcontroller family reference manual (RM0016) refers to devices in this family as low-density. They provide the following benefits: performance, robustness, and reduced system cost.

Device performance and robustness are ensured by advanced core and peripherals made in a state-of-the art technology, a 16 MHz clock frequency, robust I/Os, independent watchdogs with separate clock source, and a clock security system.
The system cost is reduced thanks to an integrated true data EEPROM for up to 300 k write/erase cycles and a high system integration level with internal clock oscillators, watchdog and brown-out reset.
Full documentation is offered as well as a wide choice of development tools.

Key Features

    Core
        16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline
        Extended instruction set
    Memories
        Program memory: 8 Kbyte Flash; data retention 20 years at 55 °C after 10 kcycle
        Data memory: 640 byte true data EEPROM; endurance 300 kcycle
        RAM: 1 Kbyte
    Clock, reset and supply management
        2.95 to 5.5 V operating voltage
        Flexible clock control, 4 master clock sources
            Low power crystal resonator oscillator
            External clock input
            Internal, user-trimmable 16 MHz RC
            Internal low-power 128 kHz RC
        Clock security system with clock monitor
        Power management:
            Low-power modes (wait, active-halt, halt)
            Switch-off peripheral clocks individually
        Permanently active, low-consumption power-on and power-down reset
    Interrupt management
        Nested interrupt controller with 32 interrupts
        Up to 27 external interrupts on 6 vectors
    Timers
        Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization
        16-bit general purpose timer, with 3 CAPCOM channels (IC, OC or PWM)
        8-bit basic timer with 8-bit prescaler
        Auto wake-up timer
        Window watchdog and independent watchdog timers
    Communication interfaces
        UART with clock output for synchronous operation, SmartCard, IrDA, LIN master mode
        SPI interface up to 8 Mbit/s
        I2C interface up to 400 kbit/s
    Analog to digital converter (ADC)
        10-bit, ±1 LSB ADC with up to 5 multiplexed channels, scan mode and analog watchdog
    I/Os
        Up to 28 I/Os on a 32-pin package including 21 high sink outputs
        Highly robust I/O design, immune against current injection
    Unique ID
        96-bit unique key for each device
