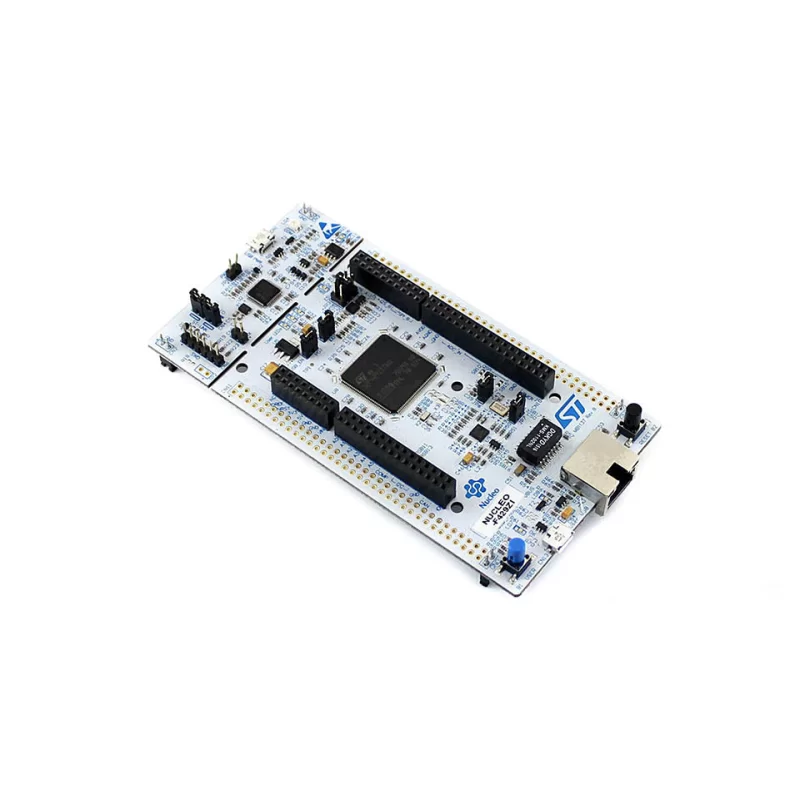

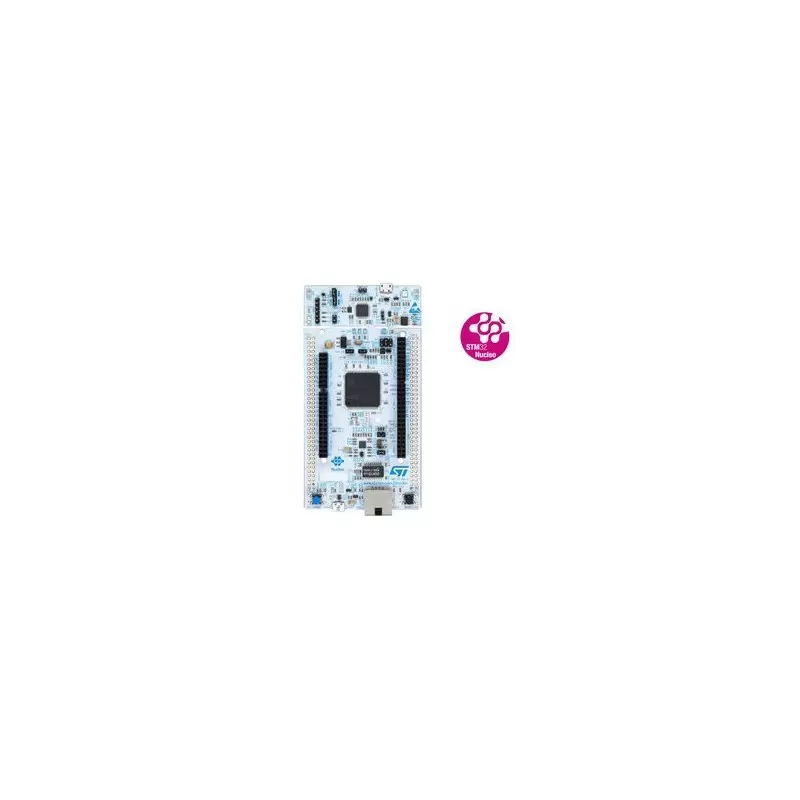

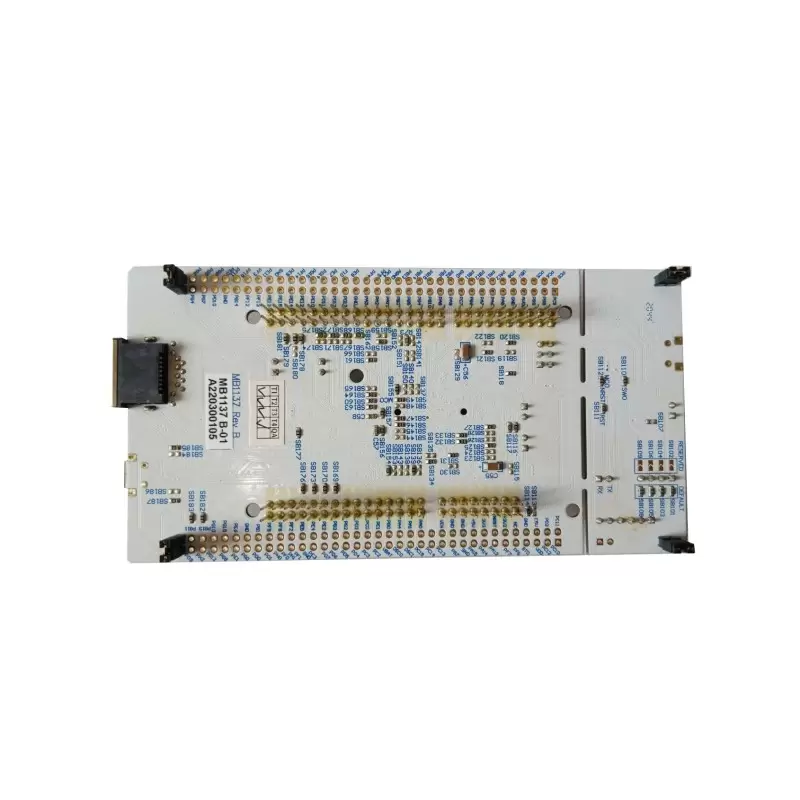

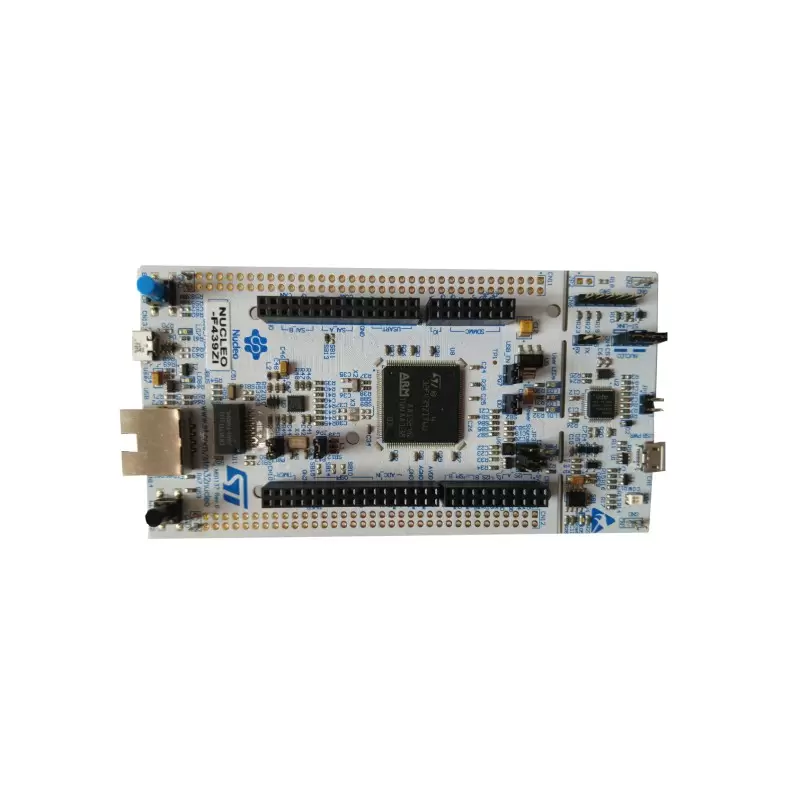

برد NUCLEO-F429ZI

NUCLEO-F429ZI -Development Boards & Kits - ARM STM32 Nucleo-144 development board with STM32F429ZI MCU, supports Arduino, ST Zio and morpho connectivity

Manufacturer:
        STMicroelectronics
Product Category:
       Development Boards & Kits - ARM
Series:
        NUCLEO-F429ZI
Product:
        Development Boards
Core:
        ARM Cortex M4
Tool Is For Evaluation Of:
      STM32F429ZIT6
Description/Function:
        STM32 nucleo board
Brand:
        STMicroelectronics
Interface Type:
        USART, USB
Data Bus Width:
        32 bit
For Use With:
        STM32F
Operating Supply Voltage:
        3.3 V, 5 V, 7 V to 12 V
Product Type:
        Development Boards & Kits - ARM
Subcategory:
        Development Tools
Tradename:
        NUCLEO

توضیحات بیشتر رو میتوانید از این سایت دریافت کنید.

Overview:

The STM32 Nucleo-144 board provides an affordable and flexible way for users to try out new concepts and build prototypes with the STM32 microcontroller, choosing from the various combinations of performance, power consumption and features. The ST Zio connector, which is an extension of Arduino™ Uno V3, provides access to more peripherals and ST morpho headers make it easy to expand the functionality of the Nucleo open development platform with a wide choice of specialized shields. The STM32 Nucleo-144 board does not require any separate probe, as it integrates the ST-LINK/V2-1 debugger/programmer and it comes with the STM32 comprehensive software HAL library, together with various packaged software examples, , as well as a direct access to the ARM®mbed™online resources.

Microcontroller features:

    STM32F429ZIT6 in LQFP144 package
    ARM®32-bit Cortex®-M4 CPU with FPU
    180 MHz max CPU frequency
    VDD from 1.8 V to 3.6 V
    2048 KB Flash
    256+4 KB SRAM, including 64 KB of CCM (core couple memory) data RAM
    GPIOs (114) with external interrupt capability
    16-stream DMA controller with FIFOs and burst support
    12-bit ADCs with 24 channels (3)
    12-bit DAC channels (2)
    USART/UART (4)
    I2C (3)
    SPI (6)
    Advanced-control Timer (2)
    General Purpose Timers (10)
    Watchdog Timers (2)
    CAN 2.0B active (2)
    SAI
    SDIO
    Random Generator (TRNG for HW entropy)
    USB 2.0 OTG HS
    USB 2.0 OTG FS
    Camera interface
    Ethernet
    LCD-TFT

Nucleo features:
    Two types of extension resources
        Arduino Uno Revision 3 connectivity
        STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
    On-board ST-LINK/V2-1 debugger/programmer with SWD connector
        Selection-mode switch to use the kit as a standalone ST-LINK/V2-1
    Flexible board power supply
        USB VBUS or external source (3.3 V, 5 V, 7 - 12 V)
        Power management access point
    Three User LEDs
    Two push buttons: USER and RESET
    USB re-enumeration capability: three different interfaces supported on USB
        Virtual Com port
        Mass storage (USB Disk drive) for drag'n'drop programming
        Debug port
    Ethernet 10/100Mbps
    USART

Board pinout:
Pins Legend

Zio and Arduino-compatible headers:

CN11 CN12 headers:
