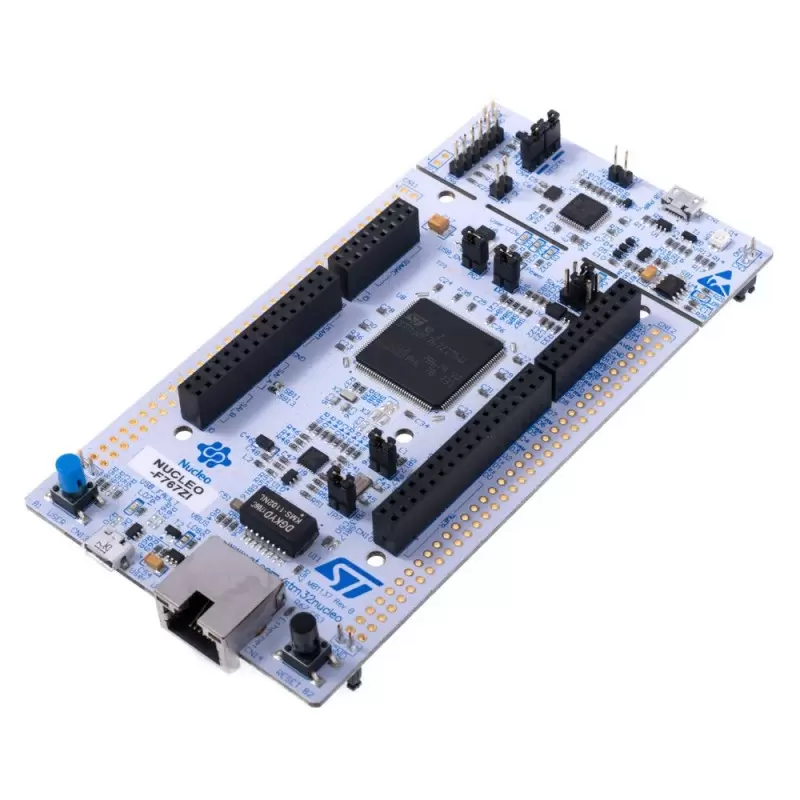

برد NUCLEO-F767ZI

با خرید این محصول 30 امتیاز وفاداری. سبد شما در مجموع 30 امتیاز وفاداری که می تواند به کوپن تخفیف تبدیل شود به ارزش 150,000 ریال.


نظر و رتبه بندی مشتریان

1136000

محصول جدید

30,470,000 ریال

برد  NUCLEO-F767ZI

NUCLEO-F767ZI-Development Boards & Kits - ARM STM32 Nucleo-144 development board with STM32F767ZI MCU, supports Arduino, ST Zio and morpho connectivity


Manufacturer:
       STMicroelectronics
Product Category:
    Development Boards & Kits - ARM
Series:
       NUCLEO-F767ZI
Product:
       Development Boards
Core:
       ARM Cortex M7
Tool Is For Evaluation Of:
       STM32F767ZI
Description/Function:
       STM32 nucleo board
Brand:
       STMicroelectronics
Interface Type:
       CAN, Ethernet, HDMI, I2C, I2S, SPI, UART, USART, USB
Data Bus Width:
       32 bit
For Use With:
        STM32F
Operating Supply Voltage:
        1.8 V
Product Type:
        Development Boards & Kits - ARM
Subcategory:
        Development Tools
Tradename:
        NUCLEO

STM32 Nucleo-144 development board with STM32F767ZIT6 MCU, supports Arduino, ST Zio and morpho connectivity

Overview:

The STM32 Nucleo-144 board provides an affordable and flexible way for users to try out new concepts and build prototypes with the STM32 microcontroller, choosing from the various combinations of performance, power consumption and features. The ST Zio connector, which is an extension of Arduino™ Uno, provides access to more peripherals and ST morpho headers make it easy to expand the functionality of the Nucleo open development platform with a wide choice of specialized shields. The STM32 Nucleo-144 board does not require any separate probe, as it integrates the ST-LINK/V2-1 debugger/programmer and it comes with the STM32 comprehensive software HAL library, together with various packaged software examples, as well as a direct access to the ARM®mbed™online resources.

Microcontroller features:

    STM32F767ZIT6 in LQFP144 package
    ARM®32-bit Cortex®-M7 + DPFPU + Chrom-ART™ Accelerator
    216 MHz max CPU frequency
    VDD from 1.7 V to 3.6 V
    2 MB Flash
    512 KB SRAM
    GPIOs (114) with external interrupt capability
    12-bit ADCs with 24 channels (3)
    12-bit DAC channels (2)
    USART/UART (8)
    I2C (4)
    SPI (6)
    General Purpose Timers (10)
    Advanced-control Timers (2)
    Basic Timers (2)
    Low-power Timers (1)
    Watchdog Timers (2)
    CAN 2.0B active (3)
    SAI (2)
    SPDIFRX 4 inputs
    SDMMC
    Camera Interface
    LCD-TFT
    USB 2.0 OTG HS/FS
    Random Number Generator (TRNG for HW entropy)
    Ethernet

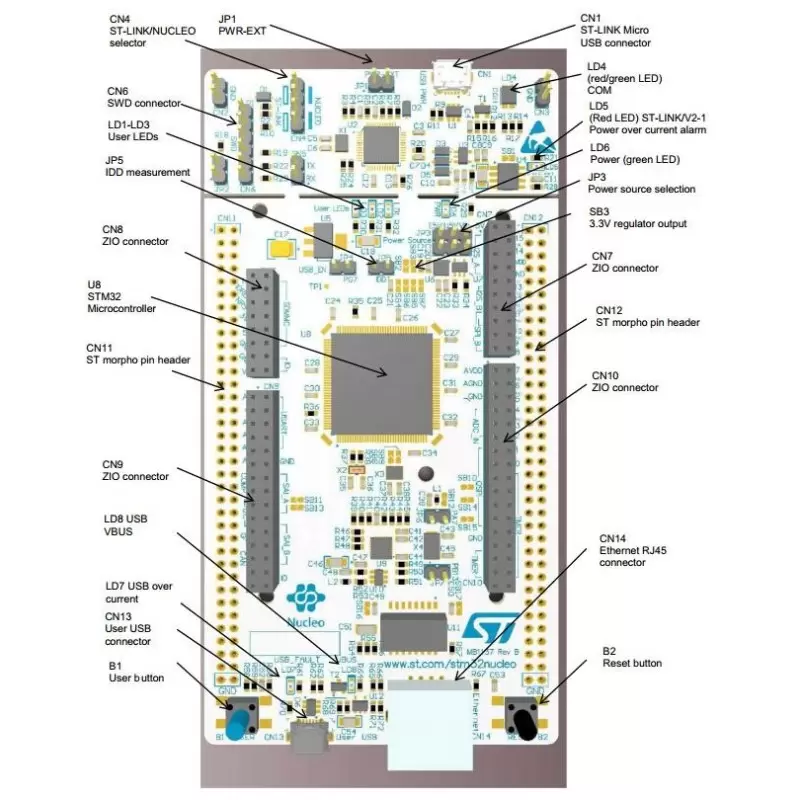

Nucleo board features:

    Two types of extension resources
        Arduino Uno Revision 3 connectivity
        STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
    On-board ST-LINK/V2-1 debugger/programmer with SWD connector
        Selection-mode switch to use the kit as a standalone ST-LINK/V2-1
    Flexible board power supply
        USB VBUS or external source (3.3 V, 5 V, 7 - 12 V)
        Power management access point
    Three User LEDs
    Two push buttons: USER and RESET
    USB re-enumeration capability: three different interfaces supported on USB
        Virtual Com port
        Mass storage (USB Disk drive) for drag'n'drop programming
        Debug port
    Ethernet 10/100Mbps
    USART

توضیحات بیشتر رو میتوانید از این سایت دریافت کنید.

Board pinout:

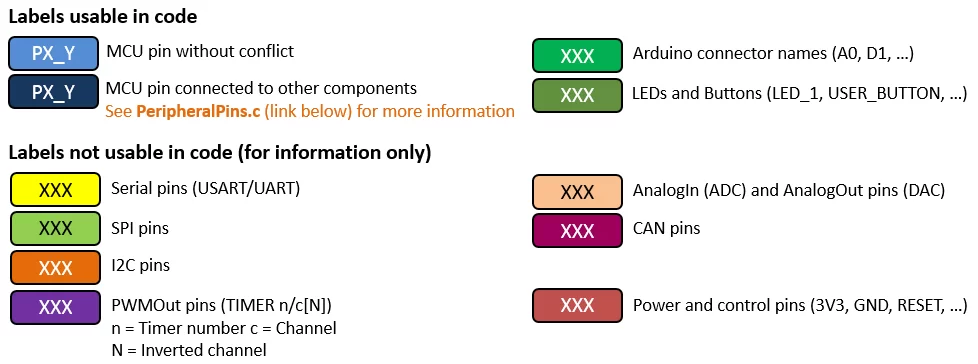

Pins Legend

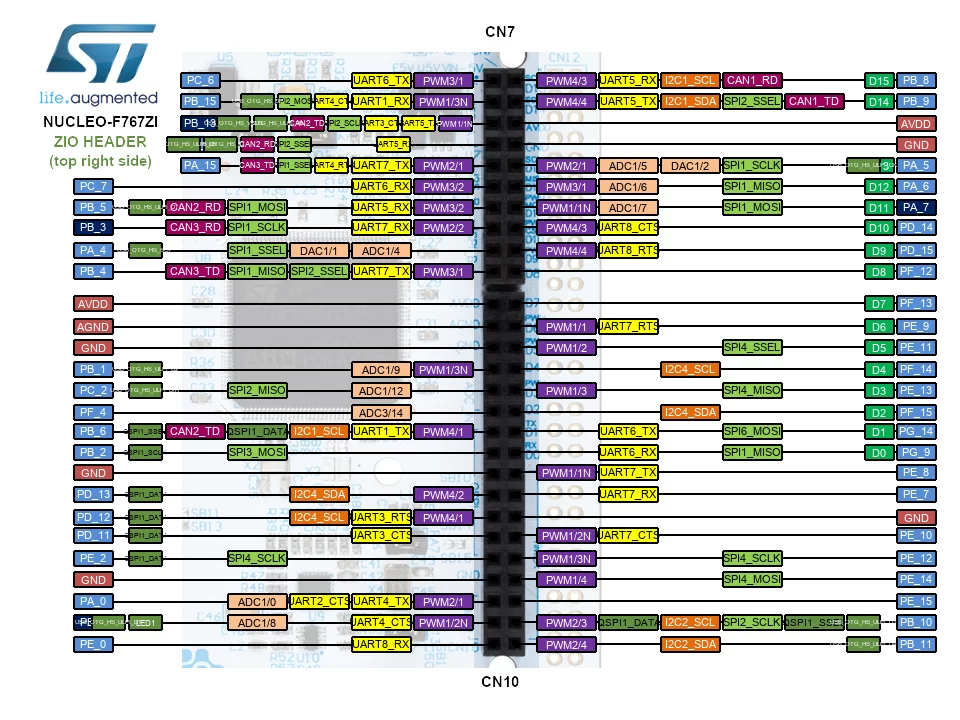

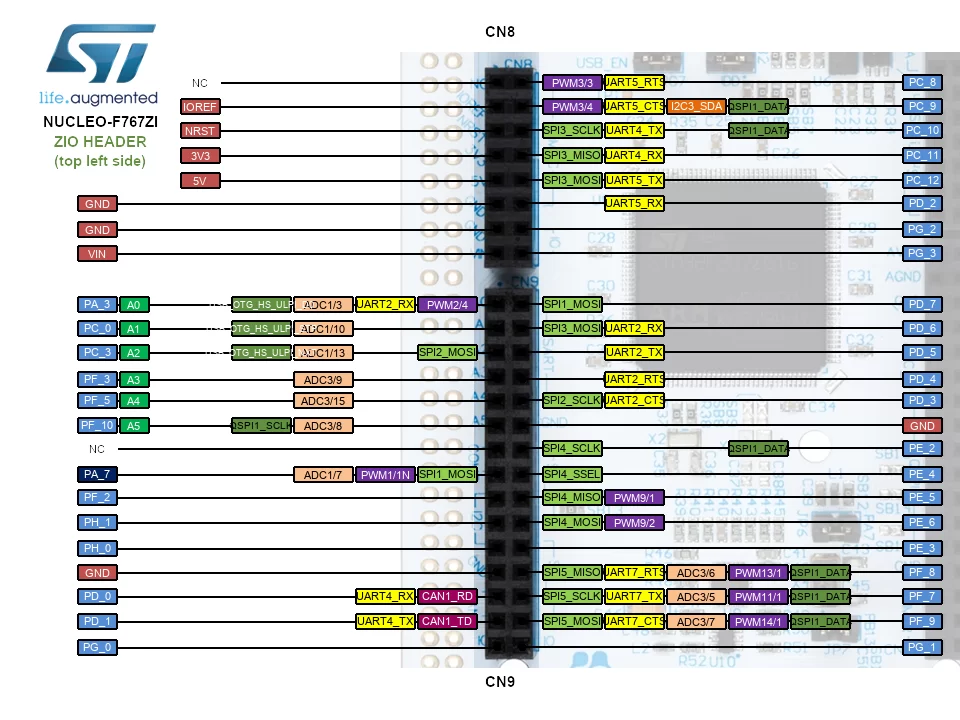

Zio and Arduino-compatible headers:

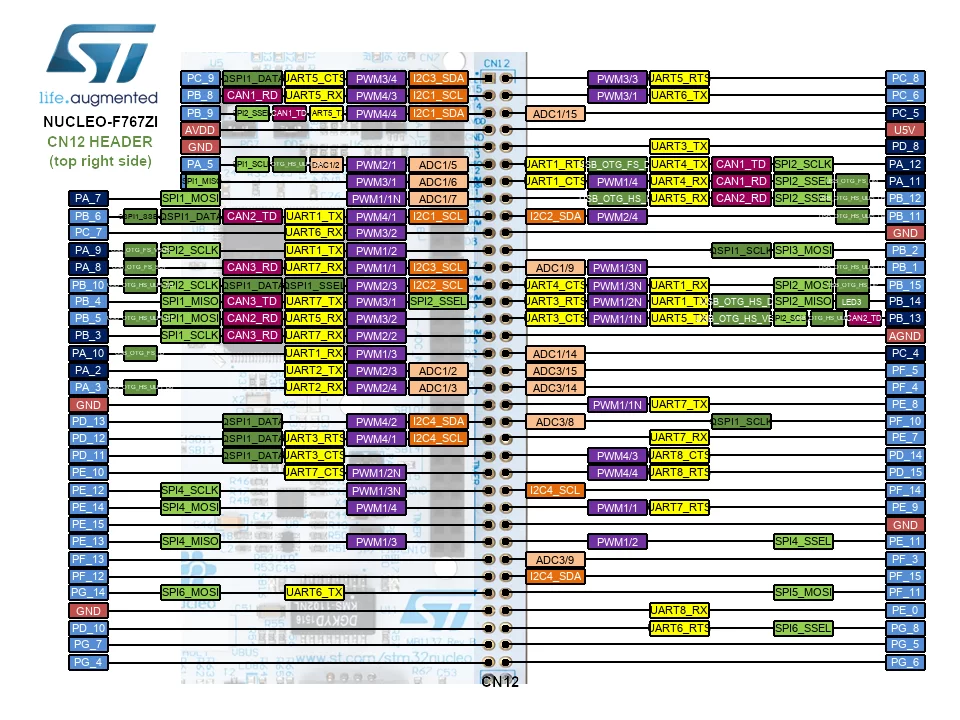

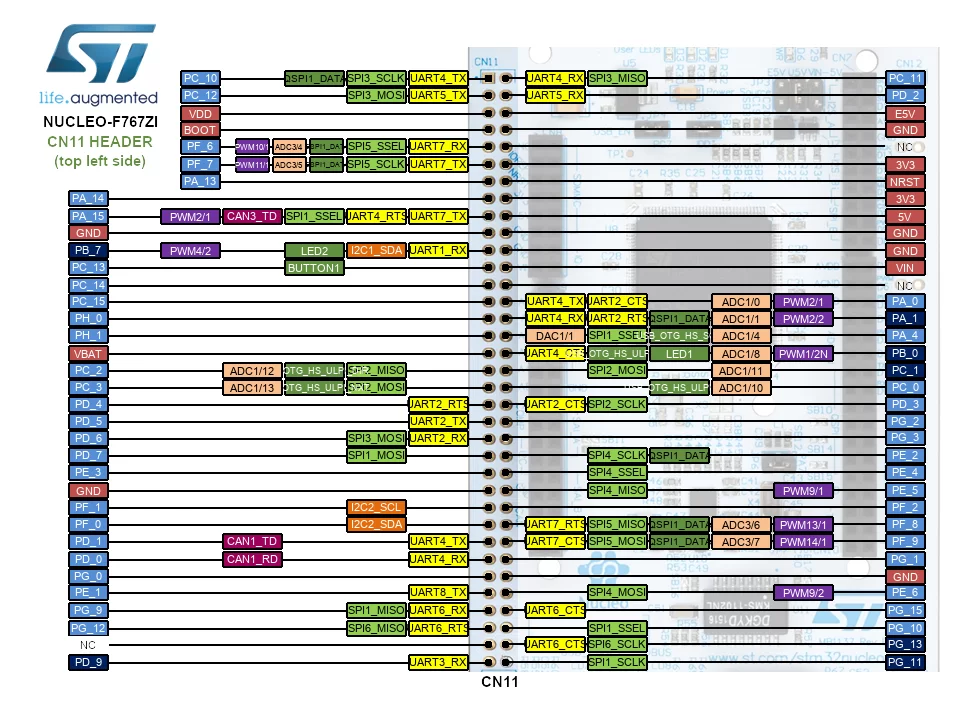

CN11 CN12 headers:

نظرات

ثبت نام مورد نیاز نمی باشد!

1 سوال(ها) پاسخ داده خواهد شد

اگر سوال و یا نظری دارید مطرح نمائید

(اختیاری)
*(برای دریافت پاسخ مورد نیاز می باشد)
  • ارسال شده توسط علیرضا
    در 24/12/1400
    سلام با این برد صفحات لمسی رو هم میتونیم کار کنیم؟؟؟ پاسخ:
    سلام سوال شما کامل و واضح نیست ، به پایه های خروجی دقت کنید که ایا پایه های rgb بیرون اورده شده یا خیر، اگر السیدی mcu منظور شماست، بله قابل راه اندازی هست
