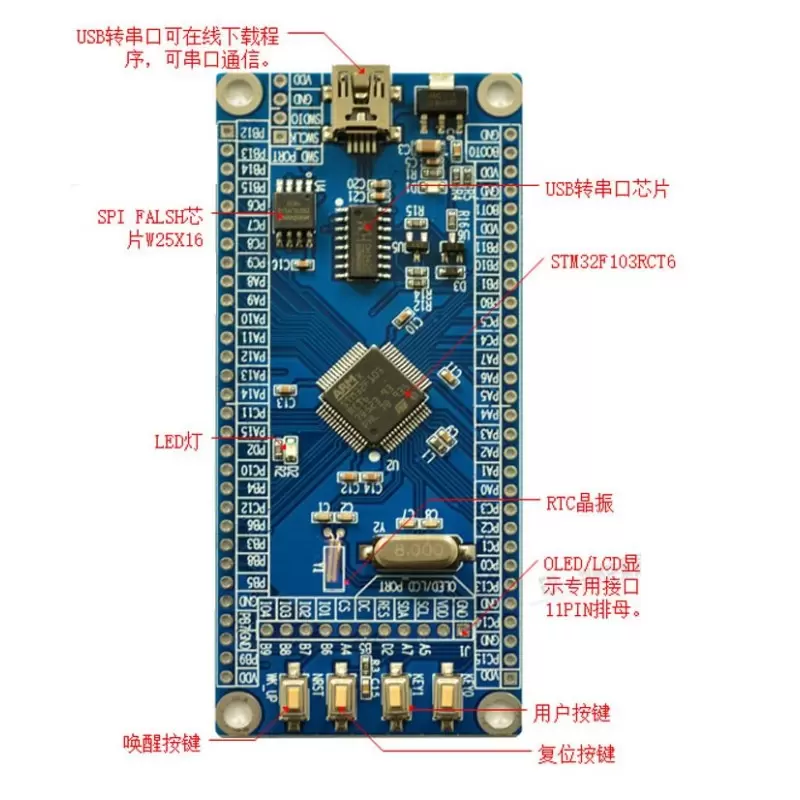

برد stm32f103rct6 board
این برد راه انداز بر اساس میکروکنترلر STM32F103RCT6 از خانواده RM® 32-bit Cortex® -M3 طراحی شده است.
امکانات اولیه جهت راه اندازی میکروکنترلر بر روی این برد راه انداز تعبیه شده است.

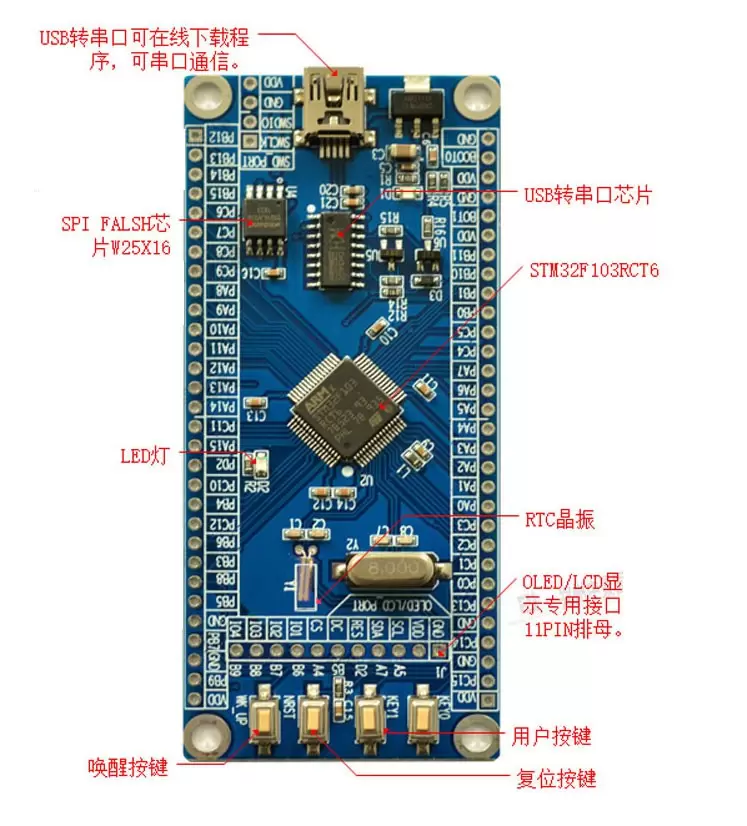

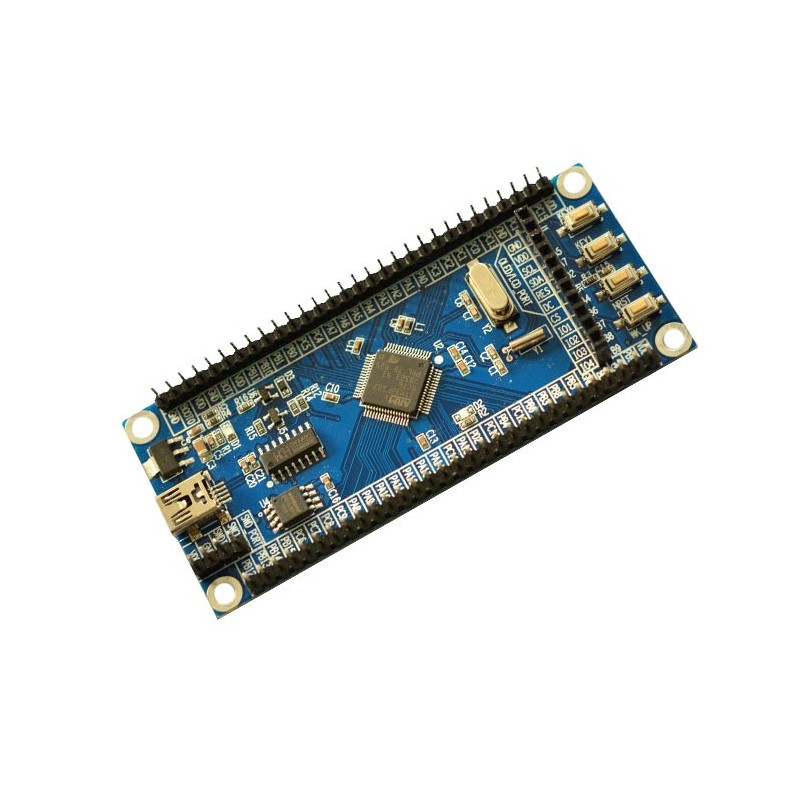

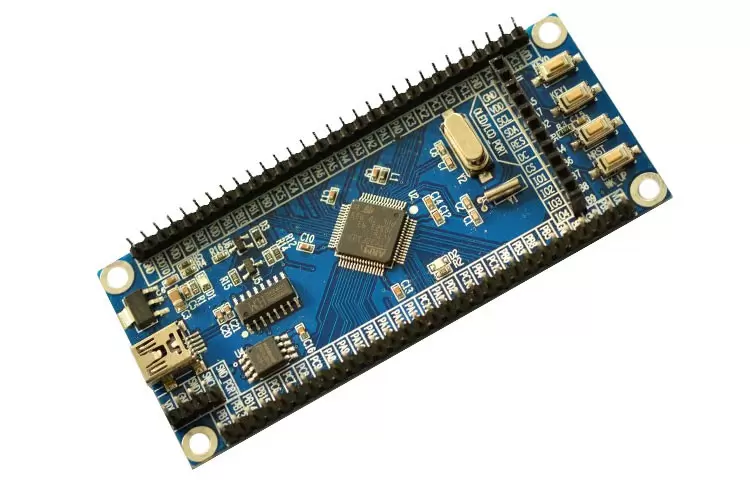

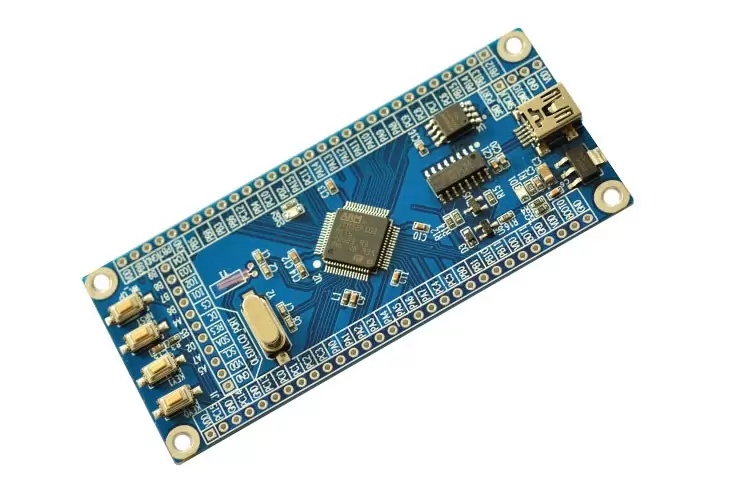

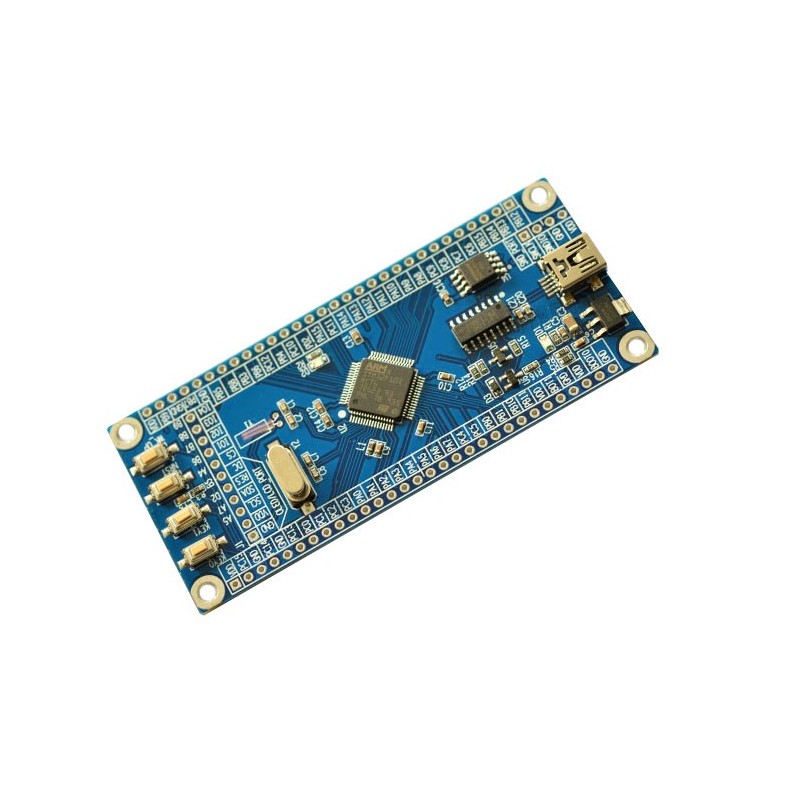

1, STM32F103RCT6, TQFP64, FLASH: 256K, RAM: 48K
2. One standard JTAG/SWD download port
3, a power indicator
4, two status indicators
5, a SPI FLASH chip, W25X16 , the capacity is 2M bytes

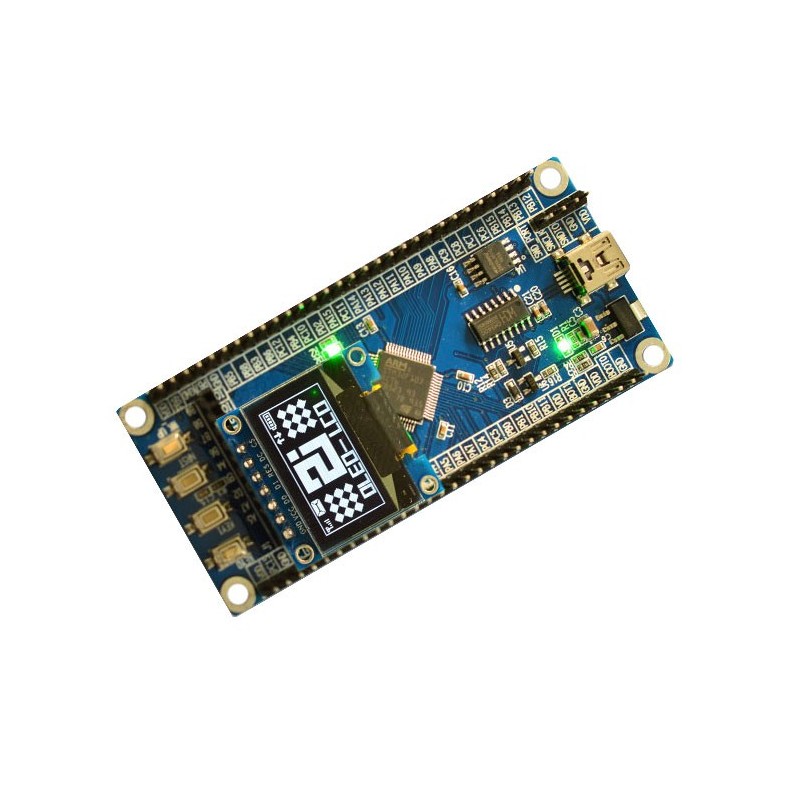

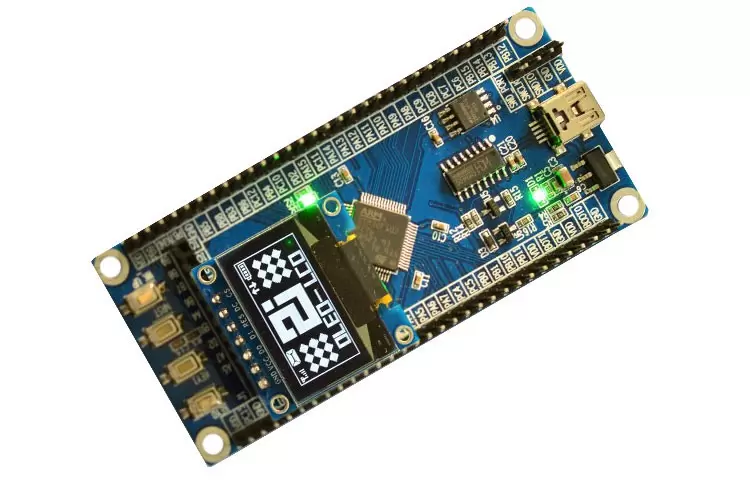

6, an OLED screen module interface
7, one way miniUSB interface, can supply power to the system version, reserve USB communication function
8, a boot mode configuration interface
9, a 32.768 crystal oscillator, can be used for built-in RTC , or used to calibrate
10. A 2.4G wireless communication module ( NRF24L01 ) interface
11, a reset button, can be used to reset MCU and OLED
12, three function button buttons, of which WK_UP has a wake-up function
13, 8M crystal oscillator (through the chip internal PLL up to 72M )
14, LM1117-3.3V regulator chip, providing 800mA maximum current
15, port expansion pins 13x2 Road +2 Road
16, reserve the serial port download interface, easy to connect with the5V development board, use the serial port to download the program
17,4 periphery . 4 th 3.5mm positioning holes

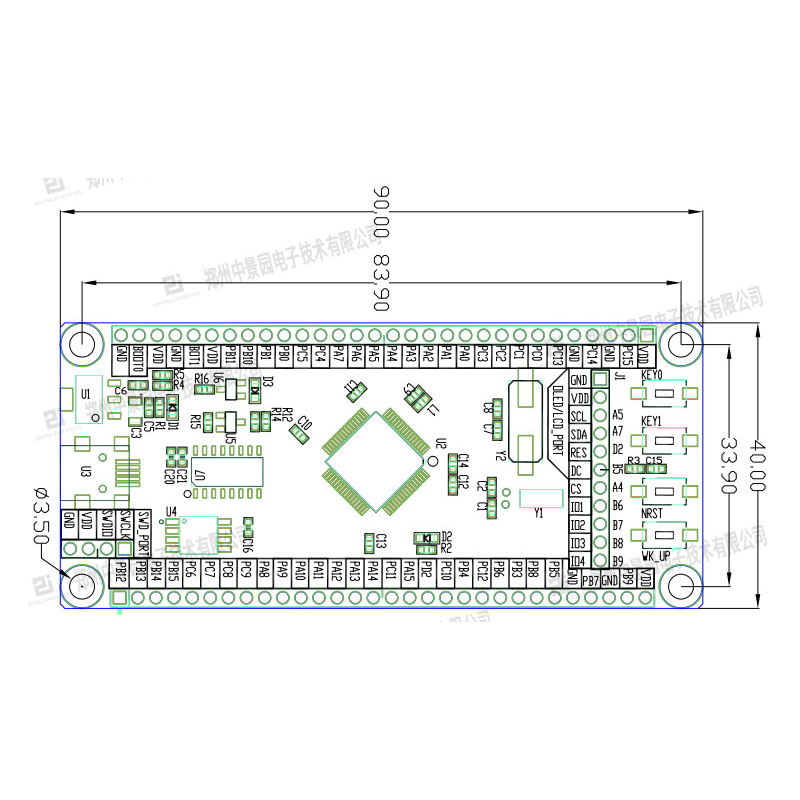

18, size: 56x62mm
مشخصات میکروی آنرا در زیر می توانید ببینید:
The STM32F103xC, STM32F103xD and STM32F103xE performance line family incorporates the high-performance ARM® Cortex®-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 512 Kbytes and SRAM up to 64 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer three 12-bit ADCs, four general-purpose 16-bit timers plus two PWM timers, as well as standard and advanced communication interfaces: up to two I2Cs, three SPIs, two I2Ss, one SDIO, five USARTs, an USB and a CAN.
The STM32F103xC/D/E high-density performance line family operates in the –40 to +105 °C temperature range, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving mode allows the design of low-power applications.
These features make the STM32F103xC/D/E high-density performance line microcontroller family suitable for a wide range of applications such as motor drives, application control, medical and handheld equipment, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems video intercom, and HVAC.
Key Features
Core: ARM® 32-bit Cortex®-M3 CPU
72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
Single-cycle multiplication and hardware division
Memories
256 to 512 Kbytes of Flash memory
up to 64 Kbytes of SRAM
Flexible static memory controller with 4 Chip Select. Supports Compact Flash, SRAM, PSRAM, NOR and NAND memories
LCD parallel interface, 8080/6800 modes
Clock, reset and supply management
2.0 to 3.6 V application supply and I/Os
POR, PDR, and programmable voltage detector (PVD)
4-to-16 MHz crystal oscillator
Internal 8 MHz factory-trimmed RC
Internal 40 kHz RC with calibration
32 kHz oscillator for RTC with calibration
Low power
Sleep, Stop and Standby modes
VBAT supply for RTC and backup registers
3 × 12-bit, 1 μs A/D converters (up to 21 channels)
Conversion range: 0 to 3.6 V
Triple-sample and hold capability
Temperature sensor
2 × 12-bit D/A converters
DMA: 12-channel DMA controller
Supported peripherals: timers, ADCs, DAC, SDIO, I2Ss, SPIs, I2Cs and USARTs
Debug mode
Serial wire debug (SWD) & JTAG interfaces
Cortex®-M3 Embedded Trace Macrocell™
Up to 112 fast I/O ports
51/80/112 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant
Up to 11 timers
Up to four 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
2 × 16-bit motor control PWM timers with dead-time generation and emergency stop
2 × watchdog timers (Independent and Window)
SysTick timer: a 24-bit downcounter
2 × 16-bit basic timers to drive the DAC
Up to 13 communication interfaces
Up to 2 × I2C interfaces (SMBus/PMBus)
Up to 5 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
Up to 3 SPIs (18 Mbit/s), 2 with I2S interface multiplexed
CAN interface (2.0B Active)
USB 2.0 full speed interface
SDIO interface
CRC calculation unit, 96-bit unique ID
ECOPACK® packages
لیست موارد موجود در دانلود ویژه

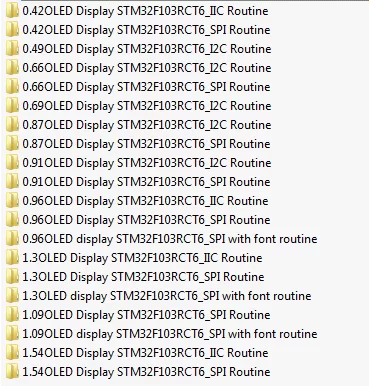

لیست مثال ها
