OLED 0.49 inch OLED Module White 64x32 IIC / SSD1306
ماژول OLED 0.49 inch White با رزولیشن 64x32 و با درایور SSD1306 و IIC Interface
ماژول OLED 0.49 inch White با رزولیشن 64x32 و با درایور SSD1306 و IIC Interface
Size: 0.49 inch
Control chip: SSD1306
Resolution: 64*32

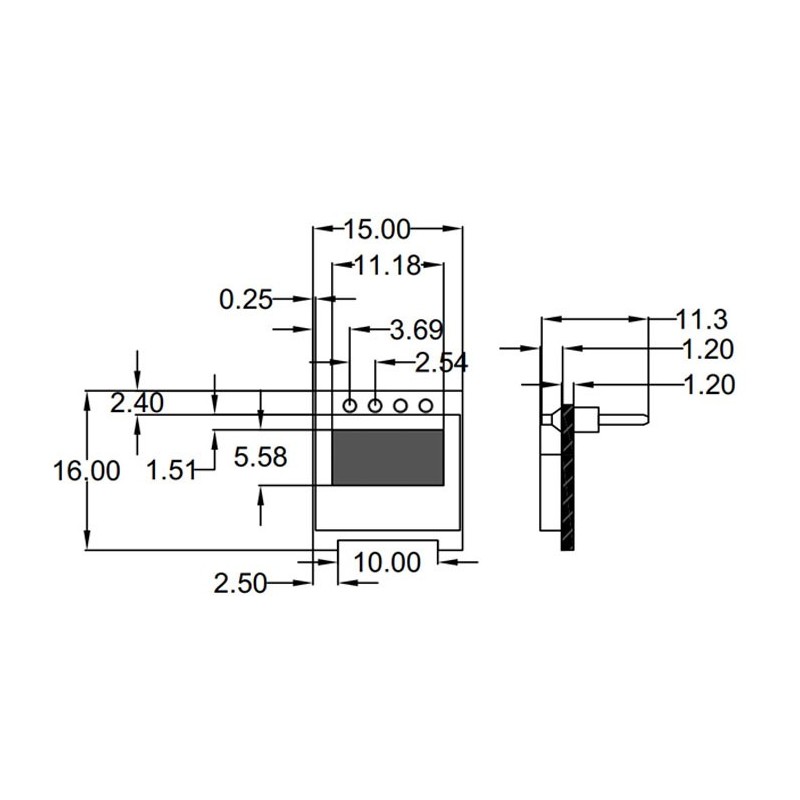

Display area: 11.18x5.58 (mm)
Physical size: 15x16 (mm)
Interface type: IIC interface
Number of pins: 4PIN
Display color: white
Working temperature: -40~85 degrees
Working voltage: 3.3~5V
Module weight: 4g

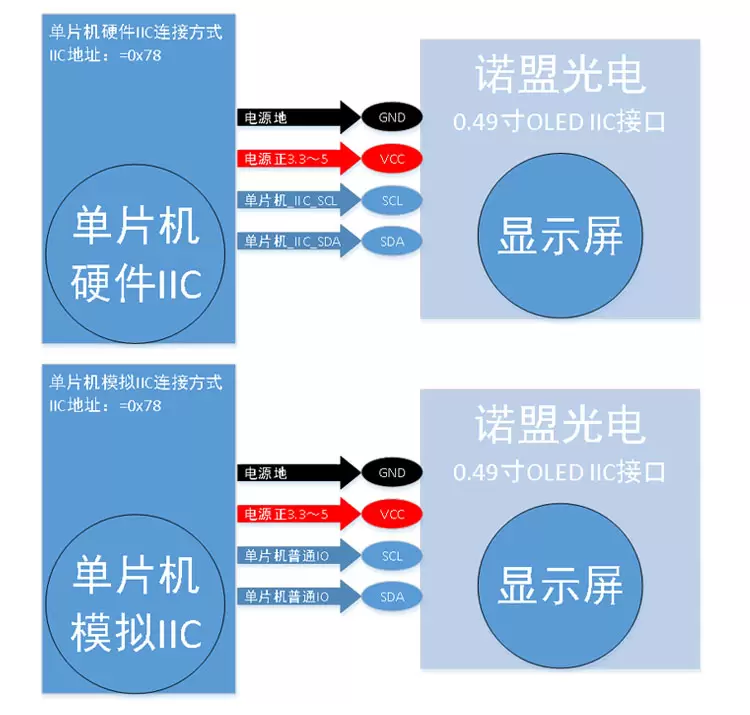

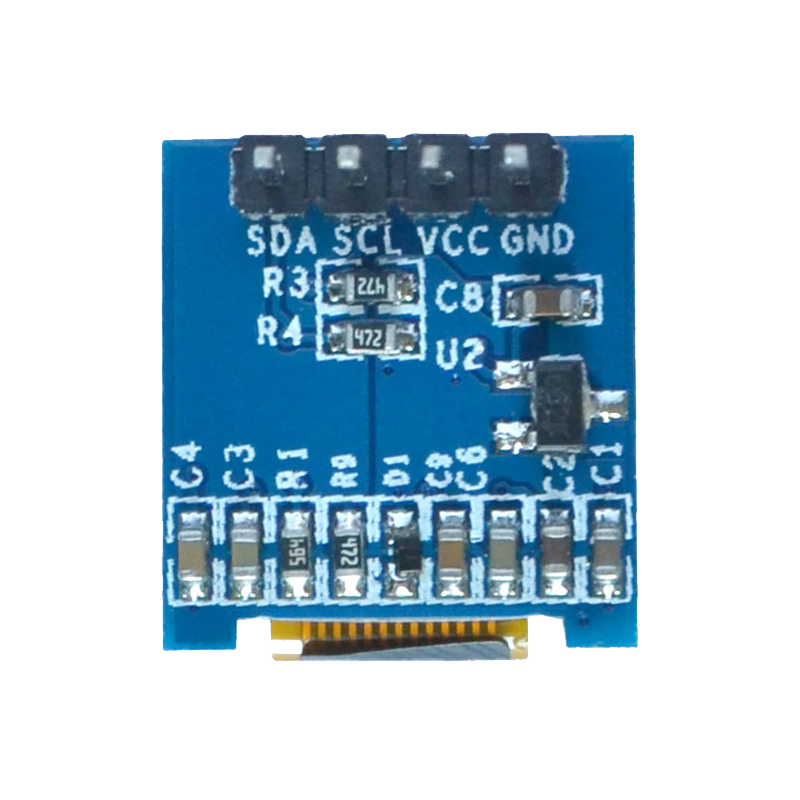

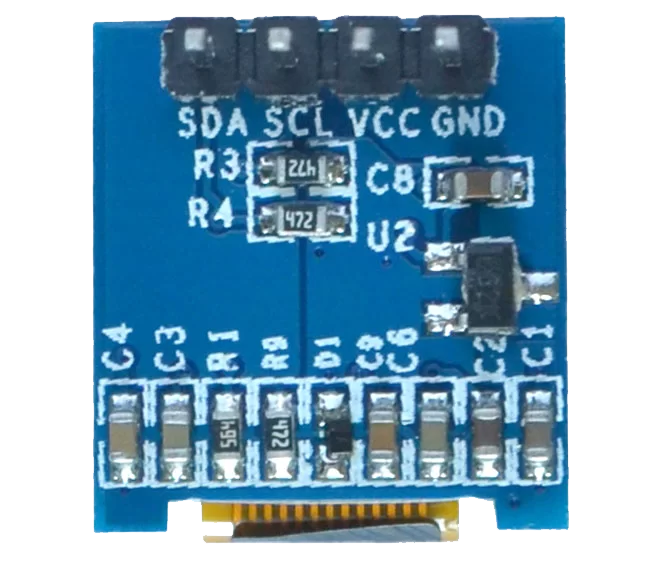

Interface Definition:
1> GND (power ground)
2> VCC (power supply is 3.3~5V)
3> SCL (IIC clock line)
4> SDA (IIC data line)
Important Note: OLED display is different from LCD OLED is self-illuminating; therefore, there is no backlight, there will be no reaction when only power is applied; there must be a correct operation of the program to display, so please pay attention.
محتوای فایل مربوط به مثال و Document:
0.49 OLED display program:
مشخصات
- سایز نمایشگر(اینچ)
- 0.49
- رزولیشین
- 64x32
- نمایش رنگ
- سفید
- نوع ارتباط (MCU)
- I2C
- چیپ راه انداز
- SSD1306
