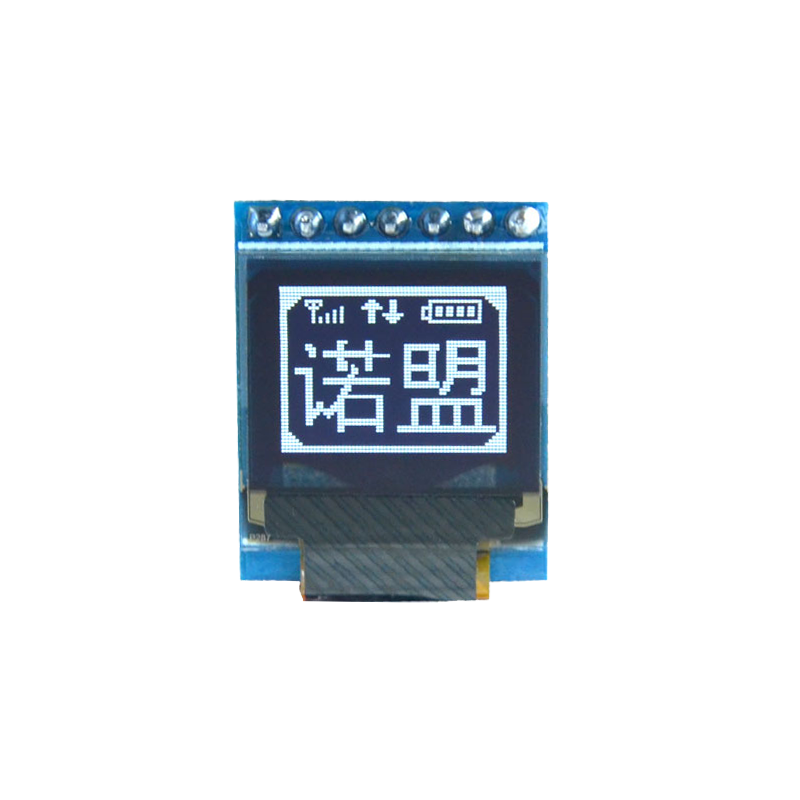

OLED 0.66 inch OLED Module White 64x48 IIC SPI / SSD1306

ماژول OLED 0.66 inch White با رزولیشن 64x48 و با درایور SSD1306 و IIC-SPI Interface

Size: 0.66 inch
Control chip: SSD1306
Resolution: 64*48

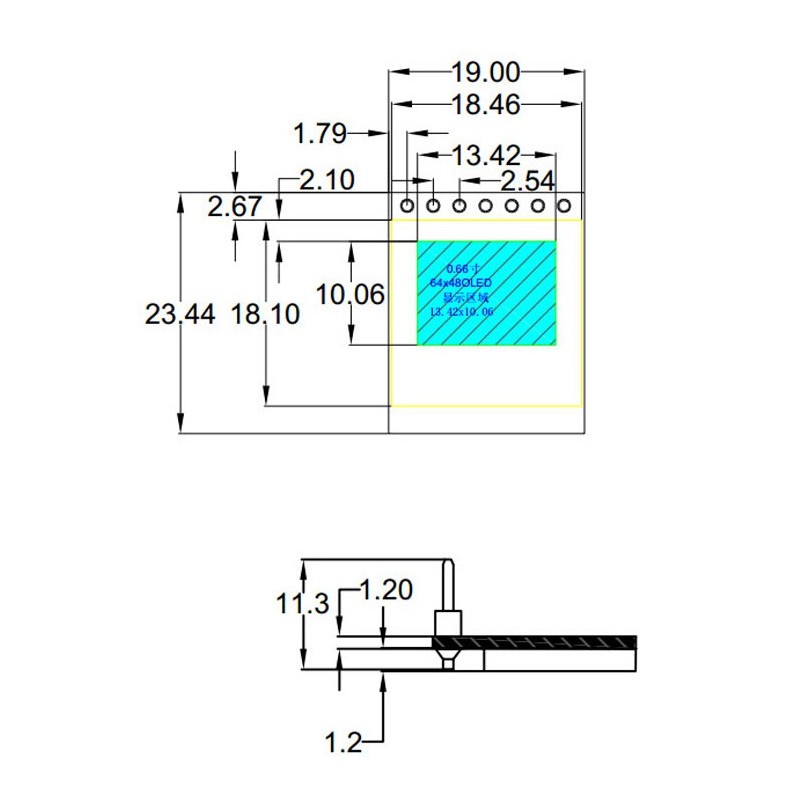

Display area: 13.42x10.06 (mm)
Physical size: 19x23.44 (mm)
Interface Type: SPI/IIC Interface
Number of pins: 7PIN
Display color: white
Working temperature: -40~85 degrees
Working voltage: 3.3~5V
Module weight: 4g

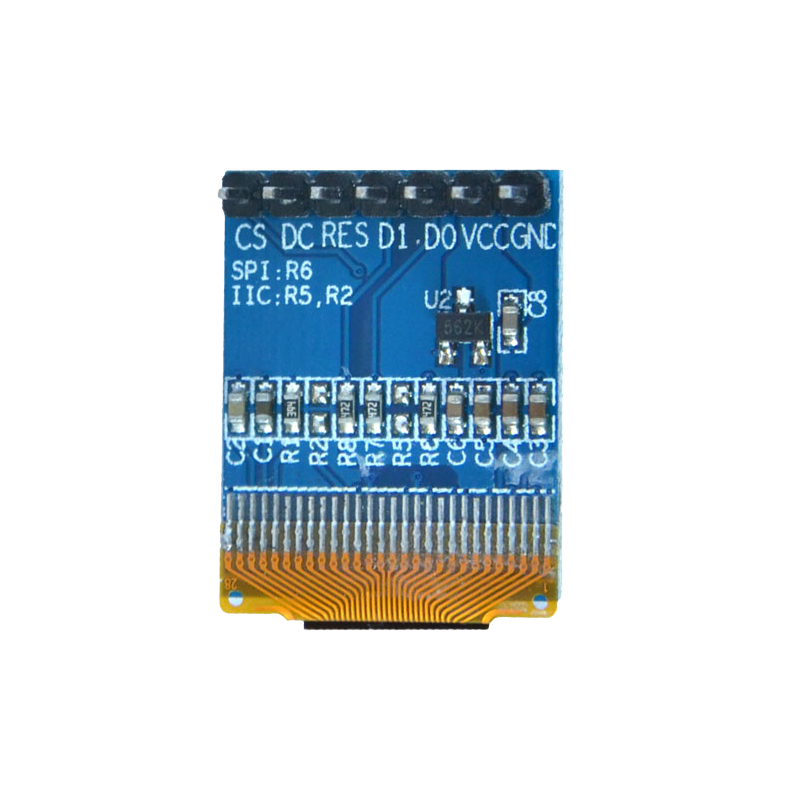

1> GND (power ground)
2> VCC (power supply is 3.3~5V)
3> DO (SPI clock line)
4> D1 (SPI data line)
5> RES (OLED reset pin, low level reset)
6> DC (data / command selection foot)
7> cs (OLED SPI chip select, the bottom level is valid, if you do not want to use it must be grounded)

Important note: OLED display is different from LCD; OLED is self-illuminating; therefore, there is no backlight, there will be no reaction when only power is applied; there must be a correct operation of the program to display, so please pay attention.

محتوای فایل مربوط به مثال و Document:

0.66 inch OLED display test program:
