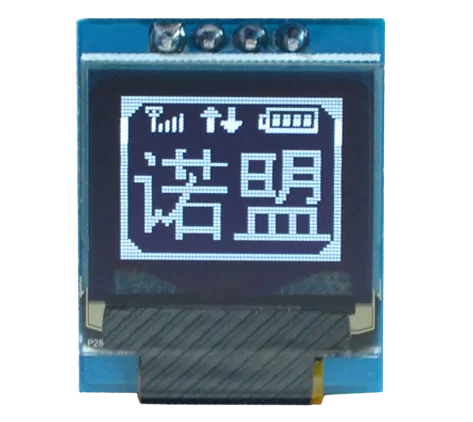

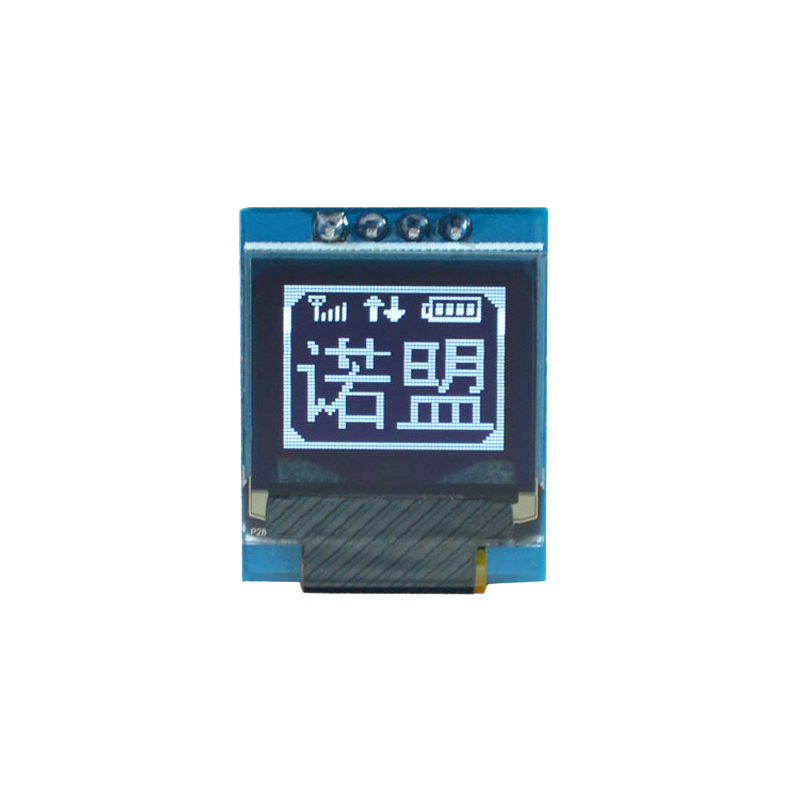

OLED 0.66 inch OLED Module Blue 64x48 IIC / SSD1306

ماژول OLED 0.66 inch Blue با رزولیشن 64x48 و با درایور SSD1306 و IIC Interface

Size: 0.66 inch
Control chip: SSD1306
Resolution: 64*48

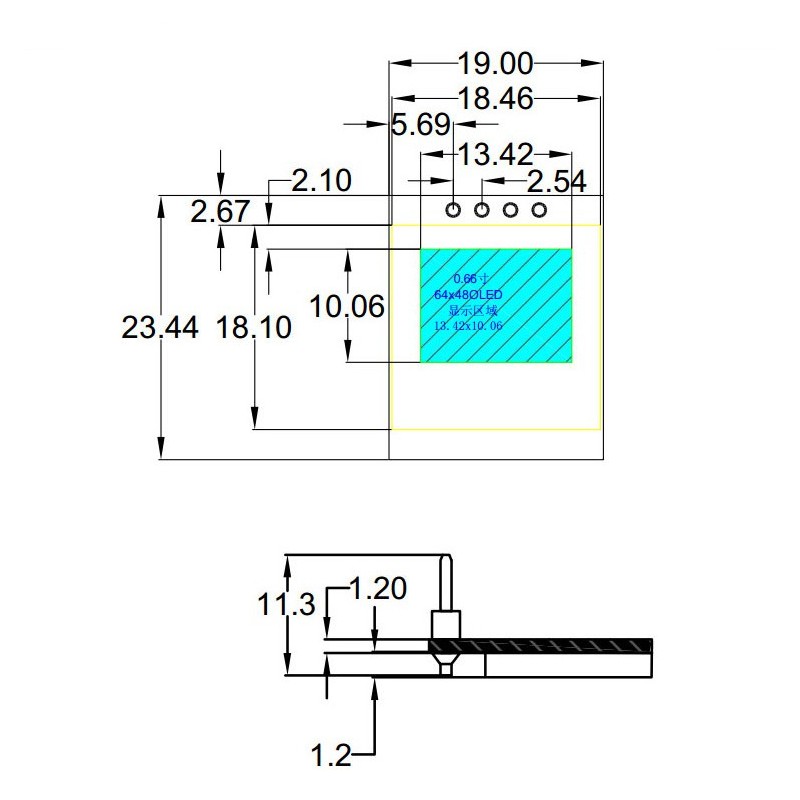

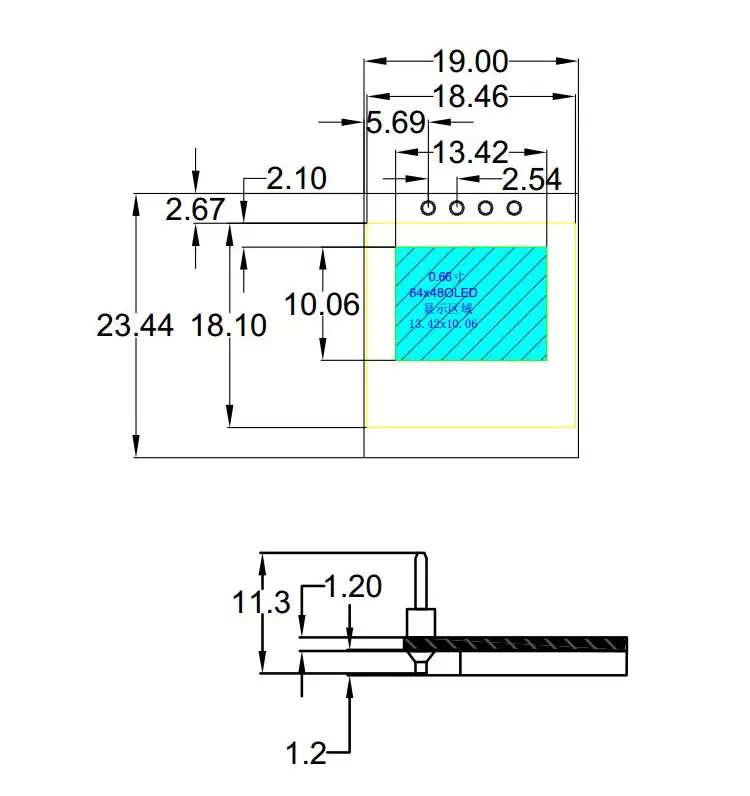

Display area: 13.42x10.06 (mm)
Physical size: 19x23.44 (mm)
Interface type: IIC interface
Number of pins: 4PIN
Display color: Blue
Working temperature: -40~85 degrees
Working voltage: 3.3~5V
Module weight: 4g

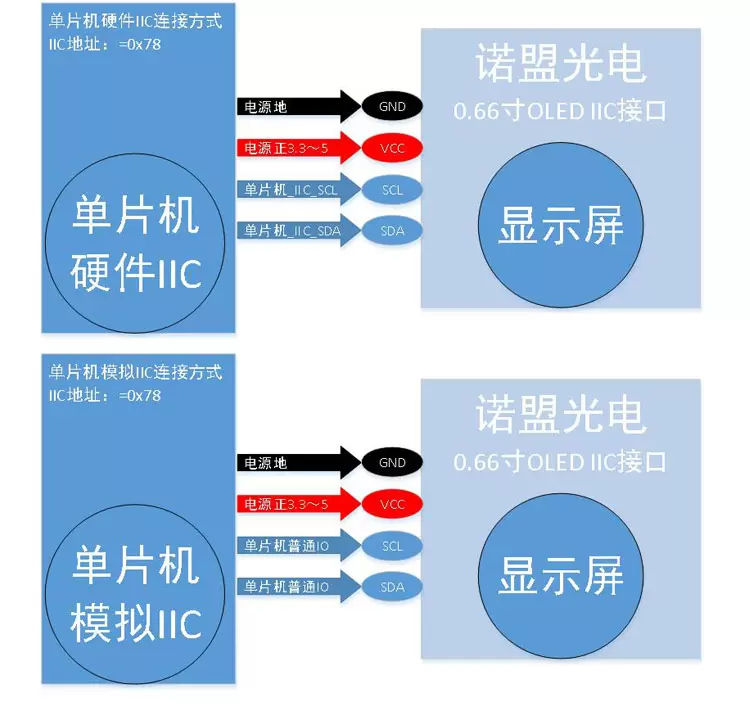

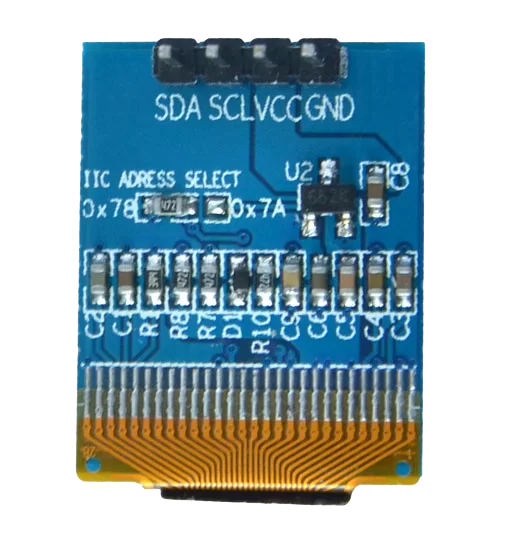

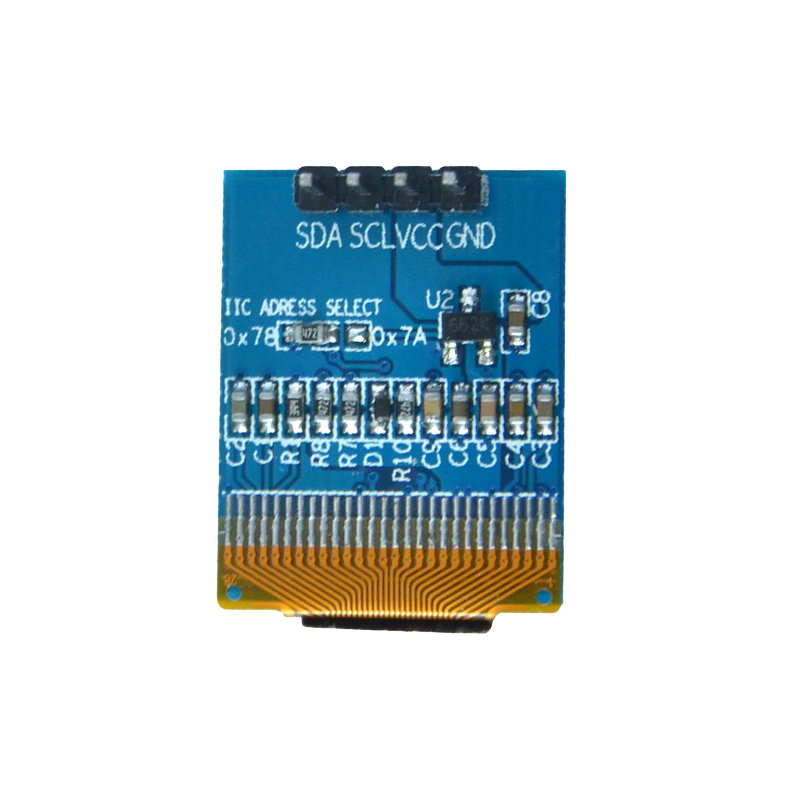

1> GND (power ground)
2> VCC (power supply is 3.3~5V)
3> SCL (IC clock line)
4> SDA (IIC data line)

Important Note: OLED display is different from LCD; OLED is self-illuminating; therefore, there is no backlight, there will be no reaction when only power is applied; there must be a correct operation of the program to display, so please pay attention.

محتوای فایل مربوط به مثال و Document:

0.66 inch OLED display test program:
