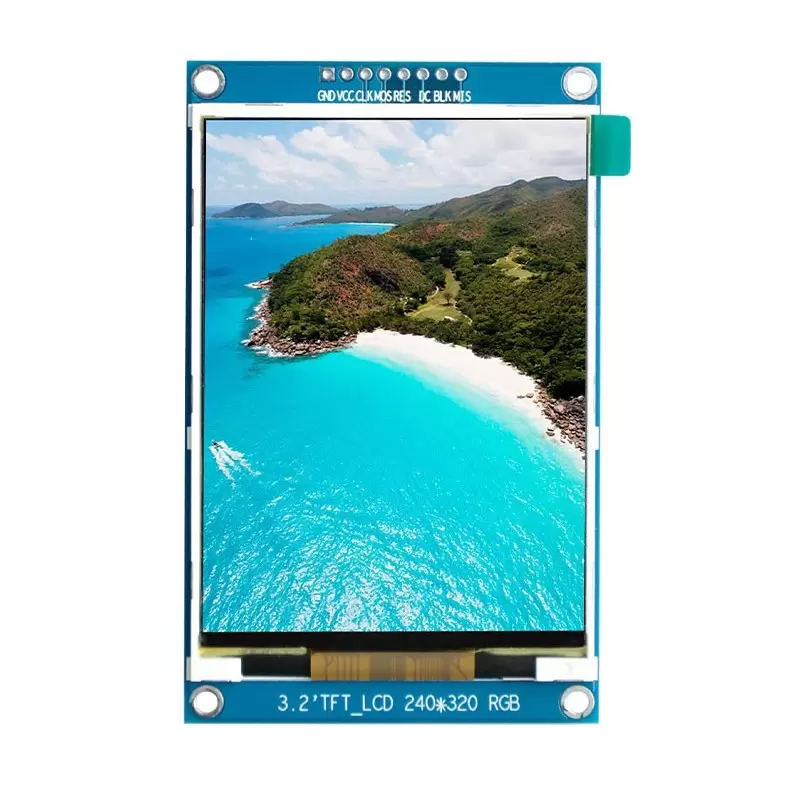

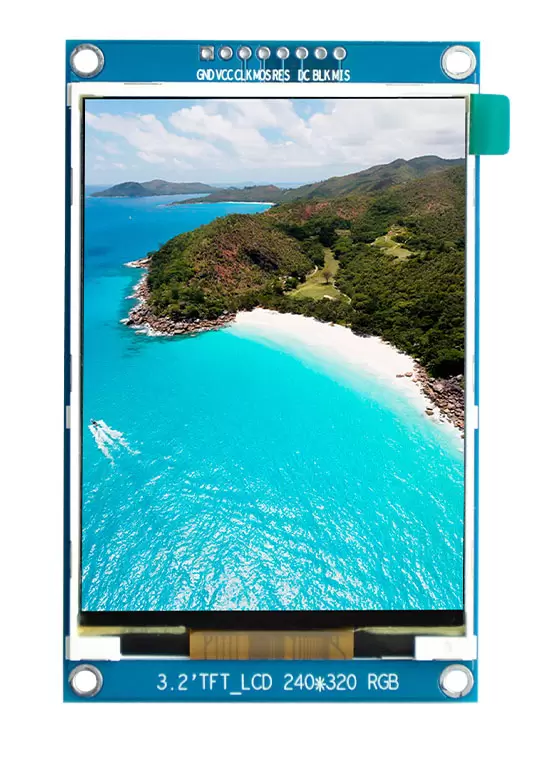

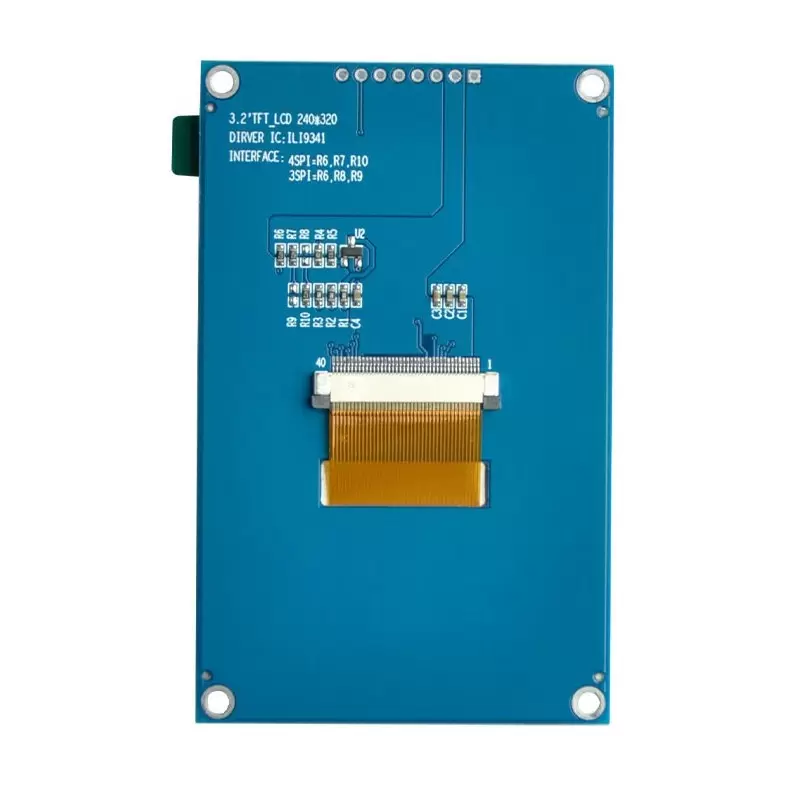

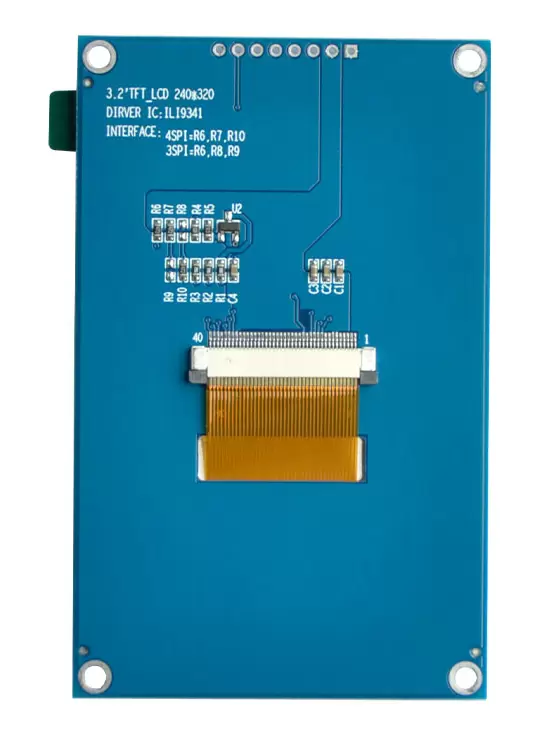

ماژول 3.2 اینچ بدون تاچ 3.2inch LCD display Module without touch - 240x320 - SPI - ILI9341

ماژول 3.2 اینچ بدون تاچ 3.2inch LCD display Module without touch و با رزولیشن 240x320 و Control chip ILI9341 و SPI Interface

Size: 3.2 inches
Material: TFT LCD
Resolution: 240xRGBx320 display direction can be adjusted, both horizontal and vertical screens
Control chip: ILI19341

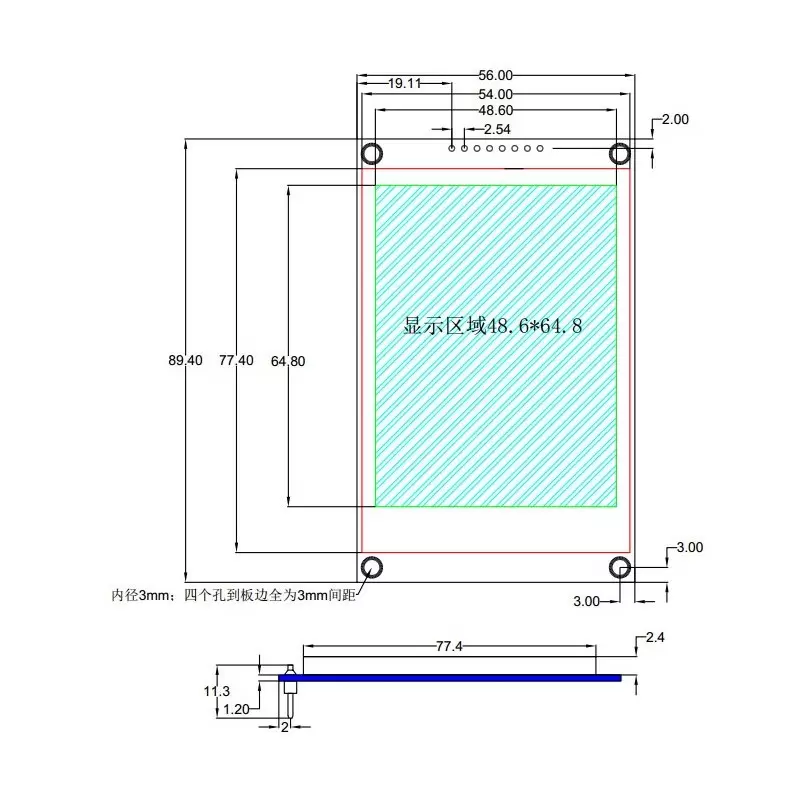

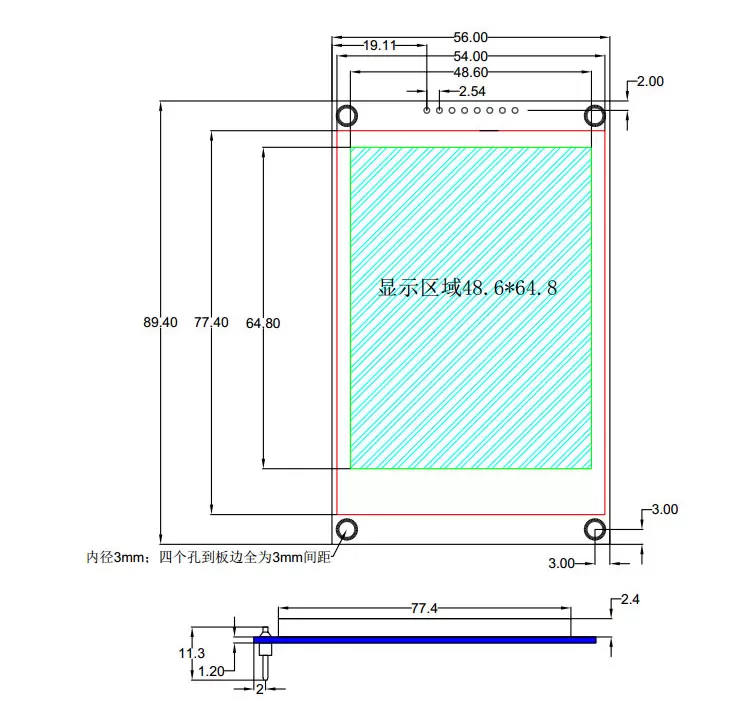

Display area: 48.60(W)*64.80 (H)mm
Dimensions: 56(W)*89.4(H)*3.6(T) mm
Interface type: 4-wire SPI interface / 3-wire SPI interface
Backlight type: LED*6
Voltage: 2.8V~3.3V
Current: 90ma
Power consumption: 0.32W
Working temperature: -20~70 degrees
Viewing direction: 12 o'clock
Touch type: without touch
Number of pins: 8PIN (2.54mm pitch single row pin header)
Working temperature: -20~70 degrees

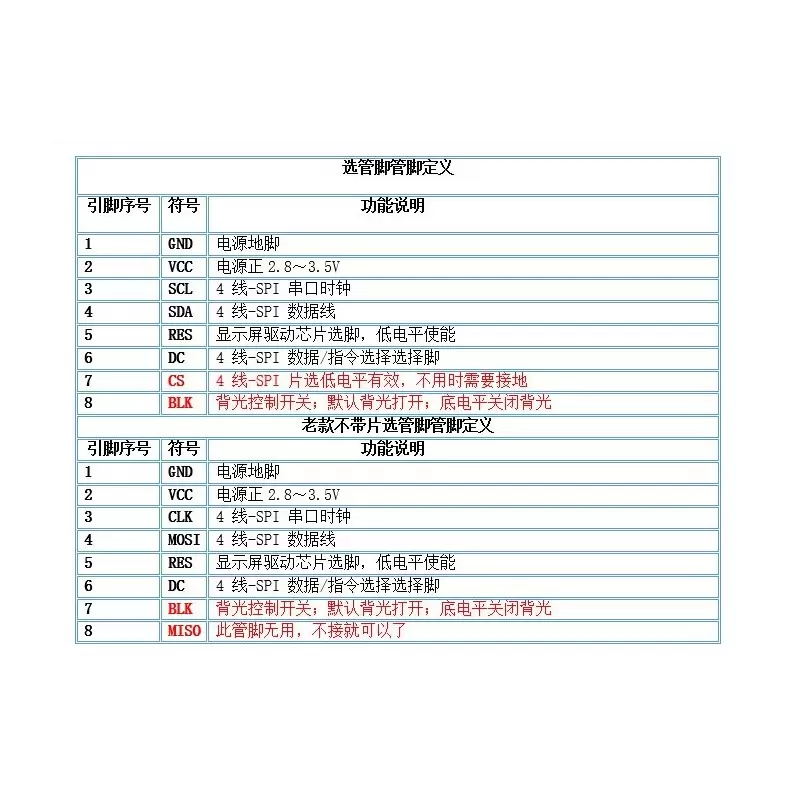

Pin number, Function description
Optional pin definition lead:
1. GND: power ground
2. VCC: Power supply positive 2.8~3.5V
3. SCL: 4-wire-SPI serial port clock
4. SDA: 4-wire-SPI data line
5. RES: Screen driver chip selection, low level enable
6.DC: Line-SPI data command selection
7. CS: 4-wire-SPI chip select active low, need to be grounded when not in use
8. BLK: backlight control switch: the default back is on; the bottom is flat to turn off the backlight

The old model does not have the chip selection tube definition:
1. GND: power ground
2. VCC: Power supply positive 2.8~3.5V
3. SLK: 4-wire-SPI serial port clock
4. MOSI: 4-wire-SPI data line
5. RES: Screen driver chip selection, low level enable
6.DC: 4-wire-SPI data command selection selection
7. BLK: backlight control switch; the default backlight is on; the bottom level turns off the backlight
8. MISO: The pin is useless, just don't connect it

محتوای مربوط به مثال و document:
مثال های 2.4 و 2.8 و 3.2 با درایور ILI9341 و 40 پین با کدهای منبع (1109-1053-1055-1046-1347-1048-1108) یکسان هست.

03-2.4-2.8-3.2 LCD program source code (ILI9341)
