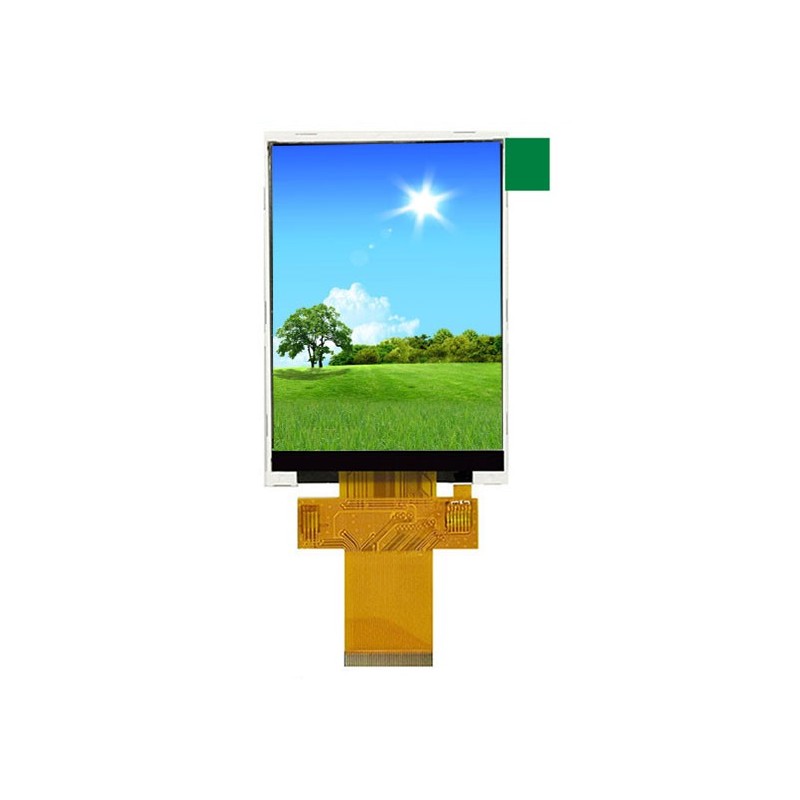

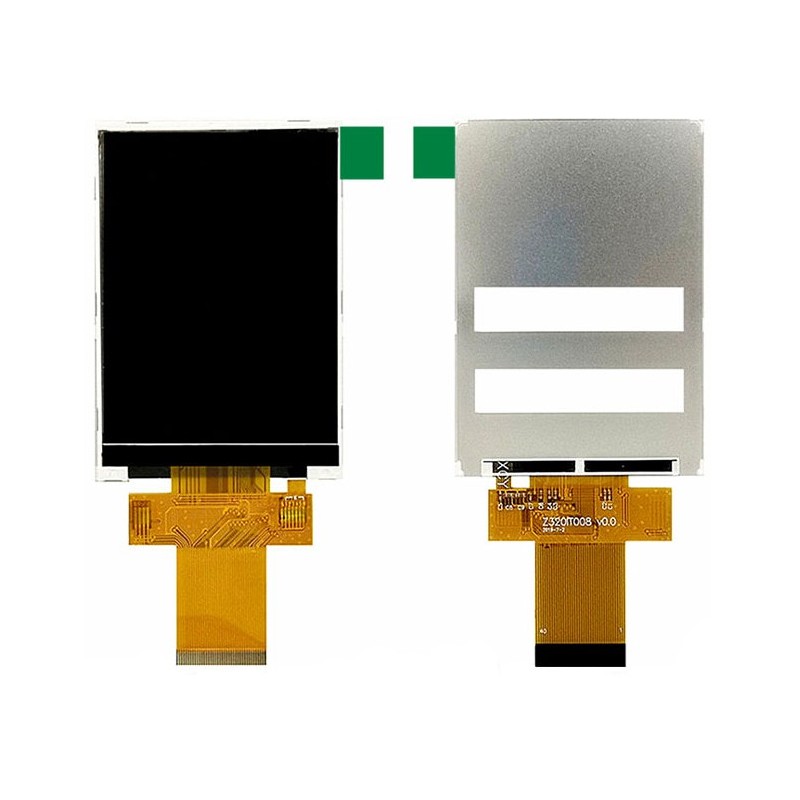

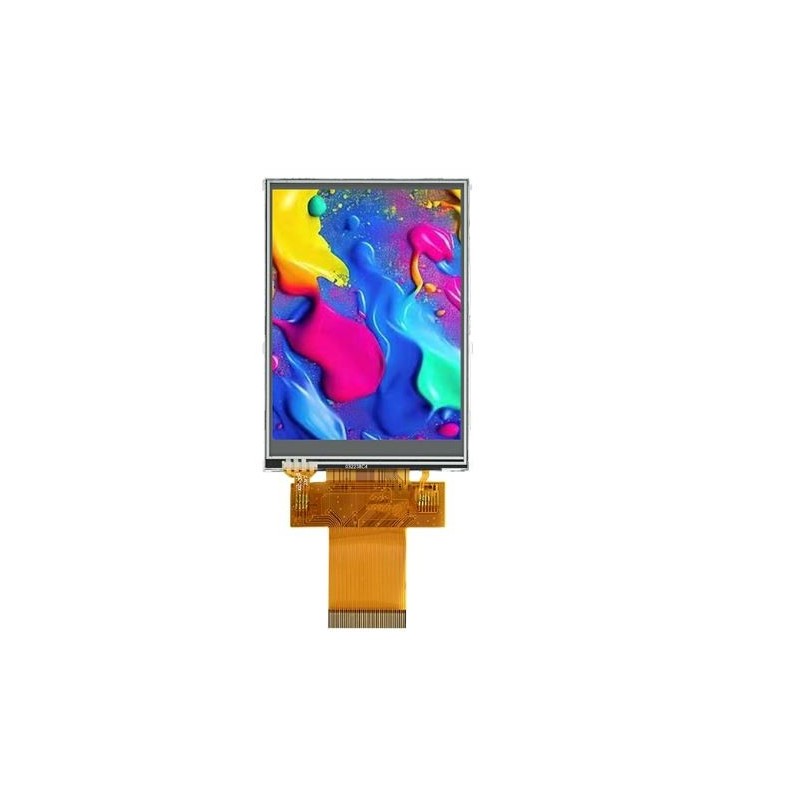

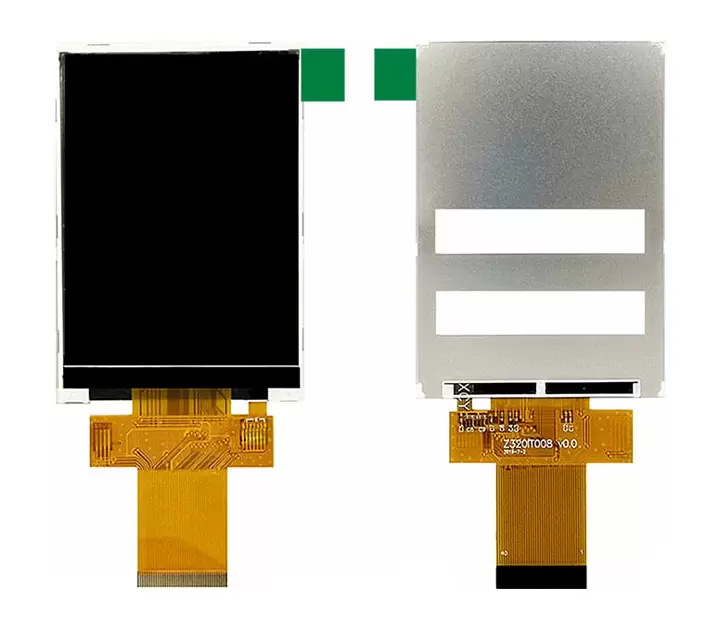

السیدی 3.2 اینچ با تاچ TFT LCD 3.2 inch with touch - 240x320 - SPI / Pararllel - ILI9341

السیدی 3.2 اینچ با تاچ TFT LCD 3.2 inch with touch و با رزولیشن 240x320 و Control chip ILI9341 و SPI/Parallel Interface

Size: 3.2 inches
Material: TFT LCD
Resolution: Resolution 240xRGBx320 display direction can be adjusted, both horizontal and vertical screens
Control chip: ILI19341

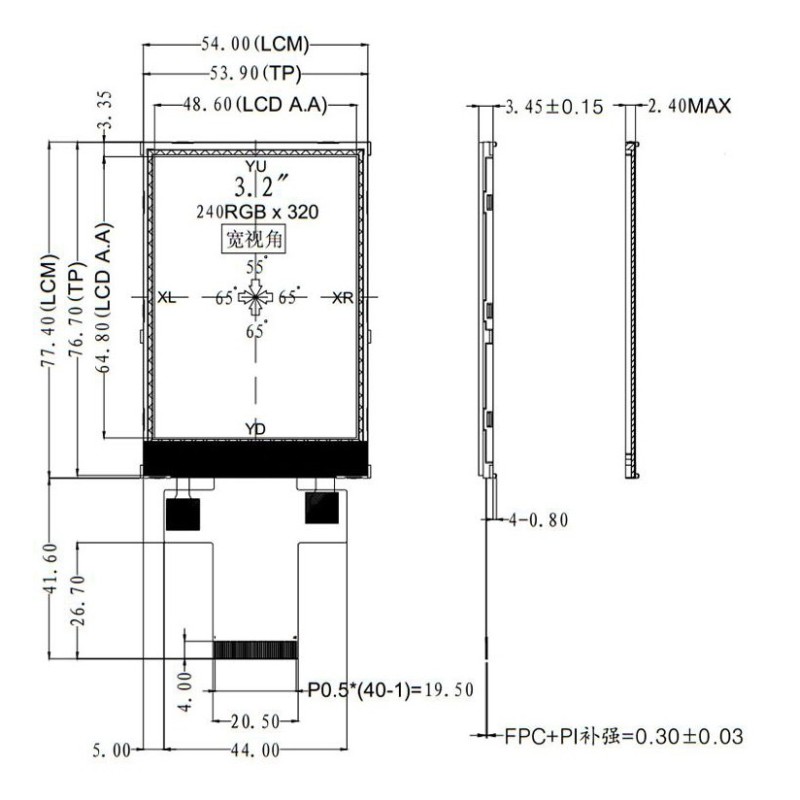

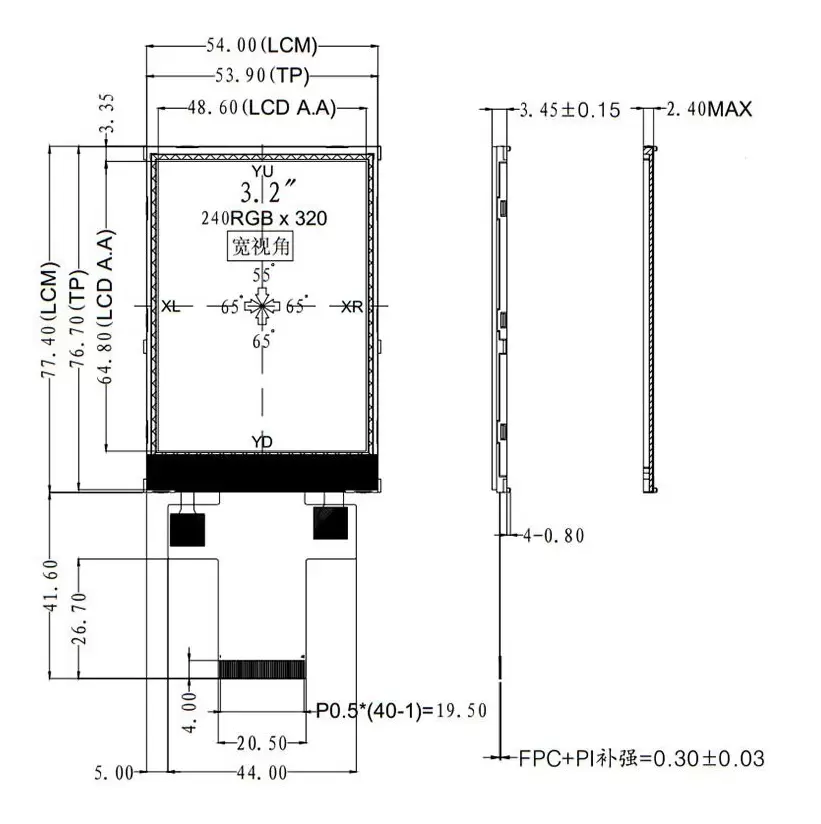

Display area: 48.6(W)*64.8(H)mm

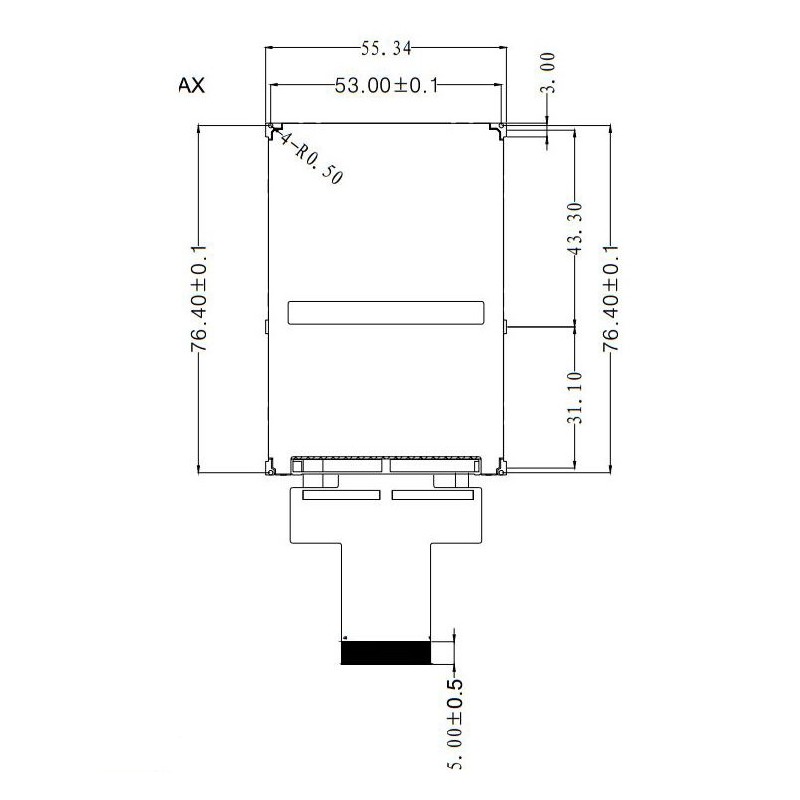

Dimensions:
                    54.00(W)*77.40(H)*2.40(T) (without touch)
                    54.00(W)*77.40(H)*3.70(T)(with touch)
                    (FPC not include)
Interface type: 3-wire serial/4-wire serial/8 bits /16bits parallel interface
Backlight type: LED*6
Voltage: 2.8V~3.3V
Current: 90ma
Power consumption: 0.32W
Working temperature: -20~70 degrees
Viewing direction: 12 o'clock

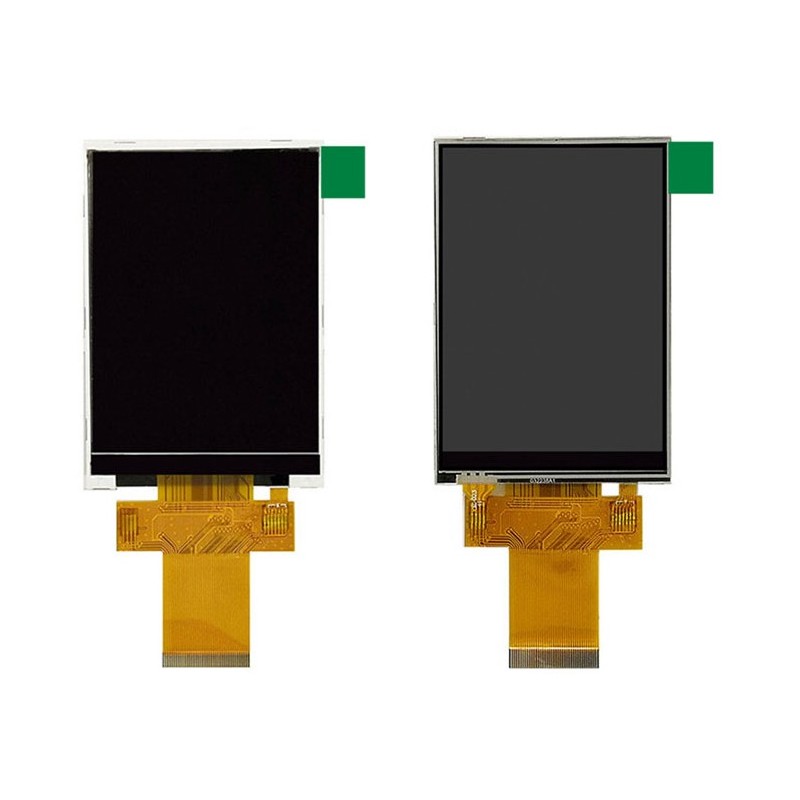

Touch type: with touch

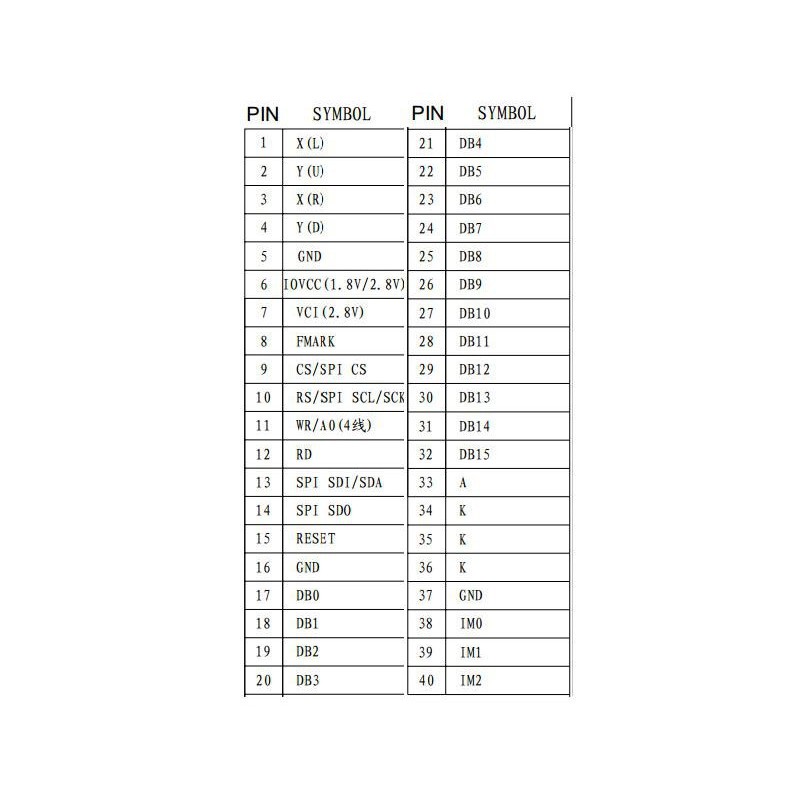

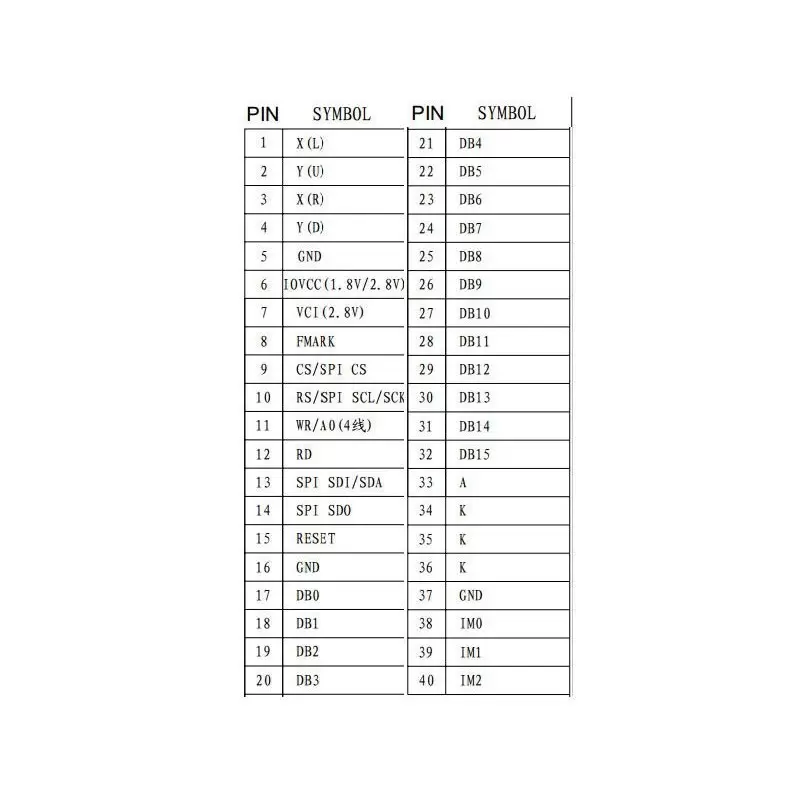

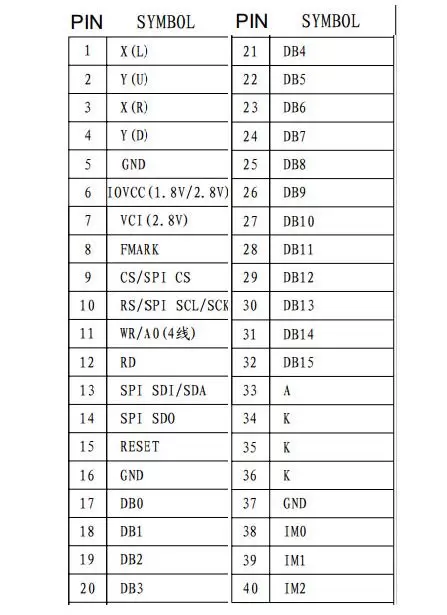

Number of pins: 40PIN(0.5mm pitch plug-in FPC)
Working temperature: -20~70 degrees

محتوای مربوط به مثال و document:
مثال های 2.4 و 2.8 و 3.2 با درایور ILI9341 و 40 پین با کدهای منبع (1109-1053-1055-1046-1347-1048-1108) یکسان هست.

03-2.4-2.8-3.2 LCD program source code (ILI9341)
