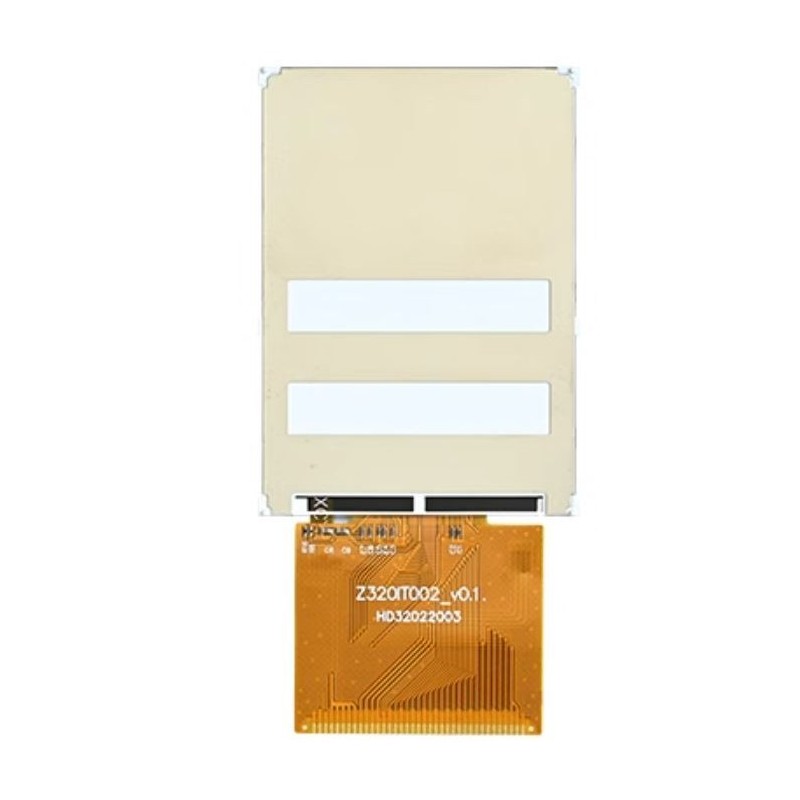

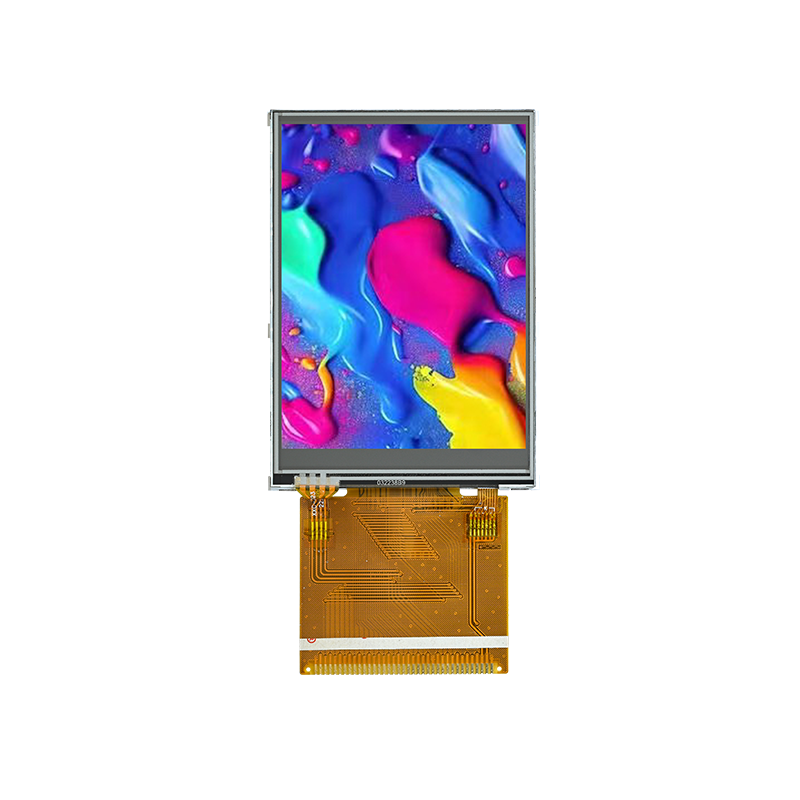

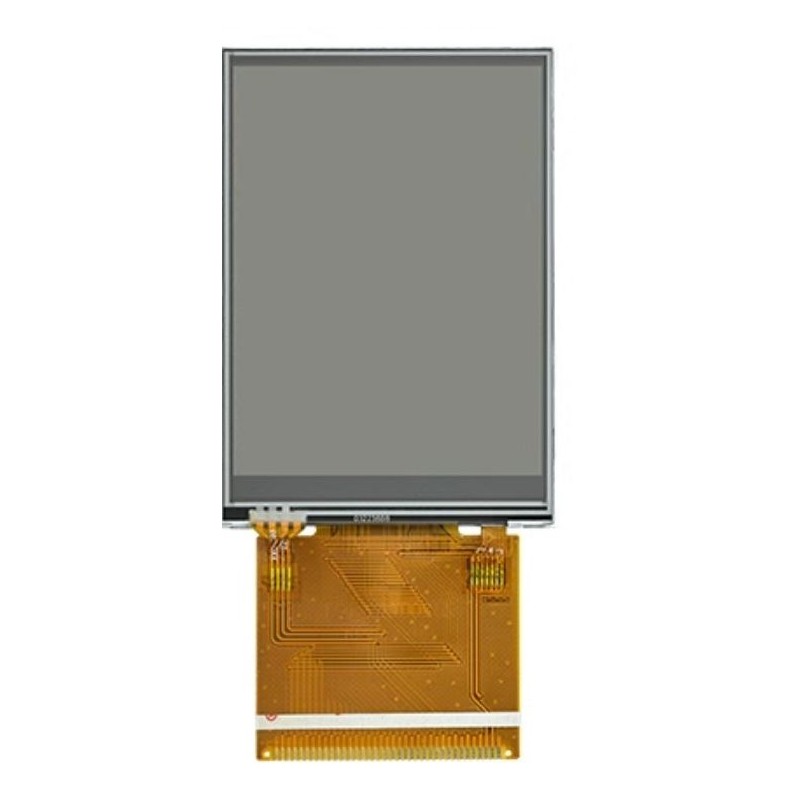

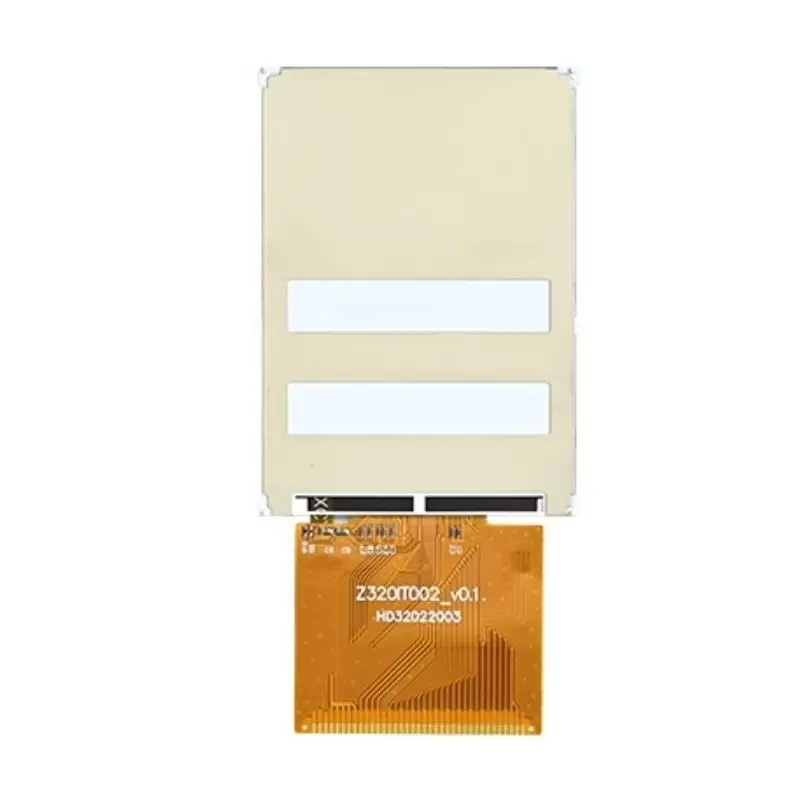

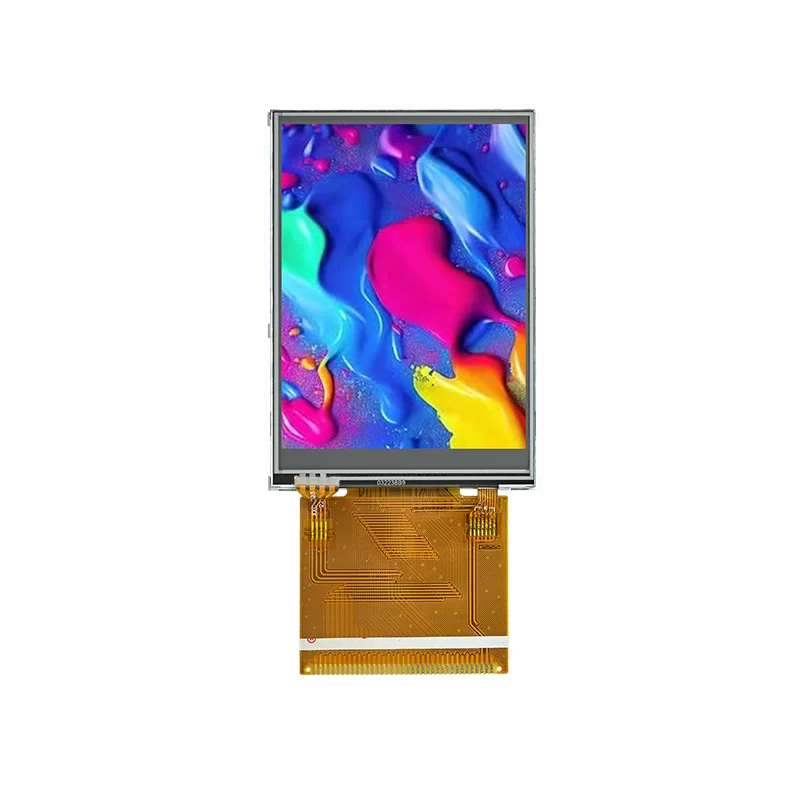

LCD TFT 3.2 INCH رنگی 3.2 اینچ با تاچ/8و16بیت TFT LCD 3.2 RGB 8 BIT-16 BIT 240x320 WITH TOUCH ST7789- اورجینال

LCD TFT 3.2 INCH  رنگی 3.2 اینچ با تاچ/8و16بیت  TFT LCD 3.2 RGB 8Bit-16Bit 240x320 with  TOUCH ST7789-  اورجینال

*Size:** 3.2 inches
**Material:** TFT LCD
*Resolution:** 240xRGBx320 (display orientation can be adjusted for both landscape and portrait modes)

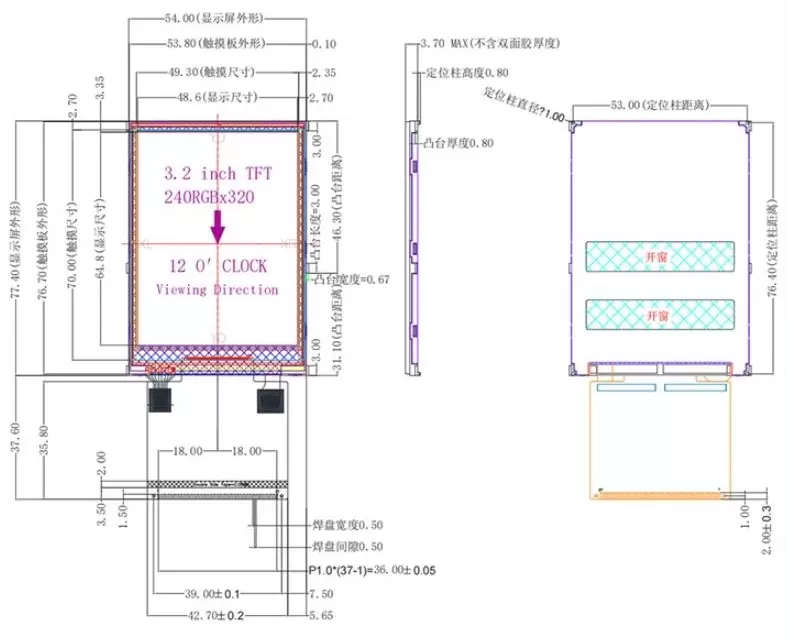

*Physical Dimensions:**
   Without touch: 54.00mm (W) x 77.40mm (H) x 2.40mm (T)
  Resistive touch: 54.00mm (W) x 77.40mm (H) x 3.70mm (T)
   Capacitive touch: 54.00mm (W) x 77.40mm (H) x 3.88mm (T)
*Active Area:** 48.60mm (W) x 64.80mm (H)
*Display Driver IC:** Optional IL19341 or ST7789
*Capacitive Touch IC:** GT911
*Interface Type:** MCU 16-bit parallel interface
*Backlight Type:** 6 LEDs
*Voltage:** 2.8V ~ 3.3V
*Current:** 90 mA
*Power Consumption:** 0.3W
*Touch Type:** Optional - No touch, Resistive touch, or Capacitive touch
*Operating Temperature:** -20°C to 70°C
*Storage Temperature:** -30°C to 80°C
*Viewing Direction:** 12 o'clock
*Pin Count:** 37 pins (1.0mm pitch, soldered FPC)

**Pin 1:** GND - Ground pin
**Pin 2:** RST - Reset signal for the capacitive touch screen
**Pin 3:** INT_3.3V - Interrupt signal for the capacitive touch screen
**Pin 4:** SDA - IIC_SDA signal for the capacitive touch screen
**Pin 5:** SCL - IIC_SCL signal for the capacitive touch screen
**Pin 6:** VCC_3.3V - Power supply pin (3.3V) for the capacitive touch screen

محتوای مربوط به مثال و document:

03-Program source code:
