آیسی اترنت W5500-Ethernet Interface IC 48P-LQFP -New and original+گارانتی

با خرید این محصول 1 امتیاز وفاداری. سبد شما در مجموع 1 امتیاز وفاداری که می تواند به کوپن تخفیف تبدیل شود به ارزش 5,000 ریال.


نظر و رتبه بندی مشتریان

4092000

محصول جدید

1,266,000 ریال

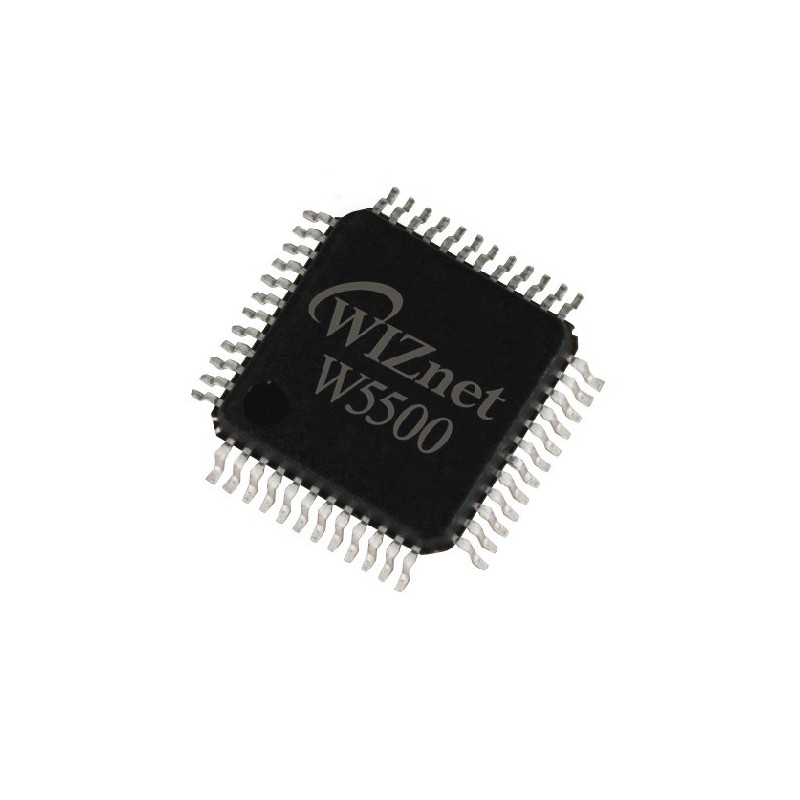

 W5500-Ethernet Interface IC 48P-LQFP

آیسی اترنت شبکه W5500 -3.3V پکیج LQFP-48-

Overview:
    Latest Addition to Popular Line of  ‘Internet Offload’ Ethernet Chips
    Hardware TCP/IP Performance and Ease of Use to Low-Cost ‘IoT’ Applications
    High Speed SPI

The W5500 chip is a Hardwired TCP/IP embedded Ethernet controller that enables easier internet connection for embedded systems using SPI (Serial Peripheral Interface).W5500 suits users in need of stable internet connectivity best, using a single chip to implement TCP/IP Stack, 10/100 Ethernet MAC and PHY. Hardwired TCP/IP stack supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE, …, which has been proven through various applications over many years. W5500 uses a 32Kbytes internal buffer as its data communication memory.
By using W5500, users can implement the Ethernet application they need by using a simple socket program instead of handling a complex Ethernet Controller. It is possible to use 8 independent hardware sockets simultaneously. SPI (Serial Peripheral Interface) is provided for easy integration with the external MCU. The W5500 SPI supports 80 MHz speed and the new efficient SPI protocol, so users can implement high speed network communication. In order to reduce power consumption of the system, W5500 provides WOL (Wake on LAN) and a power down mode.

Features:
    Supports following Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
    Supports 8 independent sockets simultaneously
    Supports Power down mode
    Supports Wake on LAN over UDP
    Supports High Speed Serial Peripheral Interface(SPI MODE 0, 3)
    Internal 32Kbytes Memory for Tx/Rx Buffers
    10BaseT/100BaseTX Ethernet PHY embedded
    Support Auto Negotiation (Full and half duplex, 10 and 100-based)
    Not support IP Fragmentation
    3.3V operation with 5V I/O signal tolerance
    LED outputs (Full/Half duplex, Link, Speed, Active)
    48 Pin LQFP Lead-Free Package (7x7mm, 0.5mm pitch)

اطلاعات بیشتر را از این سایت میتوانید دریافت کنید
