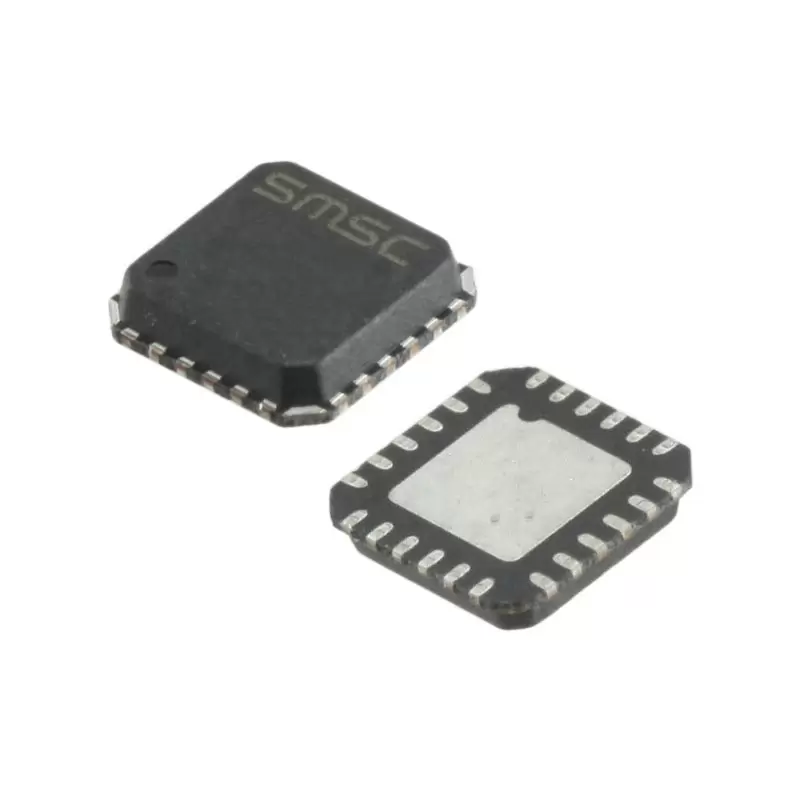

آیسی LAN8720A-CP-TR /آیسی شبکه/اورجینال

آیسی شبکه مورد استفاده شده در برد LPC1788

 LAN8720AI-CP-TR Part Details & Parametric
EU RoHS
Compliant
Power Supply Type     Analog|Digital
Standard Supported     10BASE-T|100BASE-TX|IEEE 802.3
Maximum Data Rate     100Mbps
Typical Data Rate (Mbps)     10/100
Number of Channels per Chip     1
UTOPIA Level     No
Integrated CDR     No
JTAG Support     No
Typical Operating Supply Voltage (V)     2.5|3.3
Minimum Operating Supply Voltage (V)     1.14|2.25|3
Maximum Operating Supply Voltage (V)     1.26|3.6
Minimum Operating Temperature (°C)     -40
Maximum Operating Temperature (°C)     85
Screening Level     Industrial
Packaging     Tape and Reel
Mounting     Surface Mount
Package Height (mm)     0.85(Max)
Package Length (mm)     4
Package Width (mm)     4
PCB     24
Standard Package Name     QFN
Supplier Package     QFN
Pin Count     24
Lead Shape     No Lead
Taxonomy     Communication » Protocols and Networks » PHY
