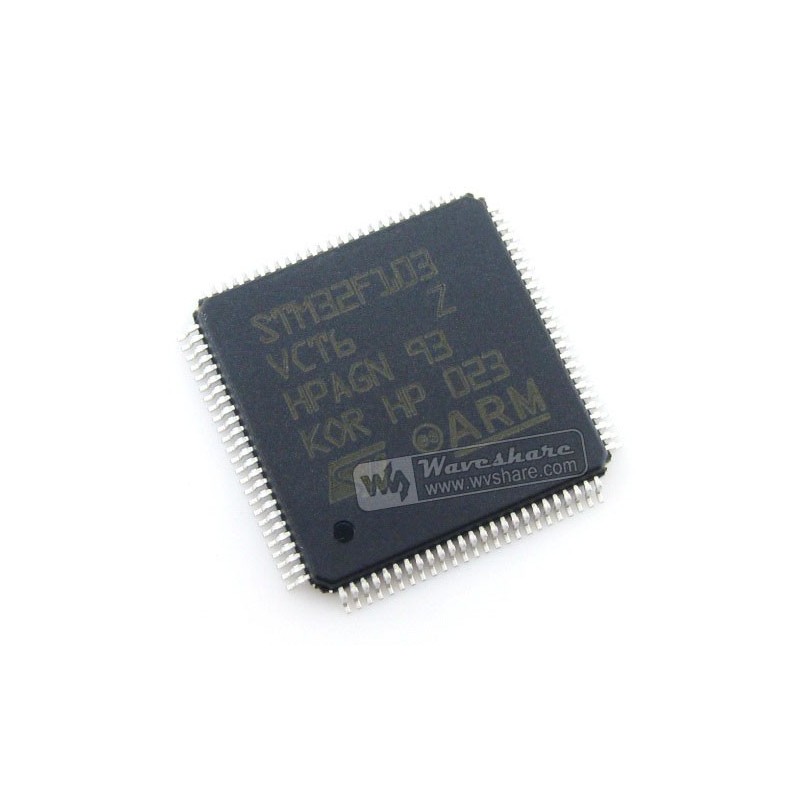

میکروکنترلر stm32f103vct6 /اورجینال- New and original+گارانتی

میکروکنترلر stm32 ARM Cortex M3 میکروکنترلر stm32f103vct6 /اورجینال

STM32F103VCT6 Part Details & Parametric

EU RoHS
Compliant
Data Bus Width (bit)     32
CECC Qualified     No
Core Architecture     ARM
Instruction Set Architecture     RISC
Device Core     ARM Cortex M3
Maximum Clock Rate (MHz)     72
Number of ADCs     Triple
Program Memory Type     Flash
Number of DACs     Dual
Program Memory Size     256KB
RAM Size     48KB
Family Name     STM32F1
Number of I/Os     80
No. of Timers     8
ADC Channels     16/16/16
ADC Resolution     12/12/12
DAC Channels     2/2
DAC Resolution     12/12
Pin Count     100
Programmability     Yes
SPI     3
I2C     2
USART     5
CAN     1
USB     1
Max. Speed (MHz)     72
Minimum Operating Supply Voltage (V)     2
Typical Operating Supply Voltage (V)     2.5|3.3
Packaging     Tray
Maximum Operating Supply Voltage (V)     3.6
Minimum Operating Temperature (°C)     -40
Maximum Operating Temperature (°C)     85
Standard Package Name     QFP
Supplier Package     LQFP
Military Qualified     No
Lead Shape     Gull-wing
Mounting     Surface Mount
Package Height (mm)     1.4
Package Length (mm)     14
Package Width (mm)     14
PCB     100
Standard Package Name     QFP
Supplier Package     LQFP
Pin Count     100
