میکروکنترلر STM32F411CEU6 اورجینال New and original + گارانتی

میکروکنترلر STM32F411CEU6 اورجینال  New and original + گارانتی

The STM32F411xC/xE devices are based on the high-performance Arm® Cortex® -M4 32-bit RISC core operating at a frequency of up to 100 MHz. The Cortex®-M4 core features a Floating point unit (FPU) single precision which supports all Arm single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

The STM32F411xC/xE belongs to the STM32 Dynamic Efficiency™ product line (with products combining power efficiency, performance and integration) while adding a new innovative feature called Batch Acquisition Mode (BAM) allowing to save even more power consumption during data batching.
The STM32F411xC/xE incorporate high-speed embedded memories (up to 512 Kbytes of Flash memory, 128 Kbytes of SRAM), and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB bus and a 32-bit multi-AHB bus matrix.
All devices offer one 12-bit ADC, a low-power RTC, six general-purpose 16-bit timers including one PWM timer for motor control, two general-purpose 32-bit timers. They also feature standard and advanced communication interfaces.
The STM32F411xC/xE operate in the - 40 to + 125 °C temperature range from a 1.7 (PDR OFF) to 3.6 V power supply. A comprehensive set of power-saving mode allows the design of low-power applications.
These features make the STM32F411xC/xE microcontrollers suitable for a wide range of applications.

Detailed Description

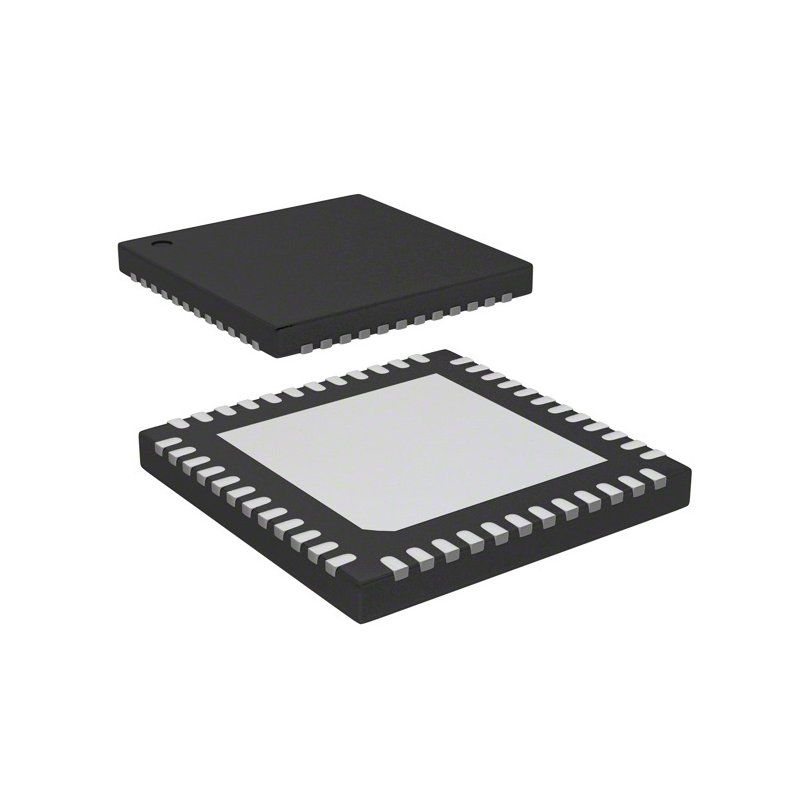

    ARM® Cortex®-M4 STM32F4 Microcontroller IC 32-Bit 100MHz 512KB (512K x 8) FLASH 48-UFQFPN (7x7)

Description
    IC MCU 32BIT 512KB FLSH 48UFQFPN

Category
    Integrated Circuits (ICs)Embedded - Microcontrollers

Mfr
    STMicroelectronics

Series
    STM32F4

Part Status
    Active

Core Processor
    ARM® Cortex®-M4

Core Size
    32-Bit

Speed
    100MHz

Connectivity
    I²C, IrDA, LINbus, MMC/SD/SDIO, SPI, UART/USART, USB OTG

Peripherals
    Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT

Program Memory Size
    512KB (512K x 8)

Program Memory Type
    FLASH

EEPROM Size
    -

RAM Size
    128K x 8

Voltage - Supply (Vcc/Vdd)
    1.7V ~ 3.6V

Data Converters
    A/D 10x12b

Oscillator Type
    Internal

Operating Temperature
    -40°C ~ 85°C (TA)

Mounting Type
    Surface Mount

Package / Case
    48-UFQFN Exposed Pad

Supplier Device Package
    48-UFQFPN (7x7)

Number of I/O
    36

Base Product Number
    STM32F411
