میکروکنترلر STM32F042F6P6 /اورجینال- New and original+گارانتی

هیچ امتیاز پاداش برای این محصول وجود ندارد.


نظر و رتبه بندی مشتریان

9060000

محصول جدید

140,000 ریال

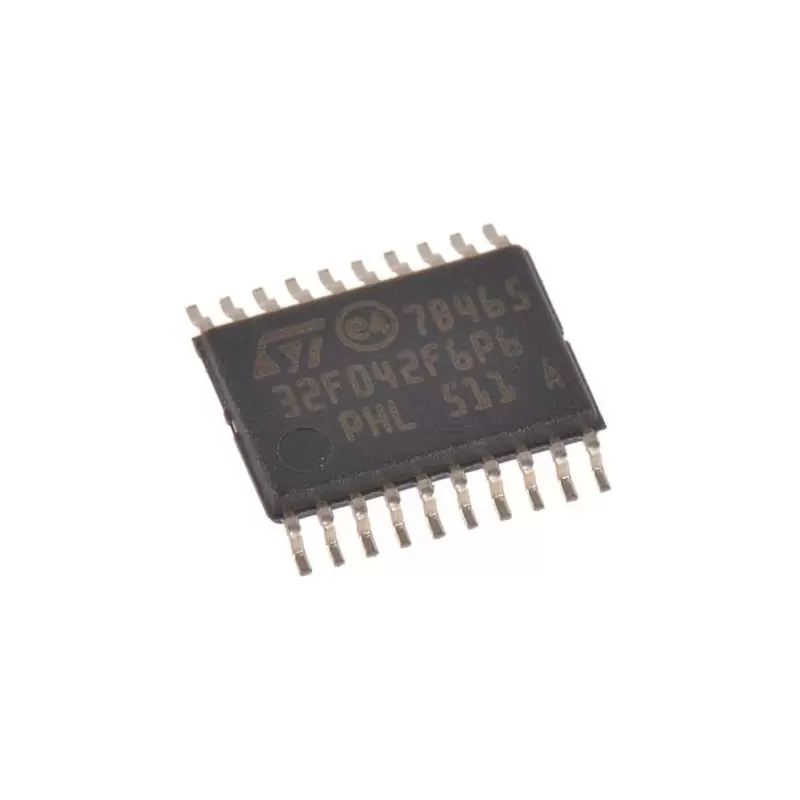

میکروکنترلر STM32F042F6P6 /اورجینال

میکروکنترلر STM32F042F6P6 /اورجینال

Product Details
STM32F04 Series Microcontrollers, STMicroelectronics

RISC Core: ARM 32-bit Cortex-M0 CPU, frequency up to 48MHz
CRC calculation unit
Reset and power management
Clock management
Up to 37 fast Inputs/Outputs
5-channel DMA controller
8 Timers
Communication interfaces: I2C, USART, SPI, CAN, USB 2.0 full-speed
STM32F0 Series 32-Bit ARM® Cortex®-M0 Microcontrollers, STMicroelectronics

The STM32 F0 Series of the 32-bit Flash Microcontrollers (MCUs) is based on the ARM Cortex™-M0 core; a core specifically developed for embedded applications. STMicroelectronics’s STM32 ARM Cortex™ M processor benefits from the Cortex-M0 architectural enhancements including digital signal processing, real-time performance, low voltage and low power. ST’s ARM® STM32 F0 mainstream series delivers a 32-bit performance and is ideal for small projects or platform decisions with its easy to use functionality.
Specifications
Attribute :
    Value
Family Name :
    STM32F
Package Type :
    TSSOP
Mounting Type:
     Surface Mount
Pin Count :
    20
Device Core :
  ARM Cortex M0
Data Bus Width:
     32bit
Program Memory Size :
    32 kB
Maximum Frequency :
    48MHz
RAM Size :
    6 kB
USB Channels:
     1
Number of PWM Units:
     1
ADC Channels :
    10
Number of SPI Channels:
     1
Typical Operating Supply Voltage :
    2 → 3.6 V
Timer Resolution :
    16 bit, 32 bit
Timers :
    1 x 32 bit, 5 x 16 bit
Minimum Operating Temperature :
    -40 °C
Number of I2C Channels:
     2
PWM Channels :
    6
Number of USART Channels :
    2
Number of ADC Units:
     1
ADC Resolution:
     12bit
Height :
    1.05mm
Maximum Operating Temperature :
    +85 °C
Pulse Width Modulation :
    1 (6 x 16 bit)
Length:
     6.6mm
Dimensions :
    6.6 x 4.5 x 1.05mm
PWM Resolution :
    16bit
Instruction Set Architecture :
    RISC
ADCs :
    1 (10 x 12 bit)
Width :
    4.5mm
Program Memory Type :
    Flash
Number of CAN Channels:
     1
Number of Timers:
     6
