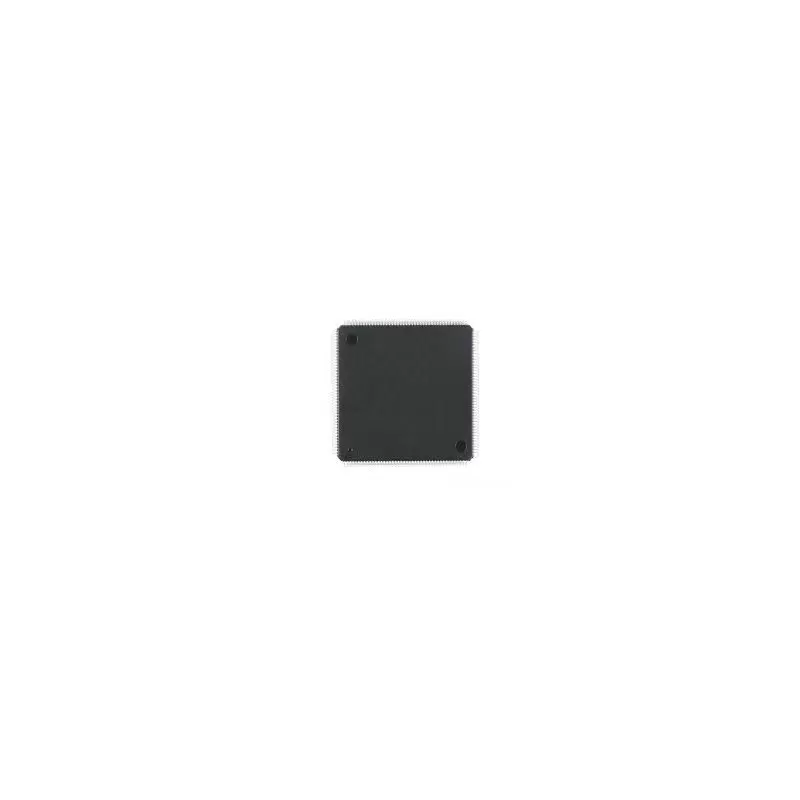

میکروکنترلر STM32H747IIT6 اورجینال-New and original+گارانتی

میکروکنترلر STM32H747IIT6 - اورجینال-New and original+گارانتی

STM32H747xI/G devices are based on the high-performance Arm® Cortex®-M7 and Cortex®-M4 32-bit RISC cores. The Cortex®-M7 core operates at up to 480 MHz and the Cortex®-M4 core at up to 240 MHz. Both cores feature a floating point unit (FPU) which supports Arm® single- and double-precision (Cortex®-M7 core) operations and conversions (IEEE 754 compliant), including a full set of DSP instructions and a memory protection unit (MPU) to enhance application security.

STM32H747xI/G devices incorporate high-speed embedded memories with a dual-bank Flash memory of up to 2 Mbytes, up to 1 Mbyte of RAM (including 192 Kbytes of TCM RAM, up to 864 Kbytes of user SRAM and 4 Kbytes of backup SRAM), as well as an extensive range of enhanced I/Os and peripherals connected to APB buses, AHB buses, 2x32-bit multi-AHB bus matrix and a multi layer AXI interconnect supporting internal and external memory access.
All the devices offer three ADCs, two DACs, two ultra-low power comparators, a low-power RTC, a high-resolution timer, 12 general-purpose 16-bit timers, two PWM timers for motor control, five low-power timers, a true random number generator (RNG). The devices support four digital filters for external sigma-delta modulators (DFSDM). They also feature standard and advanced communication interfaces.

Key Features

    Dual core
        32-bit Arm® Cortex®-M7 core with double-precision FPU and L1 cache: 16 Kbytes of data and 16 Kbytes of instruction cache; frequency up to 480 MHz, MPU, 1027 DMIPS/ 2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
        32-bit Arm® 32-bit Cortex®-M4 core with FPU, Adaptive real-time accelerator (ART Accelerator™) for internal Flash memory and external memories, frequency up to 240 MHz, MPU, 300 DMIPS/1.25 DMIPS /MHz (Dhrystone 2.1), and DSP instructions
    Memories
        Up to 2 Mbytes of Flash memory with read-while-write support
        1 Mbyte of RAM: 192 Kbytes of TCM RAM (inc. 64 Kbytes of ITCM RAM + 128 Kbytes of DTCM RAM for time critical routines), 864 Kbytes of user SRAM, and 4 Kbytes of SRAM in Backup domain
        Dual mode Quad-SPI memory interface running up to 133 MHz
        Flexible external memory controller with up to 32-bit data bus: SRAM, PSRAM, SDRAM/LPSDR SDRAM, NOR/NAND Flash memory clocked up to 125 MHz in Synchronous mode
        CRC calculation unit
    Security
        ROP, PC-ROP, active tamper
    General-purpose input/outputs
        Up to 168 I/O ports with interrupt capability
    Reset and power management
        3 separate power domains which can be independently clock-gated or switched off:
            D1: high-performance capabilities
            D2: communication peripherals and timers
            D3: reset/clock control/power management
        1.62 to 3.6 V application supply and I/Os
        POR, PDR, PVD and BOR
        Dedicated USB power embedding a 3.3 V internal regulator to supply the internal PHYs
        Embedded regulator (LDO) to supply the digital circuitry
        High power-efficiency SMPS step-down converter regulator to directly supply VCORE and/or external circuitry
        Voltage scaling in Run and Stop mode (6 configurable ranges)
        Backup regulator (~0.9 V)
        Voltage reference for analog peripheral/VREF+
        1.2 to 3.6 V VBAT supply
        Low-power modes: Sleep, Stop, Standby and VBAT supporting battery charging
    Low-power consumption
        VBAT battery operating mode with charging capability
        CPU and domain power state monitoring pins
        2.95 μA in Standby mode (Backup SRAM OFF, RTC/LSE ON)
    Clock management
        Internal oscillators: 64 MHz HSI, 48 MHz HSI48, 4 MHz CSI, 32 kHz LSI
        External oscillators: 4-48 MHz HSE, 32.768 kHz LSE
        3× PLLs (1 for the system clock, 2 for kernel clocks) with Fractional mode
    Interconnect matrix

    4 DMA controllers to unload the CPU
        1× high-speed master direct memory access controller (MDMA) with linked list support
        2× dual-port DMAs with FIFO
        1× basic DMA with request router capabilities
    Up to 35 communication peripherals
        4× I2Cs FM+ interfaces (SMBus/PMBus)
        4× USARTs/4x UARTs (ISO7816 interface, LIN, IrDA, up to 12.5 Mbit/s) and 1x LPUART
        6× SPIs, 3 with muxed duplex I2S audio class accuracy via internal audio PLL or external clock, 1x I2S in LP domain (up to 150 MHz)
        4x SAIs (serial audio interface)
        SPDIFRX interface
        SWPMI single-wire protocol master I/F
        MDIO Slave interface
        2× SD/SDIO/MMC interfaces (up to 125 MHz)
        2× CAN controllers: 2 with CAN FD, 1 with time-triggered CAN (TT-CAN)
        2× USB OTG interfaces (1FS, 1HS/FS) crystal-less solution with LPM and BCD
        Ethernet MAC interface with DMA controller
        HDMI-CEC
        8- to 14-bit camera interface (up to 80 MHz)
    11 analog peripherals
        3× ADCs with 16-bit max. resolution (up to 36 channels, up to 3.6 MSPS)
        1× temperature sensor
        2× 12-bit D/A converters (1 MHz)
        2× ultra-low-power comparators
        2× operational amplifiers (7.3 MHz bandwidth)
        1× digital filters for sigma delta modulator (DFSDM) with 8 channels/4 filters
    Graphics
        LCD-TFT controller up to XGA resolution
        MIPI DSI host including an MIPI D-PHY to interface with low-pin count large displays
        Chrom-ART graphical hardware Accelerator™ (DMA2D) to reduce CPU load
        Hardware JPEG Codec
    Up to 22 timers and watchdogs
        1× high-resolution timer (2.1 ns max resolution)
        2× 32-bit timers with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input (up to 240 MHz)
        2× 16-bit advanced motor control timers (up to 240 MHz)
        10× 16-bit general-purpose timers (up to 240 MHz)
        5× 16-bit low-power timers (up to 240 MHz)
        4× watchdogs (independent and window)
        2× SysTick timers
        RTC with sub-second accuracy and hardware calendar
    Debug mode
        SWD & JTAG interfaces
        4-Kbyte Embedded Trace Buffer
    True random number generators (3 oscillators each)
    96-bit unique ID
