وضعیت موجودی محصول


توضیحات

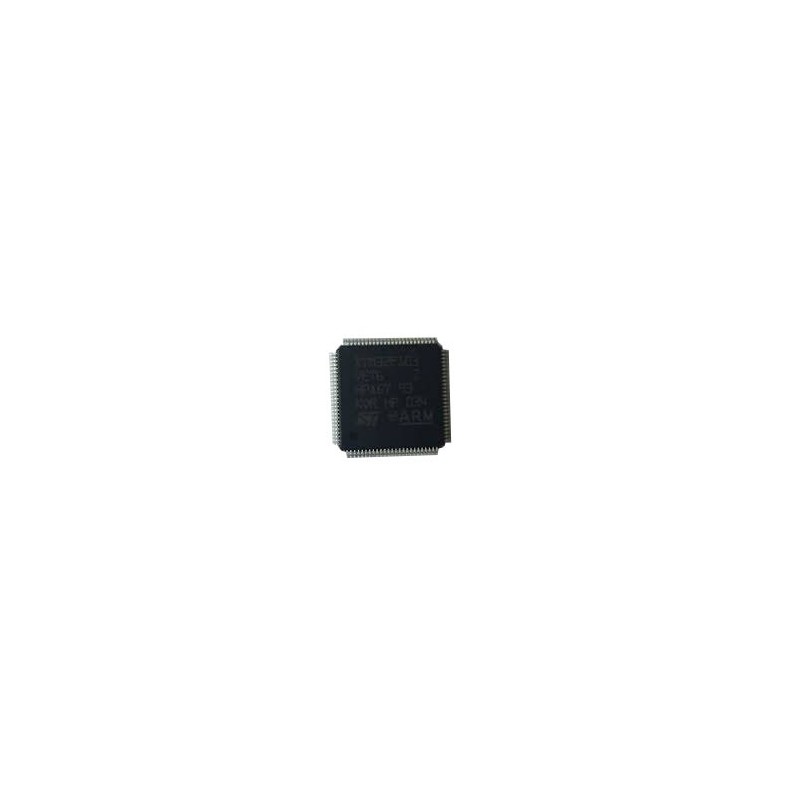

میکروکنترلر STM32F373C8T6 / اورجینال - New and original+گارانتی

با خرید این محصول 3 امتیاز وفاداری. سبد شما در مجموع 3 امتیاز وفاداری که می تواند به کوپن تخفیف تبدیل شود به ارزش 15,000 ریال.


نظر و رتبه بندی مشتریان

4336000

محصول جدید

3,053,000 ریال

 16Bit Sigma Delta ADC, ARM Cortex-M4F, 32bit, 72 MHz, 64 KB, 16 KB, 48 Pins

میکروکنترلرصد درصد new و اورجینال

Product Overview
The STM32F373C8T6 is a 32-bit 64kB flash ARM®Cortex® -M4 Microcontroller Unit offers digital signal processing (DSP) and floating point unit (FPU). It offers one fast 12-bit ADC, three 16-bit sigma delta ADCs and two comparators, two DACs, a low-power RTC and 9 general-purpose 16-bit timers, two general-purpose 32-bit timers and three basic timers. It features standard and advanced communication interfaces two I²Cs, three SPIs, all with muxed I²Ss, three USARTs, CAN and USB. It incorporates high-speed embedded memories and an extensive range of enhanced I/Os and peripherals connected to two APB buses.

    CRC calculation unit
    Reset and power management - Power-ON/power DOWN reset (POR/PDR)
    Programmable voltage detector
    Low-power - Sleep, stop and standby
    VBAT supply for RTC and backup registers
    12-channel DMA controller
    Independent and system watchdog timers
    SysTick timer - 24-bit down counter
    Calendar RTC with alarm and periodic wakeup from stop/standby
    Serial wire devices, JTAG, Cortex®-M4 ETM

    96-bit Unique ID

ESD sensitive device, take proper precaution while handling the device.

Product Information
Architecture: ARM Cortex-M4F
No. of Bits:32bit
CPU Speed: 72MHz
Program Memory Size:64KB
RAM Memory Size: 16KB
No. of Pins: 48Pins
MCU Case Style: LQFP
No. of I/O's:36I/O's
Embedded Interface Type: CAN, I2C, SPI, UART, USART, USB
Supply Voltage Min: 2V
Supply Voltage Max:3.6V
Packaging: Each
Product Range: STM32 F3 ARM Cortex-M4 Microcontrollers
MSL: MSL 3 - 168 hours
SVHC: No SVHC (17-Dec-2015) .

سری میکروCortex-M4
سرعت میکرو72MHz
حافظه میکرو64KB (64K x 8)
رم میکرو16K x 8
پکیج میکرو48LQFP
تعداد ورودی خروجی36
